New program in FORZA 614 for Ford F150 Dashboard after 2021 with RH850
Hey everyone!
Today on the workbench we have another Ford joining the FORZA 614 menu, and this one comes straight from our customers' wish lists. The Ford F-150 2021+ instrument cluster runs on a single Renesas RH850 microcontroller, the R7F701441. It's one of the most requested dashboards from workshops in the US and Canada, and with the number of F-150s on the road over there, adding it was an easy call.
Ford F150 R7f701441 bench connection | FORZA 614
Below you'll find what's inside the unit, how to wake it up fully on the bench, what FORZA 614 can program in it, and where to find the F150 dashboard pinout.

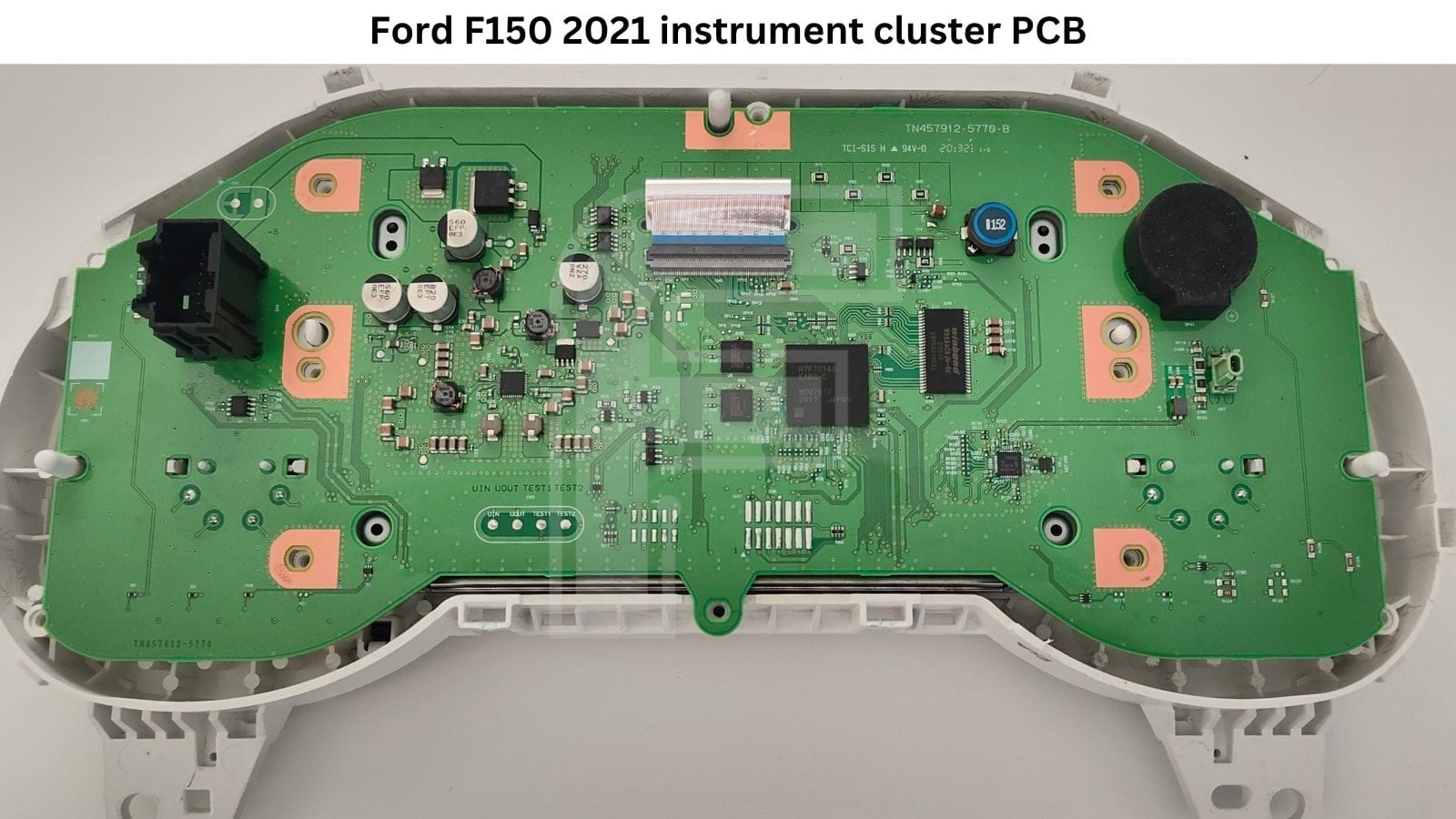

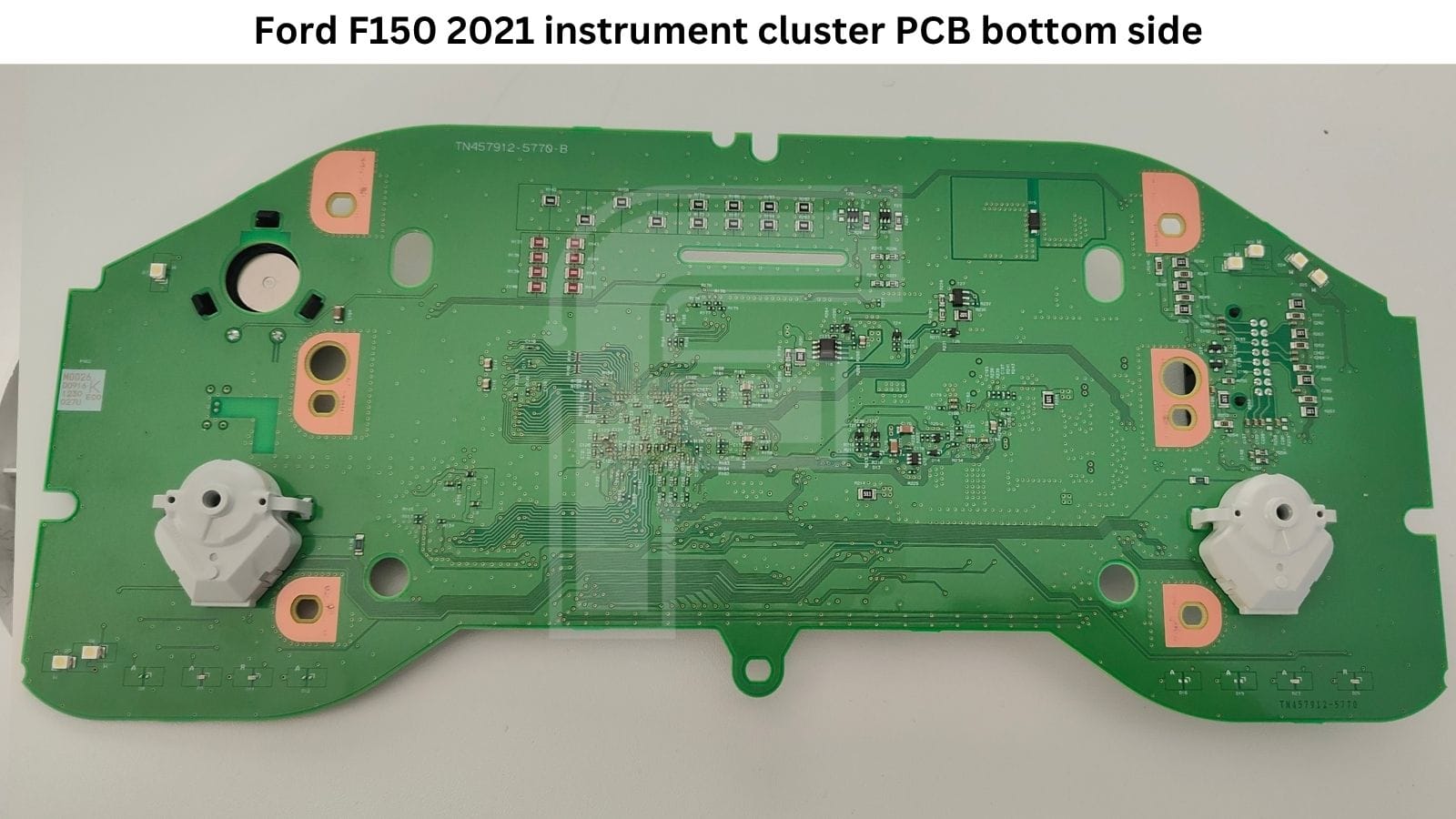

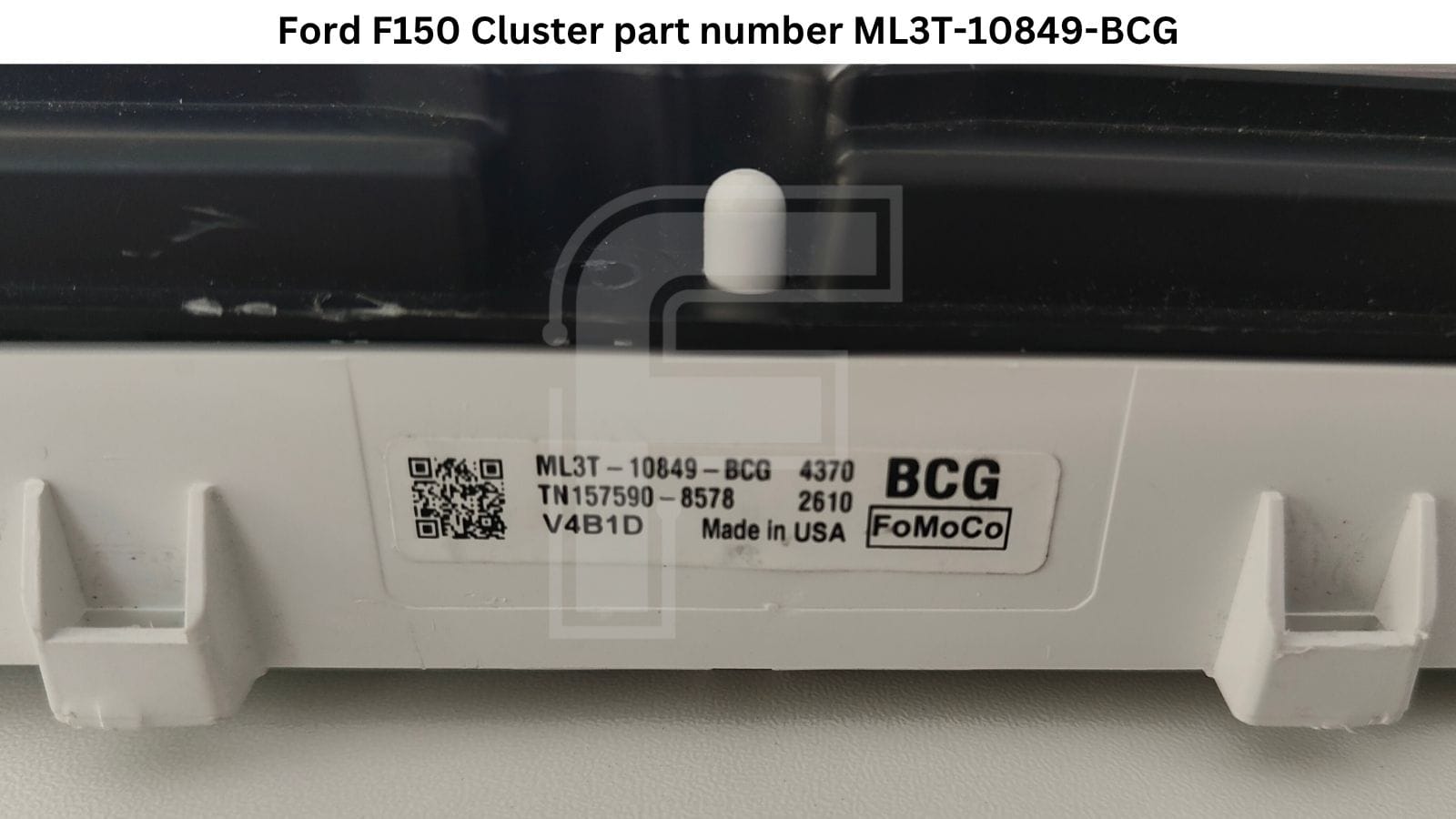

What's inside the Ford F150 dashboard

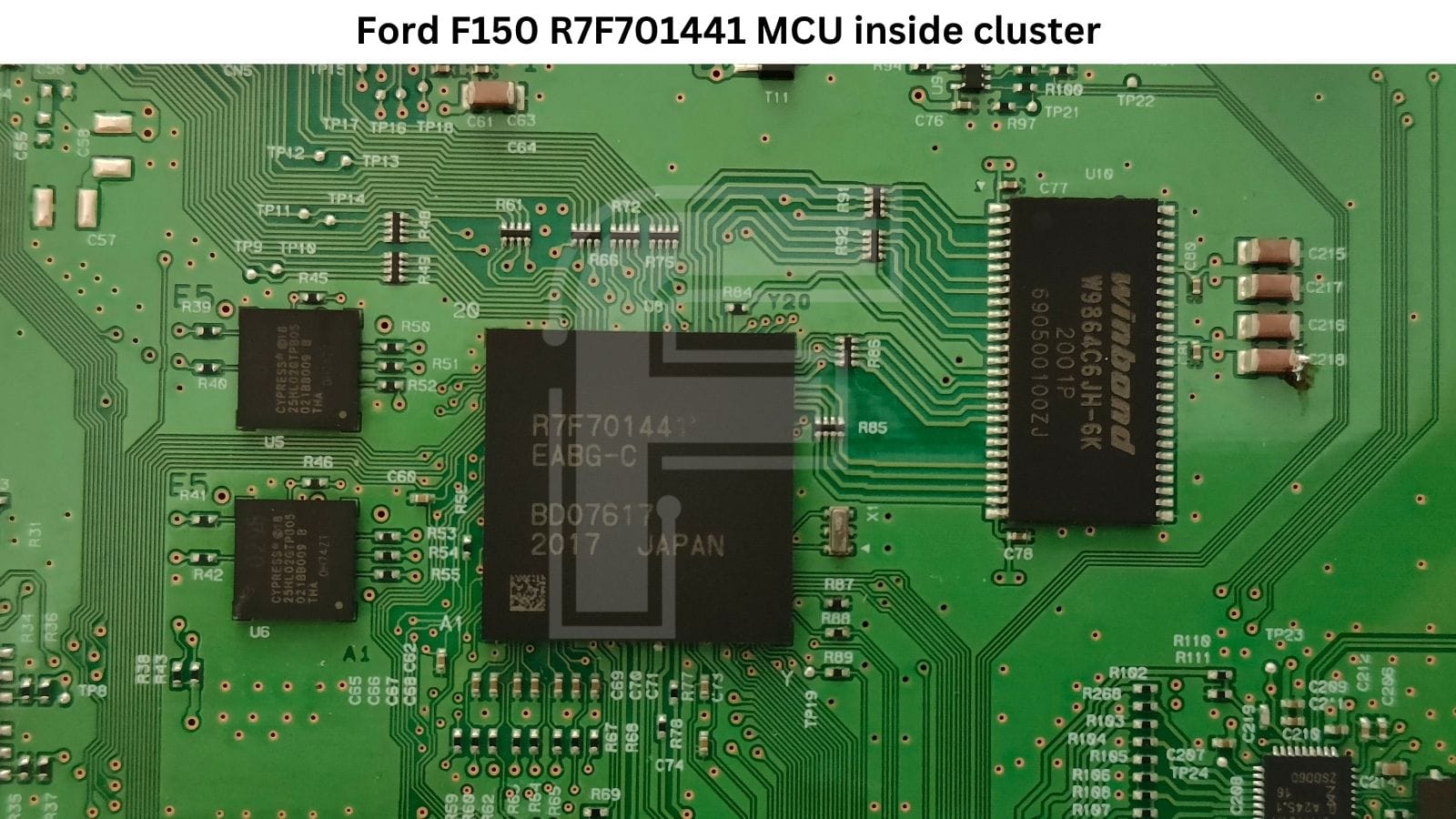

The layout is clean at first glance: an analog tachometer on the left, an analog speedometer on the right and a large 8-inch LCD in the middle. It's built around the R7F701441, backed by two external NOR flash chips and an SDRAM for the graphics side. What you won't find is an external EEPROM.
- Microcontroller: R7F701441 (Renesas RH850, BGA) runs the cluster logic, gauge drive and CAN-bus communication, and stores mileage and configuration in its internal D-flash.
- NOR flash: 2× Cypress S25HL02GT -2 Gbit SEMPER NOR flash on Quad SPI, sitting right above the MCU.
- SDRAM: Winbond W9864G6JH-6 - 64 Mbit SDRAM in a TSOP-II package, directly below the MCU.

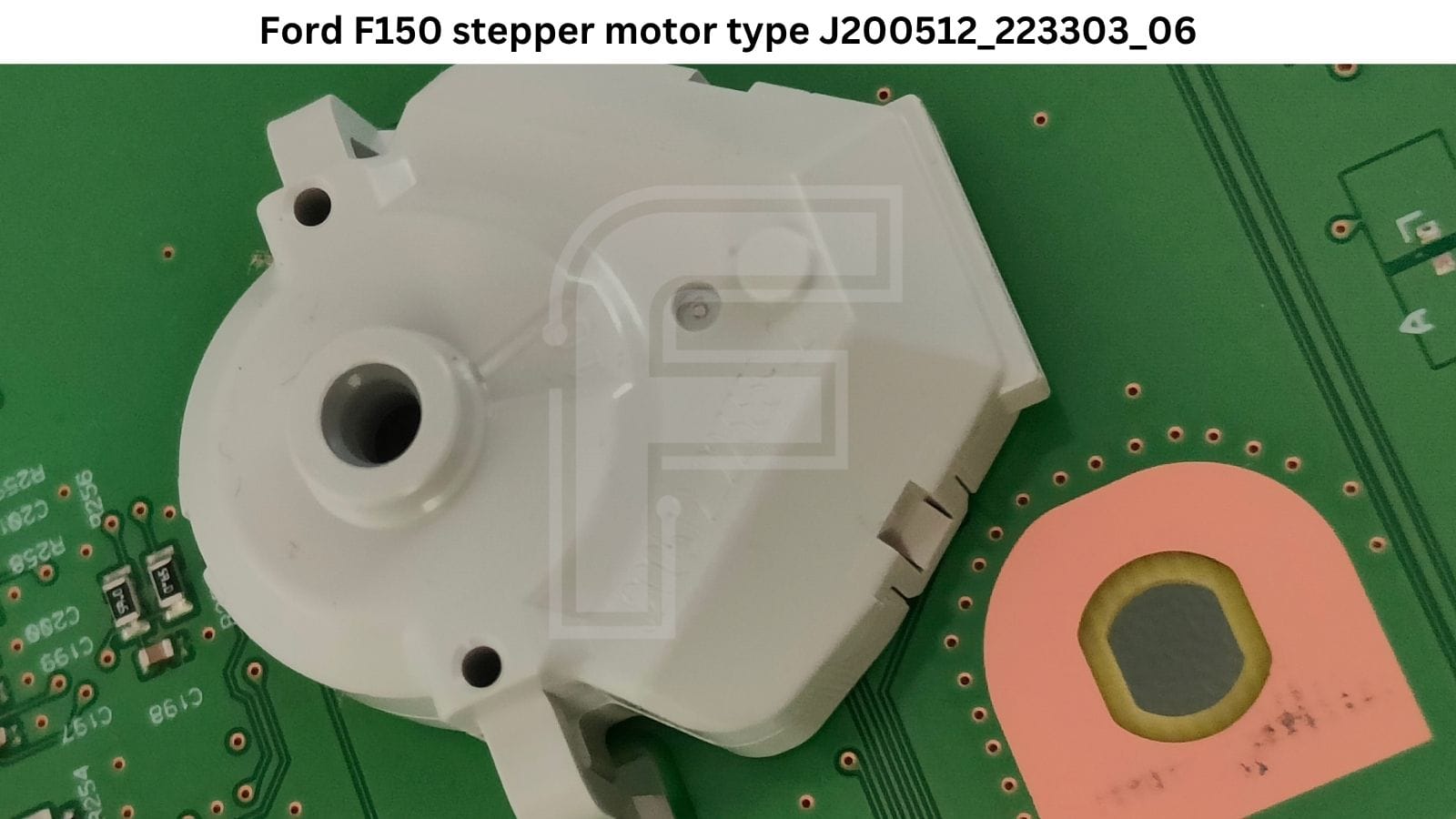

- Stepper motors: J200512_223303_06 - drive the tachometer and speedometer needles.
- EEPROM: none - there's no separate EEPROM chip on this board.
Heads-up: later F-150 clusters that look very similar were also built on an S6J processor with a 24C64 EEPROM. If you open one up and find an S6J instead of the R7F701441, you're dealing with a different platform. Everything in this article applies to the RH850 version only.

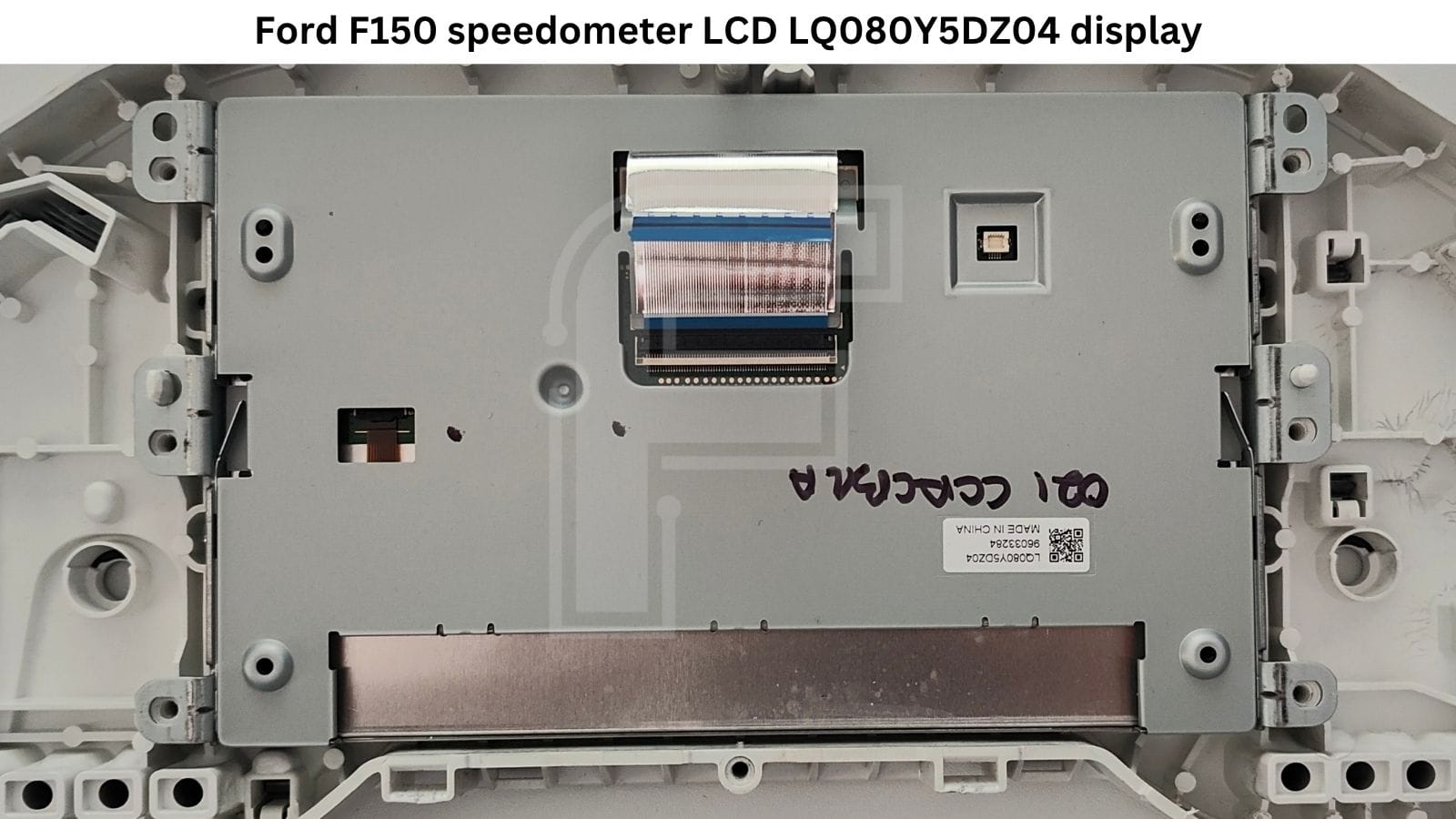

LQ080Y5DZ04 8-inch Center Display
The center screen in this instrument cluster is the LQ080Y5DZ04, an 8-inch LCD sitting between the two analog gauges. So far we haven't seen it come up as a common failure point, and replacement panels are available online if you ever need one.

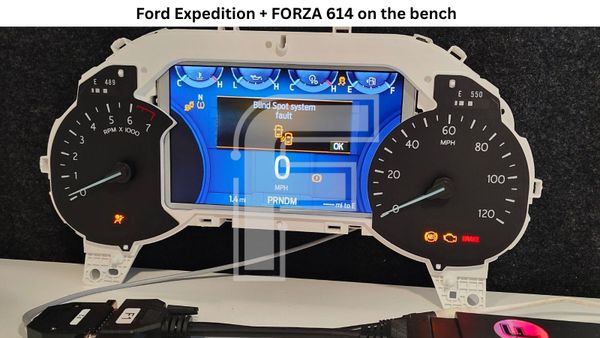

Full instrument cluster wake-up on the bench
Here's what most people find out the hard way: feed this cluster +12V and GND and nothing happens. Like most newer Fords, the F-150 dashboard needs a specific CAN-bus frame to wake up.
FORZA 614 generates that frame itself. Connect the F1 + F2 cables, pick the F-150 program from the menu and hit POWER UP. The cluster starts on your desk with needles and the LCD fully running. You don't need a separate CAN generator or a trip to the vehicle.
This feature earns its keep for import businesses moving trucks between the US and Canada. Those shops swap speedometer dial faces all the time (mph to km/h, for example), and after every swap you want to know the dial sits right and the needles read correctly. With bench power-up, you verify the whole cluster before it goes back into the truck.
What we check on the bench
Because the F-150 lights up fully on the desk, a verification routine takes minutes, not an afternoon in the parking lot:
- Needle sweep on both gauges. The J200512_223303_06 steppers should move smoothly across the full scale, with no sticking or jumping.
- LQ080Y5DZ04 display. You want full graphics with no dark areas or missing segments.
- Consistent startup. The cluster should wake up reliably every time you press POWER UP.
FORZA 614 software programming options for Ford F-150 dashboard
FORZA 614 lets you program both higher and lower mileage values in the F-150 R7F701441 cluster. You'll need this when:
- replacing a damaged cluster with a used one,
- doing conversions and retrofits,
- repairing the main board.
You also don't have to pull the cluster out of the dash every time. Mileage programming works in the vehicle through the OBD2 port.
Remember: in most countries, when an instrument cluster is replaced, the law requires the new unit to be programmed with the vehicle's previous mileage.
ℹ️ Mileage and configuration data are stored in the D-flash of the R7F701441, and full read or write of that D-flash is not supported. That means no 1:1 memory clone onto a donor cluster. On a swap, you program the correct mileage value instead.

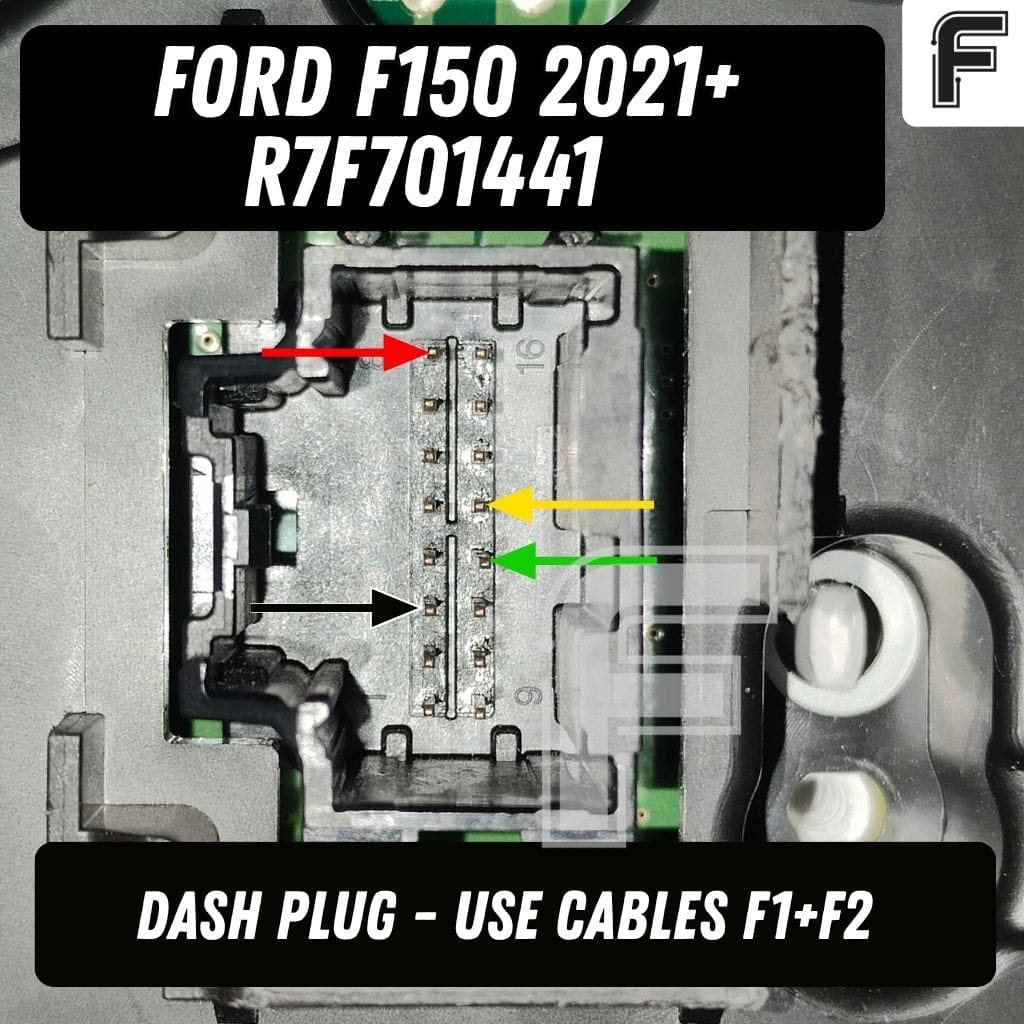

Ford F-150 Dashboard Pinout
The complete Ford F-150 R7F701441 instrument cluster pinout is built into the FORZA 614 PC application, right next to the programming functions. Connecting on the bench doesn't involve hunting for wiring diagrams on forums.
Why workshops take on F-150 clusters
In North America, the F-150 is everywhere, which means a steady stream of cluster swaps, dial conversions and mileage corrections. A workshop that handles them in-house saves customers the cost of a dealer replacement. It can also run mail-in repairs from anywhere in the country, since the whole cluster can be tested on the bench before it ships back. One tool covers bench power-up, mileage programming and pinout, so there's less equipment on the desk and more jobs through the door.
FAQ
Will the Ford F-150 2021+ cluster power up with just +12V and GND?
No. The F-150 R7F701441 cluster needs a CAN-bus wake-up frame to start. FORZA 614 generates this frame internally, so connecting F1 + F2 and pressing POWER UP is enough.
Does the Ford F-150 R7F701441 cluster have an external EEPROM?
No. The board carries two Cypress S25HL02GT NOR flash chips and a Winbond W9864G6JH-6 SDRAM, but no EEPROM. Mileage and configuration are stored in the D-flash of the R7F701441 microcontroller.
Can I program mileage on the F-150 without removing the cluster?
Yes. Mileage programming on the Ford F-150 2021+ instrument cluster works in the vehicle through the OBD2 port. You have also bench option if you have only instrument cluster without vehicle.
Can I clone the full memory onto a donor F-150 cluster?
No. Full read and write of the R7F701441 D-flash is not supported in FORZA 614, so a 1:1 clone isn't possible. You program the correct mileage value on the replacement cluster instead. For such memory cloning you must use RH850 direct programmer.
My F-150 cluster has an S6J processor and a 24C64 EEPROM. Is it the same unit?
No. That's a later, different hardware platform. This article covers the R7F701441 (RH850) version only.
