FORD MUSTANG DASH 93C86 Power up and calibration with FORZA 614

The 2015 redesign of the Ford Mustang brought a refreshed, modernized interior platform. Central to this update was a new instrument cluster architecture featuring a classic layout: speedometer, tachometer, engine temperature, and fuel gauges surrounding a central 4.2-inch color TFT display.

For instrument cluster repair shops, import conversion specialists, and retrofit technicians, this dashboard is a frequent visitor on the workbench. In this article, we cover its internal hardware specs, common failure modes, and how FORZA 614 streamlines bench power-up and programming for this unit.

Ford Mustang dashboard Hardware Overview

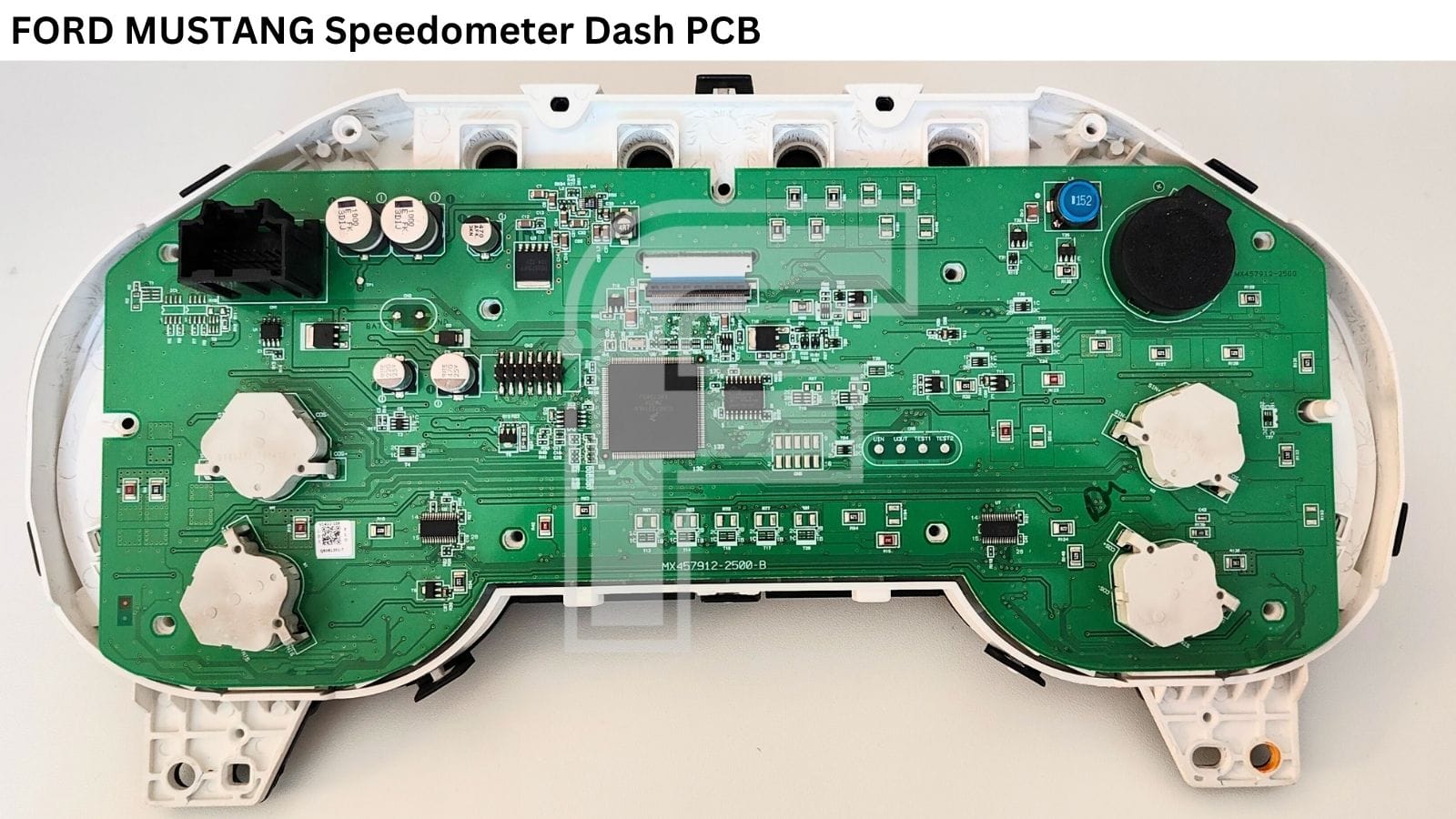

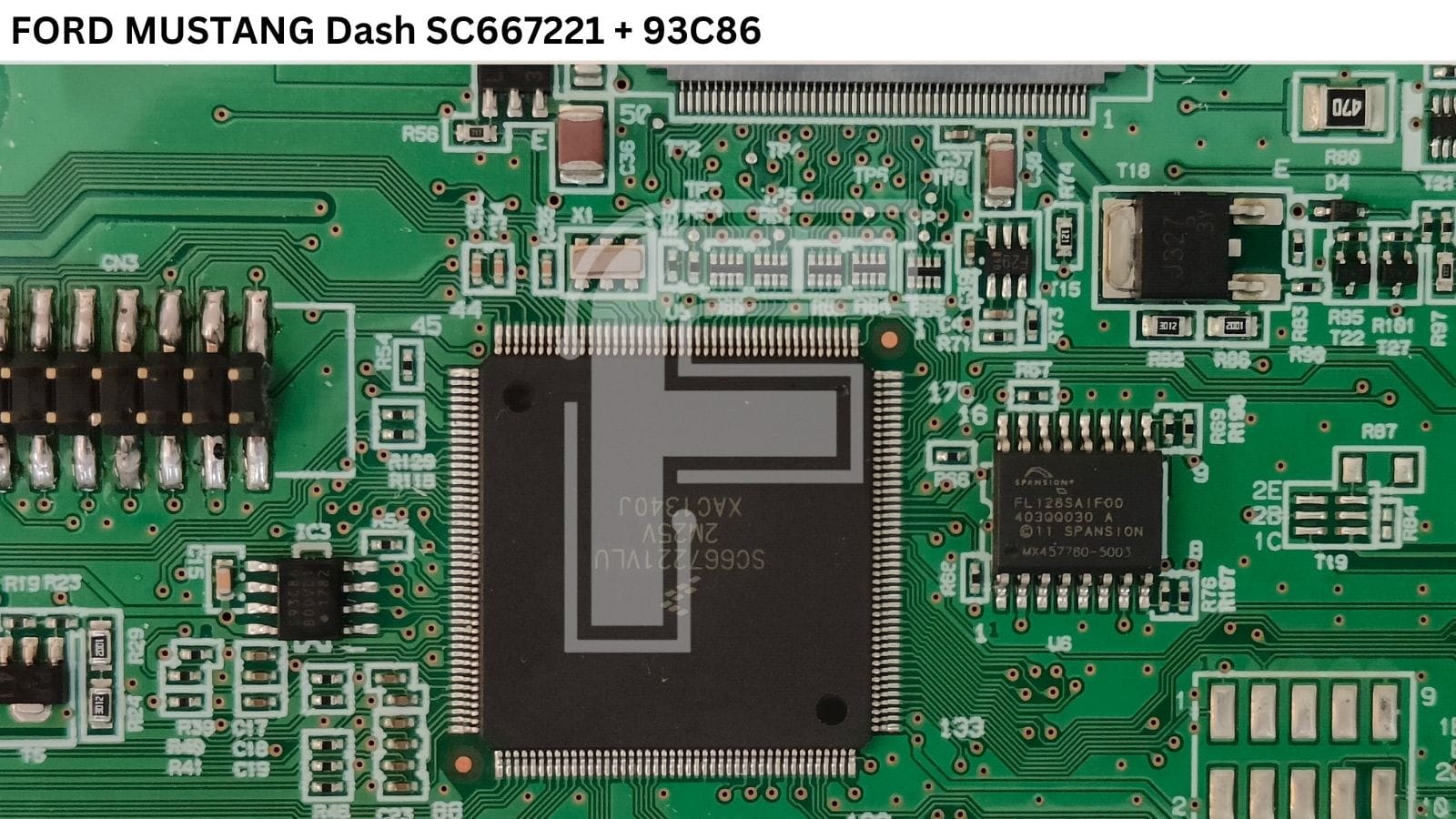

• Main Processor (MCU): SC667221 (part of the SPC560B family).
• External Memory: 93C86 EEPROM chip.

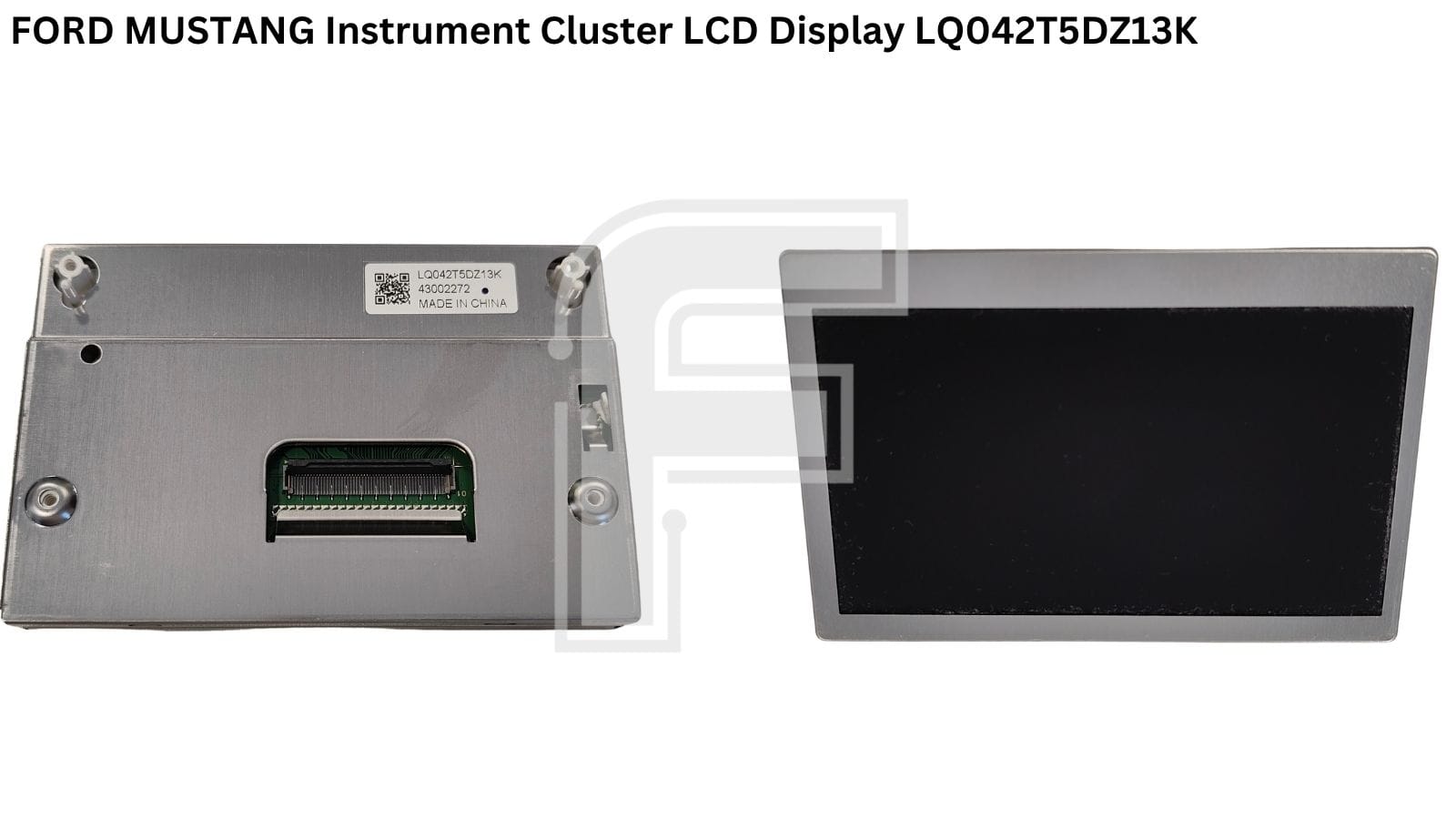

• Central LCD Display: 4.2-inch TFT - Part Number: LQ042T5DZ13K.

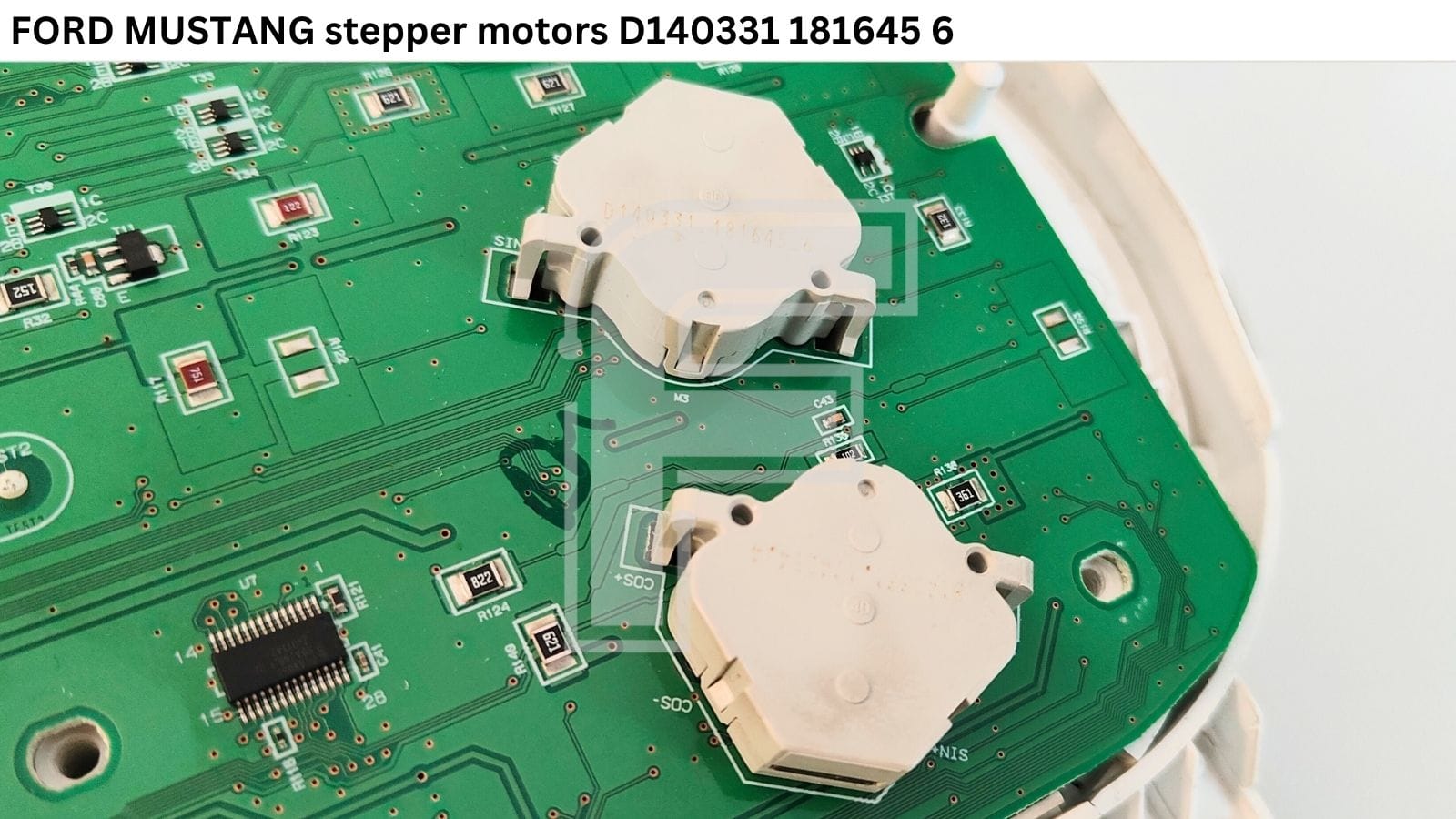

• Gauge Stepper Motors: Part Number: D140331_181645_6.

Common Hardware Failures in 2015+ Ford Mustang Speedometers

While the overall board construction is straightforward and highly repairable, age, heat, and vibration lead to a few predictable hardware issues:

1. Faded, Blank or Flickering Center LCD

The LQ042T5DZ13K 4.2-inch display can experience white screens, vertical lines, or complete backlighting failure. In most cases, swapping out the LCD panel or repairing the display driver circuitry on the PCB restores full functionality.

2. Backlight Failure Under Dial Faces

Intermittent or partial failure of the gauge backlighting (behind the speedo and tachometer dials) is a common complaint. This is usually caused by failing SMD LEDs or cold solder joints along the LED driver lines.

3. Intermittent Power Losses ("Dead" Dashboard)

Clusters that randomly fail to boot up, turn off while driving, or reset during engine crank typically suffer from degraded solder points on the main board's power regulation circuit or around the SC667221 MCU pins. A targeted re-solder usually solves the issue.

Bench Connection -> Wake-Up Signal via FORZA 614

Testing mail-in repairs or verify screen replacements on your desk requires powering up the cluster away from the vehicle.

However, this Ford Mustang cluster requires a specific CAN-bus wake-up signal to turn on. Simply applying +12V and Ground will not initialize the unit.

How FORZA 614 handles bench testing:

• Automatic CAN Wake-Up: Once connected, FORZA 614 sends the required CAN-bus activation frames to wake up the processor.
• Visual Verification: The dial backlights immediately illuminate and the LQ042T5DZ13K LCD initializes, allowing you to visually inspect display health, gauge sweep, and power stability.

Odometer Reset

For shops performing US-to-EU, US-Canada, conversions, unit swaps, or retrofitting newer clusters into base models, matching vehicle data is mandatory.

FORZA 614 provides dedicated software functions for this cluster:

• Mileage Adjustment (KM / Miles): Instantly write the correct odometer value when replacing a damaged board with a donor unit.

Connection Methods: OBD2 vs. Bench Setup

FORZA 614 gives you full flexibility depending on whether the car is in your bay or on a shipping pallet:

1. OBD2 Mode (In-Vehicle): Plug directly into the car's diagnostic port for quick adaptations and service corrections.

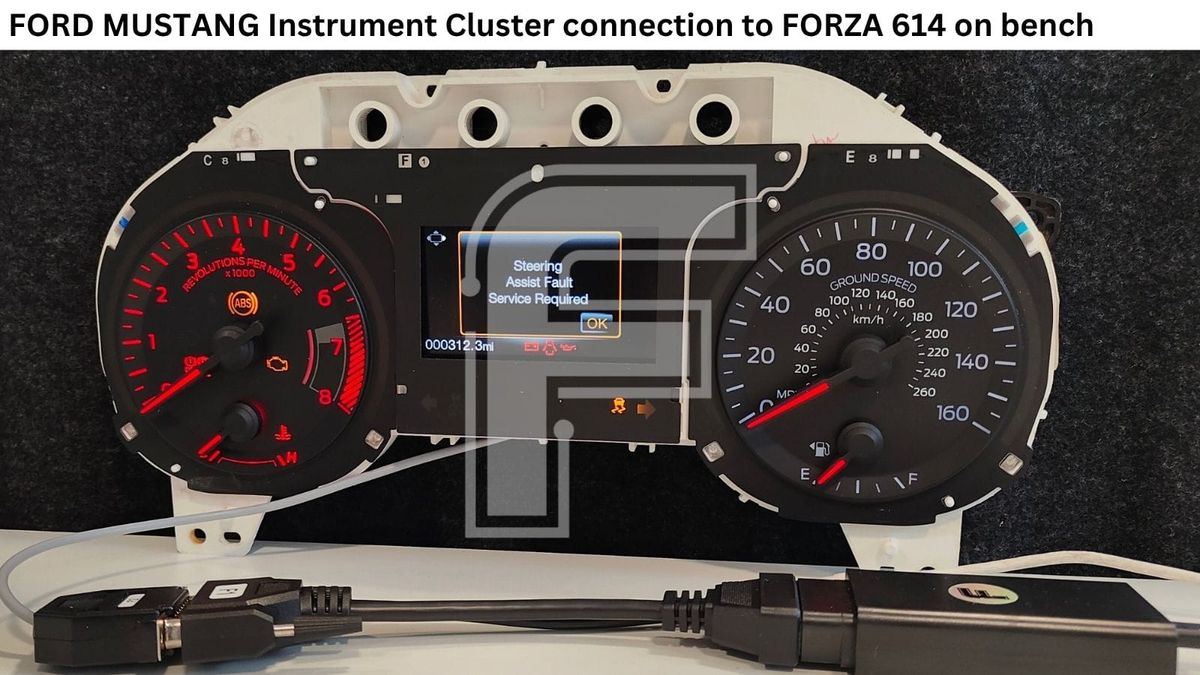

2. Bench Mode (On the Desk): Connect using the F1 + F2 cables directly to the rear cluster connector:
   • Connections: 1x Constant Power (+12V), 1x Ground (GND), CAN High (CAN-H), and CAN Low (CAN-L).
   • No vehicle, gateway, or external wake-up box required - FORZA 614 handles communication directly.

All wiring diagrams and exact pinouts are available directly inside the FORZA 614 PC software.

Scale Your Shop with FORZA 614 Subscription Model

Forget about buying expensive single-car software add-ons or paying per-use token fees for every adaptation.

FORZA 614 operates on a simple, flat-rate subscription model. You get full access to our entire database of programs - including this Ford Mustang module - plus all new protocols released while your subscription is active.

ROI Reality Check: Fixing or adapting just 1 to 3 clusters typically covers the cost of a 1 to 3-month FORZA 614 subscription. Everything after that is direct profit for your workshop.

👉 Download the free Windows software and check our coverage list:www.forza614.com/download
