Fiat Mobi D70F3525 & 95320 Instrument Cluster Repair: Bench Pinouts & Common Faults

Whether you run a local dashboard repair shop or handle complex mail-in module repairs, expanding your vehicle database is key to scaling your business.
Today, we are breaking down a very common cluster setup found in the South American market: the Fiat Mobi.
Part number of our speedometer is: 503010400303

This cluster relies on a specific combination of a NEC D70F3525 MCU and an external EEPROM 95320 in a TSSOP package (typically marked as 532WQ). In this guide, we will look at its hardware architecture, its most common hardware failures, and how FORZA 614 helps you power up and program this cluster right on your workbench.

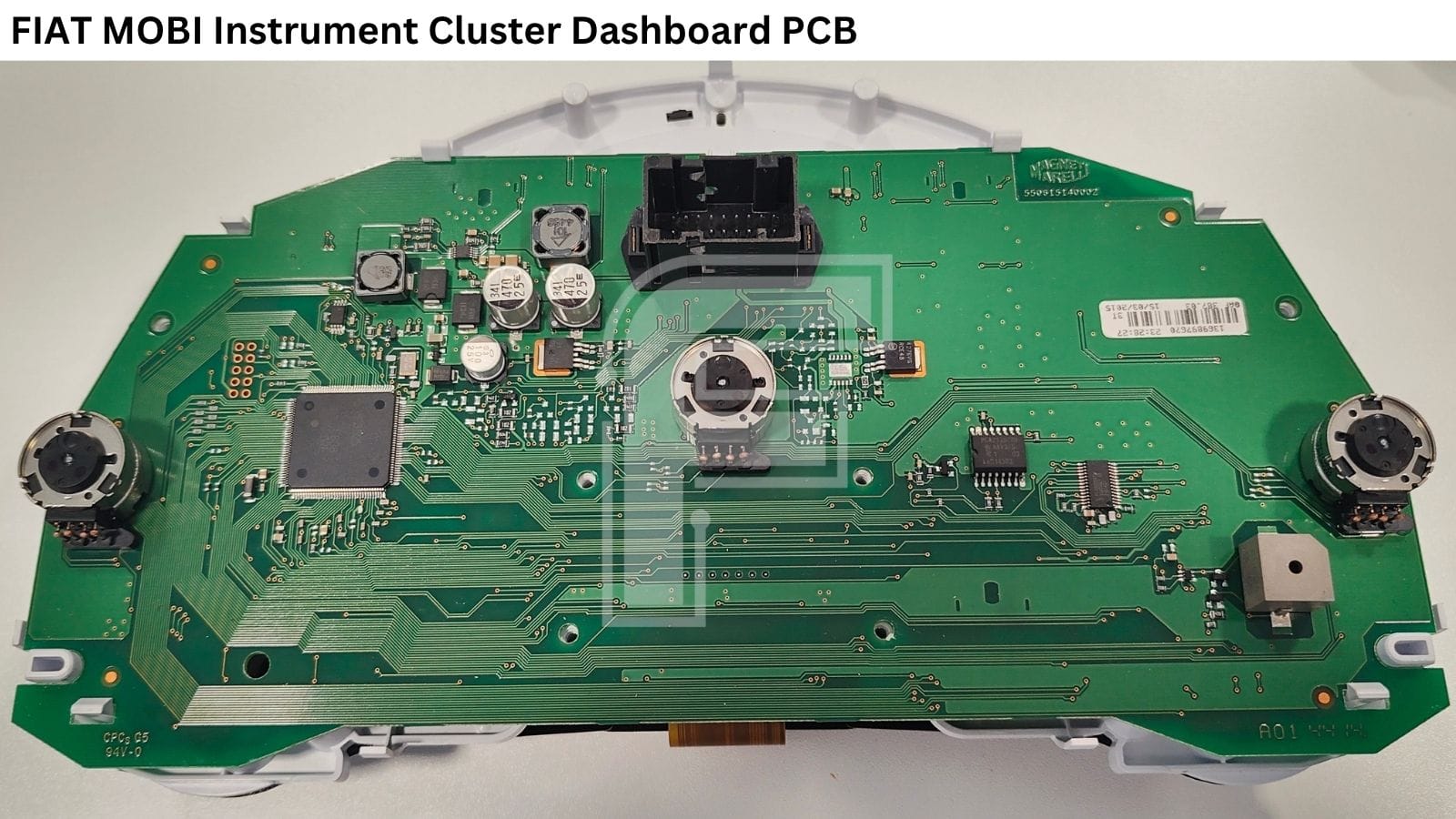

Hardware Architecture: Inside the Fiat Mobi Dashboard

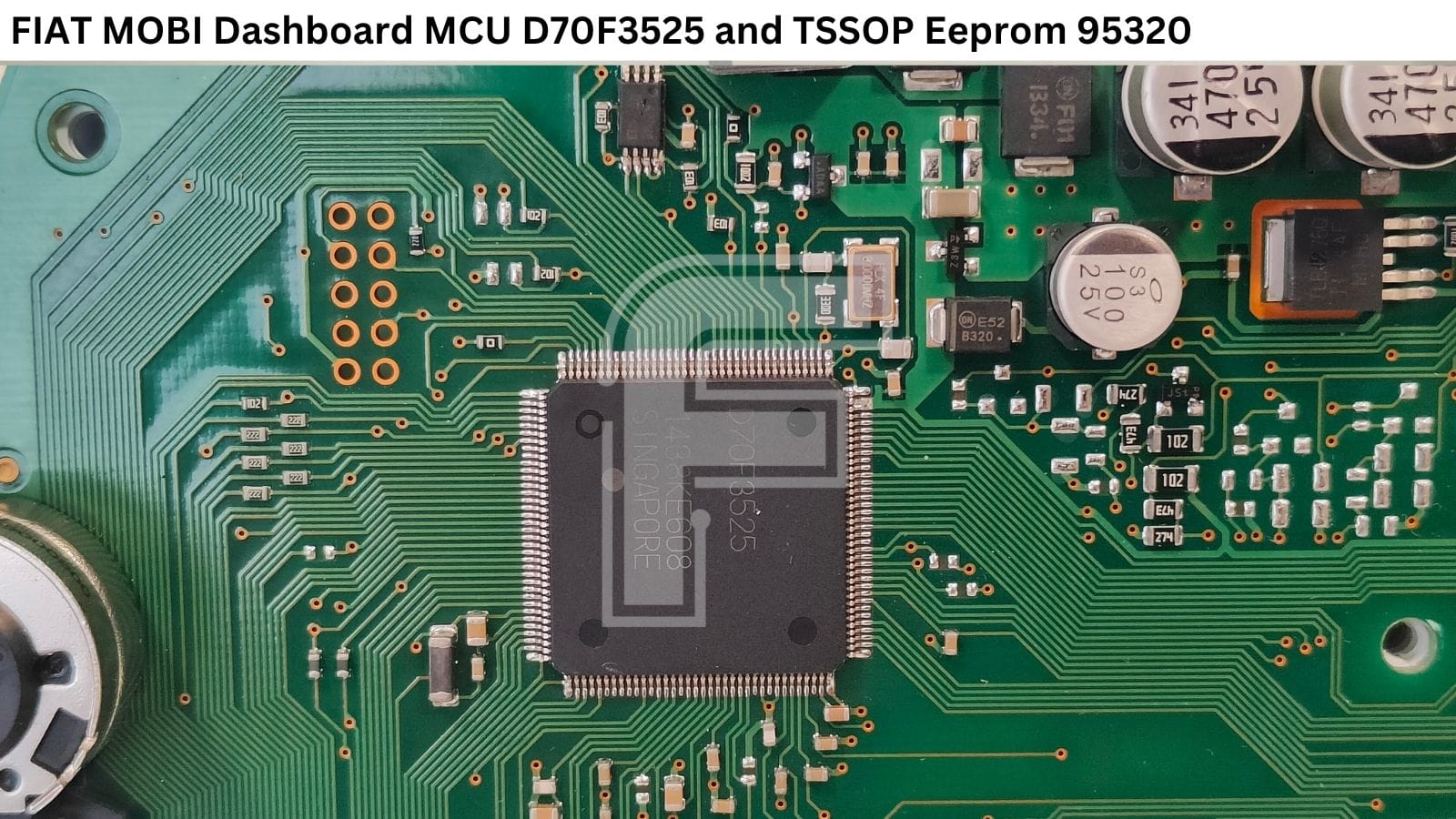

• The Main Processor: Driven by the NEC D70F3525 microcontroller, which handles the cluster's main gateway functions, display rendering, and gauge control.
• The External EEPROM: A 95320 TSSOP EEPROM chip, which stores critical vehicle configuration settings and mileage data.

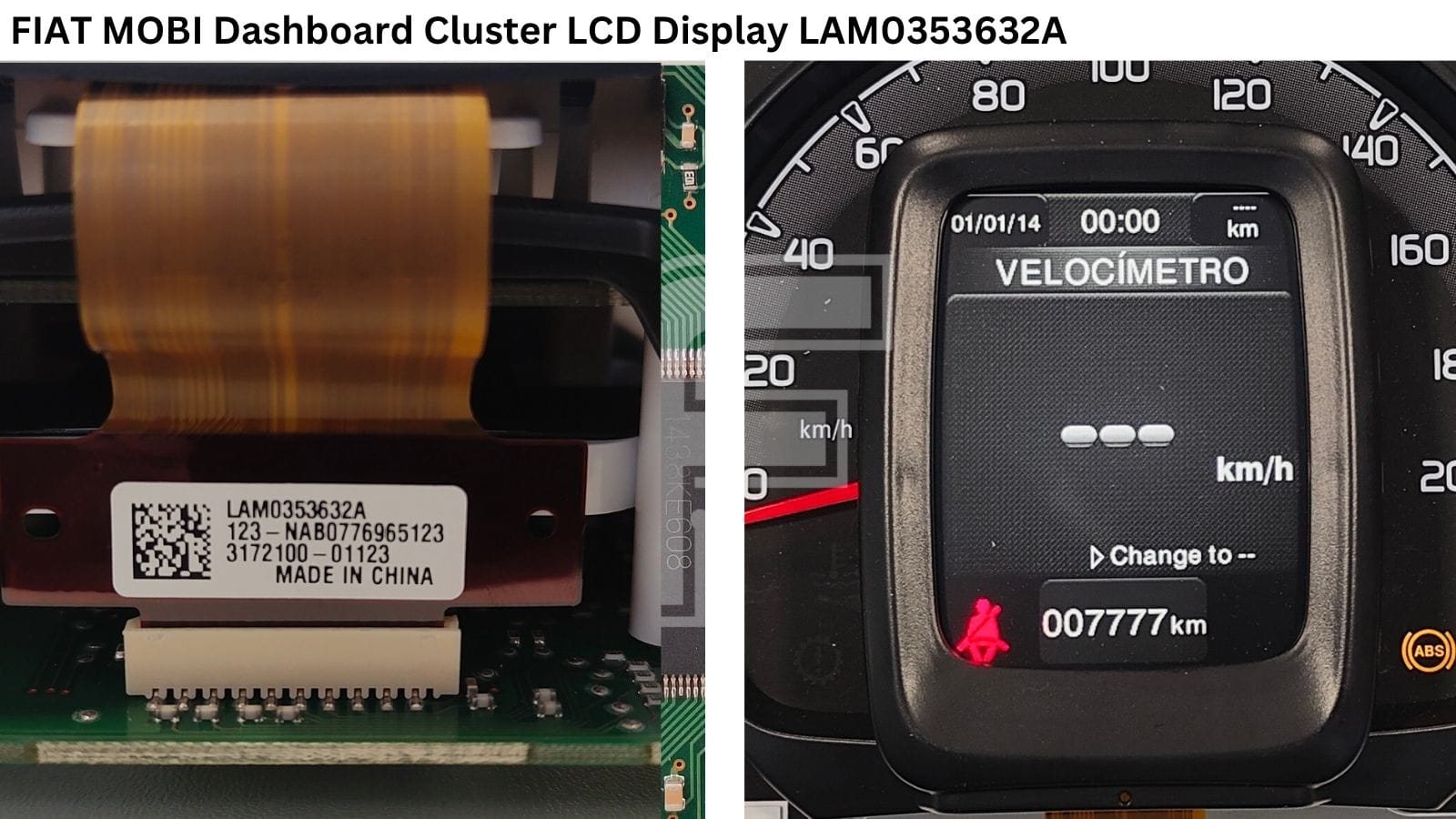

• The LCD Display: The center screen is a 3.5-inch LCD with the part number LAM0353632A.

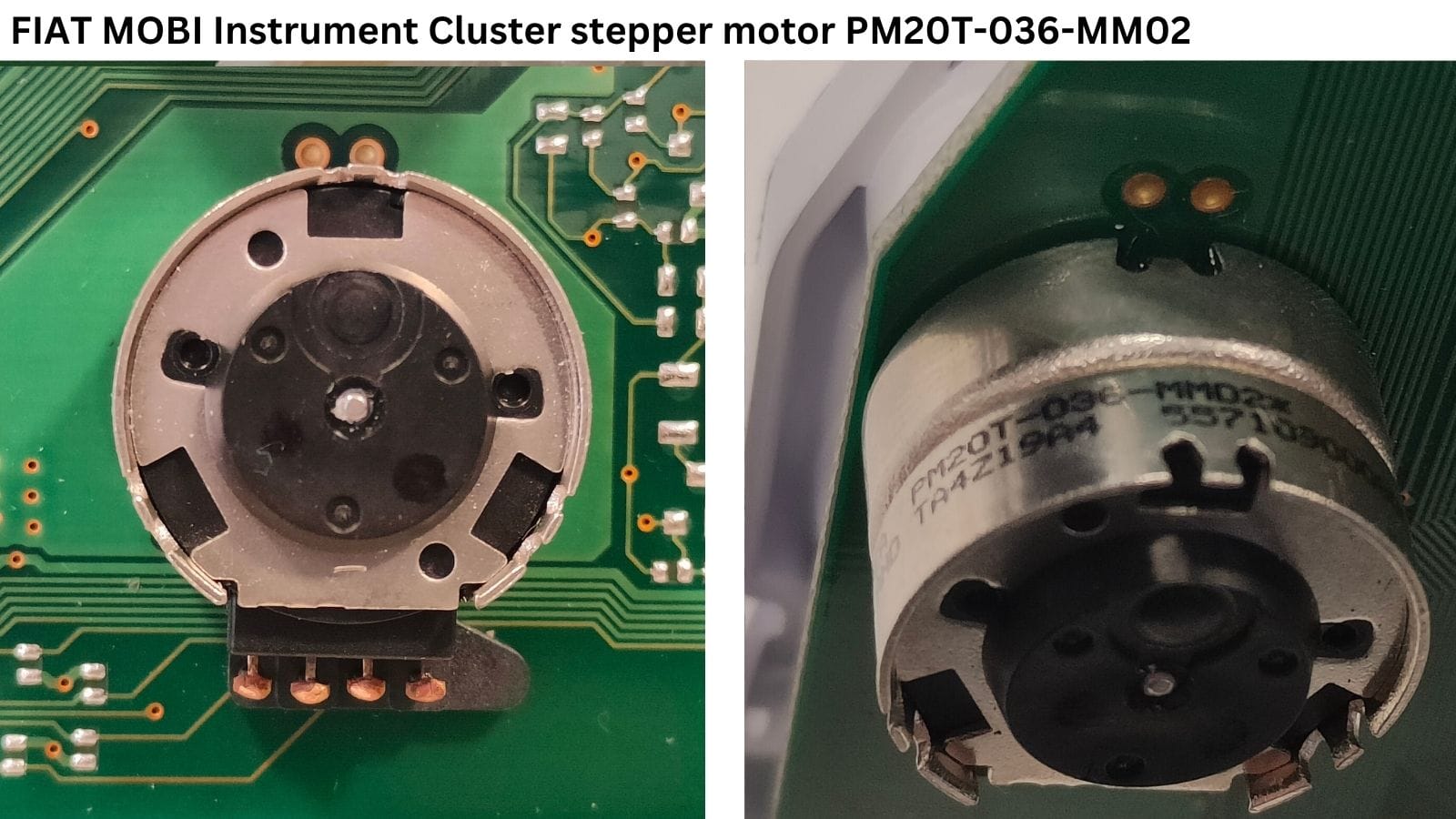

• The Gauge Stepper Motors: The analog needles are driven by three distinct stepper motors, carrying the part number PM20T-036-MM02.

Common Failure Modes & Hardware Issues

Like many modern Fiat platforms, the Mobi cluster is prone to thermal and mechanical wear. If a client sends you one of these dashboards, they are likely experiencing one of three issues:

1. Faded, Dim, or Completely Blank LCD Display

The LAM0353632A display is the weakest link in this cluster. Over time, heat and UV exposure degrade the screen, causing segments to disappear, fade, or fail entirely.

• The Fix: The most reliable solution is to replace the faulty LCD panel with a brand-new aftermarket screen.

2. Sticky or Non-Responsive Needles

If the speedometer, rev counter, or fuel gauge is sticking, jumping erratically, or failing to perform its self-test, the stepper motors are usually to blame.

• The Fix: Fortunately, the PM20T-036-MM02 stepper motors are widely available on the market. Swapping them out on the PCB is a quick, straightforward soldering job that easily restores full gauge functionality.

3. Intermittent Power Losses ("Dead" Cluster)

If the cluster randomly turns off, flickers while driving, or fails to boot up entirely, the motherboard is likely suffering from cold solder joints around the power regulation circuit or the main processors.

• The Fix: Reflowing or re-soldering the critical joints on the PCB will typically stabilize the power rails.

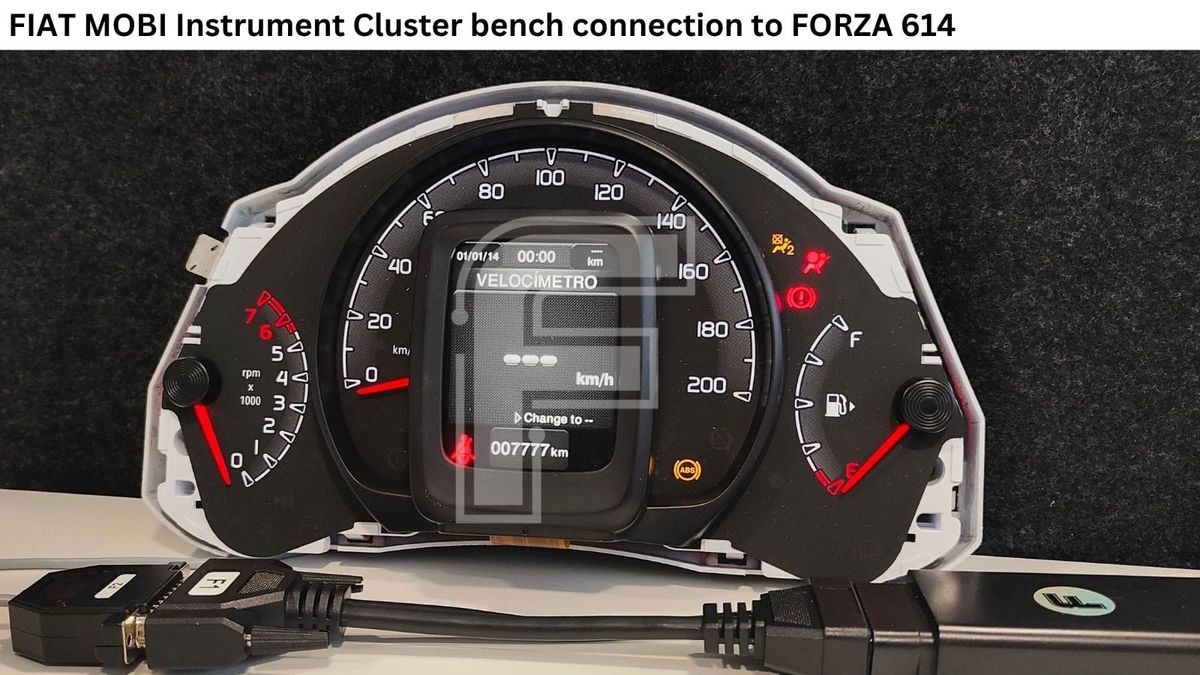

How to Power Up the Fiat Mobi Cluster on the Bench with FORZA 614

For mail-in repair shops, being able to fully test a dashboard before shipping it back to the client is critical.

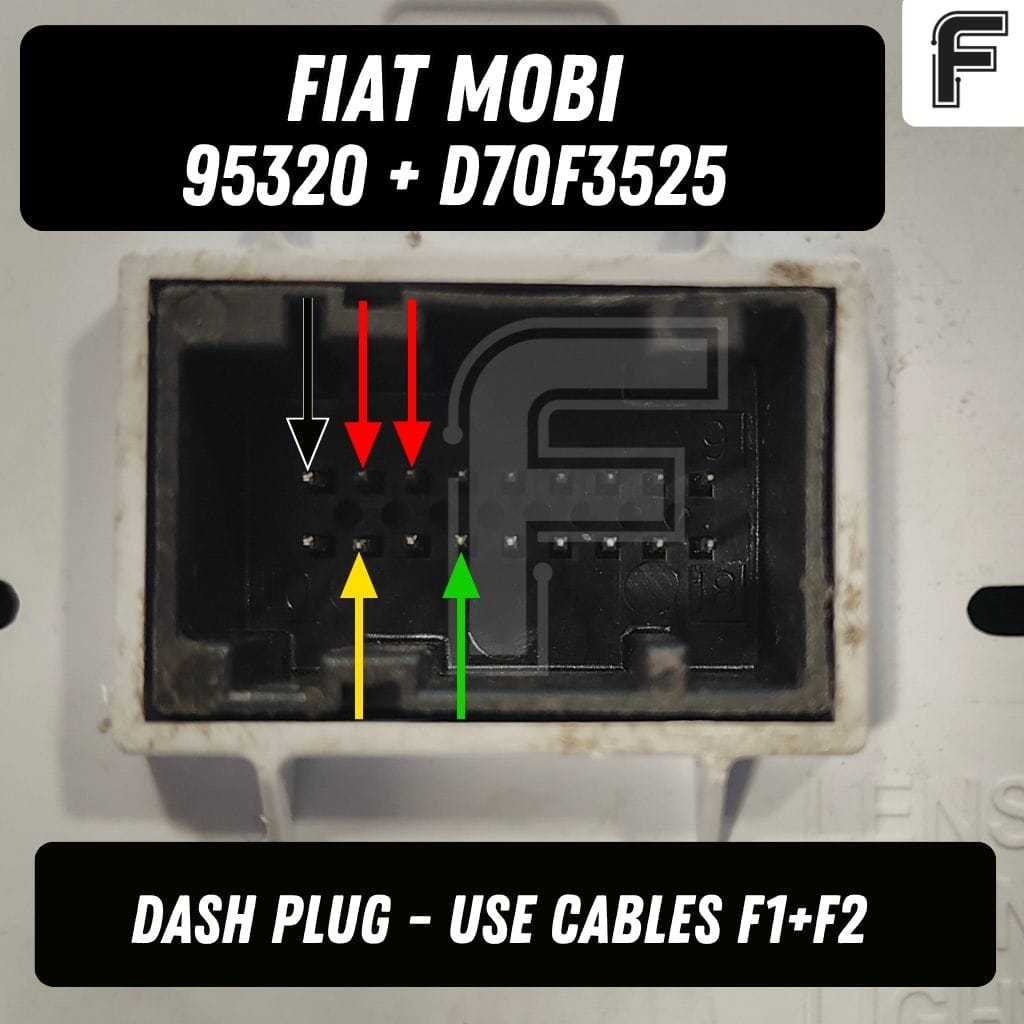

FORZA 614 provides the exact bench connection pinout for the Fiat Mobi cluster plug directly inside our software. You do not need to waste time hunting down wiring diagrams or risking damage by guessing pin connections.

Simply connect your power, ground and CAN lines on your workbench using our diagram to perform the following:

• Visual Inspection: Instantly power up the cluster to visually inspect the LAM0353632A LCD and check the backlight components.
• Hardware Sweep: Watch the PM20T-036-MM02 stepper motors sweep during boot-up to confirm they are physically healthy.
• Stress Testing: Run a professional stress test by leaving the dashboard powered up on your bench for several hours to monitor its thermal stability.

Odometer Reset & Software Programming

⚠️ Important Programming Note: On this particular Fiat Mobi cluster, there is no option to read or write the raw EEPROM dump (.bin file) diagnostically over the OBD2 port or the dash plug. If you need a full file dump, you must use a direct EEPROM programmer.

However, if you are replacing a dead motherboard with a donor unit or performing a cluster upgrade, you still need to match the mileage. FORZA 614 solves this problem cleanly.

We have built a dedicated Odometer Reset program specifically for the Fiat Mobi:

• 100% Diagnostic Execution: Our program successfully resets the odometer value without any soldering or chip removal.
• Two Diagnostic Paths: You can perform the reset directly through the car's OBD2 port or on your workbench using the rear cluster plug.

This is the ultimate workaround for fast adaptations, allowing you to finalize mail-in repairs on your bench in a matter of seconds.
