FORZA 614 technical guide for Mitsubishi ASX 93C76 Cluster

The software ecosystem of the FORZA 614 platform expands once again.
This time, we are diving deep into the hardware blueprint and calibration protocols for the Mitsubishi ASX instrument cluster.

Manufactured by NS (Nippon Seiki), this cluster architecture has been on the road for a several years. While its engineering layout is straightforward, time has proven it to be an exceptionally durable, reliable and low-failure component.
For automotive electronics workshops, having this robust platform integrated into your tool database ensures you are fully equipped for any standard diagnostic or module replacement job that rolls into your bay.

Hardware Architecture:
The Nippon Seiki Blueprint

The visual configuration of this Mitsubishi ASX dashboard consists of a traditional dual-analog gauge setup (tachometer on the left, speedometer on the right) split by a vibrant, central color 3,5 inch LCD.

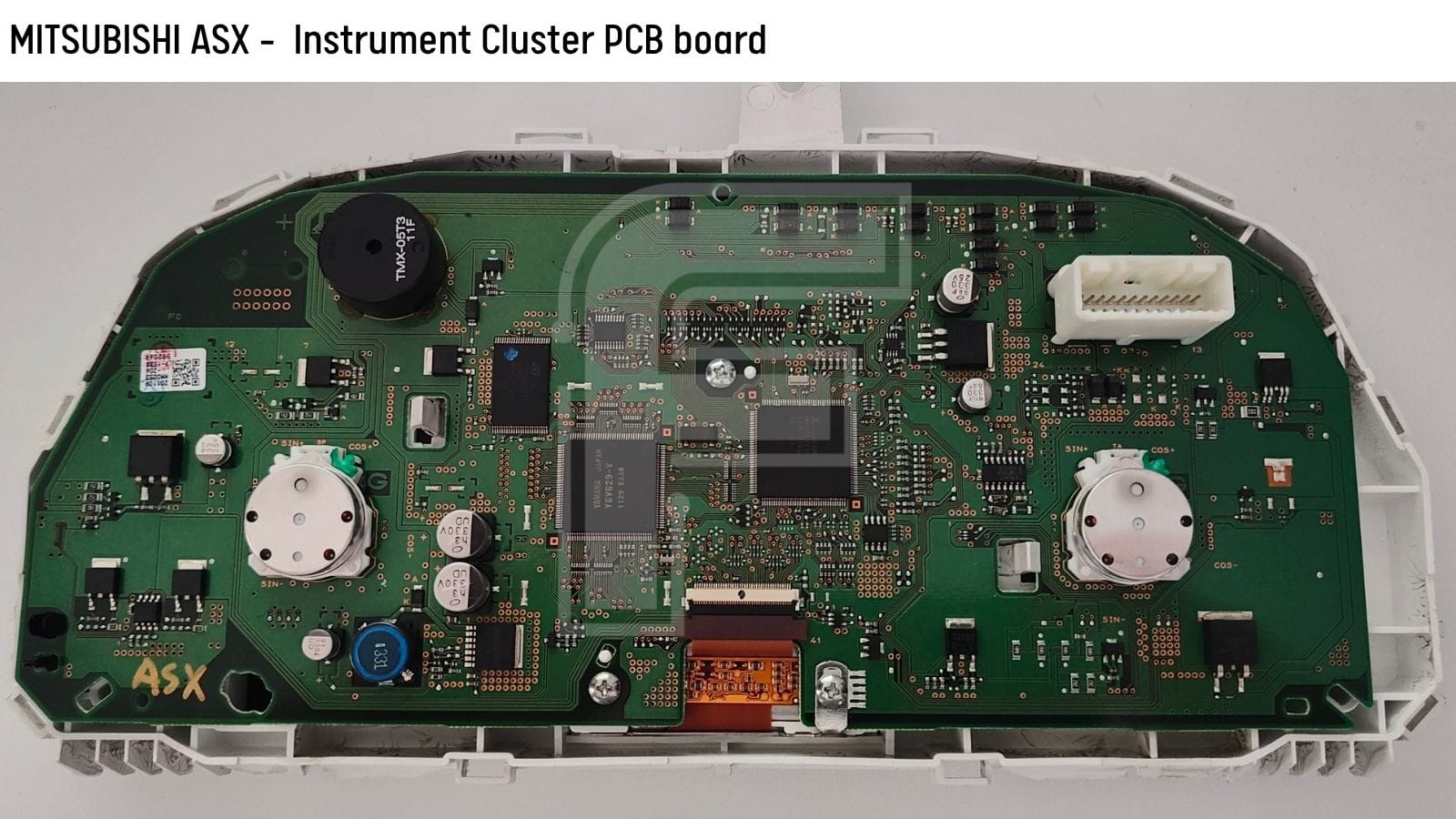

Core Internal Components & Part Numbers:

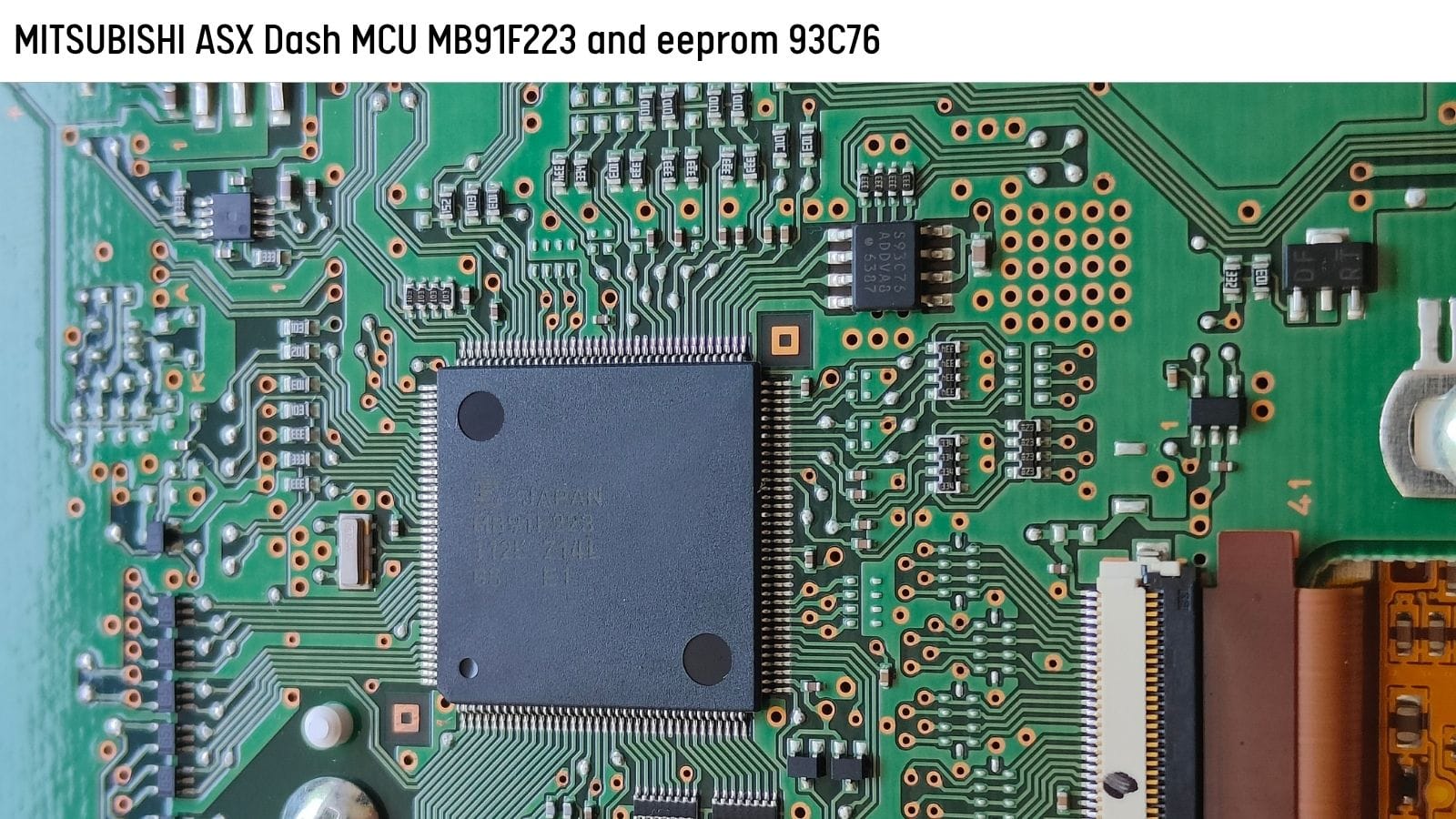

• The Main Processor: Operations are managed by the reliable Fujitsu MB91F223 MCU.
• The Configuration Memory: Odometer scaling variables and mileage are housed in an external 93C76 EEPROM chip.
• The Graphics Core: Display rendering is driven by the specialized Yamaha YGV629-V controller, paired with an M29W320DT flash memory chip.

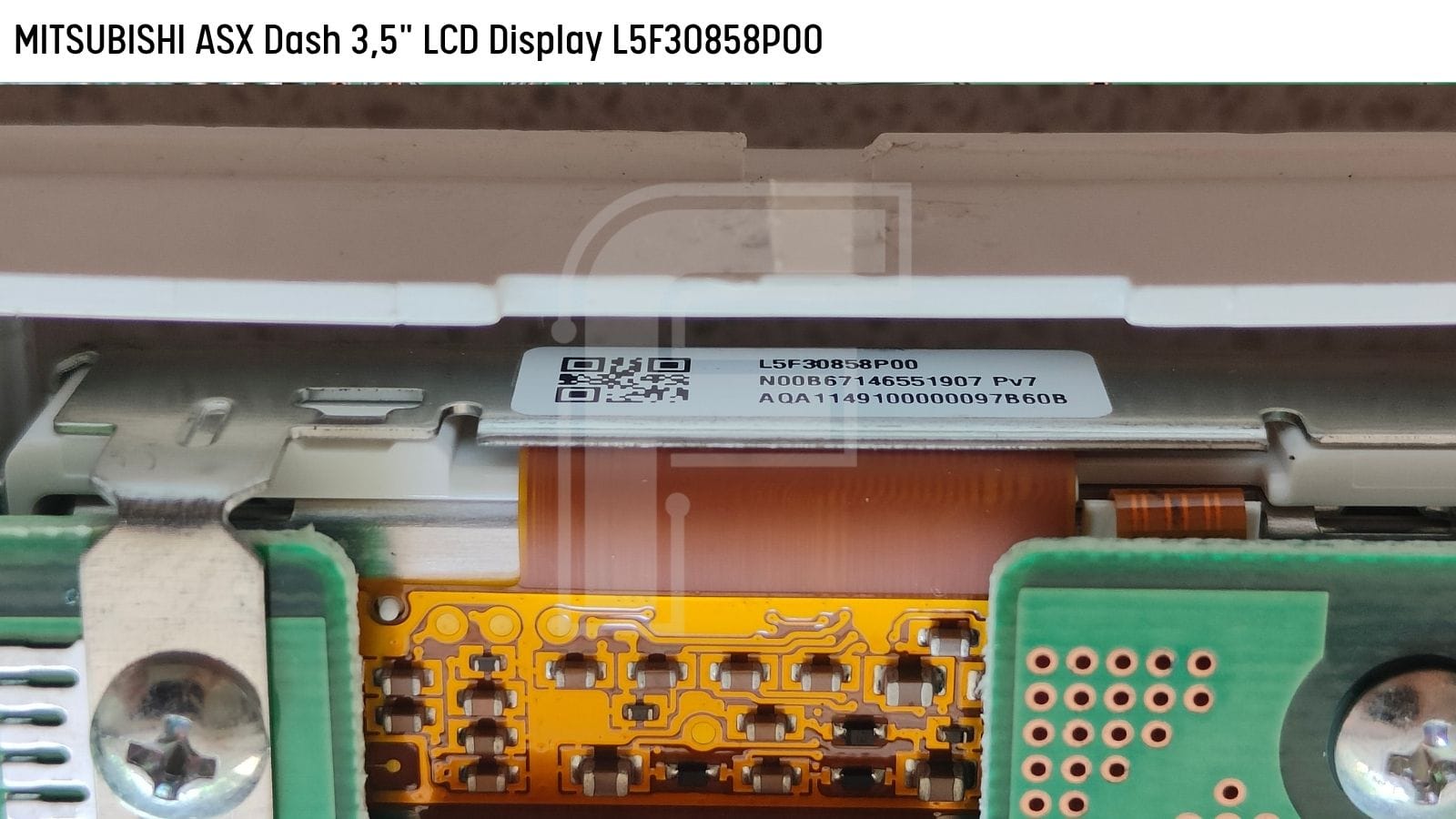

• The LCD Panel: The central 3.5-inch color display is stamped with the factory part number L5F30858P00.
• The Audio Indicator: Audible warnings and indicator ticks are generated by the standard TMX-05T3 beeper unit.

Safe Odometer Synchronization & Mileage Reset

When working with this specific Nippon Seiki unit, it is important to note that a full diagnostic read or write of the raw EEPROM chip dump is not supported over the bus. Instead, FORZA 614 provides an optimized, dedicated programming protocol specifically tailored for resetting and calibrating the odometer value.

When is a mileage reset legally and technically required?

An odometer reset is an essential procedure when a physically broken or fluid-damaged cluster is swapped out for a used donor module sourced from another vehicle. Because the donor cluster carries the mileage of a completely different car, resetting and calibrating the odometer value is mandatory to ensure it accurately matches the true historical mileage of the client's vehicle.

Why Instrument Cluster Repair is a Vital Automotive Industry Niche

Specializing in speedometer electronics is a highly precise and critical niche within the automotive trade. The instrument cluster is the primary communication bridge between the vehicle and the operator; a malfunctioning dashboard strips the driver of critical speed metrics, warning lamps, and safety indicators, severely compromising road safety.

Furthermore, a fully functional dashboard is legally non-negotiable. In almost every country, a dead display, unreadable gauges or a broken odometer will trigger an immediate failure during the mandatory annual vehicle safety inspection (such as the MOT or periodic technical check), making rapid repairs essential for keeping a car legally roadworthy.

Dual Execution Protocols:
OBD2 vs Bench Mode (Dash Plug)

FORZA 614 offers maximum flexibility when communicating with the Mitsubishi ASX platform, allowing you to select between two distinct execution modes:

1. OBD2 Mode: Program the calibration values inside the vehicle via the standard factory diagnostic connector.
2. Dash Plug Mode: Execute the service on your workbench, which is perfect for mail-in repair services or when the vehicle isn't physically in your garage.

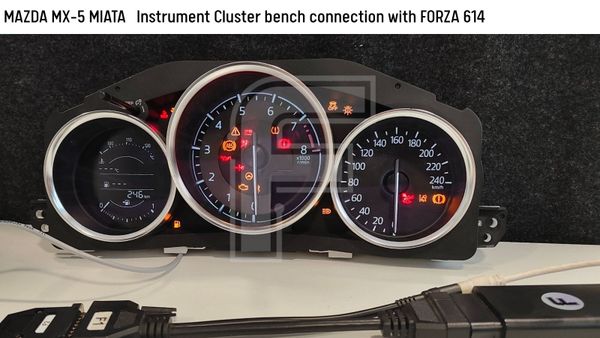

Plug-and-Play Bench Diagnostics

A major advantage of the FORZA 614 software logic is that no external CAN-bus generator is required to wake up or operate this unit off-board.

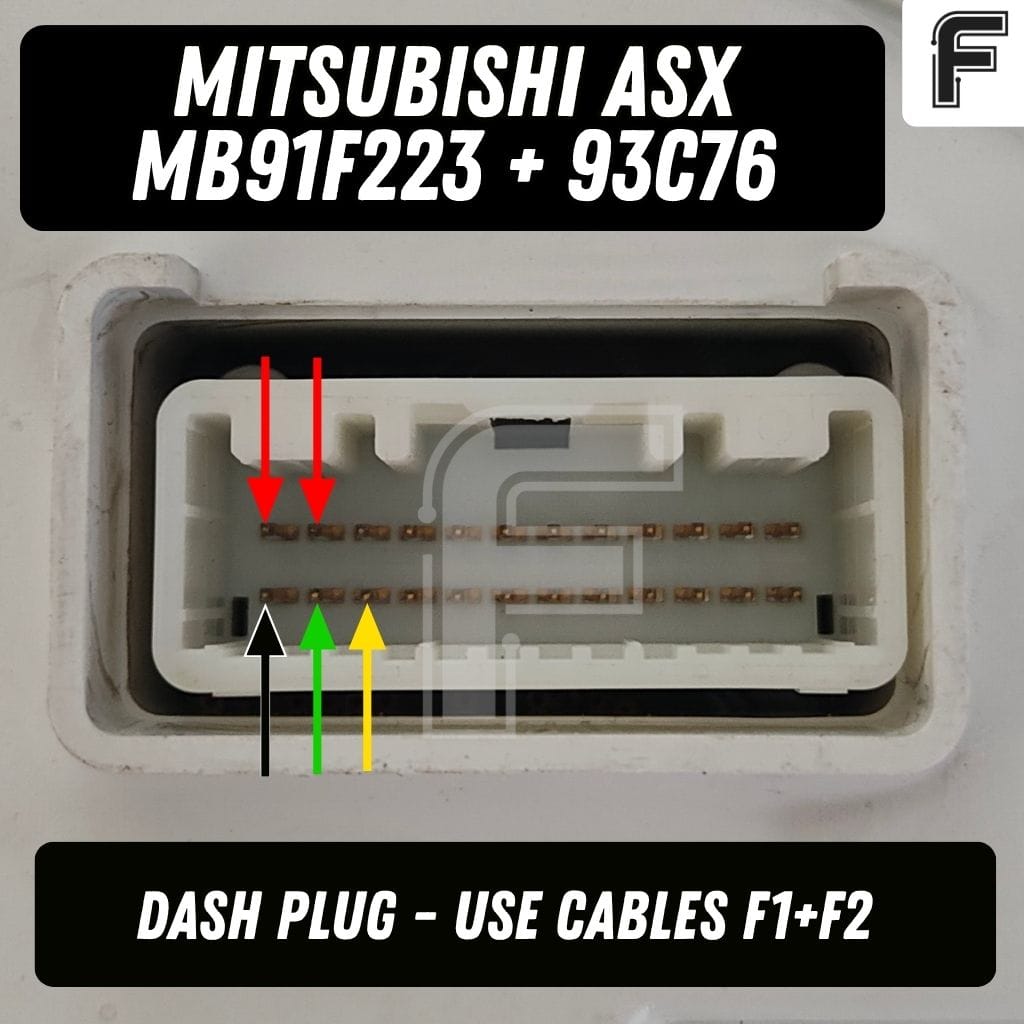

To power up the cluster and establish communication on your bench, you only need to wire 5 basic terminal connections: two +12V lines, one GND line, CAN High, and CAN Low.

During the connection phase, FORZA 614 automatically analyzes and matches the correct baud rate and communication speed, whether you are plugged into the car's OBD2 port or directly interfacing with the cluster's socket pinout on the bench.

Explore the System:
Download the Free FORZA 614 PC Application

High-resolution connection diagrams, precise pinout schematics, and structural motherboard photos for the Mitsubishi ASX are fully integrated into our Windows PC client software.

We invite you to download the free FORZA 614 PC application directly onto your workshop computer. Even without an active subscription, downloading the app allows you to explore our user-friendly interface, navigate the menu and inspect our massive, continuously growing vehicle coverage list.

See how the system is engineered to streamline your bench workflow and when you are ready to unlock full programming capabilities, you can join our community under one simple, transparent monthly subscription.
