How FORZA 614 can help you with Mazda MX-5 Miata speedometer

We have officially deployed a brand-new software update for Japanese sports car specialists: full programming and diagnostic support for the modern Mazda MX-5 Miata instrument cluster.

Manufactured by NS (Nippon Seiki), this dashboard features a highly distinct, driver-focused layout. It integrates a multi-inch graphical display on the left, a prominent central analog tachometer with a small digital gear indicator and a mechanical speedometer on the right. For automotive electronics workshops, adding this specific platform to your service menu opens up highly profitable adaptation and conversion opportunities.

Hardware Architecture: The Nippon Seiki PCB Layout

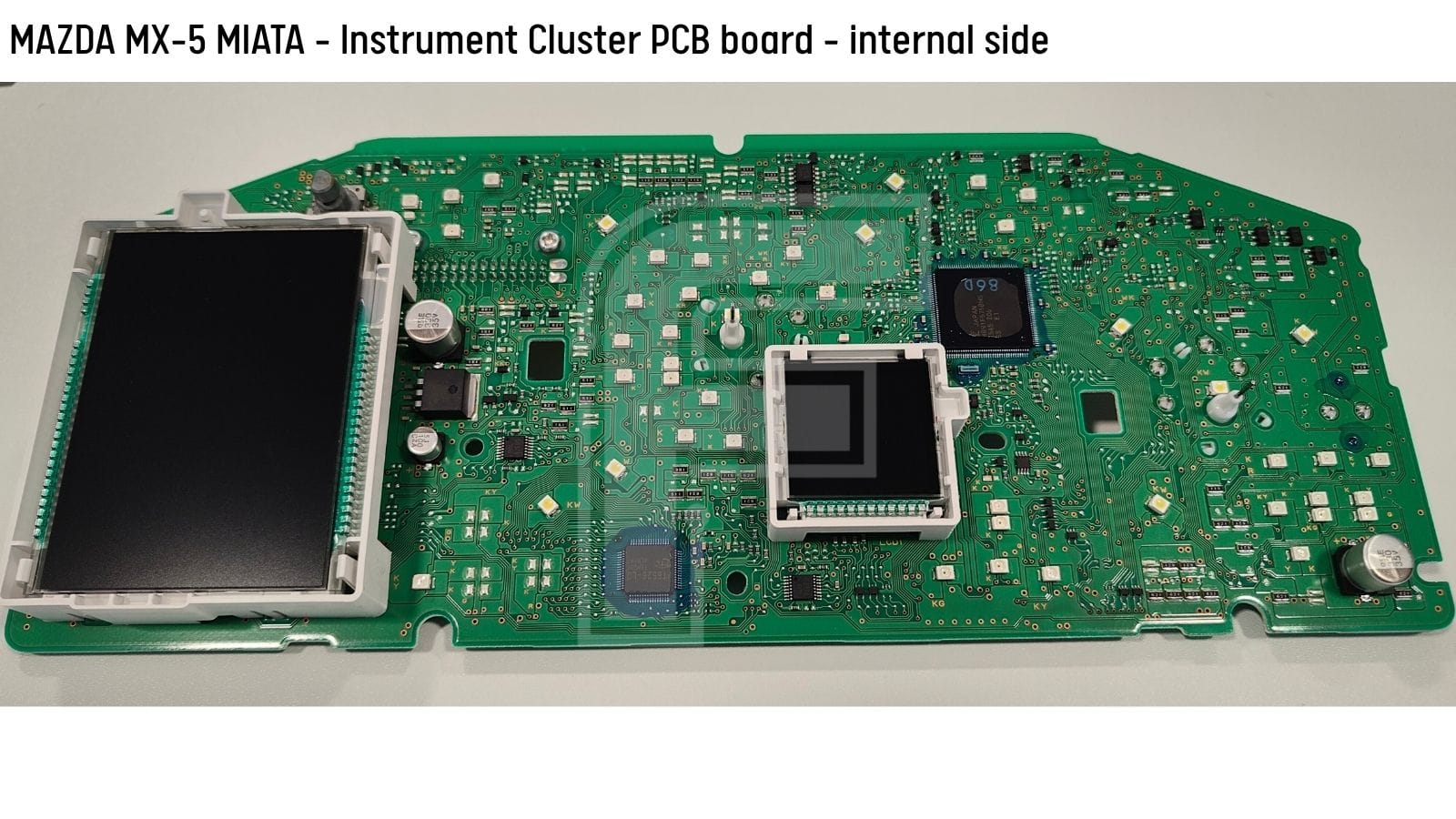

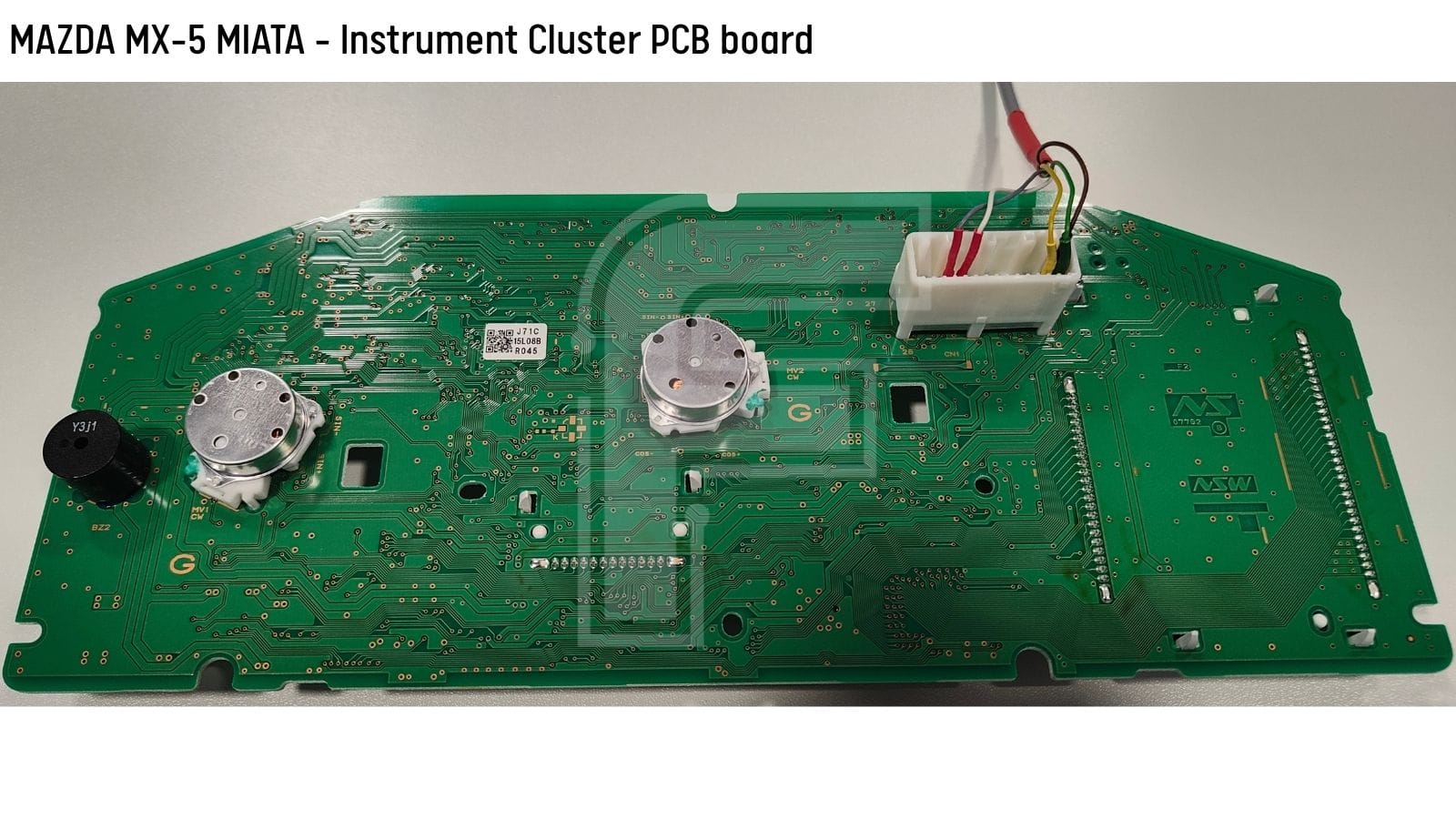

When you unclip the rear plastic housing of the Miata cluster, you are immediately presented with a bare PCB. To protect the core electronics, the manufacturer placed all surface-mount components entirely on the inner side of the board.

Internal Component Specs & Bench Warnings:

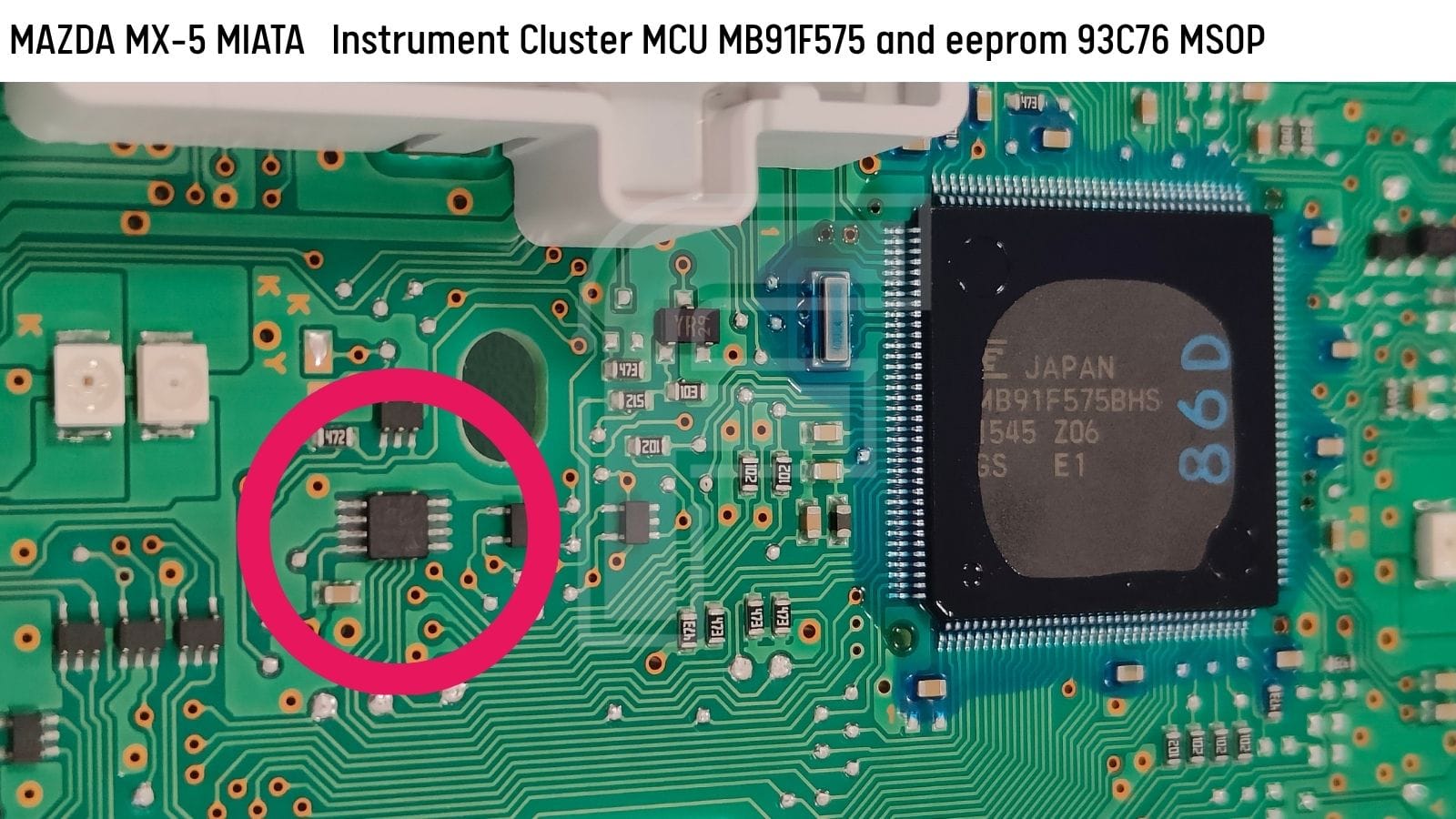

• The Main Processor: Operations are managed by the advanced Fujitsu MB91F575 microcontroller.
• The External EEPROM: Calibration parameters and odometer structures are stored in an external 93C76 EEPROM chip housed in a MSOP package.

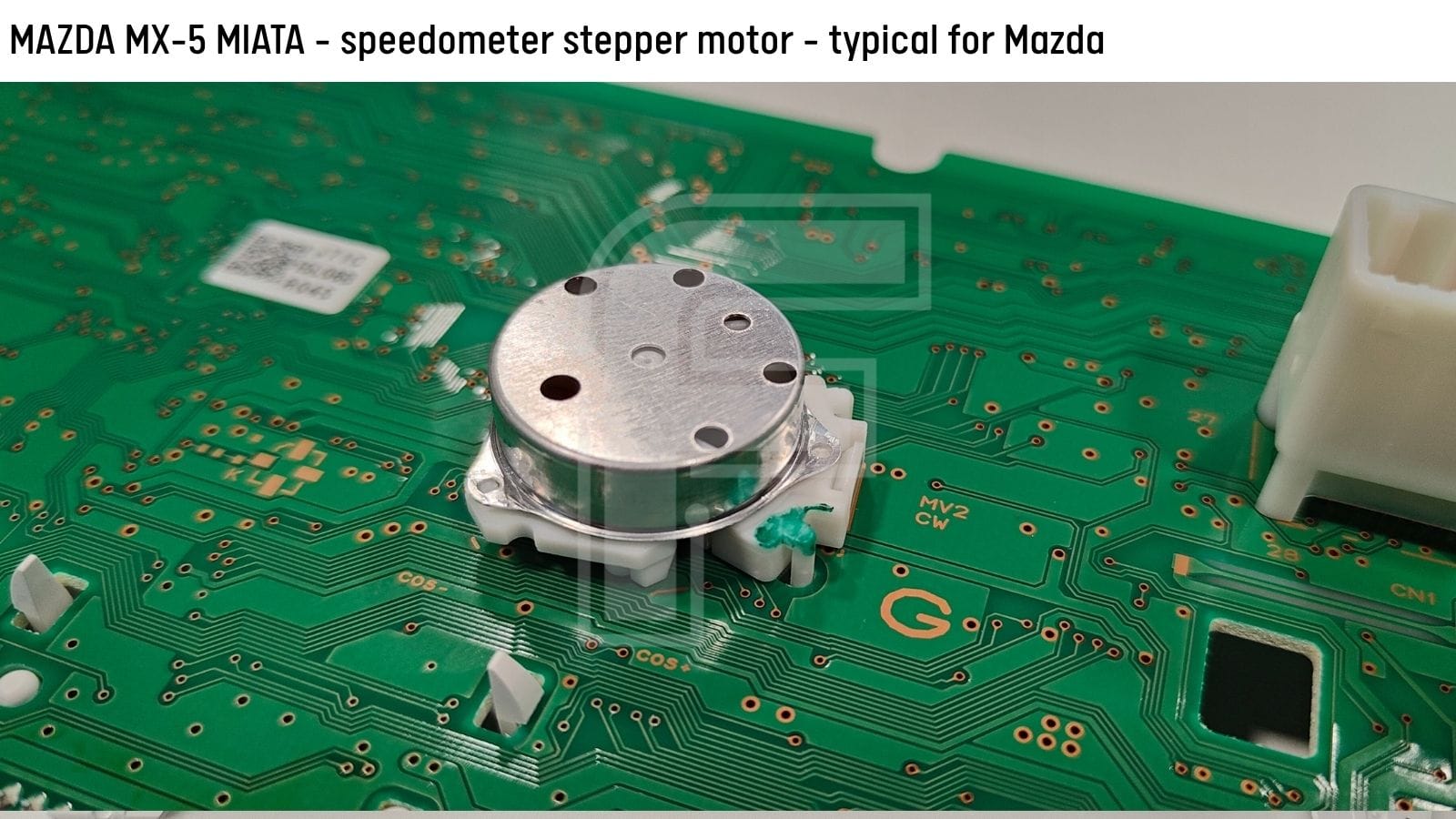

• ⚠️ High-Risk Component Warning: The gauge needles on this NS-built cluster are driven by signature Mazda stepper motors. Technicians must exercise extreme caution if attempting to remove the needles. These motors are notoriously fragile; applying incorrect mechanical pressure during disassembly can easily destroy the internal gear mechanisms.

Advanced Software Conversions:
USA, Canada, Europe & Japan

Because the MX-5 Miata is heavily imported worldwide, workshops frequently encounter regional configuration mismatches. Vehicles imported between global markets (such as US-spec cars moving to Europe, or Japanese right-hand-drive models entering the UK) require full dashboard localization.

Depending on the destination country, target metrics like miles vs. kilometers or regional configurations must be adapted. On this platform, these parameters are deeply embedded within the cluster's memory map.

FORZA 614 changes the game by giving you unrestricted, full read and write access to the entire 93C76 EEPROM memory map. This allows your shop to cleanly modify hex data files and execute flawless, permanent software conversions without swapping expensive physical components.

Mazda MX-5 Seamless Odometer Reset & Module Swapping

When a customer's original cluster suffers catastrophic internal damage, sourcing a used donor unit is often the most cost-effective path forward. However, adapting a used dashboard requires proper synchronization.

FORZA 614 features a dedicated software module designed to safely reset and program the odometer values on the MX-5 cluster. This allows you to write the vehicle's exact, genuine mileage history into the replacement donor unit - ensuring complete legal compliance and error-free system integration.

Flexible Programming Modes: OBD2 & The Bench Pinout

To optimize your daily bench flow, FORZA 614 offers two stable operating environments for the MB91F575+93C76 platform:

1. OBD2 Mode: Complete the entire EEPROM read/write or odometer reset directly inside the car via the standard diagnostic port.
2. Dash Plug Mode (Bench Programming): Work safely on your workbench. You can interface with the cluster using just 5 basic terminals: two +12V power lines, one GND line, CAN High and CAN Low. Use our cables F1+F2

📌 Technical Note: The bench pinout configuration for this Nippon Seiki Miata cluster differs significantly from standard Mazda dashboard layouts. To ensure you never risk shorting a board, the precise, high-resolution wiring schematics and connector diagrams are built directly into the FORZA 614 Windows PC application.

Streamline Your Bench:
Switch to FORZA 614

Stop wasting valuable hours hunting for unverified pinouts on internet forums or paying expensive single-software licenses and per-car token fees. We design FORZA 614 to be the most user-friendly, high-yield asset in your garage.

Our system operates on a low flat monthly subscription, unlocking our entire specialized software catalog along with every new update we drop every few days.

If you want to scale your automotive electronics business, work with reliable data, and execute advanced conversions your competitors can't handle:

➡️ Switch to FORZA 614 now

Download the free Windows PC software to view our complete coverage list.
