Dash Plug programming guide for mileage restoration in KTM 125

The hardware and software ecosystem of the FORZA 614 platform continues to break new ground. Now we support the KTM 125 digital instrument cluster, driven by the specialized SPC5645S processor.

While this dashboard shares its outer physical housing with larger siblings like the KTM 390, 1090, 1190 or 1290, the internal software architecture has evolved. With the latest FORZA 614 database refresh, you can now handle these units efficiently on your workbench.

Common Failure Points:
Physical Crashes and Moisture Ingress

Instrument clusters on motorcycles operate in a brutal environment compared to passenger cars. When a customer brings a KTM cluster to your workshop, the damage is almost always tied to mechanical trauma or weather exposure:

• Crash and Rollover Damage: In a typical motorcycle accident or simple tip-over, the dashboard is highly exposed. This frequently results in shattered plastic housings and cracked or bleeding internal LCD glass matrices.
• The Hairline Crack Trap: Even a minor, nearly invisible hairline crack in the outer lens or plastic casing is a ticking time bomb. Over time, washing the bike or riding in the rain allows moisture to seep inside. This water ingress rapidly corrodes the internal PCB traces, leading to component failure, short circuits, and total cluster malfunction.

Repair vs. Module Swapping:
Where FORZA 614 Fits In

Depending on the extent of the damage, you have two logical ways to approach a KTM job:

1. Housing Refurbishment: If the internal electronics, SPC5645S MCU and LCD screen are fully operational, the most cost-effective fix is swapping the broken plastic for a new aftermarket housing element.
2. Complete Donor Swapping: If both the housing and the delicate LCD matrix are completely destroyed, a physical component repair is no longer financially viable. The fastest and most professional solution is sourcing a used donor cluster from another bike.

Seamless Odometer Synchronization

When a donor cluster is installed, it carries the mileage history of a different motorcycle. To ensure legal compliance and maintain the accurate service records of the client’s bike, FORZA 614 allows you to program the odometer value both up and down.

By utilizing the dedicated menu option for the SPC5645S processor, you can precisely sync the donor cluster to the motorcycle's original mileage in just a few clicks.

Reliable Bench Setup: No Loose Wiring

You don't need to struggle with raw wiring pins or unsafe configurations. The full, high-resolution pinout diagram for the KTM cluster plug is integrated directly inside the FORZA 614 Windows PC application.
Our setup is F1+F2. But you must use on your own round terminals to match KTM plug pins.

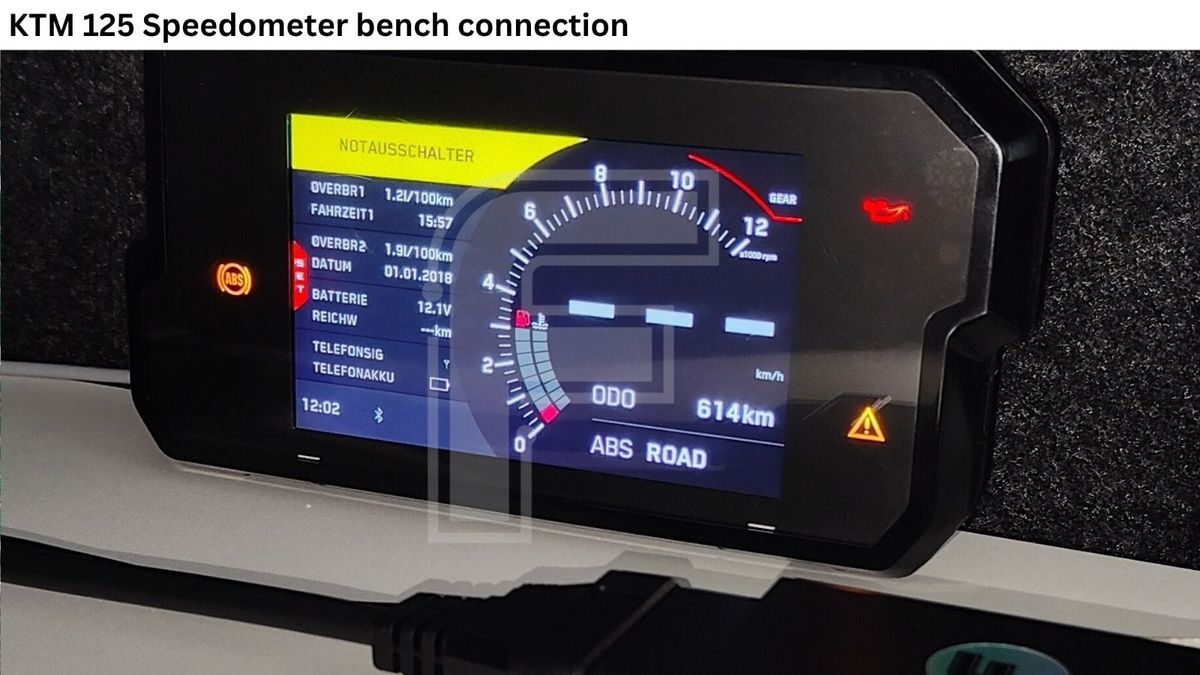

Working in Dash Plug mode allows you to safely interface with the SPC5645S processor on your bench, adjust the mileage values and immediately power up the display to verify pixel health, backlight continuity, and CAN-bus network check.

One Flat Fee, Non-Stop Updates:
The FORZA 614 Advantage

Automotive and motorcycle electronics change rapidly, and your tools should adapt without draining your workshop's bank account. This KTM SPC5645S update is not a paid add-on or a per-vehicle token expense.

The entire module is fully unlocked under one simple, transparent subscription.

Do the math yourself: A single specialized motorcycle cluster adaptation or conversion job easily charges enough to cover 2 to 3 months of your entire FORZA 614 subscription. Stop paying for locked single-model licenses and start maximizing your shop's bottom line.

➡️ Switch to FORZA 614 today
