OBD2 and Dash Plug solution for Hyundai Tucson NEC speedometer calibration by FORZA 614

The software database for the FORZA 614 platform continues to grow. Today, we are taking a closer technical look at the programming and adaptation capabilities for the modern Hyundai Tucson instrument cluster.

Driven by the NEC D70F3526 microcontroller, this dashboard features a highly reliable, straightforward design. This hardware architecture is shared across a wide range of current Hyundai and Kia vehicle platforms, making it an essential addition to any automotive electronics workshop.

Hardware Architecture:
The "EEPROMless" Hyundai Platform

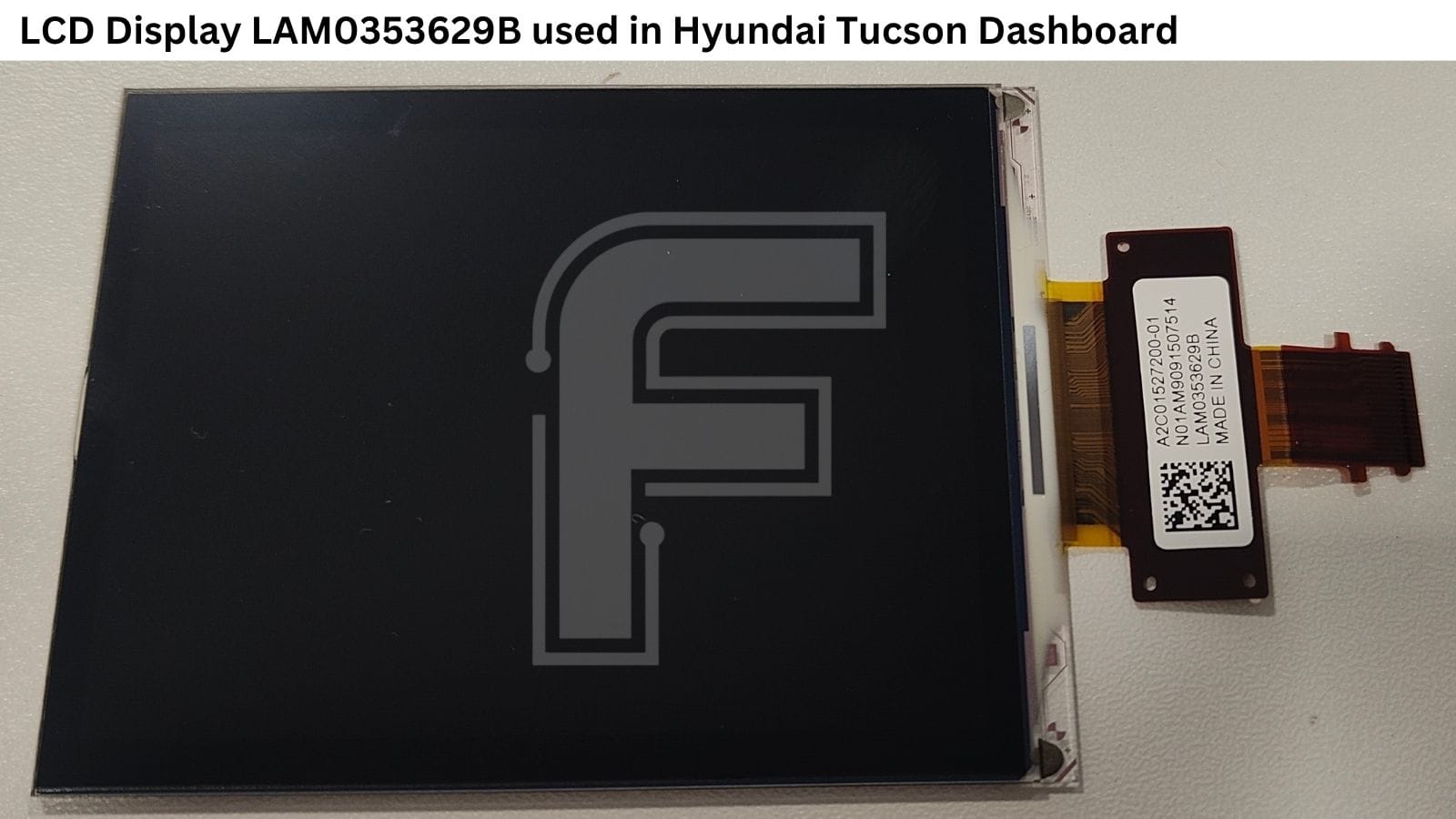

The visual layout of this Tucson cluster consists of four classic analog gauges and a centrally mounted 3.5-inch monochrome LCD screen (factory part number: LAM0353629B).

Internal Component Blueprint:

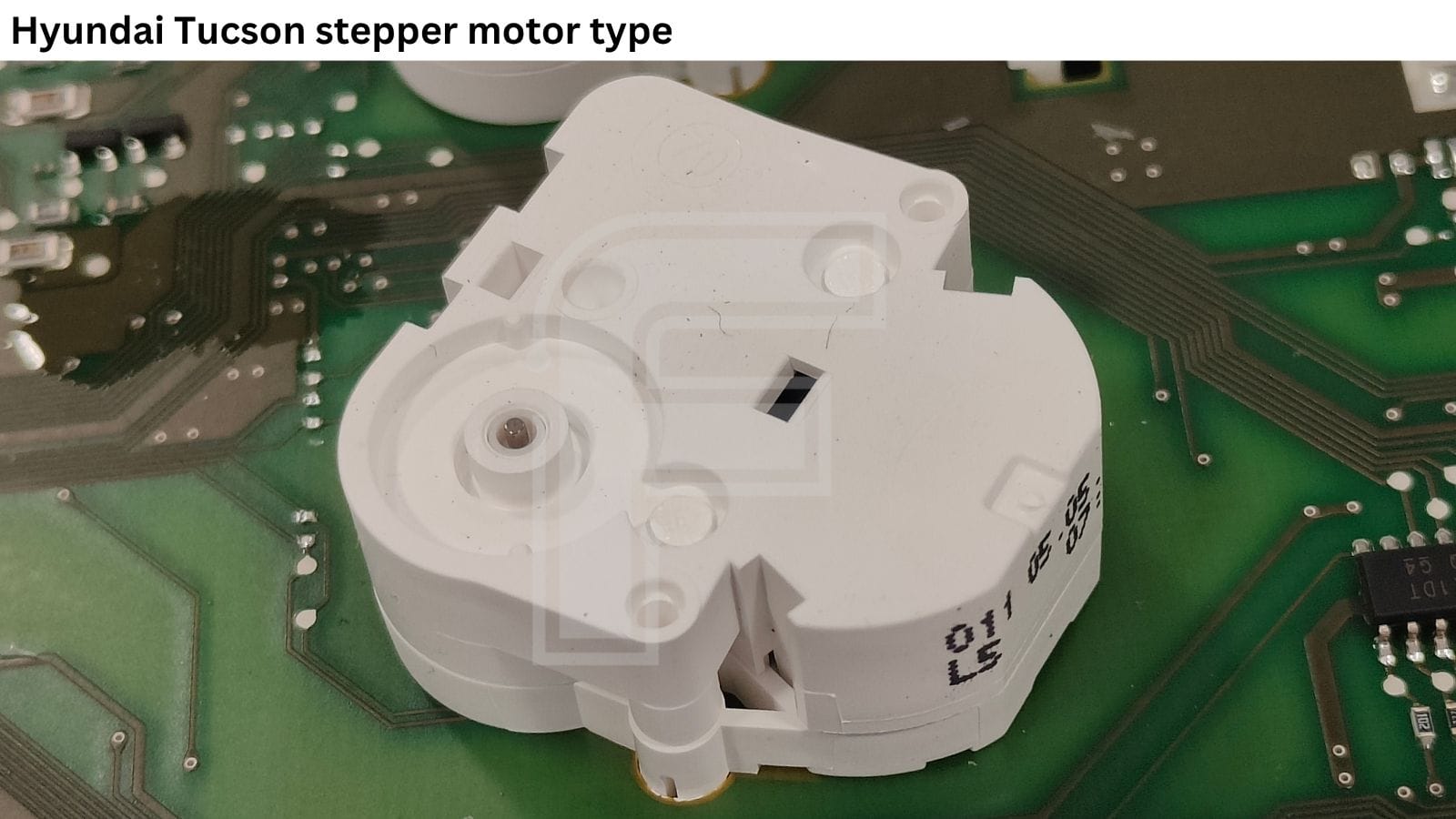

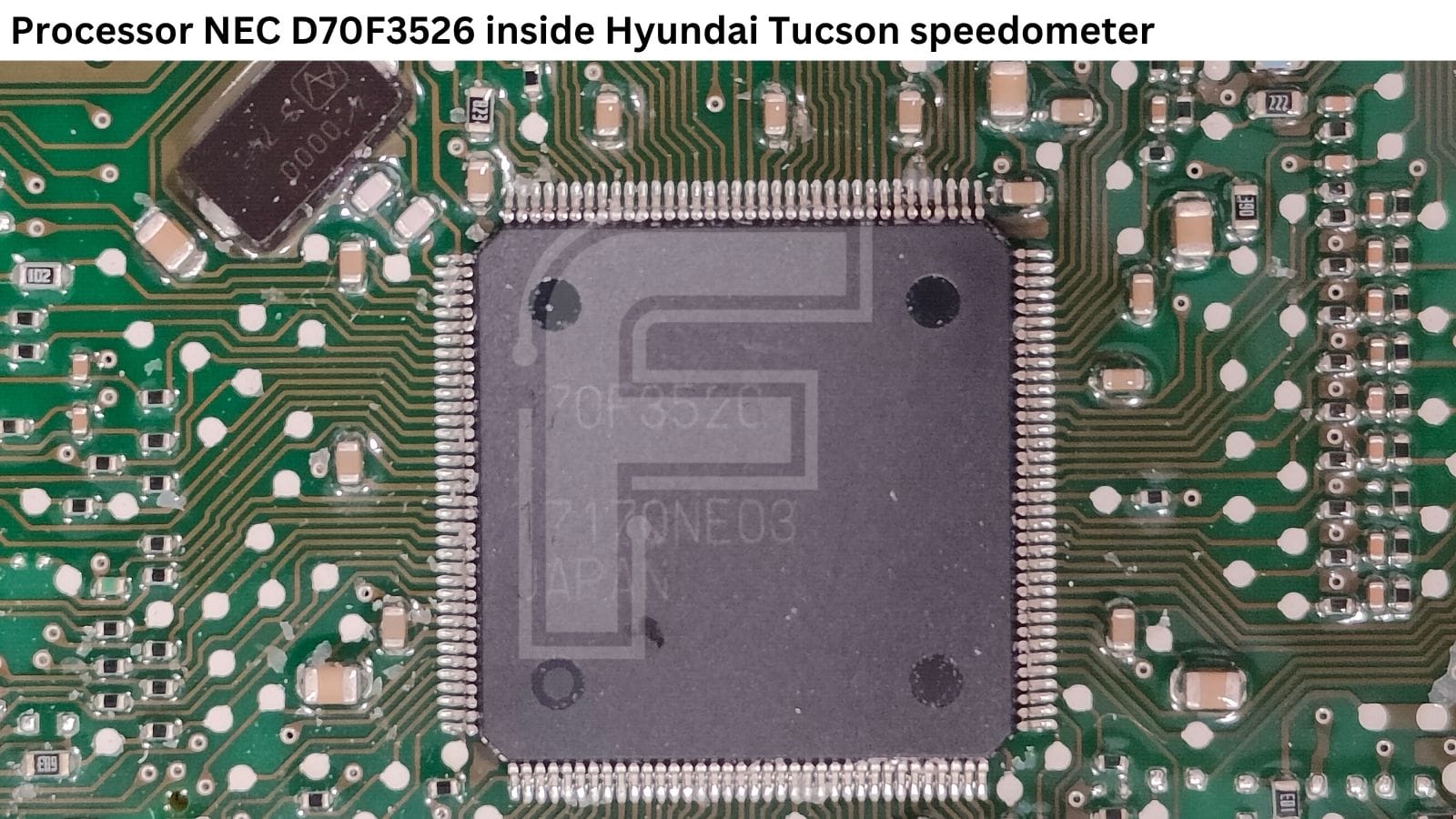

• The Microcontroller: System operations are governed by the NEC D70F3526 processor.

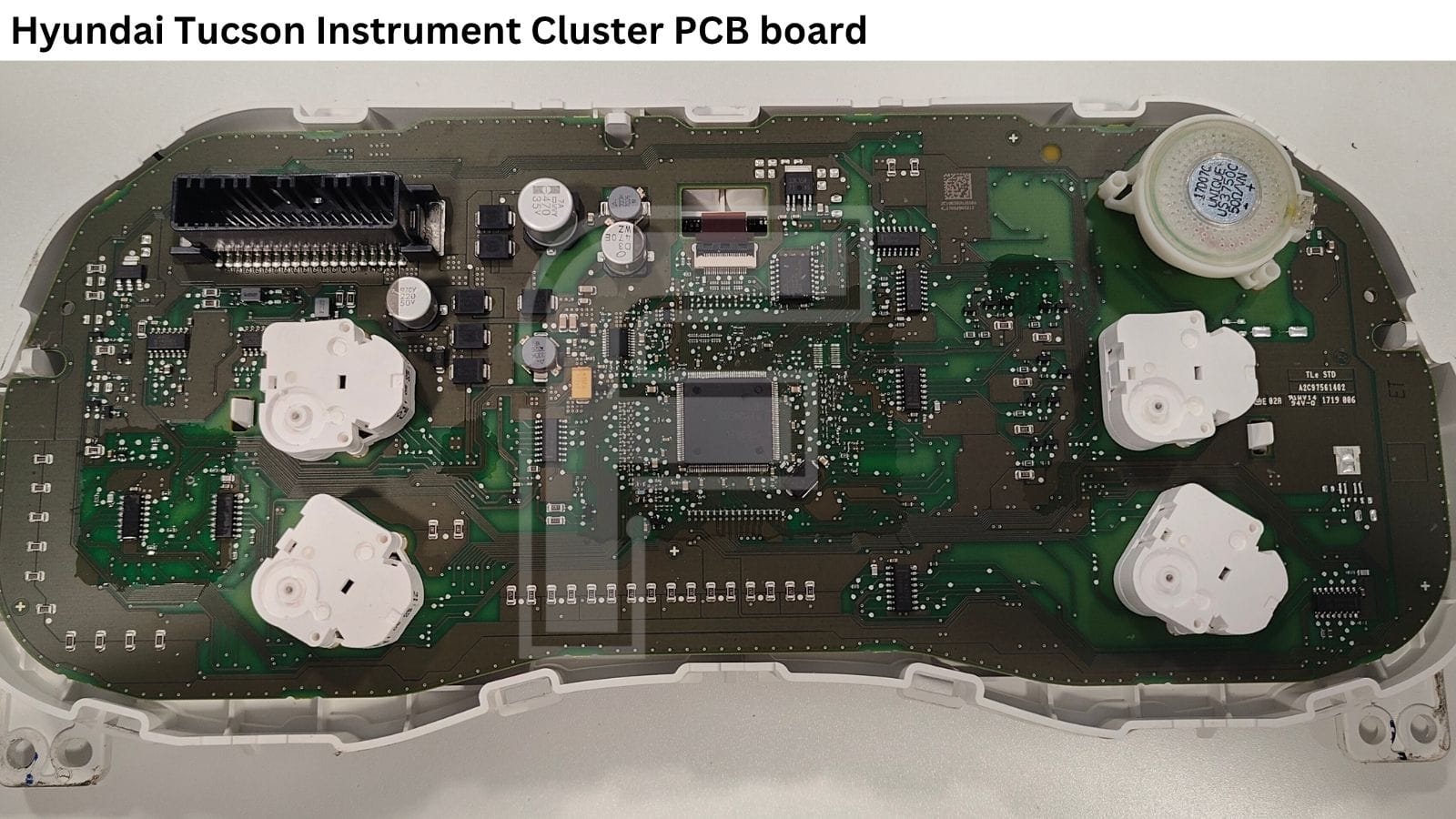

• Eepromless type:There is no external EEPROM chip on the PCB. In the speedometer repair industry, this layout is commonly referred to as "eepromless." Instead of a separate chip, all mileage, configuration, and adaptation data is stored directly inside a specific partition of the processor's memory, known as the Data Flash (D-Flash).

Dual Programming Environments:
OBD2 vs. Plug & Play Bench Mode

Working with the Hyundai D70F3526 platform inside FORZA 614 is a fast, safe and streamlined process. Technicians can choose between two flexible working environments depending on their workshop setup:

1. OBD2 Mode: Complete the entire read and write operation directly inside the vehicle through the factory diagnostic port.

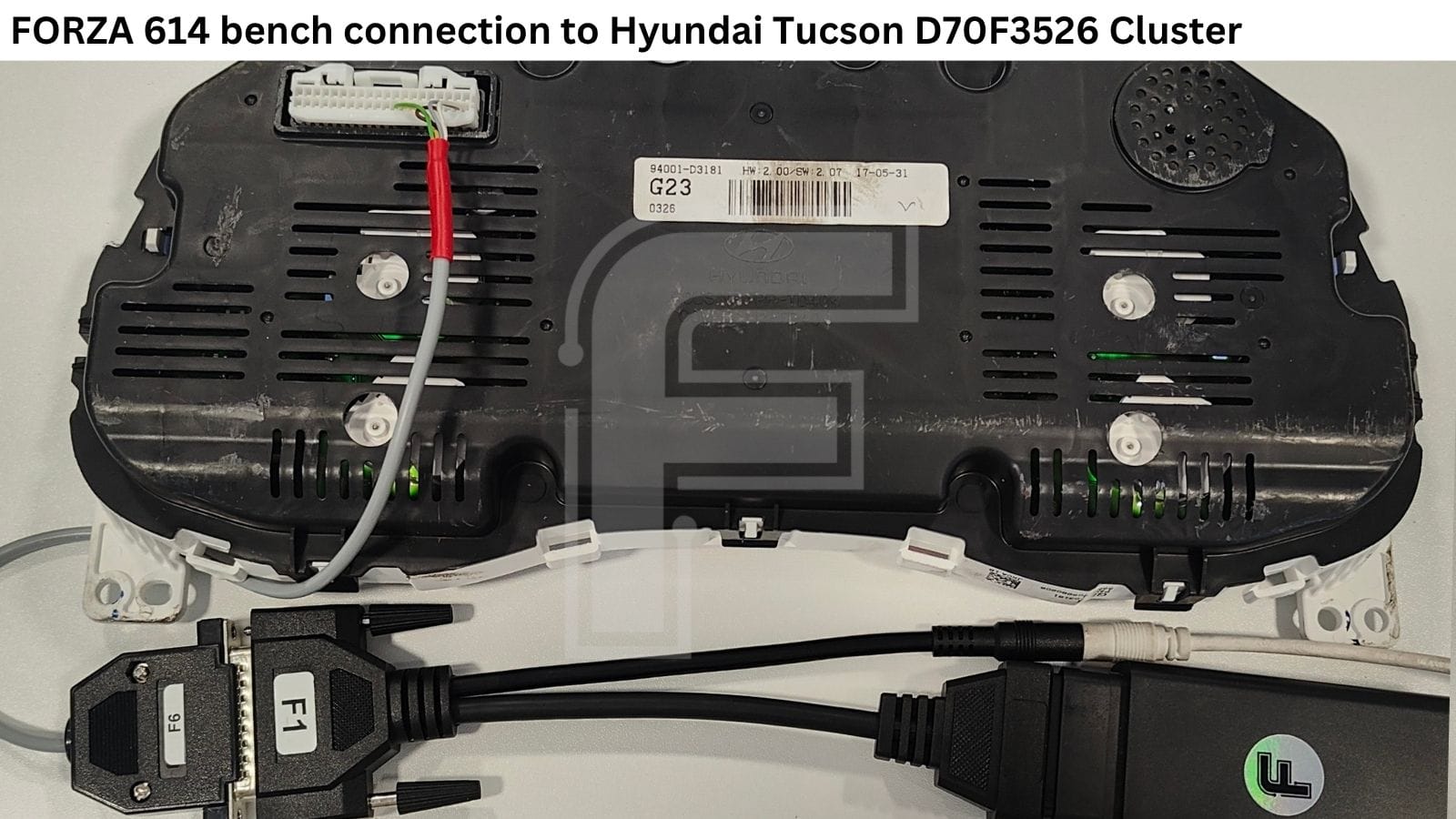

2. Dash Plug Mode (Bench Diagnostics): Ideal for mail-in repair services or when working away from the car. By using the dedicated FORZA F1 + F6 cable harness, you get a true plug-and-play bench connection without any loose wiring or soldering.

📌 Note: Complete, high-resolution connection photos are accessible directly within the FORZA 614 PC application.

USA / Canada / Europe Conversions:
Miles <-> KM & Celsius <-> Fahrenheit

Car importation is a massive market, but vehicles imported between regions (e.g., USA/Canada to Europe, or vice versa) always present a regional unit mismatch.

On the Hyundai Tucson platform, the regional market settings, odometer scaling variables and temperature configurations are locked inside the processor's D-Flash (EEPROM) memory.

Because FORZA 614 allows for a full read and write of the entire internal EEPROM contents of the NEC processor, automotive electronics specialists can easily modify the hex data dump to change the dashboard's region. This allows you to perform clean, permanent software conversions from Miles to Kilometers and Fahrenheit to Celsius without replacing physical hardware.

Safe Odometer Synchronization & Mileage Reset

When performing a regional conversion or swapping out a damaged dashboard for a used donor unit, syncing the mileage is a vital step.

FORZA 614 features a dedicated, stable software protocol to reset and calibrate the odometer values on this platform. This ensures you can write the exact, genuine mileage history of the vehicle into the replacement cluster, keeping the car legally compliant and electronically synchronized.

Work Faster and Safer: Switch to FORZA 614

We are fully committed to making FORZA 614 the most user-friendly, profitable asset in your garage. We don't just write software code; we build comprehensive workshop solutions complete with high-resolution photos, clear step-by-step instructions and direct engineer-to-engineer technical support.

Stop turning down profitable conversion jobs or paying expensive single-software licenses and token fees. Our platform operates on a one simple subscription giving you full, unrestricted access to our entire current and future software database.

Do you want to optimize your bench efficiency and offer services your local competitors can't touch?

➡️ Switch to FORZA 614 today.
