OBD2 and Dash Plug Odometer Programming software for Fiat Panda now available in FORZA 614

The third-generation Fiat Panda (Type 319), produced from 2011 onward, is built to be simple and functional. The instrument cluster reflects this approach: it has a very basic design with two analog gauges (speedometer + RPM) and a central monochrome LCD screen with orange segments.

Even though this Magneti Marelli/Fiat unit is quite reliable, these cars are now over a decade old. As a result, electronics workshops frequently face common age-related issues with this dashboard.

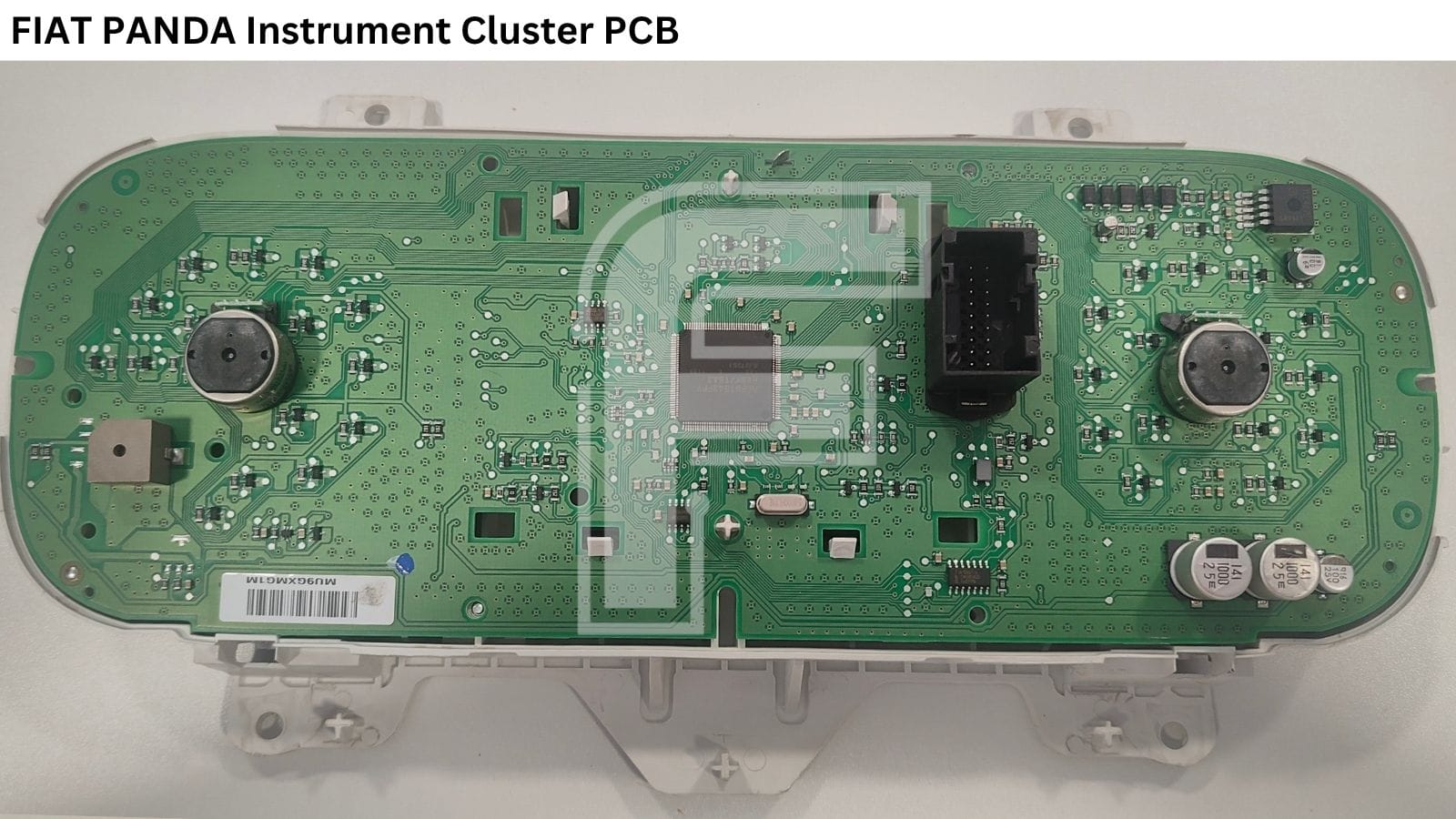

Hardware Inside Fiat Panda Instrument Cluster:

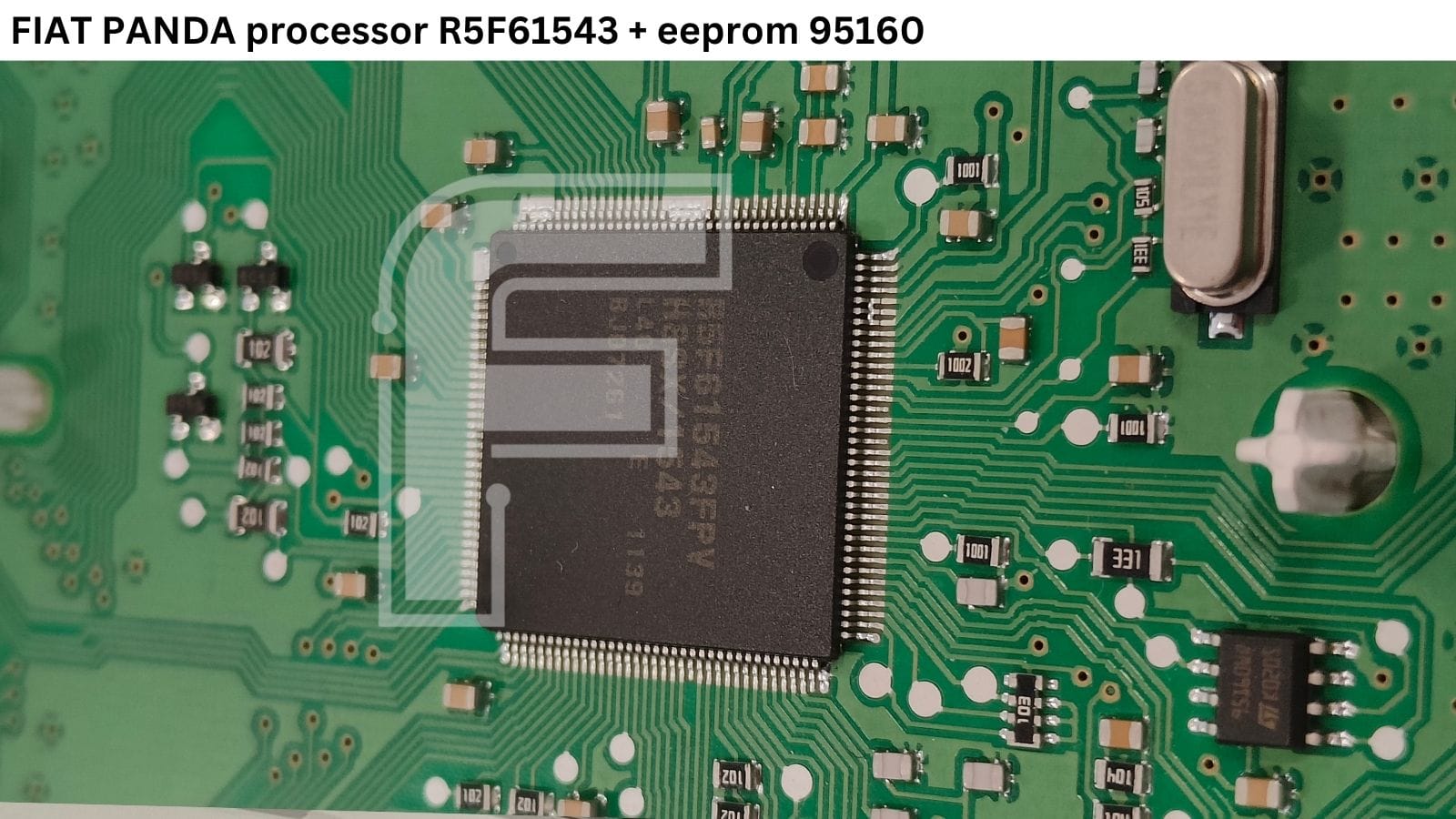

R5F61543 MCU + 95160 EEPROM

When you take apart the cluster, the internal hardware is straightforward:

• The Main Processor: Driven by the Renesas R5F61543 MCU
• The External EEPROM: Odometer data and configuration info are stored in a standard 95160 EEPROM chip

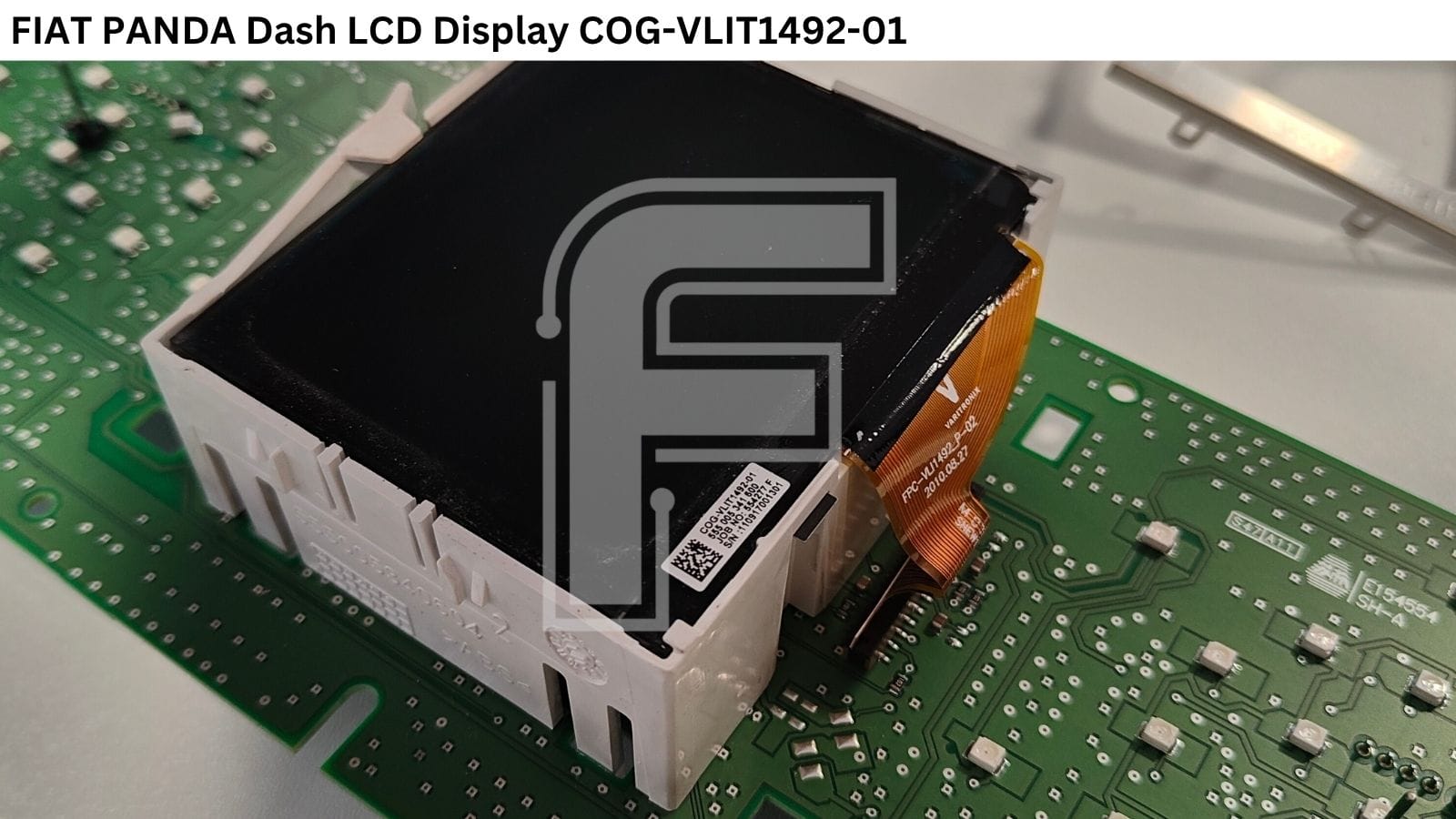

• The LCD Screen: The central display panel carries the part number COG-VLIT1492-01

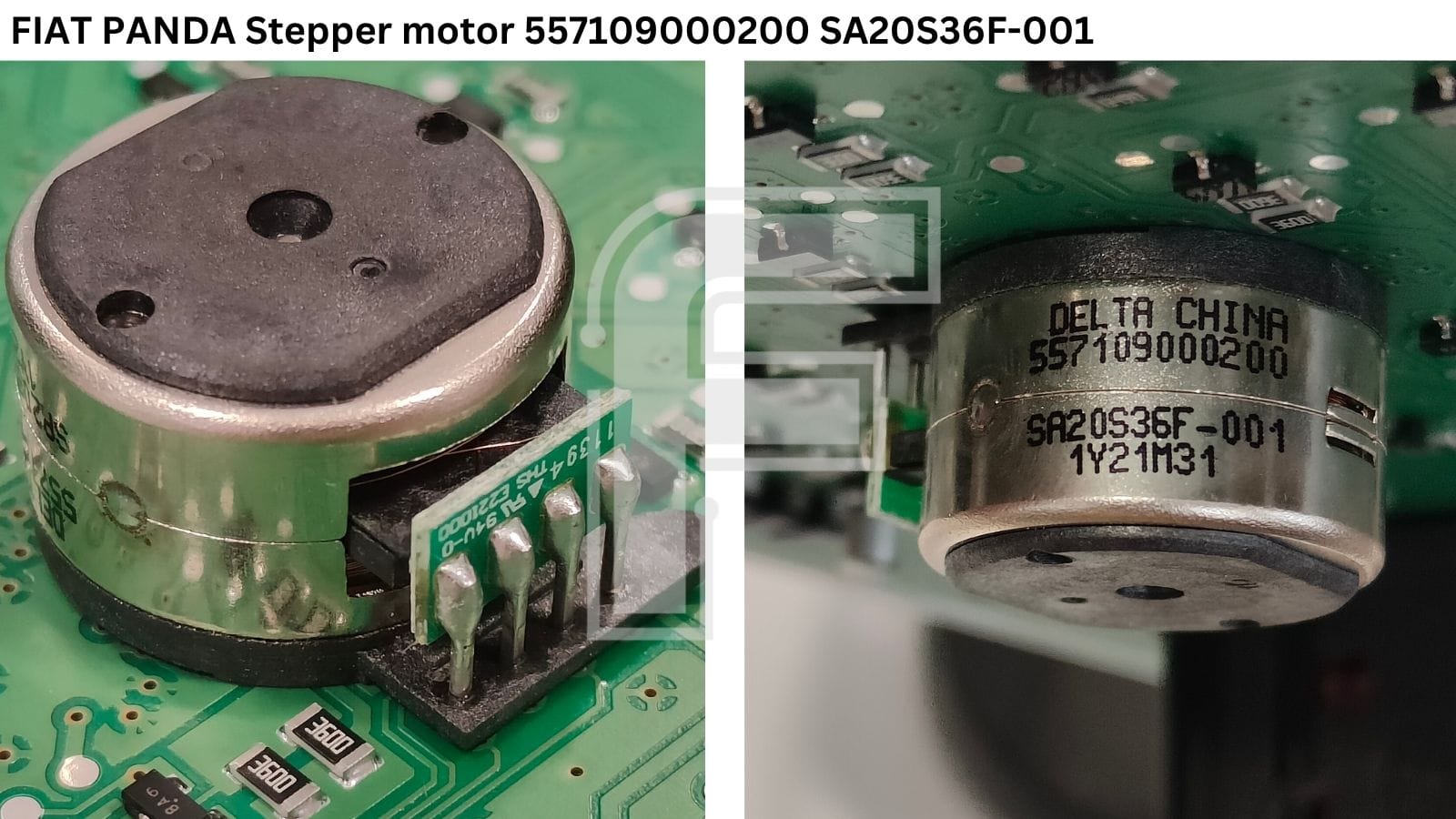

• Stepper motors: 557109000200 SA20S36F-001 by Delta China

Common Failure Points in the Dashboard

As these clusters age, thermal stress and chassis vibrations lead to two main problems:

1. Intermittent Operation: The cluster randomly cuts out or loses connection with the car's network. This is usually caused by cracked cold solder joints on the main connector pins or the PCB.
2. LCD Screen Corruption: Missing segments, faded lines, or a total loss of graphics, making the orange display unreadable.

Note: In most countries, a broken or unreadable instrument cluster will immediately fail the vehicle's periodic safety inspection (like the MOT test).
A working dashboard is critical for both safety and legal compliance.

Cluster Swapping and Odometer Calibration with FORZA 614

Sometimes fixing a cracked PCB or chasing down broken traces takes too much time and makes the repair financially unprofitable. In these cases, the fastest solution is swapping the broken unit for a used donor cluster.

FORZA 614 allows you to safely reset and adjust the mileage value on the replacement cluster to match the car's original odometer history. If the original cluster is too dead to communicate with, you can easily read the genuine mileage straight from the Engine Control Unit (ECU) to ensure everything matches up perfectly.

Is it possible to read and write full eeprom by diag?
For this specific unit, a full read/write of the 95160 EEPROM memory map is not available over OBD2 or dash plug.

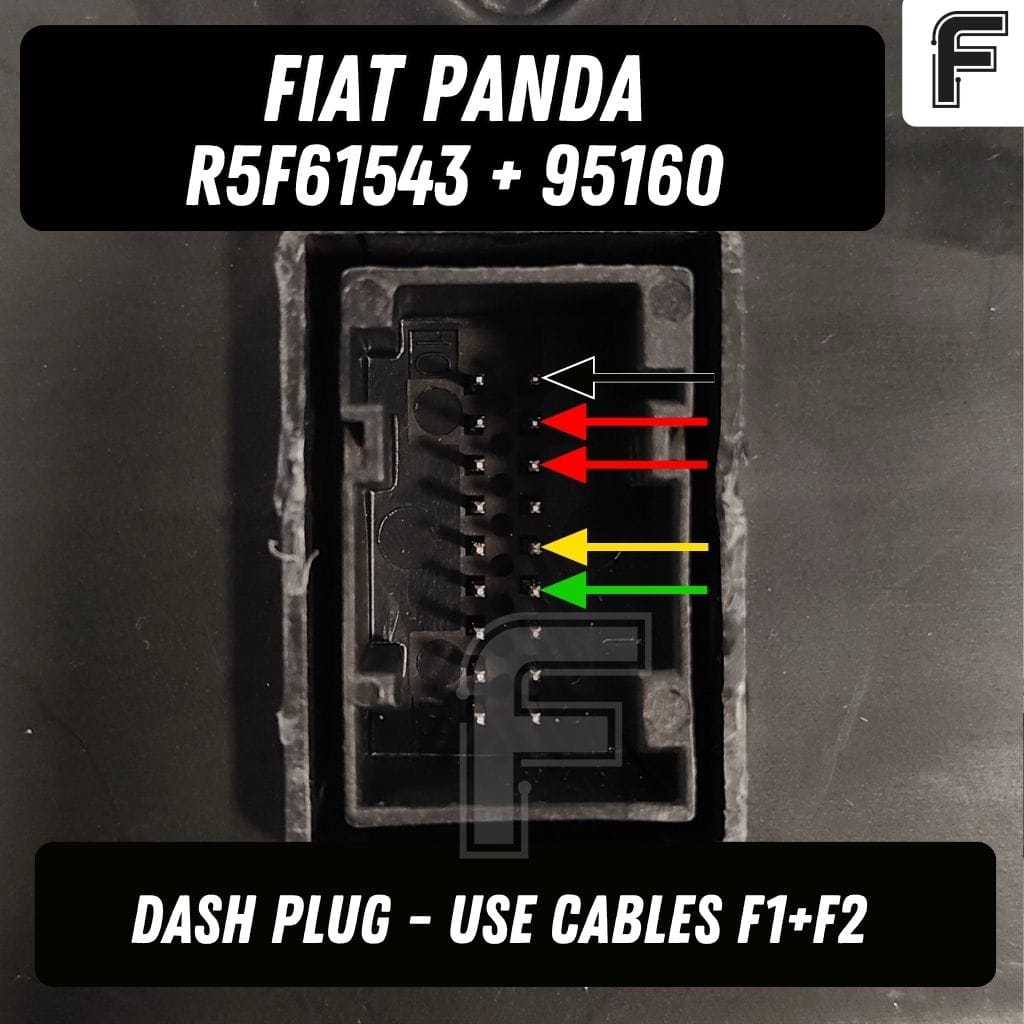

Safe Bench Testing: The 5-Wire Setup

Before shipping a repaired cluster back to a customer or installing it in the car, you can test it completely off-board using FORZA 614 and the F1 + F2 cable harness.

To boot the Fiat Panda cluster on your workbench, you only need 5 basic wires:

• Power: 2x +12V lines
• Ground: 1x GND line
• Data: CAN High and CAN Low lines

Once connected, the cluster powers up instantly. This allows you to immediately check the COG-VLIT1492-01 screen for dead pixels and verify that the backlighting works evenly. You can also test the cluster’s CAN-bus communication stability or leave it powered up for a few hours as a time-endurance test to catch any intermittent faults before final assembly.

FORZA 614 Subscription model

This program, along with all other cluster modules in FORZA 614, is available under one simple subscription. Our business model is designed to give you instant access to specialized software and non-stop updates - all for a low, budget-friendly monthly fee.
