Technical guide for Dodge Viper 95160 Instrument Cluster repair and data programming

When it comes to high-end muscle dashboard architecture, manufacturers often share advanced hardware platforms. A prime example is the iconic Dodge Viper instrument cluster. Engineered by Magneti Marelli, this specific hardware platform is highly specialized - sharing its core internal layout with premium Italian luxury vehicles like Maserati.

For automotive electronics workshops, mastering this Magneti Marelli platform opens the door to exclusive, high-margin repair and cloning jobs. In this technical overview, we break down the hardware, analyze the common thermal failure points, and demonstrate how FORZA 614 delivers a complete, non-invasive programming solution.

Hardware Architecture:
The Magneti Marelli Platform

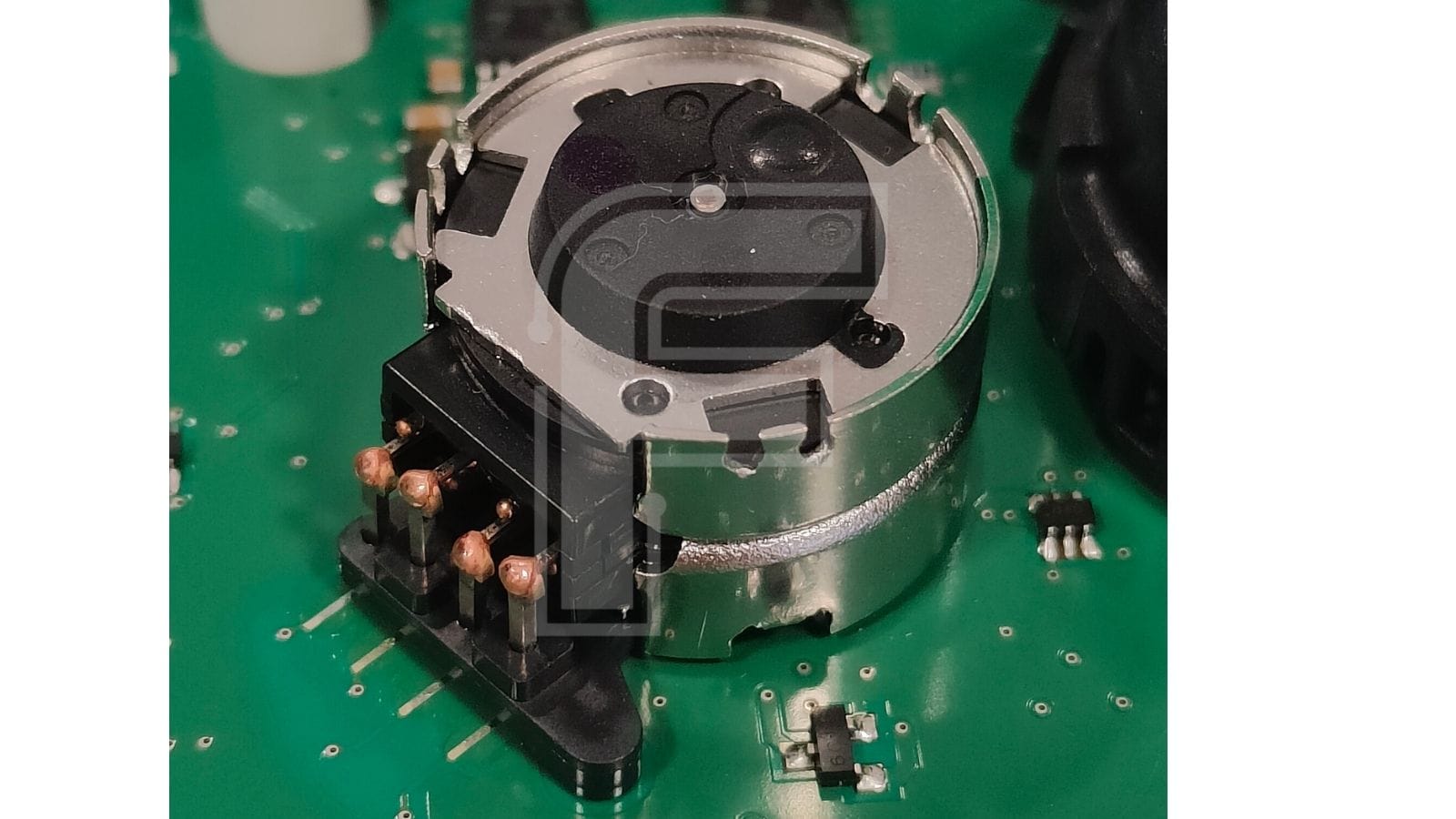

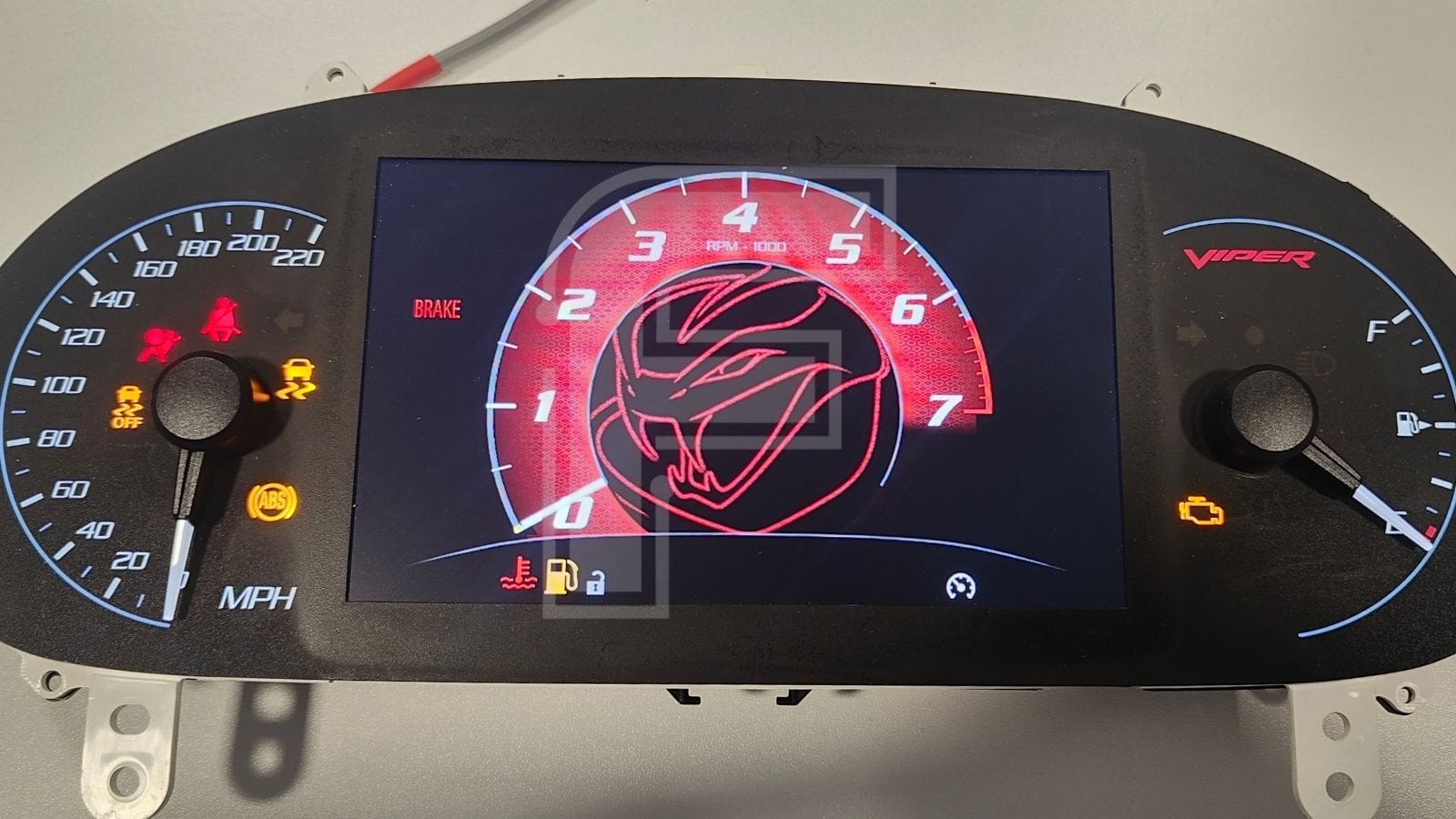

The visual layout of the Dodge Viper cluster revolves around a crisp, central 7-inch TFT digital display, flanked by two analog gauges for speed/RPM and a dedicated fuel level indicator.

Core Hardware Component Reference:

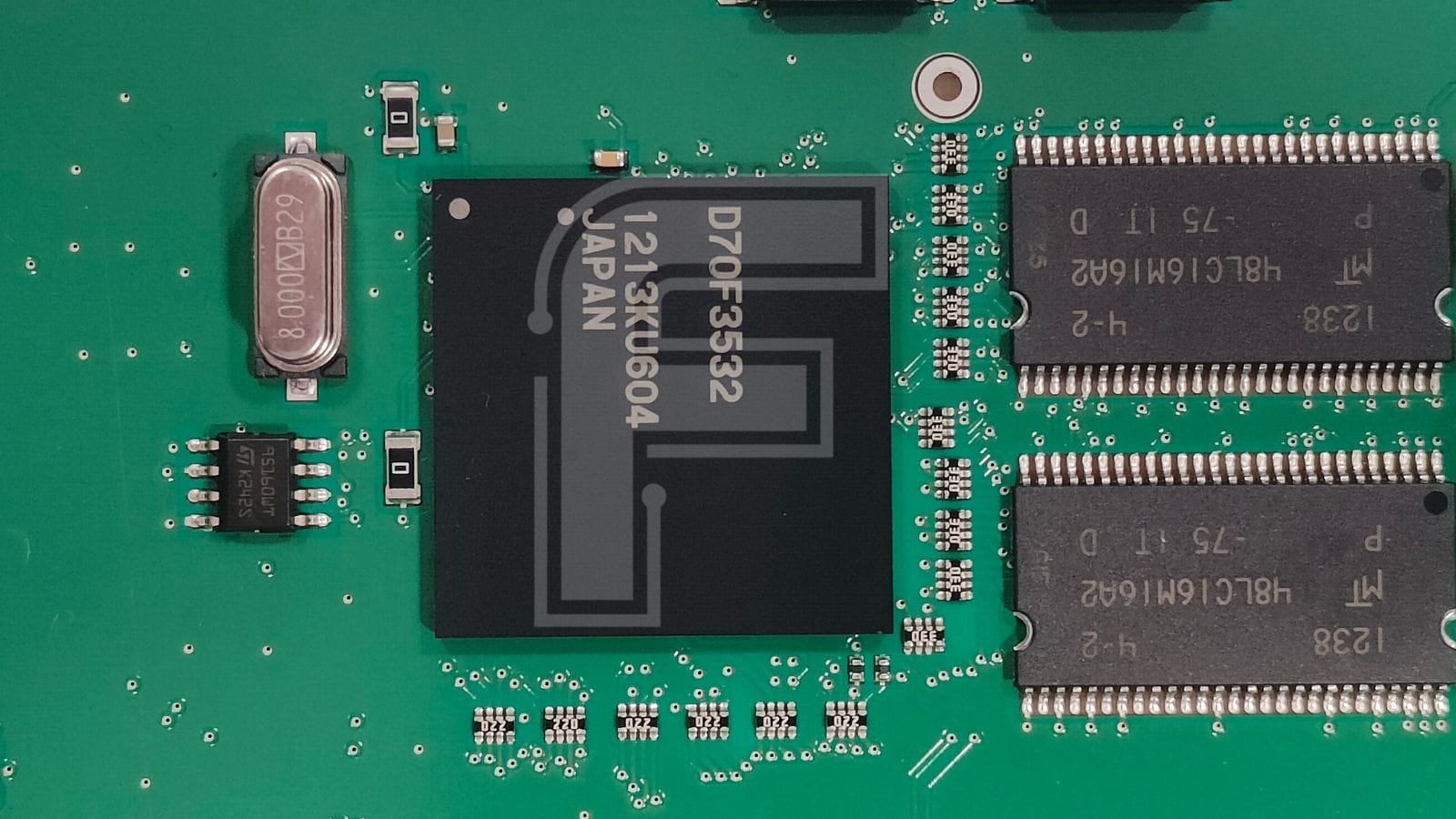

• The Main MCU: Operations are controlled by the advanced Renesas/NEC D70F3532 microcontroller, mounted in a high-density BGA (Ball Grid Array) package.
• The External EEPROM: Vehicle configurations and odometer history are stored right next to the processor in an external 95160 EEPROM chip.

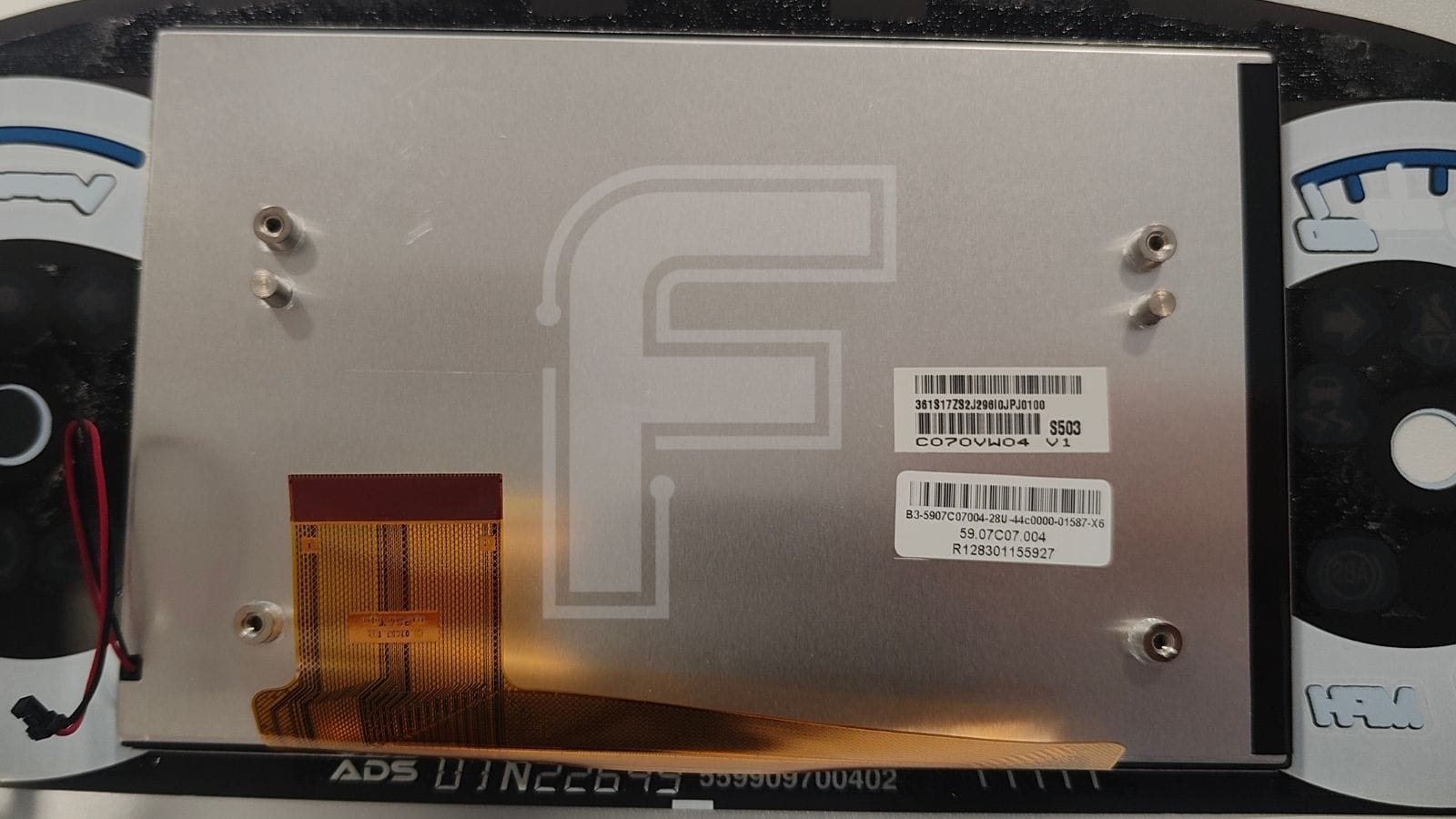

• LCD Display: C070VW04 V1 by AUO company

Common Failure Points:
Screen Blackouts and BGA Solder Degradation

Despite being installed in a flagship high-performance sports car, these Magneti Marelli units suffer from well-documented, age-related hardware failures. When a Viper cluster lands on your bench, you will typically face these symptoms:

• Complete Screen Blackout: The central 7-inch display goes entirely black, showing zero graphics or life, even though the rest of the cluster might respond to the network.
• Loss of Backlight: The LCD matrix functions but the background illumination fails completely, making the display unreadable.
• Intermittent Operation & Thermal Cut-Outs: The cluster works perfectly fine when cold, but randomly drops communication or shuts down once the vehicle cabin warms up.

The Root Cause:

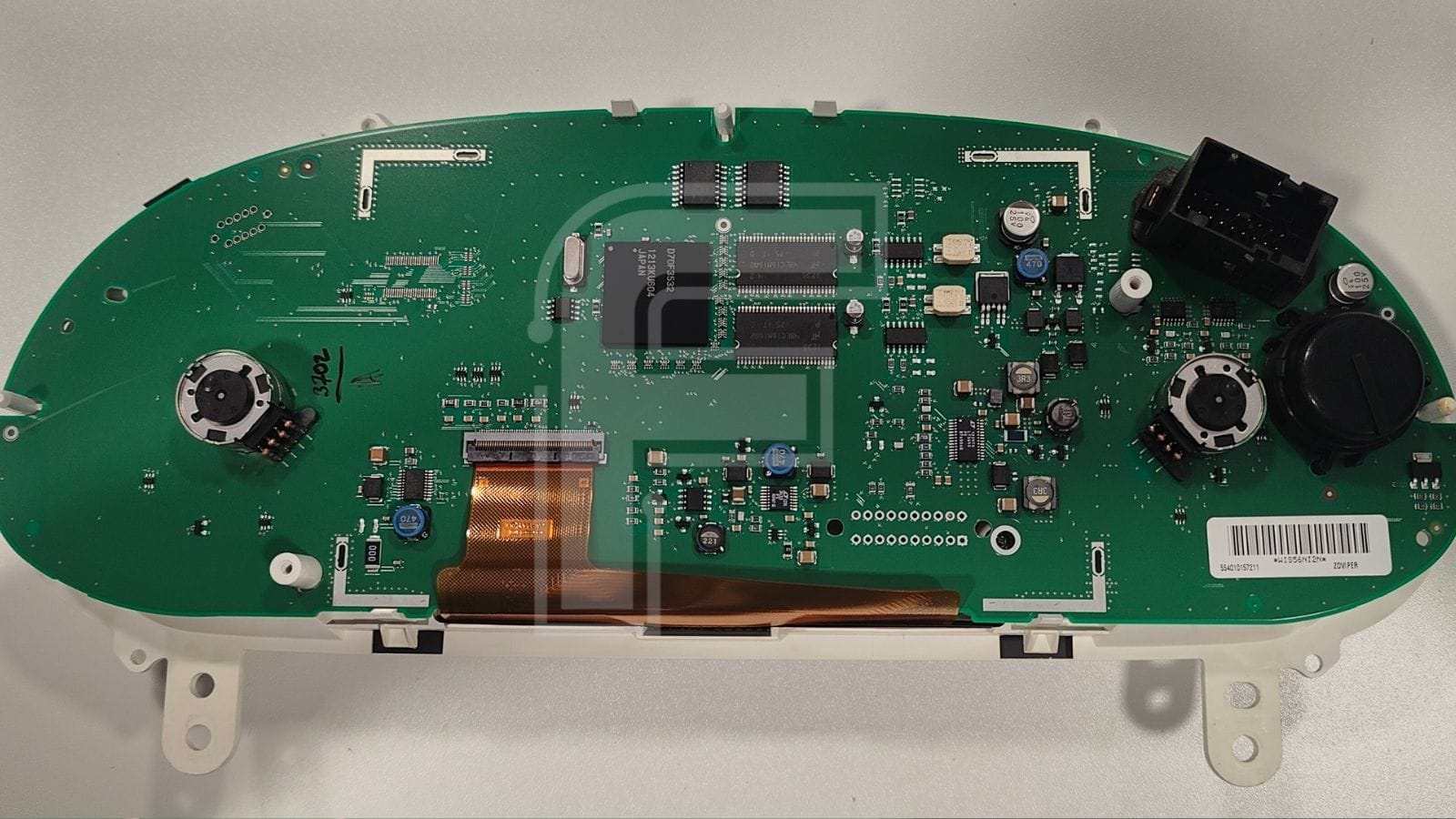

These issues are almost never software corruption; they are structural. Continuous cycles of harsh vibrations and thermal expansion cause micro-cracks in the PCB traces, leading to cold solder joints - specifically underneath the heavy BGA-packaged D70F3532 processor. Repairing these units usually requires professional PCB reflowing or reballing.

Full Data Clone and Mileage Calibration with FORZA 614

When a cluster is completely dead or physically damaged beyond a cost-effective repair, your best option is to source a used donor unit. However, adapting a donor cluster requires eeprom data access.

FORZA 614 offers comprehensive, unrestricted programming support for this Dodge Viper platform:

• Full EEPROM Control: FORZA 614 allows you to read and write the entire data content of the 95160 EEPROM. This gives you the power to perform a 100% perfect data clone from the original cluster to the donor unit.
• Odometer Reset Function: The software features a dedicated, built-in program to reset and calibrate the mileage value, making adaptation seamless and legally compliant.

Dual Programming Methods:
OBD2 vs Dash Plug Mode

To maximize your workshop's flexibility, FORZA 614 supports two distinct working environments for the Dodge Viper platform:

1. OBD2 Mode: Complete the entire programming job directly inside the vehicle through the standard diagnostic port—no dashboard removal required.
2. Dash Plug Mode (Bench): Work comfortably on your workbench.

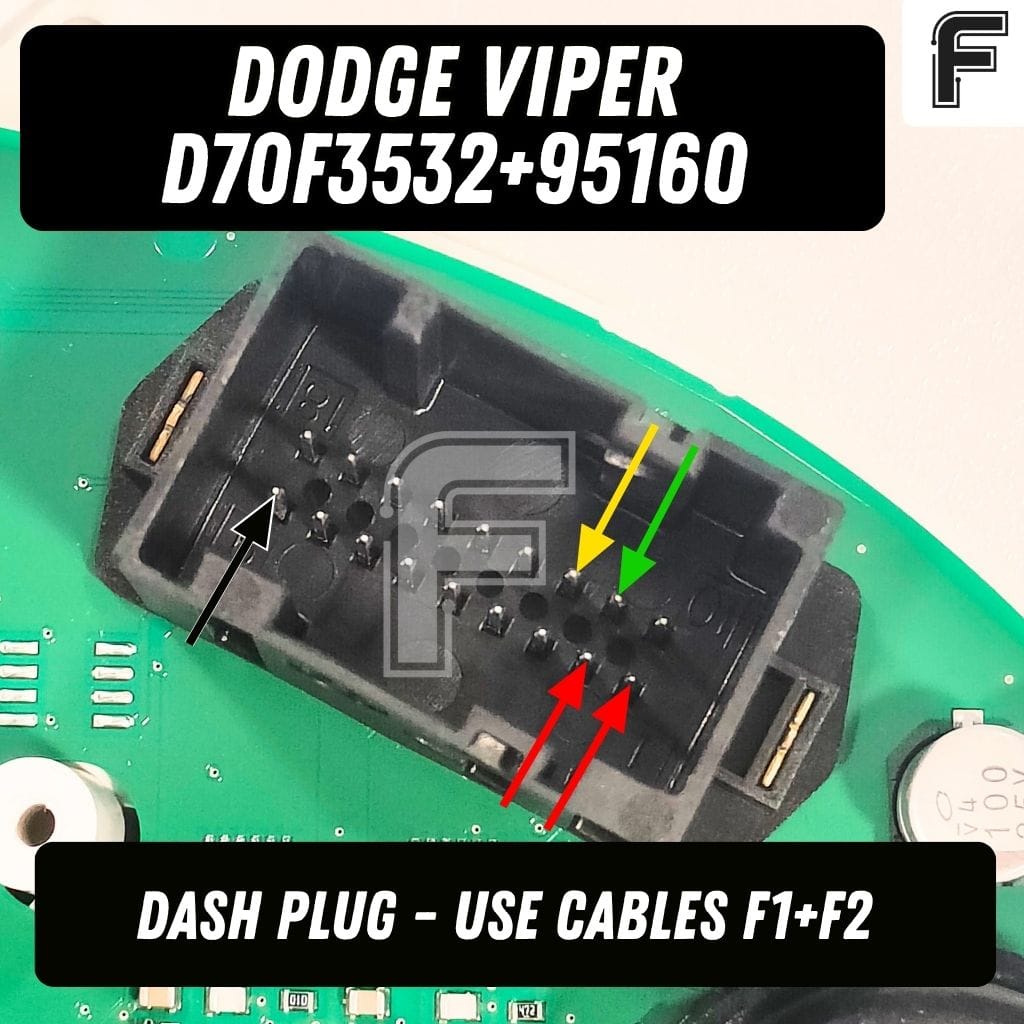

   By utilizing the plug-and-play FORZA F1 + F2 cable harness, you only need to connect 5 basic lines: two +12V lines, one GND, CAN High and CAN Low.

📌 Note: The high-resolution, bench pinout diagram is always accessible directly inside the FORZA 614 PC application.

Dodge Viper 95160 Dash Pinout

The Ultimate Bench Endurance Test

Working in Dash Plug mode allows you to perform an essential diagnostic step: the time-endurance test. You can power up the cluster, visually inspect the 7-inch graphics matrix, verify live CAN-bus communication and leave the unit under power for several hours. This allows the cluster to heat up on your bench, letting you safely trace and catch intermittent thermal dropouts before putting the car back together.

High Profits, No Single-License Fees:
The FORZA 614 Advantage

Why trap your capital in expensive, locked single-software licenses that charge you for every individual car model? We run our business model differently to support independent shops.

The entire Dodge Viper programming module is fully unlocked under one transparent, budget-friendly subscription for just €99/month.

Do the math yourself: A single high-end cluster cloning or repair job easily charges enough to cover 2 to 3 months of your entire FORZA 614 subscription. With new software updates dropped every few days, FORZA 614 is the most cost-effective, high-yield asset you can add to your workshop tool arsenal.
