VW Touareg 7P 95320 Dashboard now supported by FORZA 614

VW Touareg 2009-2016 MB91F467DB + 95320 Instrument Cluster Programming for Professional Workshops

Hey everyone! Today on the workbench we've got a cluster that's given a lot of workshops grief over the years - the VW Touareg dashboard, 2009-2016 generation, built by Bosch. And I mean it when I say this one earned its reputation: for a long time this cluster simply couldn't be done fully over OBD2. Too much going on inside, too much locked down. So it's a good one to pull apart on the bench and walk through properly - what's in it, why it fights back, and what FORZA 614 actually does with it now.

Below we'll cover the hardware architecture, the fault everyone sees on these, the CAN-bus wake-up behaviour, and the exact programming options - both in the car and on the bench.

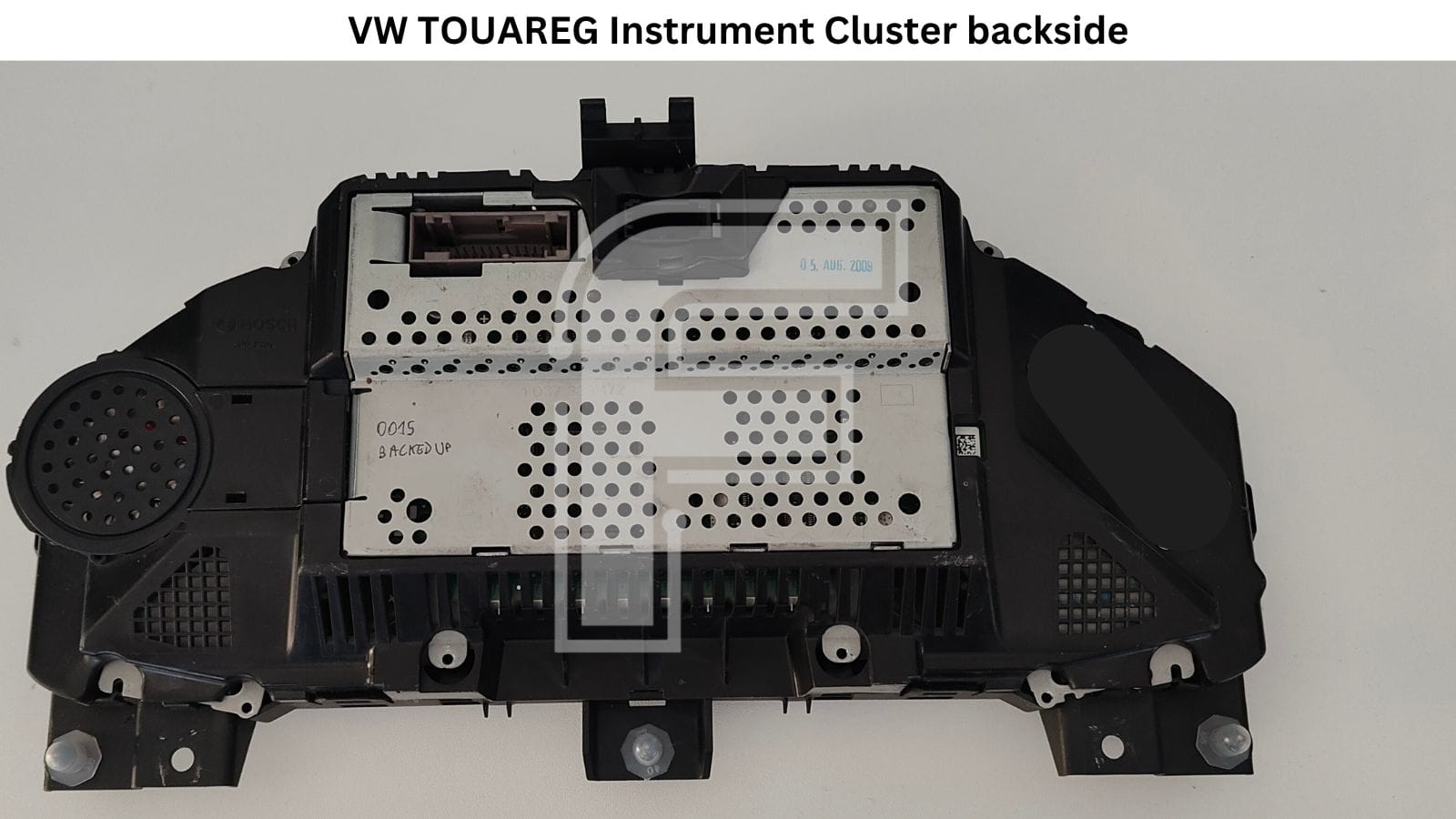

Hardware - how this cluster is built

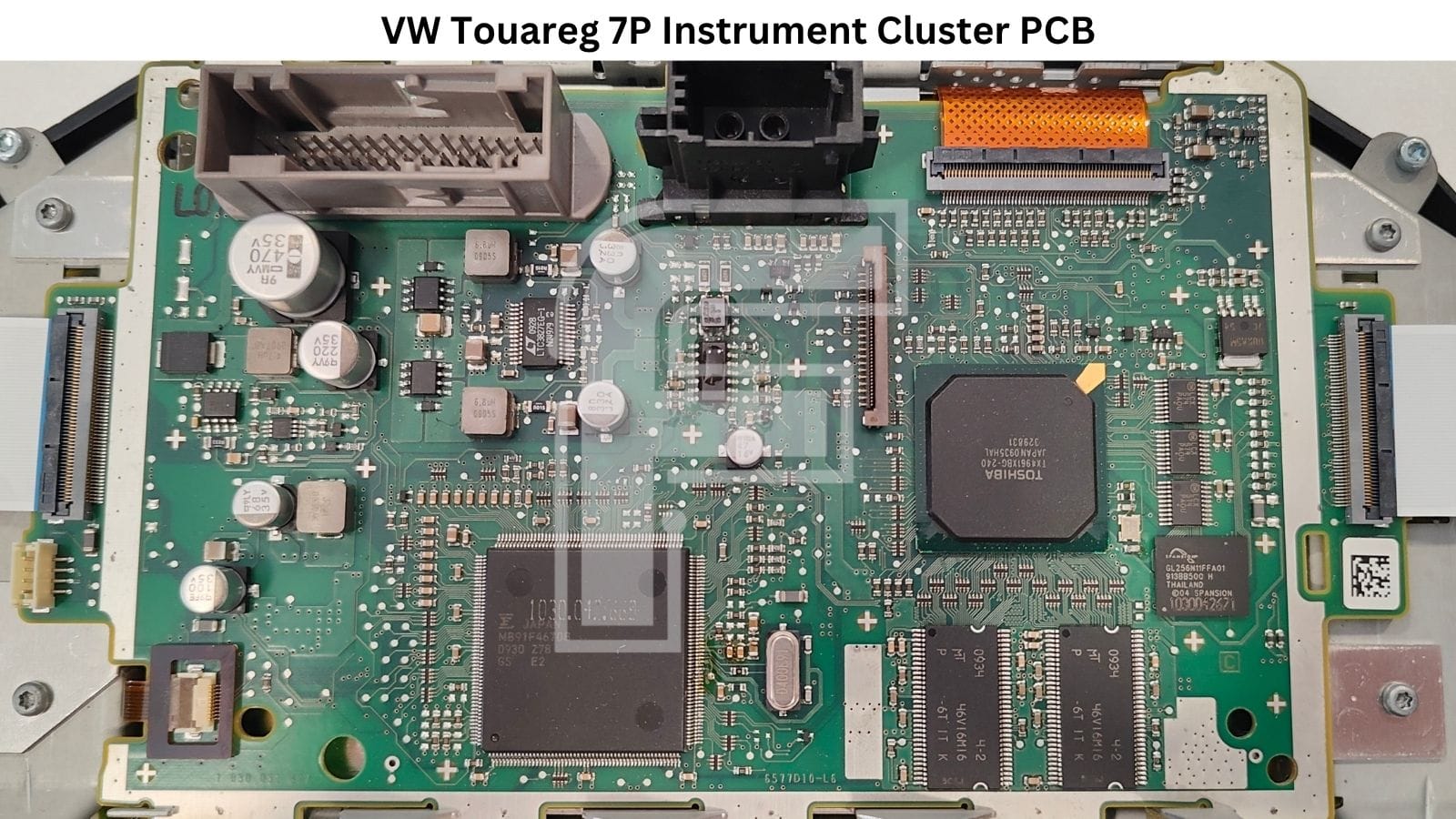

Open one of these up and you immediately see why it's not a five-minute job. This isn't a single-MCU cluster with an EEPROM hanging off it - it's effectively a small embedded computer with a dedicated graphics subsystem driving the big colour display. There are two processors on this board, external flash, external SDRAM, a small serial EEPROM, and stepper-driven gauges. Here's the breakdown:

• Primary microcontroller: Fujitsu MB91F467DB - the core cluster MCU, handling gauge and stepper drive routines, CAN-bus communication, and the general cluster logic.
• Secondary / graphics processor: Toshiba TX4961XBG-240 (BGA package) - the heavy-lifting processor that renders and drives the large colour TFT display.

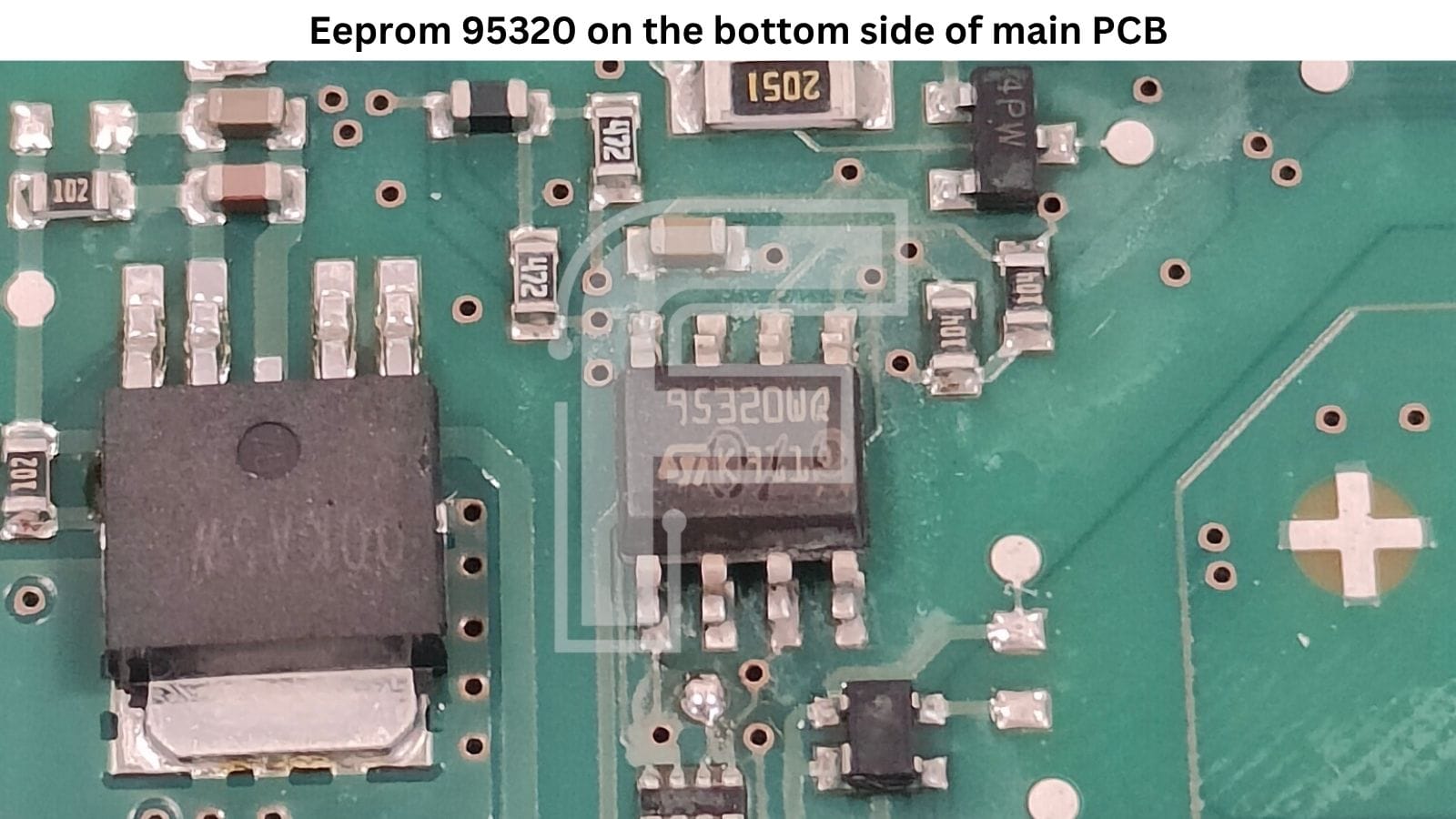

• EEPROM: ST M95320 (95320WP) - the 32 Kbit serial EEPROM that holds mileage and configuration data.
• NOR Flash: Spansion GL-256N11FFA01 - 256 Mbit external flash storing firmware and graphics assets for the display subsystem.
• SDRAM: 2× Micron MT46V16M16 - working memory for the graphics processor.

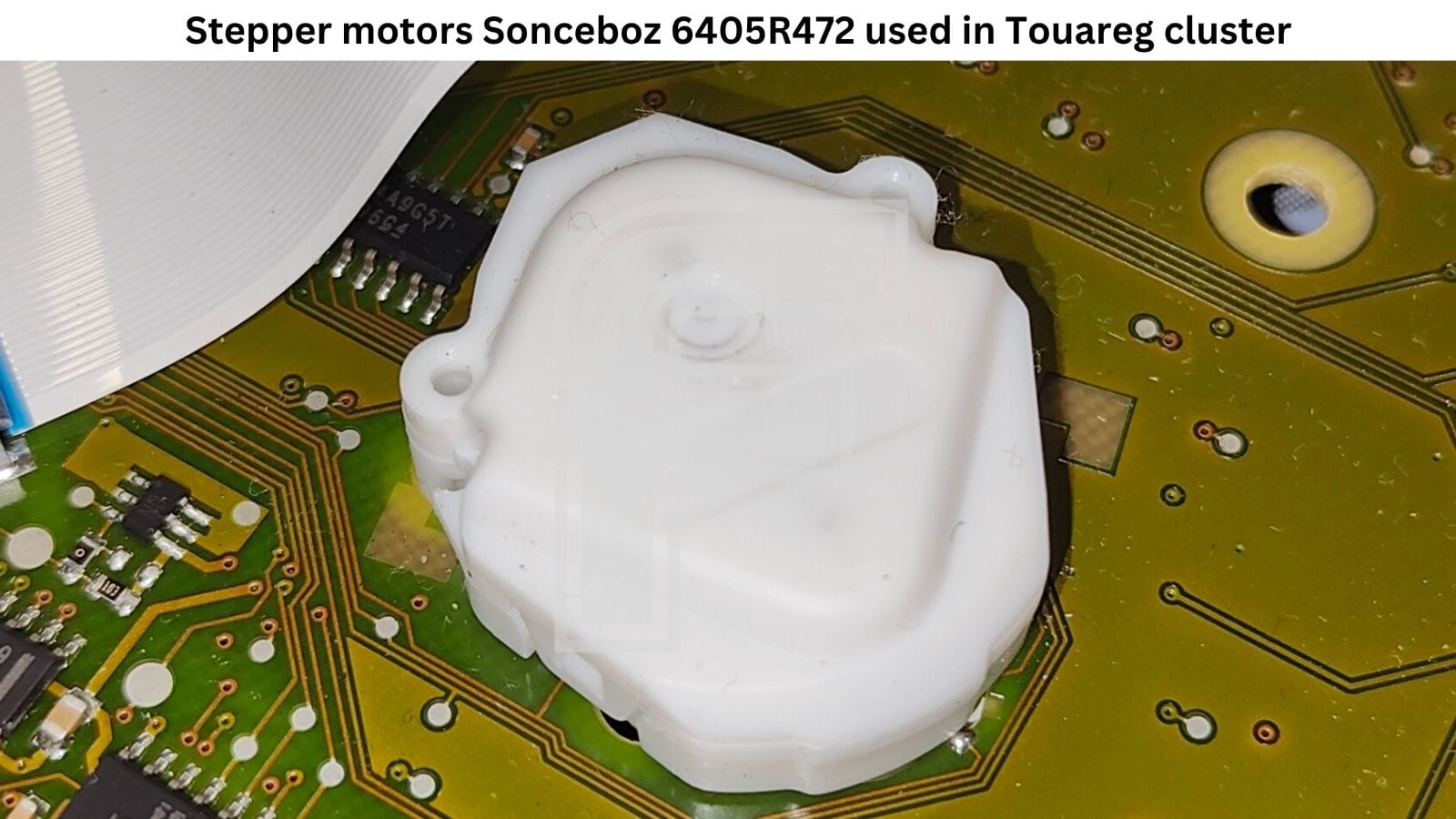

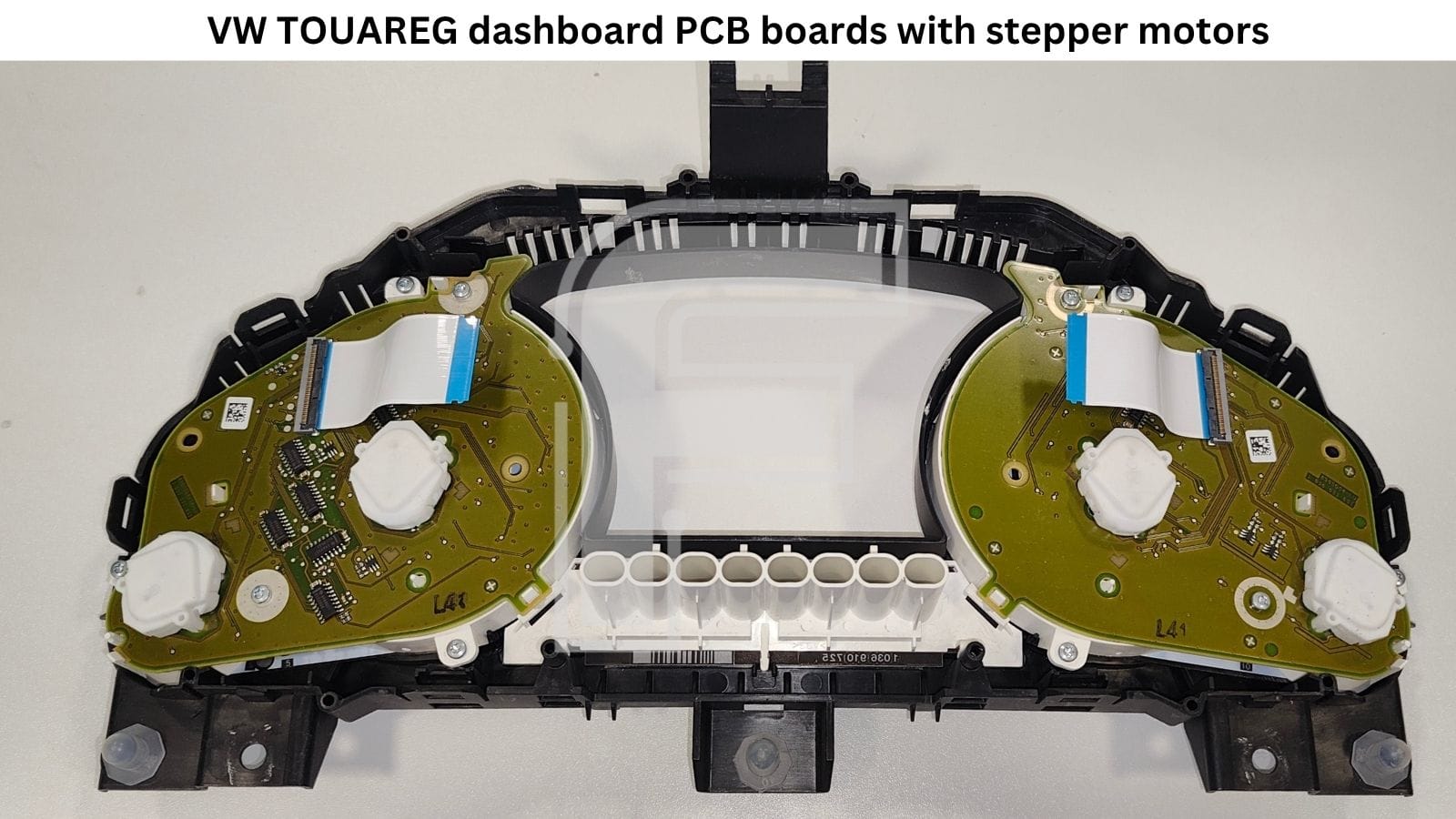

• Stepper motors: Sonceboz 6405R472 - driving the analogue needles.

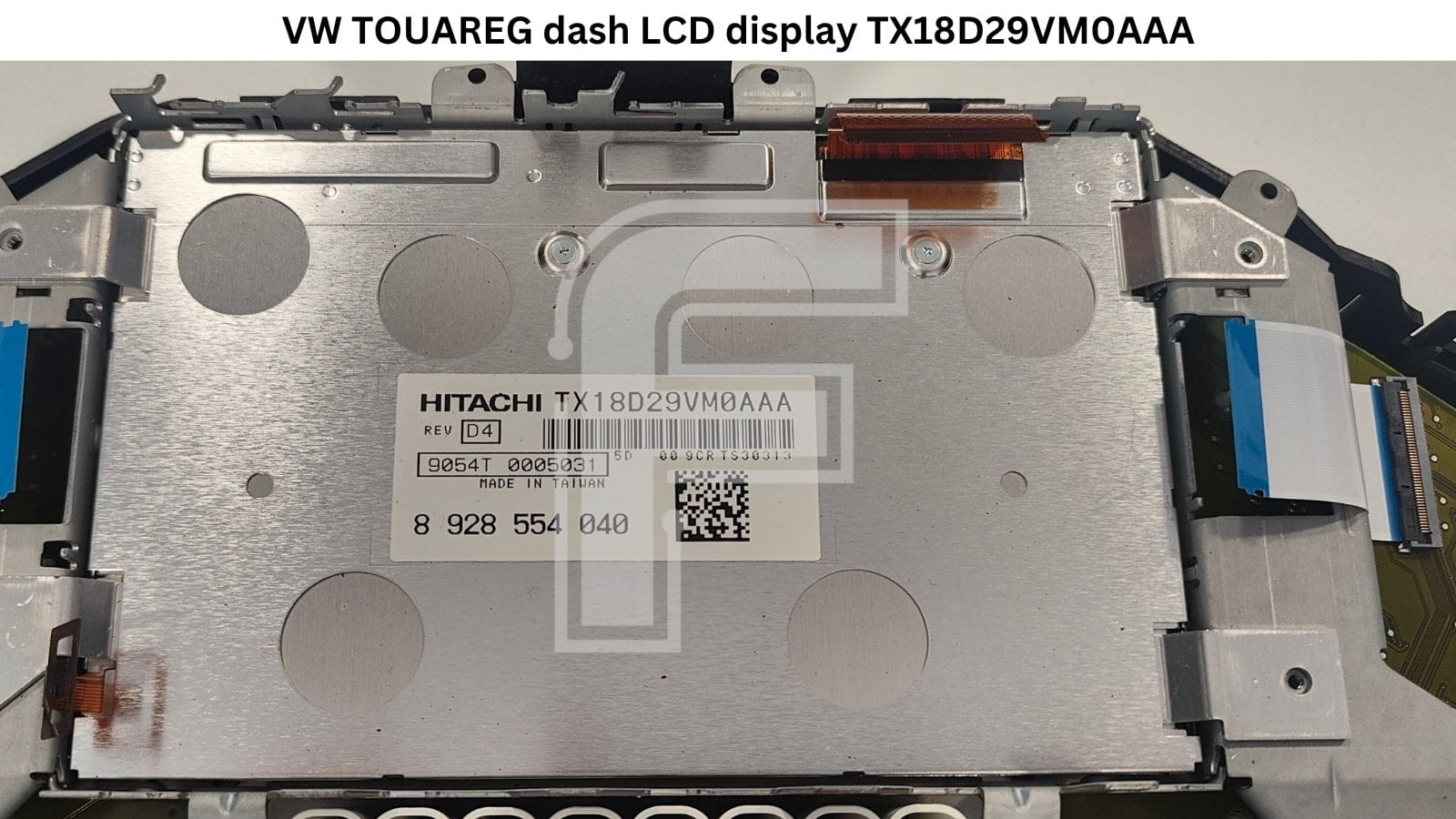

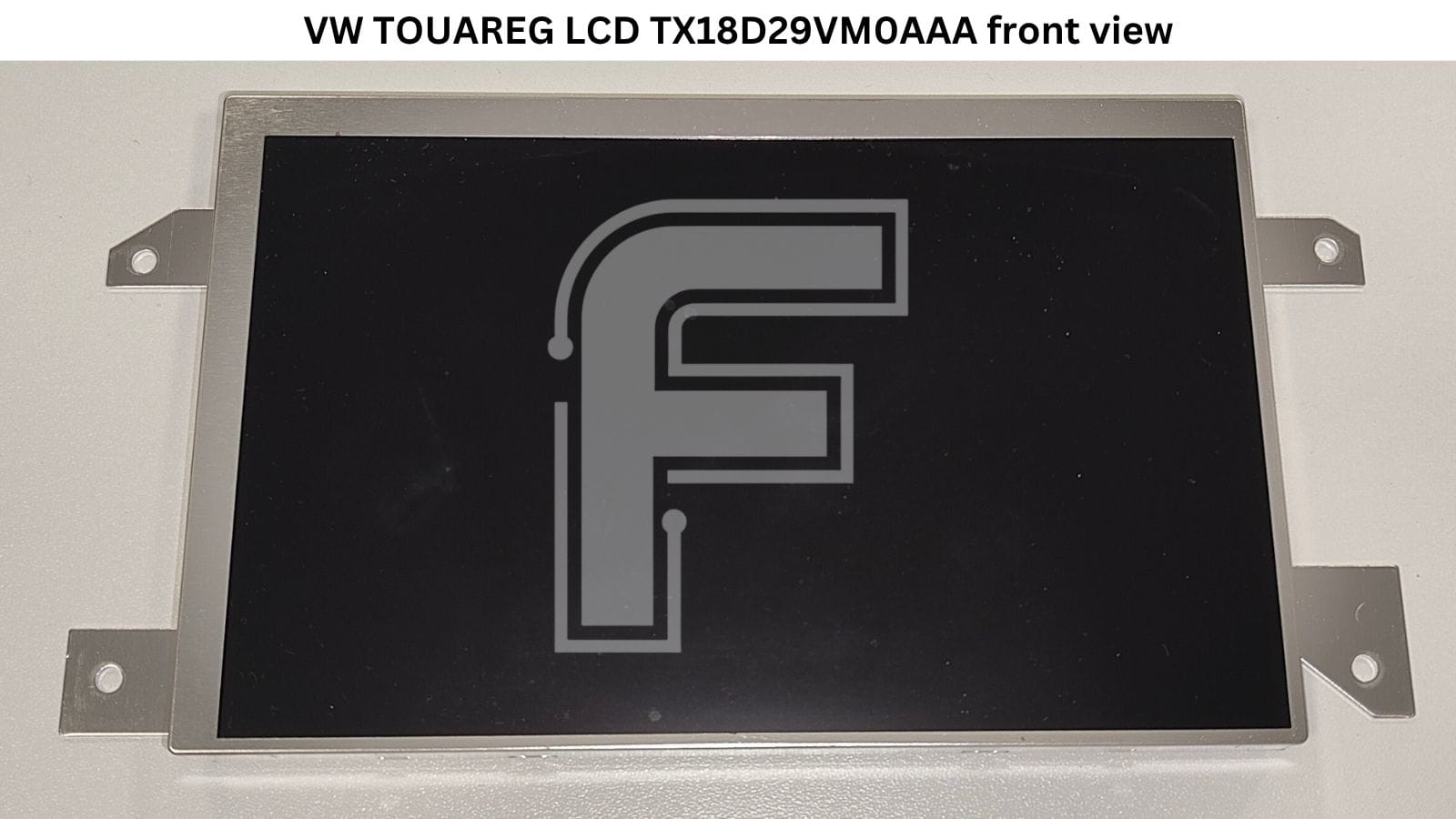

TX18D29VM0AAA LCD Center Display (Hitachi)

The display in this cluster is the Hitachi TX18D29VM0AAA, and this is far and away the most common reason these Touareg clusters land on the bench. The typical symptoms are horizontal lines across the screen, loss of backlight, or a completely dead display with no image at all.

The good news is this is a standalone repair. In the vast majority of cases, replacing the TX18D29VM0AAA panel outright resolves the fault completely - you don't need to touch the memory or reprogram anything to fix a display problem. It's a physical swap, and the cluster comes back to life.
Because the TX18D29VM0AAA is one of the most searched part numbers by anyone repairing these dashboards, it's worth knowing exactly which panel you're dealing with before you order a replacement.

Common faults on the Touareg cluster

Beyond the display, here's what tends to walk through the door on these:

• Display failure - horizontal lines, dead backlight, or a fully black screen. By far the number-one complaint, and usually solved by replacing the Hitachi panel.
• No illumination on power alone - perfectly normal on this cluster, not a fault (more on that below), but it catches people out on the bench who think the unit is dead.
• SAFE message after a swap - install a cluster from another vehicle and you'll be greeted by a large SAFE display and a unit that won't work at 100%. That's component protection doing its job, not a hardware fault.

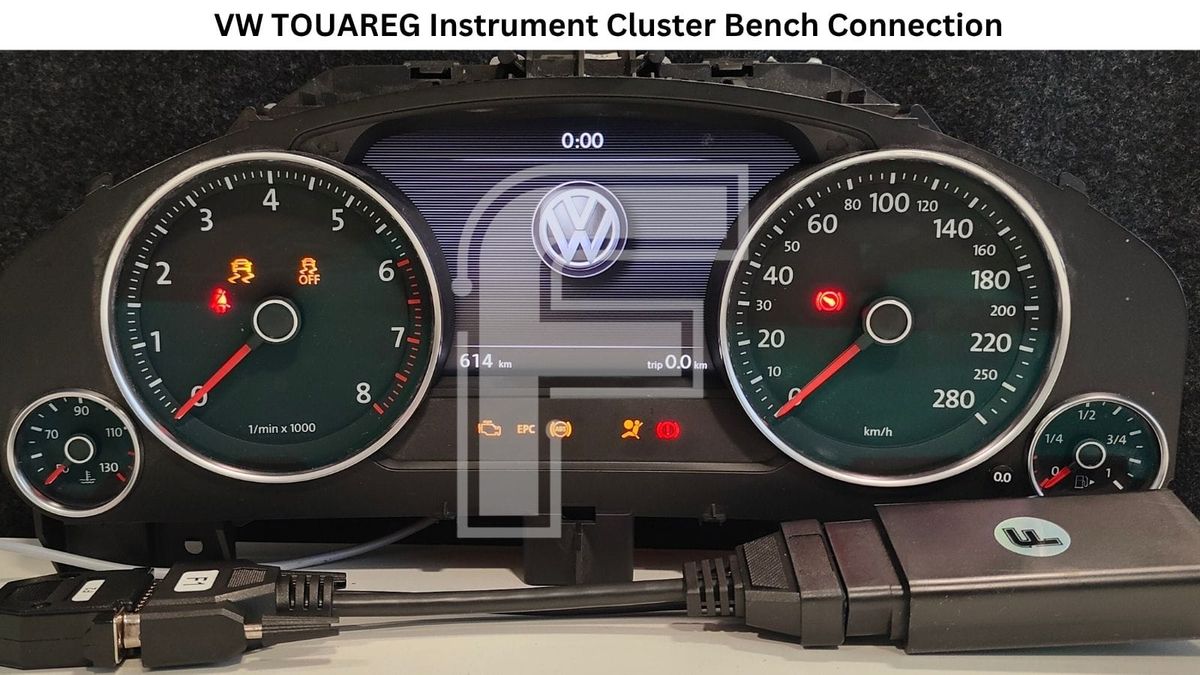

Full cluster wake-up on the bench (CAN-bus)

This is one of the quirks that makes the Touareg cluster interesting, so it's worth being precise about it.

Put power alone into this cluster and nothing lights up - the screen stays dark. To bring it fully to life, the cluster needs the correct CAN-bus signal. And here's the part that trips people up: even if you wire up power plus CAN-H and CAN-L, the cluster still won't illuminate — you'll have diagnostic communication with it, but the display stays off. Simply having CAN connected isn't the same as sending the wake-up it's waiting for.

That's where the built-in wake-up comes in.
With FORZA 614 you just click Read Value, and the cluster wakes up and illuminates right there on the bench. You can visually confirm its behaviour and check whether the display is actually working - all without wiring in any external CAN-bus generator. FORZA 614 has that generator built in.

FORZA 614 Software Programming Options for VW Touareg Speedometer

Here's what FORZA 614 does on this cluster today:

• Read and write the 95320 EEPROM - full read and full write of the M95320 memory.
• Mileage programming - reset the odometer, and you can set the value either higher or lower, not just down.

ℹ️ EEPROM read/write - Touareg 95320.
On this cluster, both reading and writing the full M95320 EEPROM are supported diagnostically - through OBD2 in the car or through the dash plug on the bench. That covers backing up the original data and writing it back, so a straight read-modify-write on the 95320 is fully diagnostic here. No serial programmer or direct chip access is required for the EEPROM work itself.

A note on model years: FORZA 614 covers this cluster type for 2009-2016. The 2017 and 2018 clusters generally require EEPROM preparation first, and only then can they be programmed - that method isn't live yet, but it's something we'll be working on to release to our customers later.

💡 What you should know - component protection (SAFE)

This part is more VAG politics than electronics, but you need to understand it before you promise a customer a cluster swap.

Like other VW-group parts, this cluster carries component protection. In short: if you install a cluster from another vehicle into your car, it'll throw up a big SAFE message and won't fully function. Genuine VW dealer equipment handles this, and a handful of other devices on the market do too.

Right now FORZA 614 handles the EEPROM and mileage side - reading, writing, and odometer programming - but not the component protection block. We've got a mountain of work on at the moment, but we'll very likely come back to this and add a one-click option to copy the component block in the future. Worth mentioning too: some authorised service centres require the cluster being coded in to show 0 km before they'll code it to the car - again, more policy than electronics, but it's the reality on the ground.

VW Touareg Instrument Cluster Pinout

Both programming routes are covered, because FORZA 614 is a workbench tool first and foremost:

• OBD2 in the car - plug into the vehicle and program in place.
• Dash plug on the bench - program the cluster out of the car using the dash connector, with the F1 + F2 cables.

The full VW Touareg dashboard pinout for the bench connection is right inside the FORZA 614 PC application, so you're not guessing at wiring - it's laid out for you in the app.

Why workshops handle this in-house

Sending a Touareg cluster to a dealer for mileage correction after a display repair or a board swap is slow and expensive. Doing it in-house with FORZA 614 means you read and write the 95320 directly, set the odometer, wake the cluster on the bench to verify the display, and hand the car back the same day. It's mail-in-repair-friendly too — you don't need the vehicle present to do the EEPROM and mileage work, just the cluster. Less equipment, faster turnaround, and a job you can scale.

Subscription & pricing

FORZA 614 runs on a flat-rate subscription - no per-token fees, no paying every time you read or write a cluster. You get the whole supported vehicle list and continuous updates as we add coverage (the 2017–2018 Touareg EEPROM-prep method and the component-block copy are both on that roadmap). One predictable cost, and the tool keeps growing under you.
