Tech spec and OBD2 / Bench FORZA 614 possibilities for FORD Ranger

We are not slowing down over here at FORZA 614!
In the next few months, our main focus is going to be American market vehicle clusters.

Our first big target? The Ford Ranger platform (roughly from 2020 and up).
The specific module currently sitting on our development bench carries the factory part number LB3T-10849-JB3JA6.

If you run a speedometer shop or electronics garage, this guide covers the hardware architecture, common display faults, and how to wake it up and program it easily off-board.

What hardware inside Ford Ranger spedometer?

This specific Ford Ranger dashboard features a very clean visual layout: a single, centrally positioned analog speedometer bracketed by two digital screens on the left and right sides.

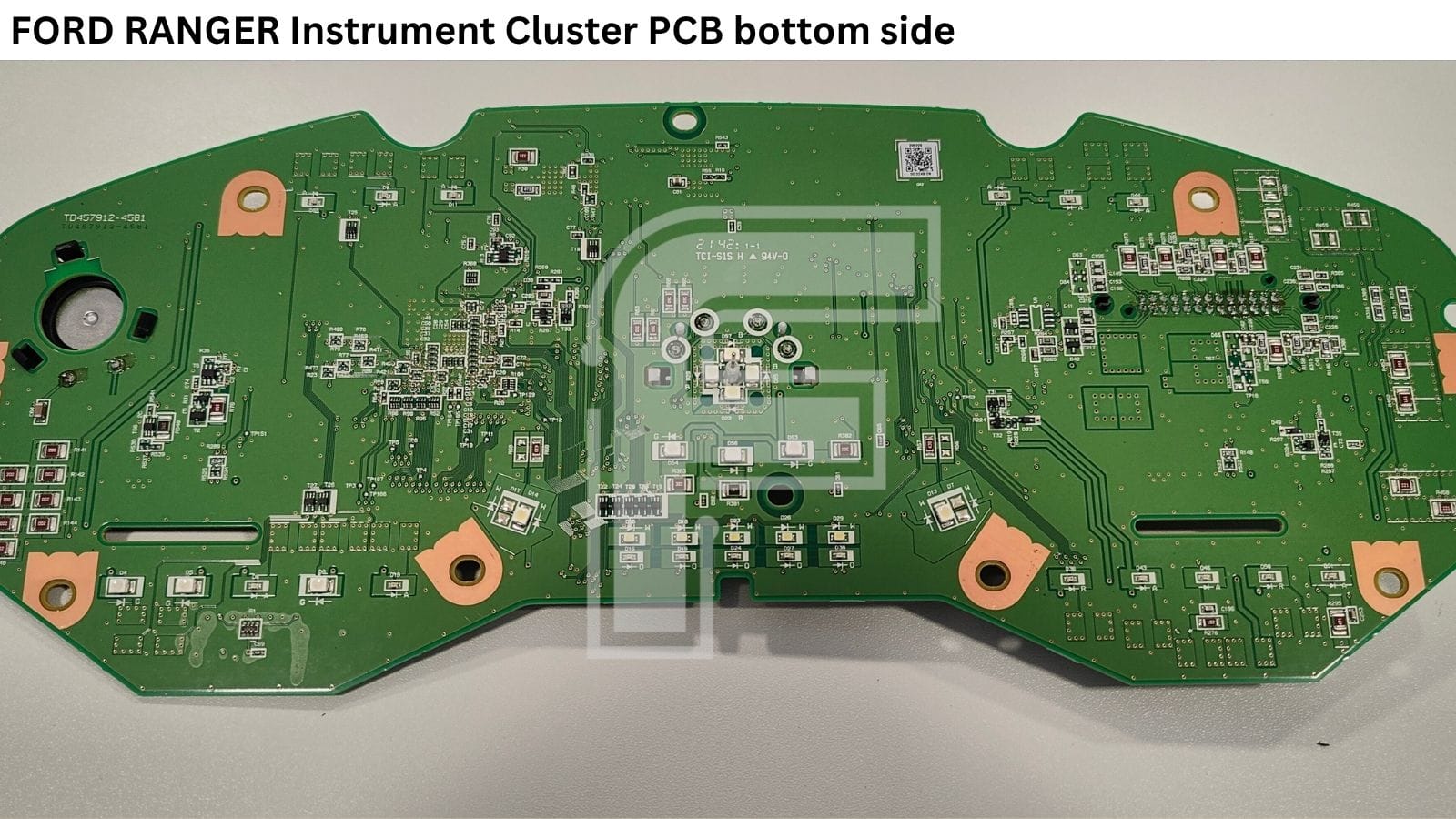

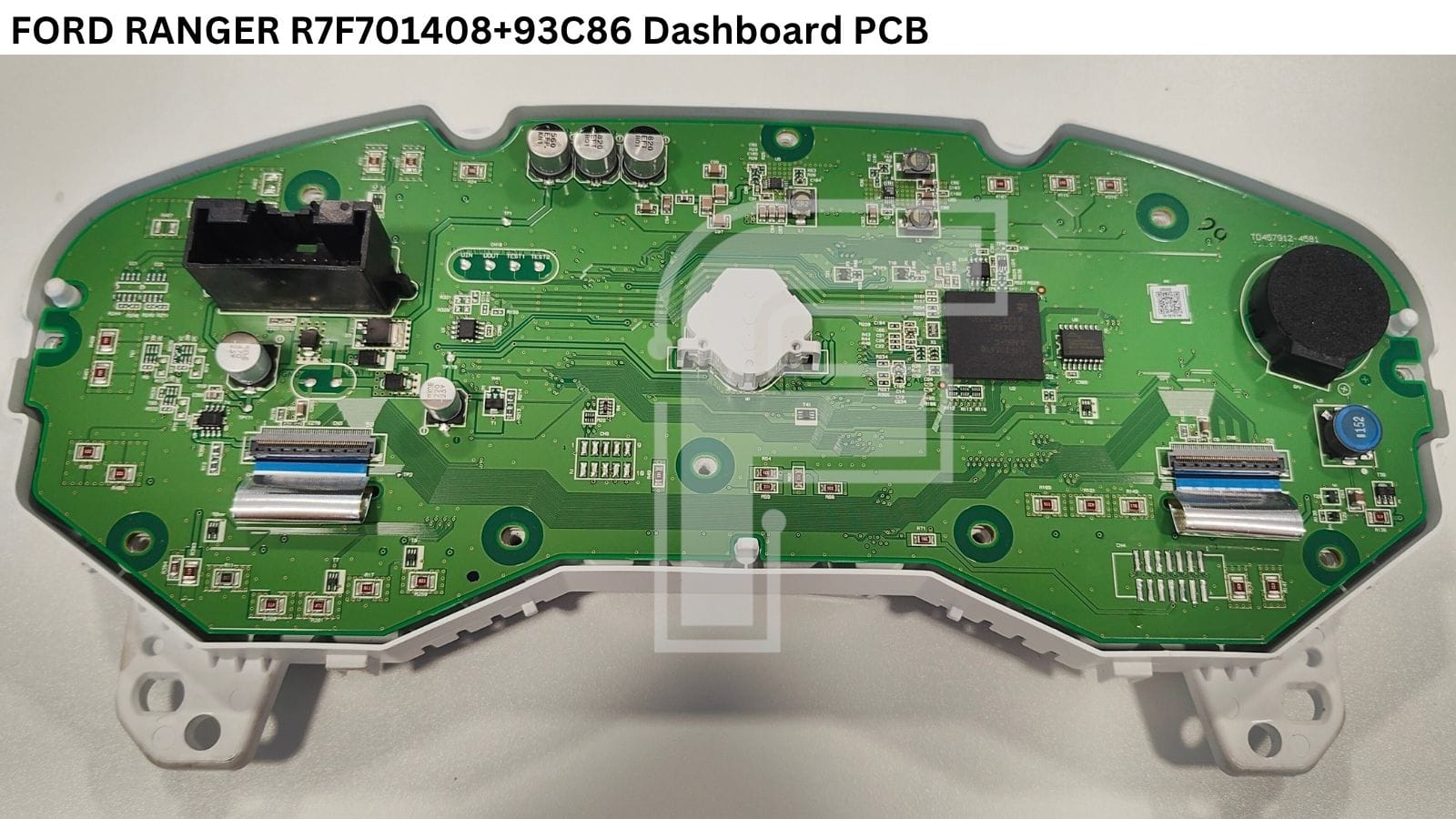

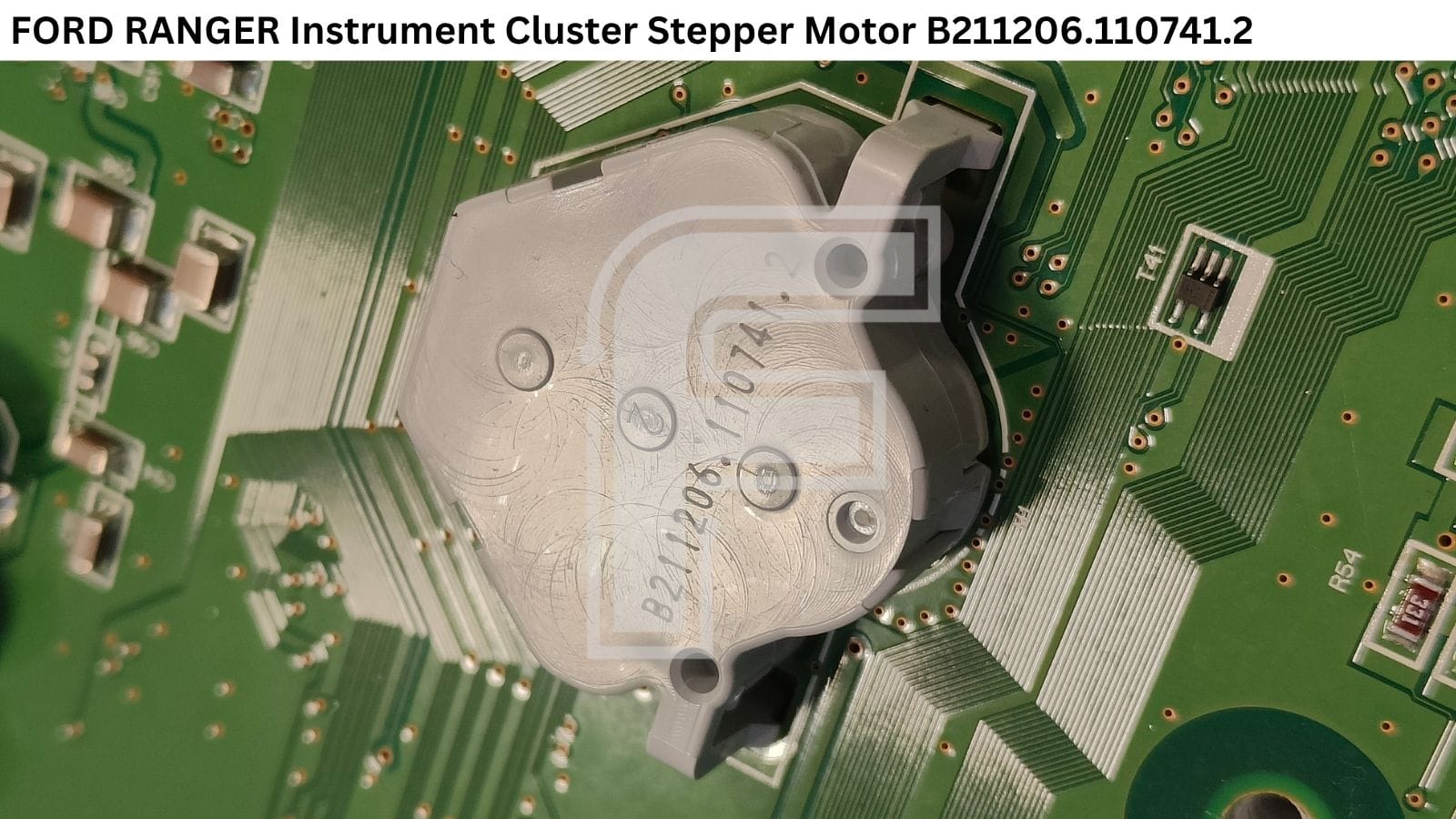

Inside the PCB, you will find these components:

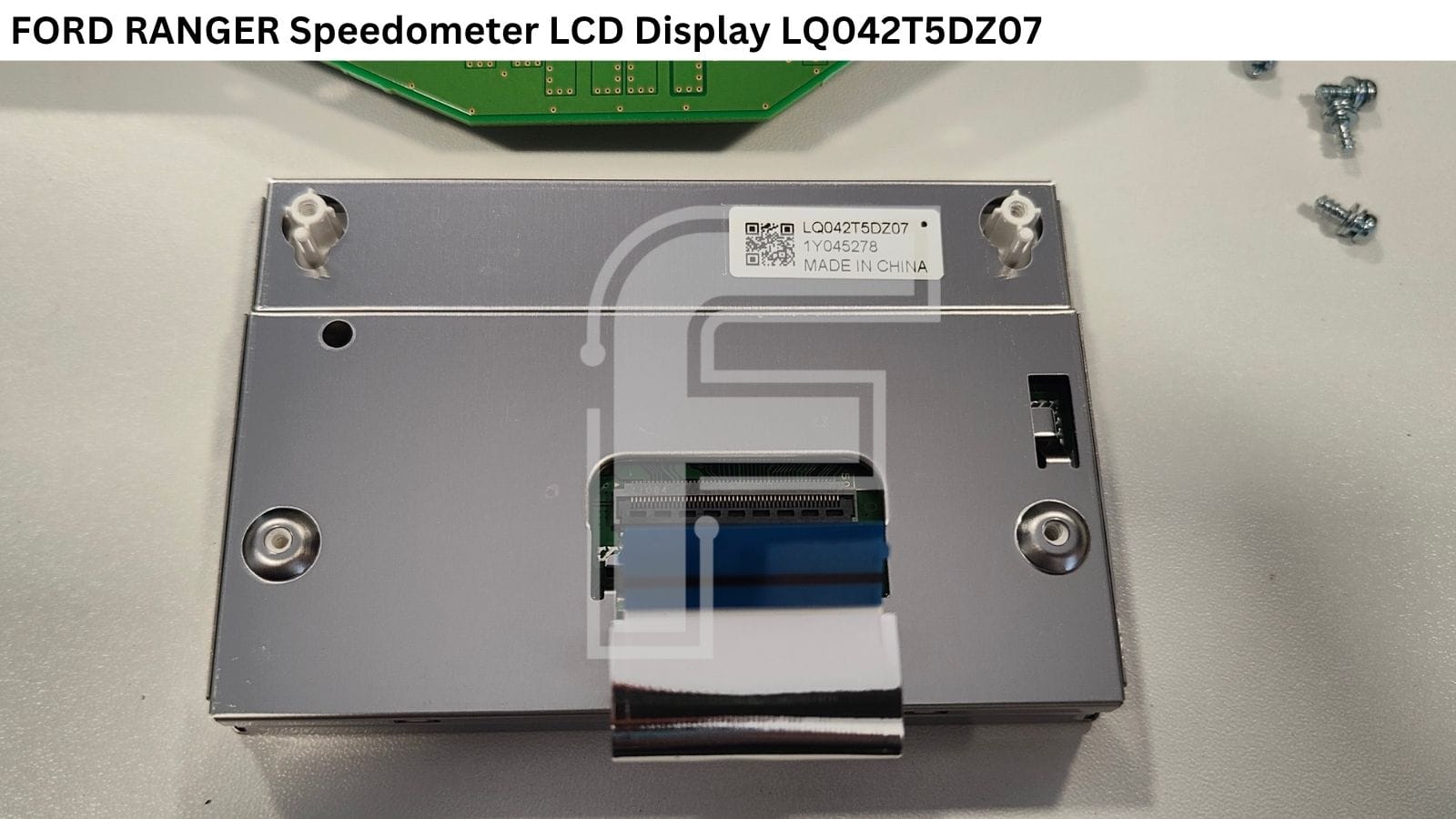

• The Twin Displays: Both screens carry the exact manufacturing part number LQ042T5DZ07.

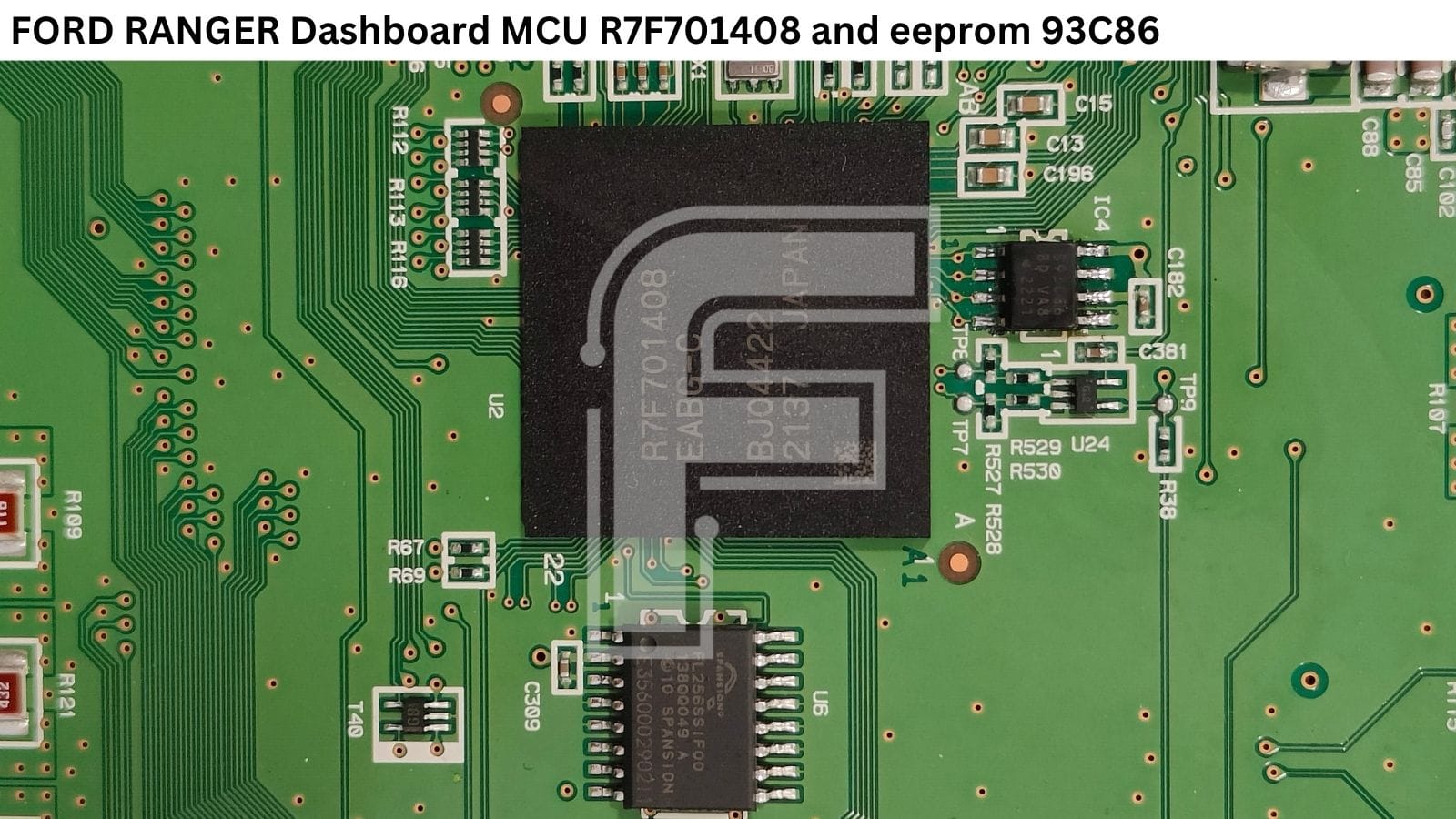

• The Main Processor: System is powered by a R7F701408 processor in a BGA housing.
• The Eeprom Memory: Configuration metrics are saved inside an external 93C86 EEPROM chip.
• The Flash Module: Graphics data and firmware are stored on a Spansion FL256SSIF00 (S25FL256SDSMFI000) Flash chip.

Common Failure Modes:
Troubleshooting the Dual Screens

Overall, these Ford Ranger clusters are pretty stable, but they definitely aren’t bulletproof. We have already seen several cases of display failures coming into workshops.

If one screen goes completely blank or acts up, here is a quick diagnostic trick: you can swap the two LQ042T5DZ07 panels with each other. This lets you instantly isolate whether the problem is a faulty LCD screen itself or an issue deeper within the motherboard circuitry.

⚠️ Tech Tip: If the car has suffered water or moisture damage, always inspect the ribbon cable connectors joining the display to the main board. Corroded or loose solder joints on these ribbon traces are a very common reason for flickering screens or total display blackouts.

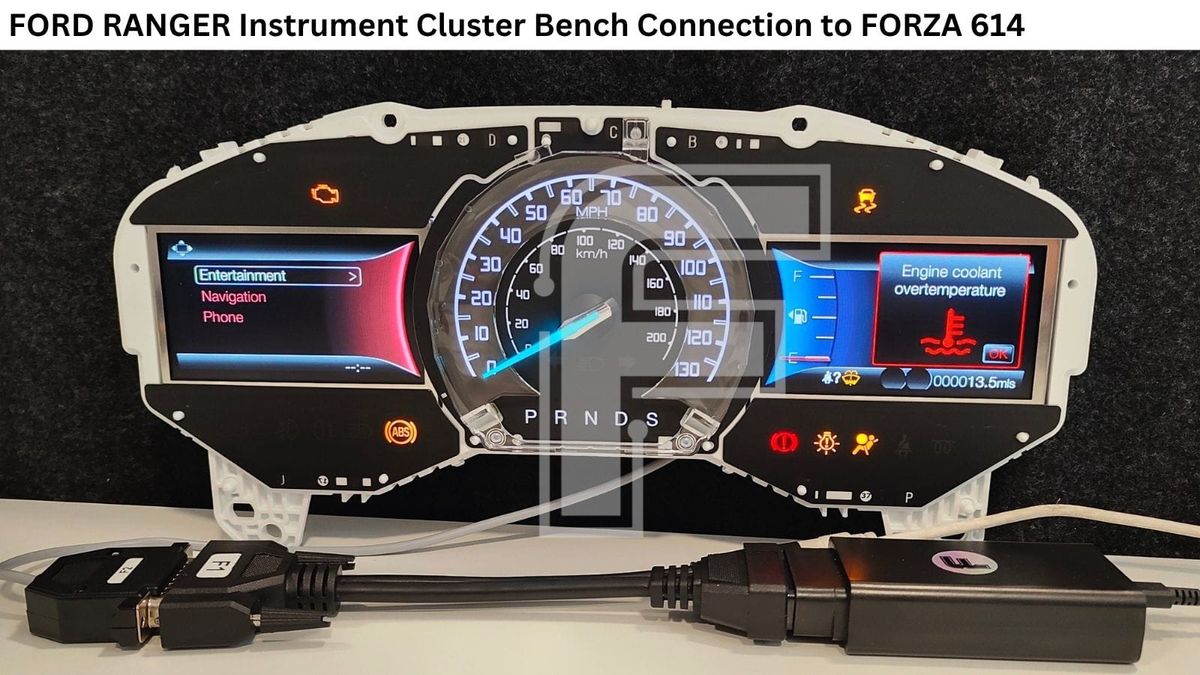

Bench Power-Up & The CAN-Bus Wake-Up Barrier

How do you test this dashboard on your table? If you just hook up the basic 12V power and ground lines, nothing happens. The screen does not boot up.

This cluster requires a highly specific, active CAN-bus signal from the truck to wake up.

FORZA 614 handles this problem completely. You do not need any external signal generators. When you connect the cluster and click a command in our PC app, FORZA automatically injects the wake-up sequences, turns on the dashboard for a few seconds, and securely reads the current mileage via diagnostic protocols.

The exact wiring layout for your power supply (+12V), ground (GND), CAN High, and CAN Low lines is built right into our Windows PC client software with high-resolution photos.

Odometer Adjustment & Donor Adaptations

Beyond simply illuminating the screen for bench diagnostics, FORZA 614 features a quick, built-in odometer reset protocol.

This is incredibly important when you are adapting a used donor cluster to replace a customer's broken one. Our software module allows you to cleanly match the mileage values to the vehicle's true historical record. Best of all, this program works two ways: directly inside the car via the OBD2 port or safely on your workbench using the main plug interface.

Grow Your Speedometer Workshop

Our goal is to make cluster repair faster, easier and more convenient for specialized shops. We hate paywalls, single-license fees, and paying for per-car tokens. That is why the new Ford Ranger module is entirely included in our flat and simple subscription.

If your subscription is active, you get the entire universal car and motorcycle database unlocked 24/7, plus every single software patch we roll out every few days. Just update your app, sync your activation, and take on those high-profit truck jobs.
