How FORZA 614 helps you with Speedometer repair and calibration?

This article is written for professional instrument cluster repair shops, auto electronics workshops, and technicians who service Dodge RAM 1500, 2500, and 3500 dashboards for a living. It focuses on the D70F3426 MCU + 24C32 EEPROM architecture, common board-level failure points, and how FORZA 614 turns hardware diagnostics into a fast, profitable workshop workflow.

If you run a cluster repair business, Dodge RAM dashboards represent a steady stream of revenue. With FORZA 614, you can fully test, program, clone, and calibrate these clusters on the bench or via OBD2—giving your customers a legal, fast repair alternative without sending them to the dealer.

2013-2018 Ram 1500 / 2500 Cluster Variant

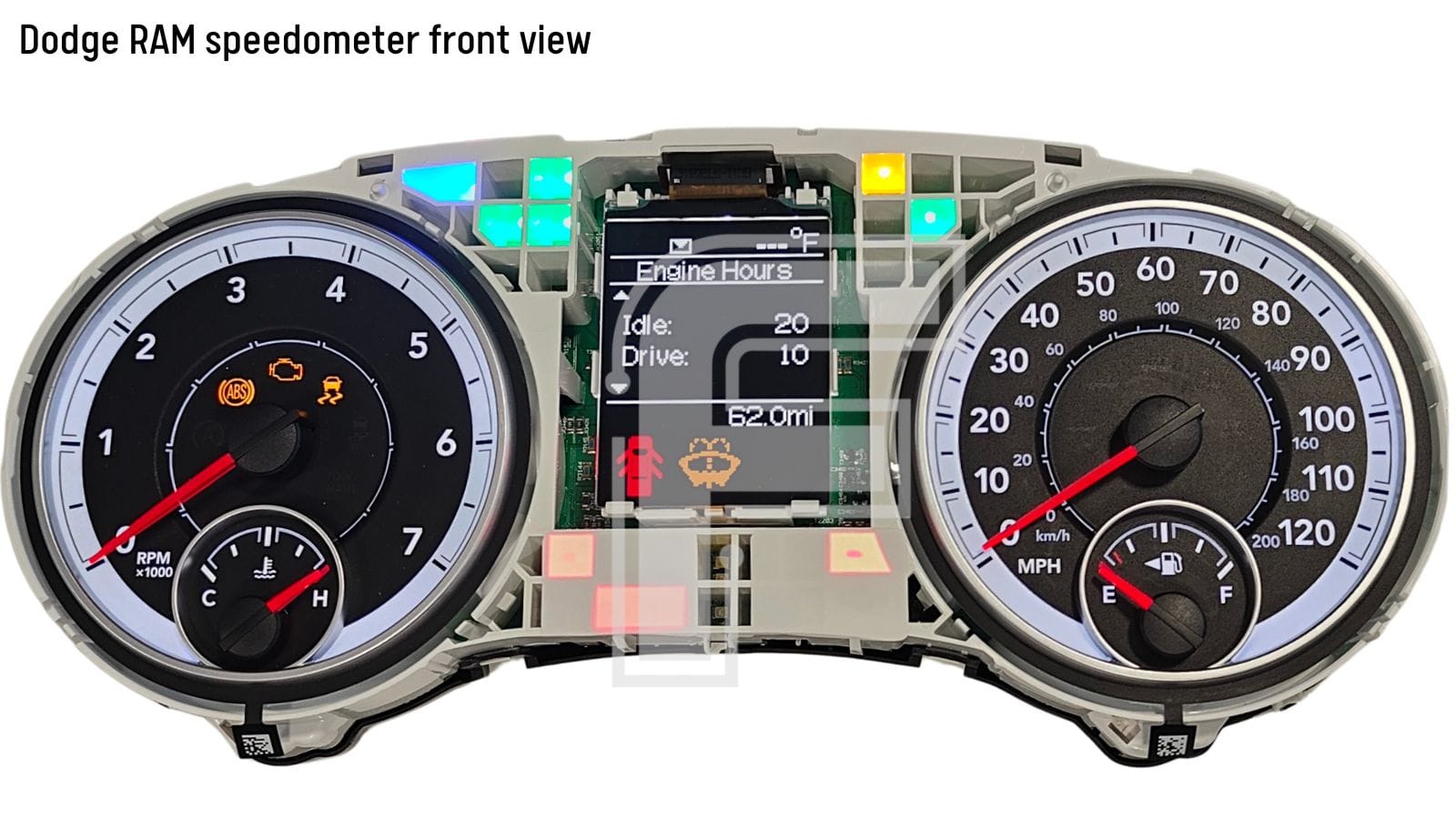

The 2015 Dodge RAM instrument cluster is a traditional analog gauge pack with a compact central display. It is not a fully digital dashboard, but it is still a professionally repairable module with a clear electronic structure.

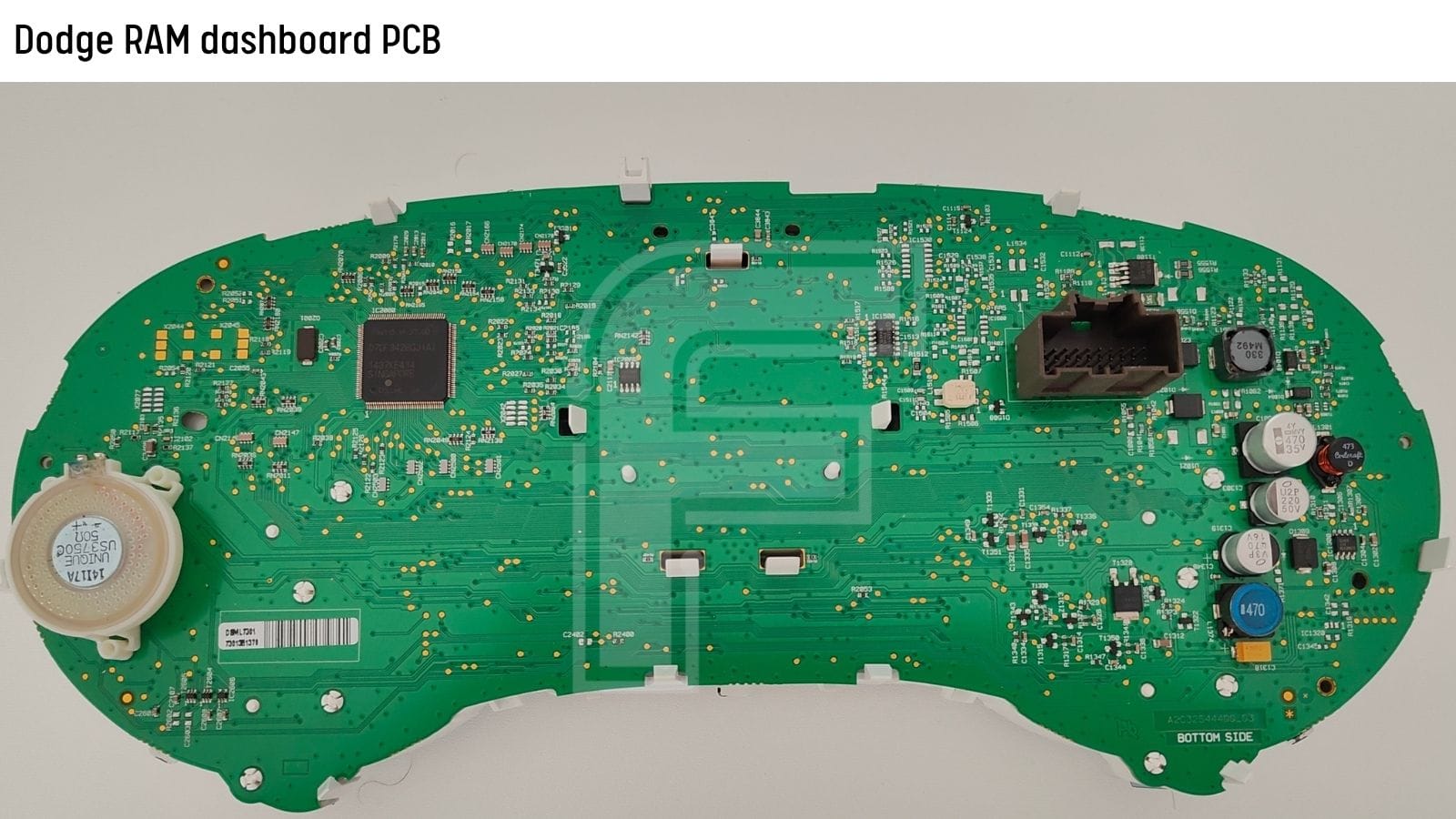

What’s Inside the Cluster?

From a repair shop perspective, the cluster is made of a few key blocks that matter in diagnosis and programming.

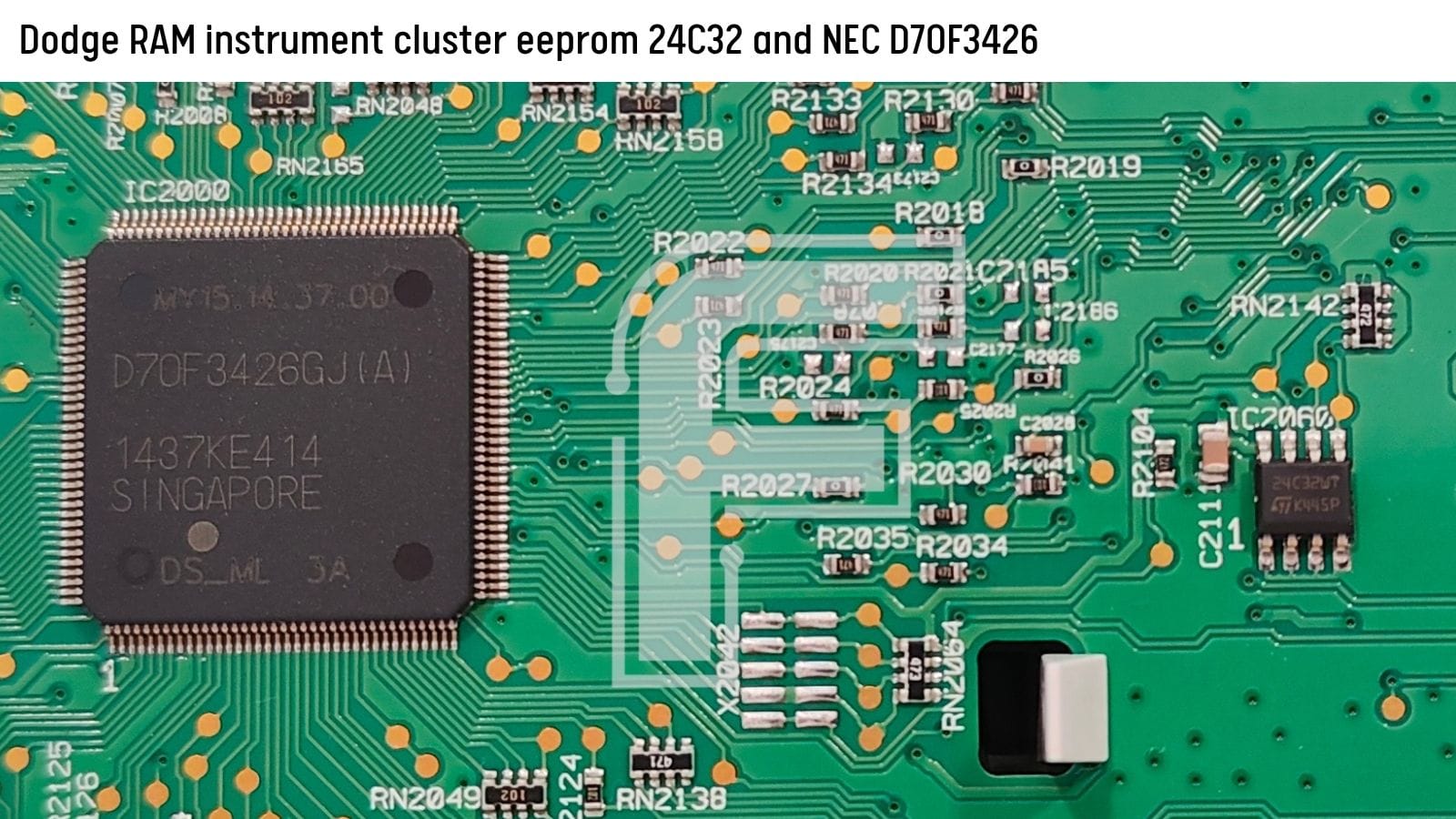

• NEC D70F3426 MCU
  Handles gauge logic, warning lights, communication, and interaction with memory.
• 24C32 EEPROM
  Stores cluster configuration and vehicle-specific data. This is one of the key parts when adapting donor clusters or preserving original data.

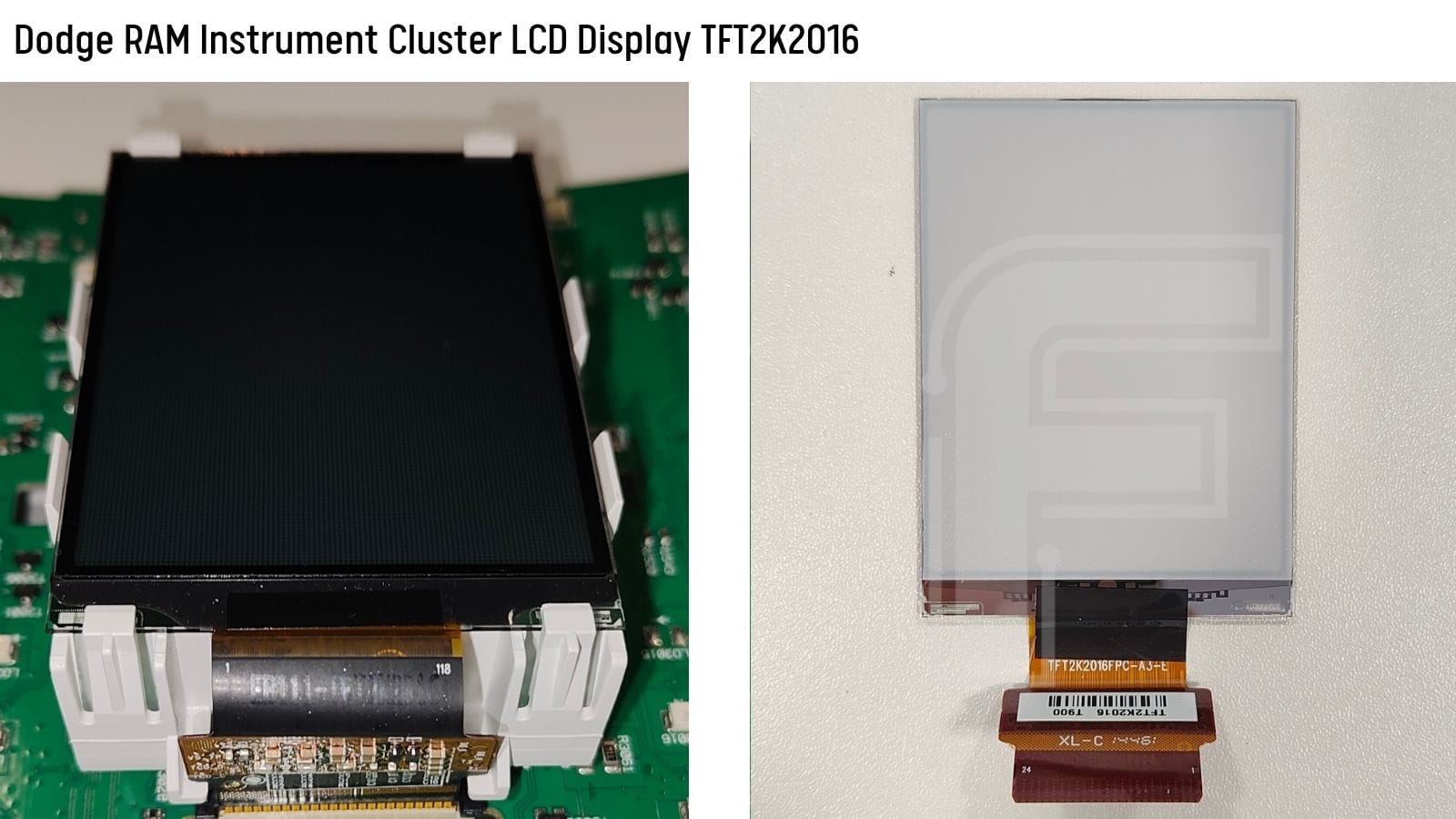

• TFT2K2016 display module
  Handles the center information screen. Even though it is a small display, it still affects customer perception and repair quality if it fails or becomes dim.

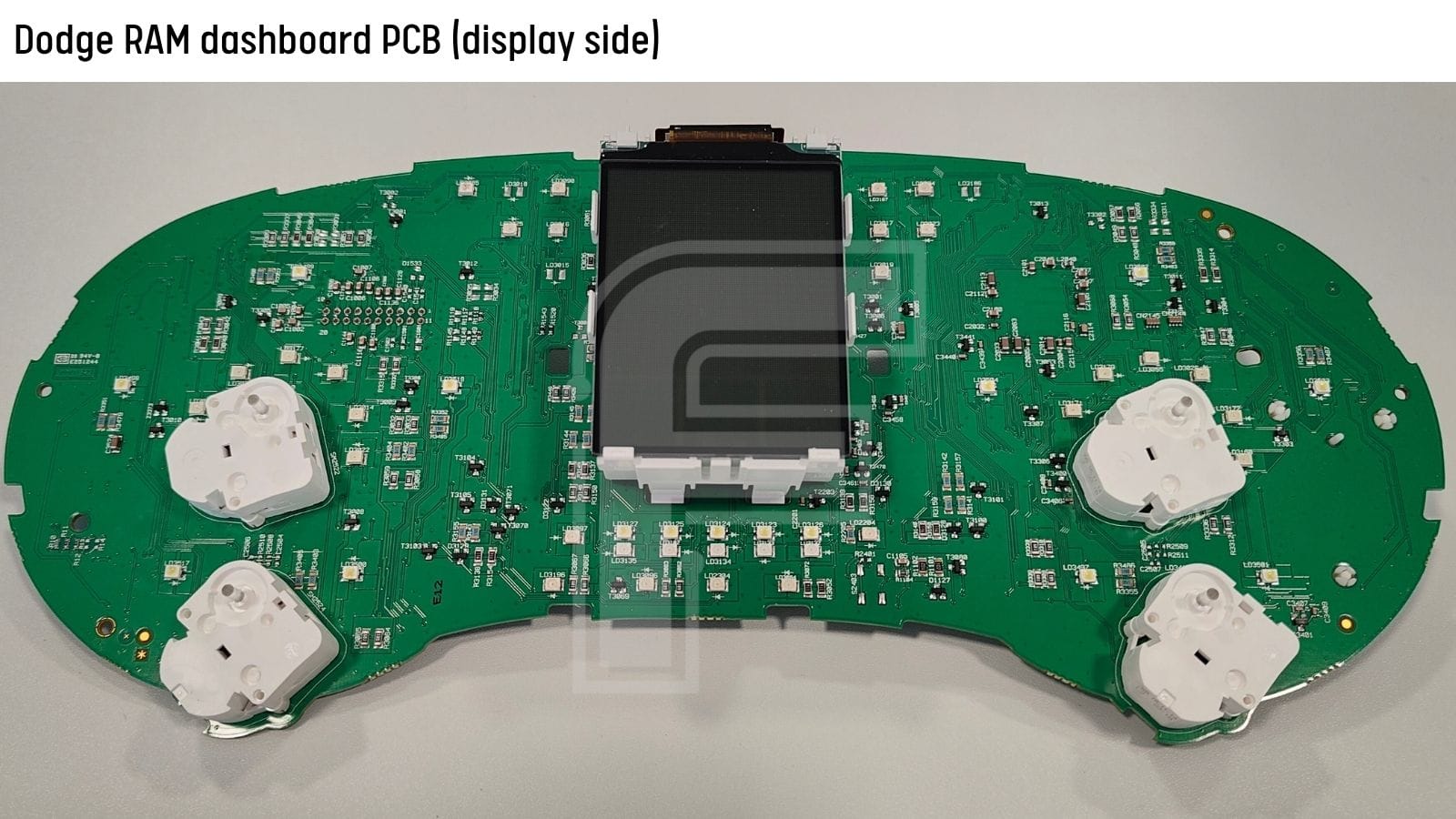

The board also includes:

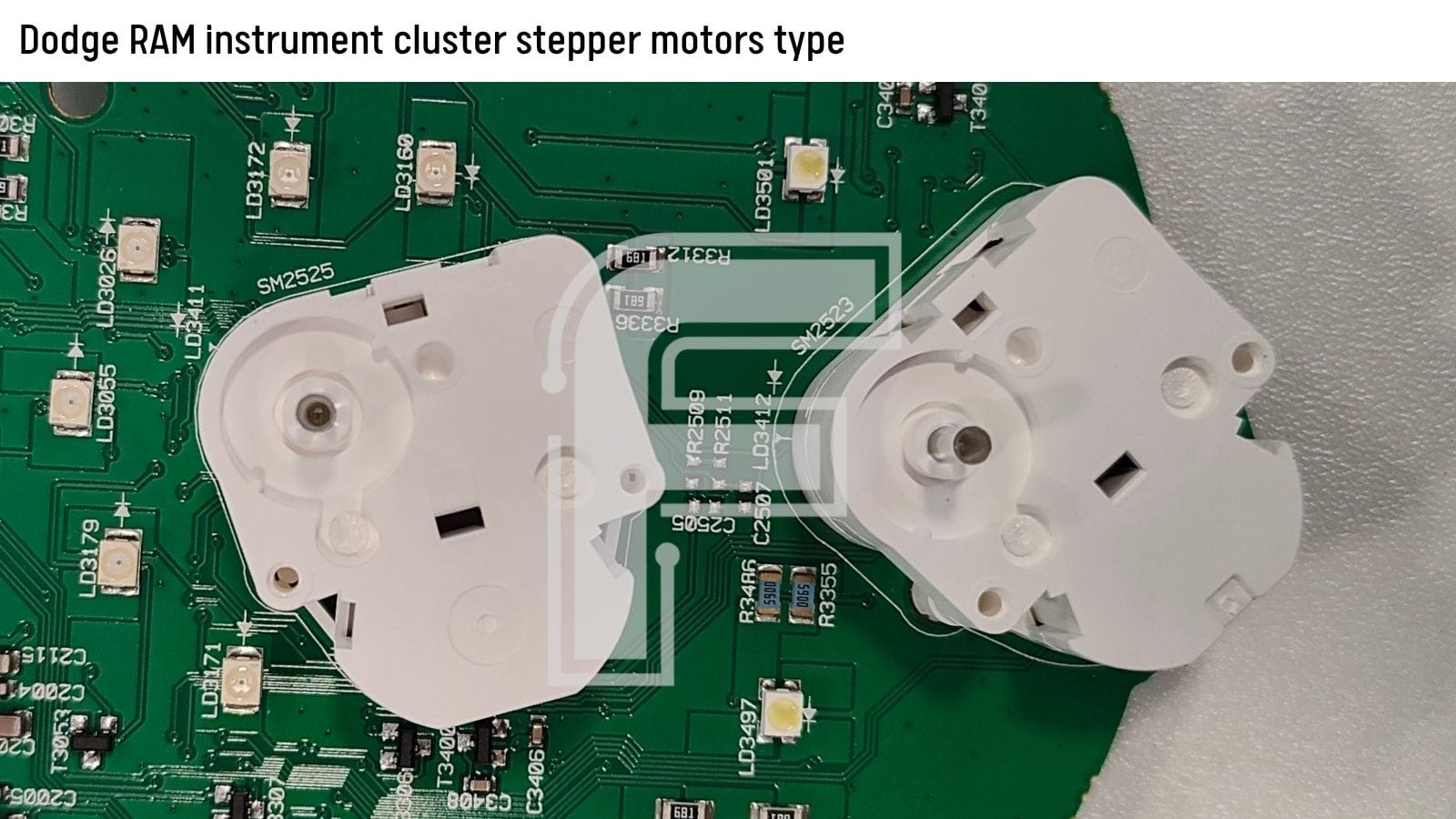

• Stepper motors for the needles,
• LED indicators,
• power regulation circuitry,
• communication paths between the MCU, memory, and display.

That structure makes the cluster a good candidate for bench repair, shipping-based repair services, and calibration after component replacement.

MAJOR UPDATE: Full 24C32 EEPROM Read & Write via Diagnostic Mode!

⚠️ Old Technical Limitation (NO MORE DESOLDERING REQUIRED):

Historically, reading or writing the full 24C32 raw memory dump on Dodge RAM clusters required direct connection to the SOIC chip. Standard diagnostic tools for instrument clusters like Enigmatool could only modify limited parameters, leaving full memory backup or cloning impossible over diagnostic protocol.

How FORZA 614 Changes the Game:

With our latest software release, FORZA 614 officially supports FULL 24C32 EEPROM Read & Write directly via Diagnostic Protocols.

• Zero Hardware Soldering: You no longer need to remove the plastic back-cover or desolder the 24C32 chip.
• Full Memory Backup & Clone: Extract 100% of the raw EEPROM dump, modify configuration parameters, and write it back straight through the OBD2 port or bench connector.
• Risk-Free Donor Swaps: Instantly back up original corrupt files and flash donor units in seconds.

Common Failures in Ram Clusters

Across Ram 1500, 2500 and Ram 3500 trucks, these clusters often fail in predictable ways.

Typical workshop complaints include:

• Erratic gauge movement,
• needles sticking or not sweeping properly,
• dim, blank, or pixelated TFT display,
• intermittent power loss,
• cluster turning on and off randomly,
• display problems that worsen with heat or vibration.

These are the kinds of jobs that fit a professional repair service well. They usually require bench testing, board-level work, and a proper understanding of how the cluster wakes up and communicates.

Why Workshops Repair These Clusters

For the customer, the main reason is cost. A repair is usually much cheaper than buying a new cluster from a dealer, especially once coding, adaptation, and programming are added to the dealer route.

For the workshop, the advantage is business growth:

• you can accept mail-in repairs,
• you can test clusters on the bench,
• you can offer a legal repair alternative instead of a full replacement,
• you can support fleet customers and shops outside your local area,
• you can keep more of the work in-house.

That is why a tool like FORZA 614 matters. It helps you turn cluster knowledge into a repeatable repair service.

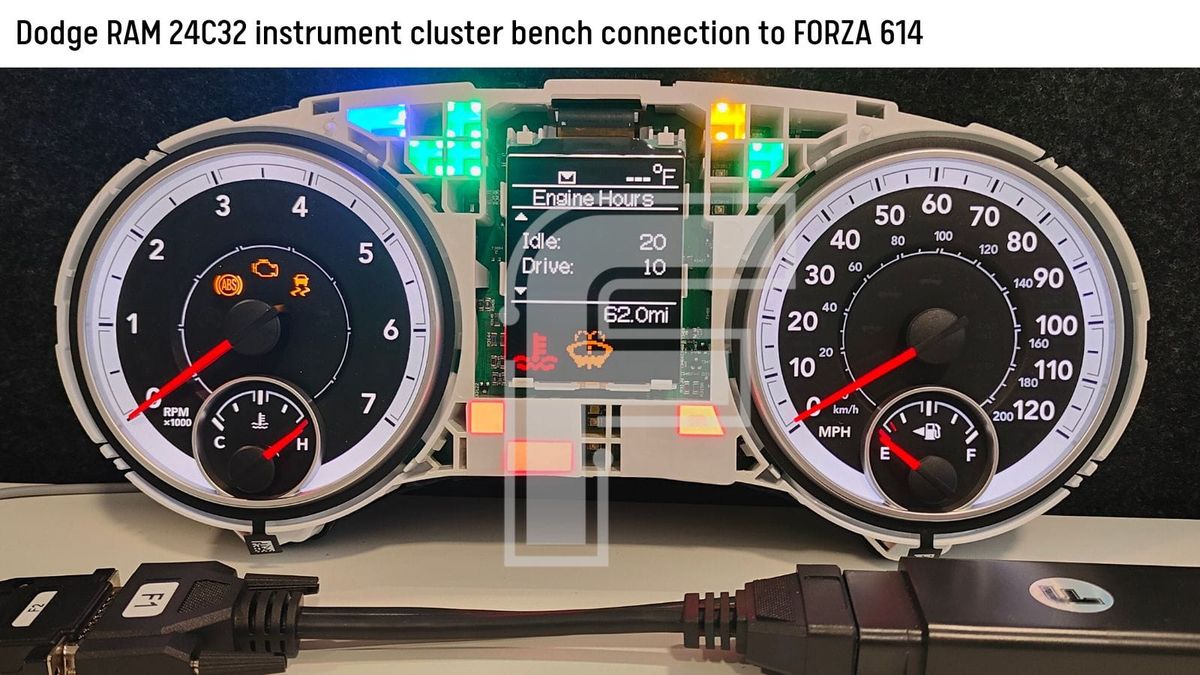

Bench Testing with FORZA 614

This is where FORZA 614 becomes especially useful for workshops.

A 2013-2017 RAM cluster will power up on the bench with 2x +12V and GND, but that alone does not give you full operation. The display may light in a dim state, but it will not fully wake up.

To bring the cluster into normal operating mode, it needs the correct CAN-bus wake-up sequence. Without that sequence, the cluster stays partially active and the backlight remains limited.

FORZA 614 solves this in a practical way:

• when you click Read Value in the software,
• the device automatically sends the correct CAN-bus wake-up sequence,
• the cluster fully starts up,
• the display becomes properly illuminated,
• and you can test the module on the workbench as if it were in the vehicle.

That saves time, reduces guesswork, and removes the need to buy expensive separate CAN-bus generators.

For a workshop, this is a big deal. It means one device can do what used to require several tools and more setup time.

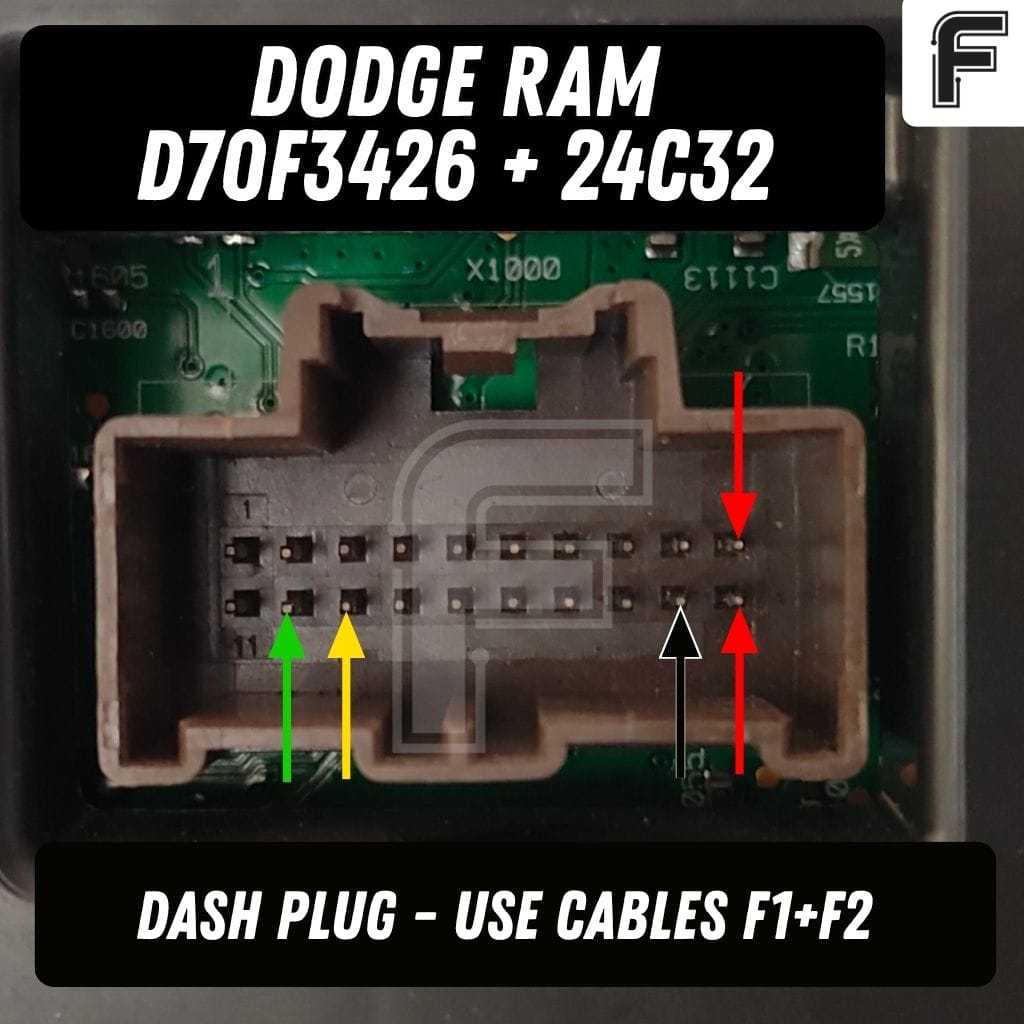

Dodge RAM Instrument Cluster Pinout

Why FORZA 614 Helps Mail-In Repair

FORZA 614 is especially useful for workshops that offer shipping repairs and accept clusters from outside their local area.

That business model works well because:

• the customer removes the cluster and ships it in,
• the workshop benches it, diagnoses it, and repairs it,
• the unit is tested with full wake-up and programming,
• the repaired cluster is sent back ready to install.

This gives the workshop access to more jobs without relying only on local walk-in traffic. It also makes the service easier to scale.

FORZA 614 helps because it allows you to:

• test the cluster on the bench,
• confirm that the repair really worked,
• program supported values where needed,
• and finish the job without repeatedly reinstalling the cluster into the truck.

That is exactly the kind of workflow a professional cluster business needs.

FORZA 614 for Programming and Calibration

Besides bench activation, FORZA 614 helps with programming-related service work.

For supported clusters, it can be used for:

• mileage reset or correction,
• engine-hours write or adjustment,
• donor cluster adaptation,
• post-repair verification.

That is useful for workshops handling repairs, donor swaps, or instrument cluster conversions. It also helps customers save money compared to dealer replacement, which is a strong selling point for your service.

If your shop replaces a damaged cluster, adjusts a donor unit, or works on a fleet vehicle where engine hours matter, FORZA 614 gives you a practical platform to finish the job.

FORZA 614 in the Workshop

We build new pinout schemes every day, analyze CAN-bus transmissions, and create software that helps technicians program data and reset mileage in most supported cases. That ongoing development is what makes FORZA 614 a real workshop tool, not just a one-off programmer.

It is designed for companies that want to:

• repair clusters legally and professionally,
• offer bench-tested mail-in service,
• reduce reliance on expensive dedicated CAN generators,
• and keep more profit inside the workshop.

A professional repair shop can own expensive cluster programmers worth many thousands of dollars, but FORZA 614 is focused on the daily realities of workshop work: bench activation, supported programming, service flexibility, and reliable results.

Subscription Model

FORZA 614 uses a subscription model made for professional users.

That means:

• you do not need to buy separate licenses for each function,
• an active subscription gives access to all supported programs,
• new programs are added to the same subscription,
• and the tool keeps growing with the needs of real repair shops.

For a business that repairs instrument clusters regularly, that is a straightforward way to keep the tool useful without license fragmentation.
