What is the digital instrument cluster part number for the 2020 Lincoln Nautilus?

The 2020 Lincoln Nautilus uses a fully digital instrument cluster with part number KA1T-10849-AK, built around the LS123M5LZ01 LCD display and housed in a metal heat-dissipating casing.

What are the most common failure causes in the KA1T-10849-AK digital cluster?

The most common failure causes are thermal degradation of BGA solder joints under the SPC5645S main MCU and NXP i.MX graphics processor, leading to dead clusters, intermittent blackouts, or backlight with no image.

Why does the Lincoln Nautilus digital dashboard sometimes show backlight but no graphics?

When the backlight turns on but no gauge interface appears, the cluster typically hangs during boot because the NXP i.MX graphics processor or its BGA solder joints have failed, preventing the LCD from rendering the instrument layout.

What information is lost when the LS123M5LZ01 LCD display fails?

Failure of the LS123M5LZ01 LCD display or its power rails causes a complete loss of speed and RPM readouts, fuel level and distance-to-empty calculations, warning messages, and odometer mileage, because the Nautilus cluster is fully digital.

Can you fully clone the 24C32 EEPROM in a Lincoln Nautilus cluster via OBD2 diagnostics?

No. Full 1:1 cloning of the 24C32 EEPROM is not possible via OBD2 diagnostic protocols. To duplicate all configuration and vehicle data between clusters, the 24C32 chip must be read or written directly with a dedicated EEPROM programmer.

What is required to power up a 2020 Lincoln Nautilus KA1T-10849-AK cluster on the bench?

Supplying +12V and Ground alone is not sufficient. The KA1T-10849-AK cluster requires a valid CAN‑bus wake‑up signal to bring the SPC5645S MCU out of sleep mode and boot the LS123M5LZ01 display on the workbench.

How does FORZA 614 help with bench testing the Lincoln Nautilus digital cluster?

FORZA 614 has a built‑in CAN‑bus generator that sends the necessary wake‑up frames, allowing technicians to power and boot the KA1T-10849-AK cluster on the bench, read identification data, check CAN communication, and perform odometer calibration either via OBD2 or directly through the rear cluster connector.

What is the FORZA 614 subscription model for instrument cluster software?

FORZA 614 uses an all‑inclusive subscription model instead of per‑car or per‑function licenses. With an active subscription, repair shops get unrestricted access to the full software library, including Lincoln, Ford, Nissan, Infiniti and many other instrument cluster programs, plus ongoing updates and detailed pinout diagrams.

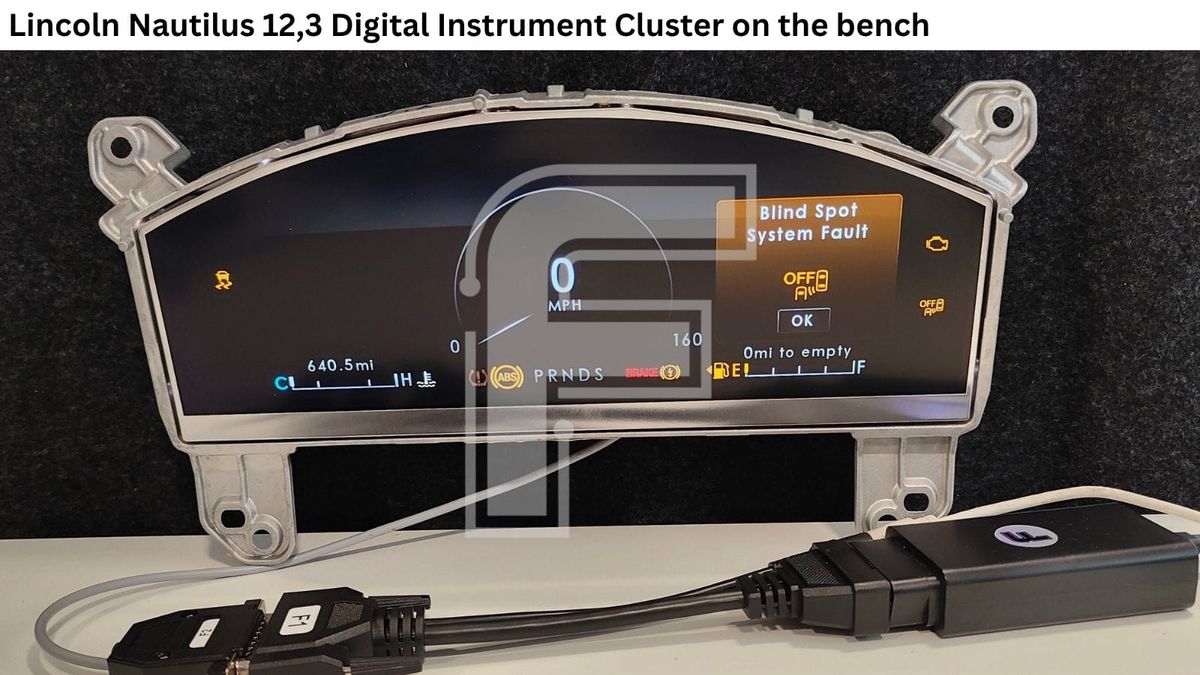

Bench power-up and calibration of Lincoln digital speedometer with FORZA 614

The 2019+ Lincoln Nautilus is equipped with a fully digital instrument cluster. This dash is built entirely around a large 12,4 inch LCD display and enclosed in a metal housing designed for heat dissipation.
Unlike traditional dashboards, it contains no analog gauges, stepper motors, or mechanical components.

While this design delivers modern visuals and flexibility, it also introduces thermal and hardware-related failure points that are now commonly seen in professional repair environments.

24C32 Lincoln Nautilus Instrument Cluster Programming with FORZA 614

Common Hardware Failures and BGA Issues

The primary weakness of the KA1T-10849-AK cluster is heat. The internal multi-layer PCB reaches high operating temperatures shortly after power-up, which significantly affects long-term reliability.

Most critical components are manufactured in BGA (Ball Grid Array) packages, making them highly sensitive to thermal cycling.

Key components include:

Main MCU: NXP SPC5645S
Graphics processor: NXP i.MX (BGA)
EEPROM memory: 24C32 (rear side of PCB)

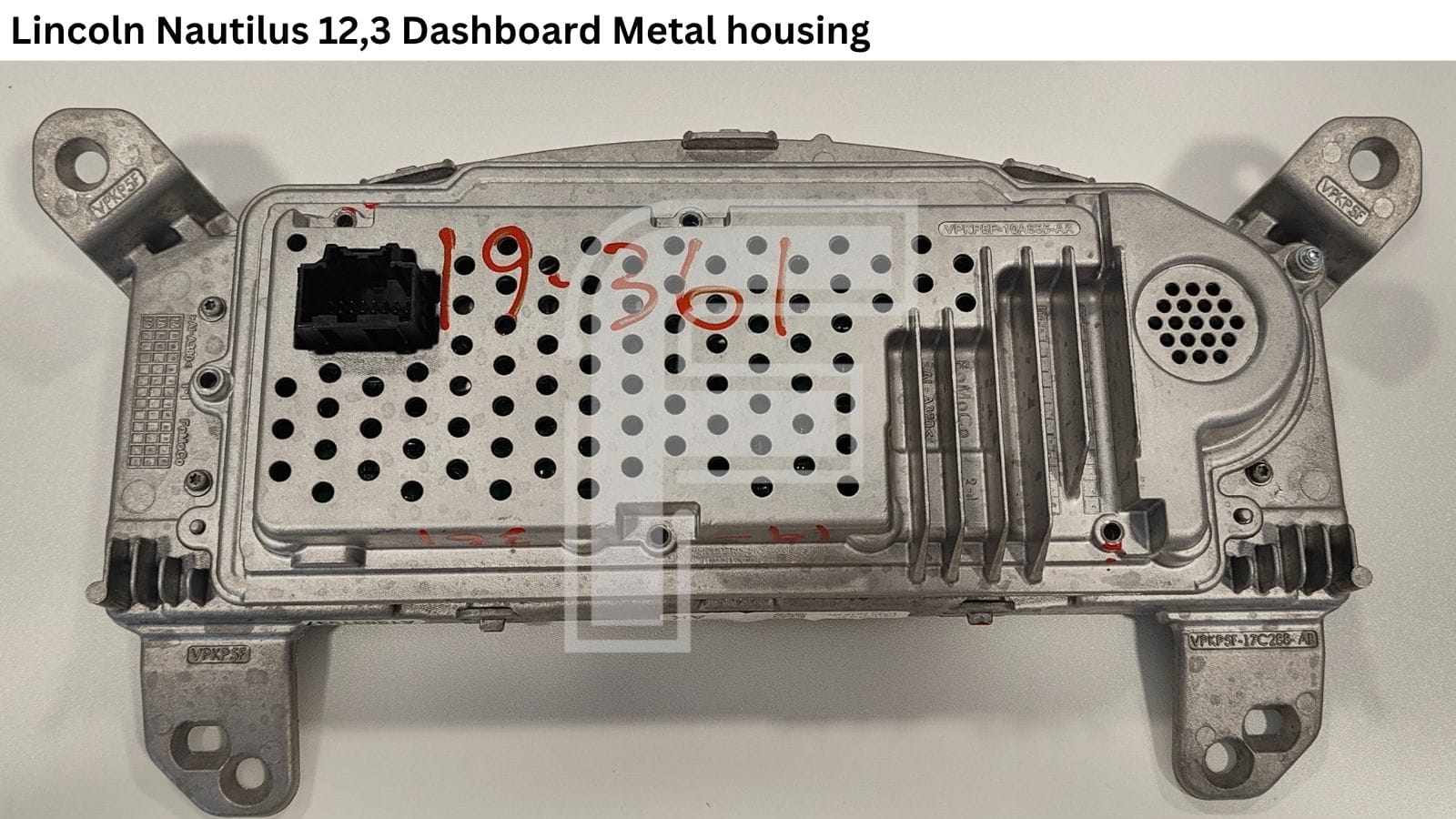

Lincon nautilus 12.3 instrument cluster metal housing

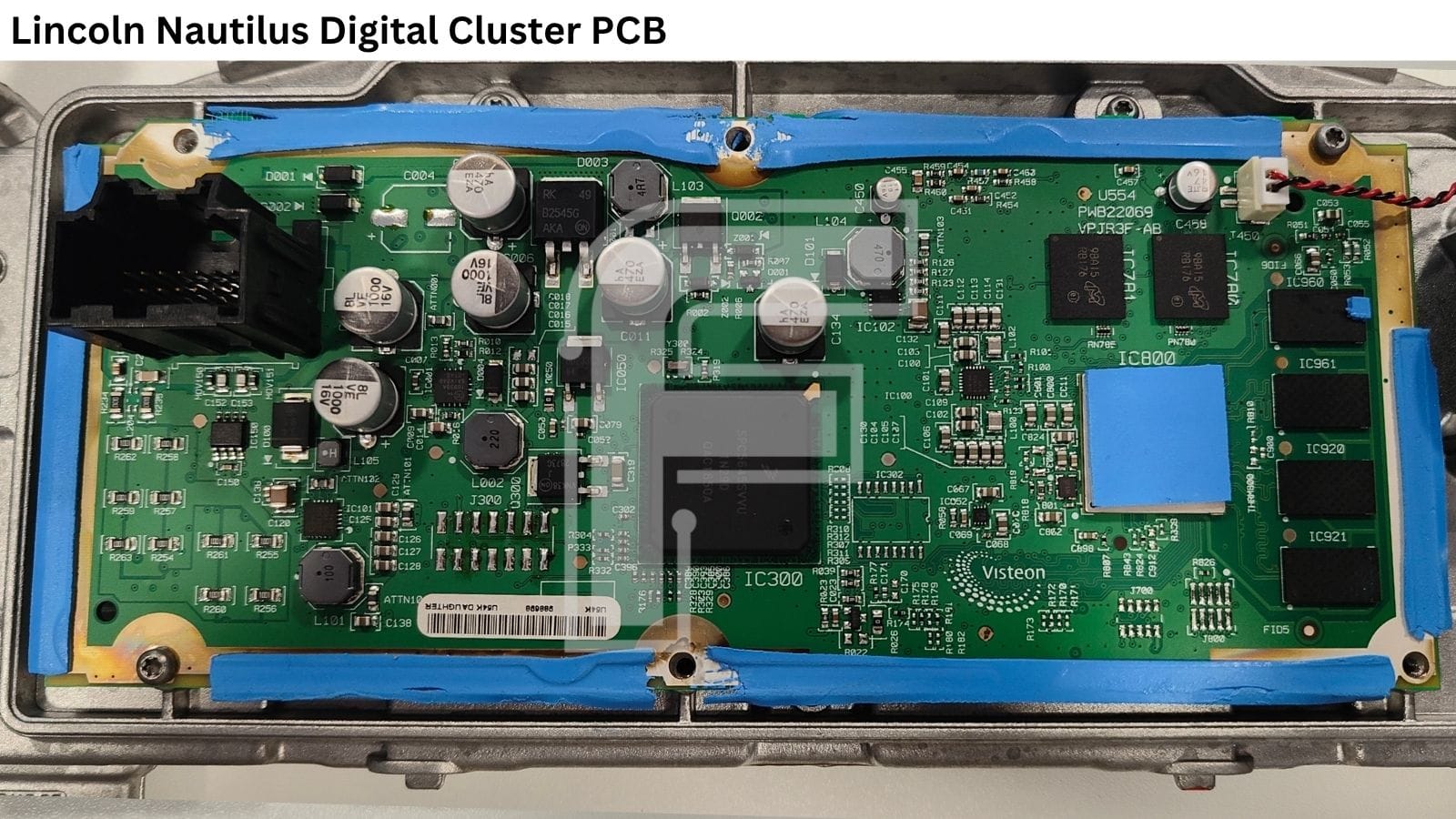

Lincon nautilus spc5645S 24c32 instrument cluster PCB

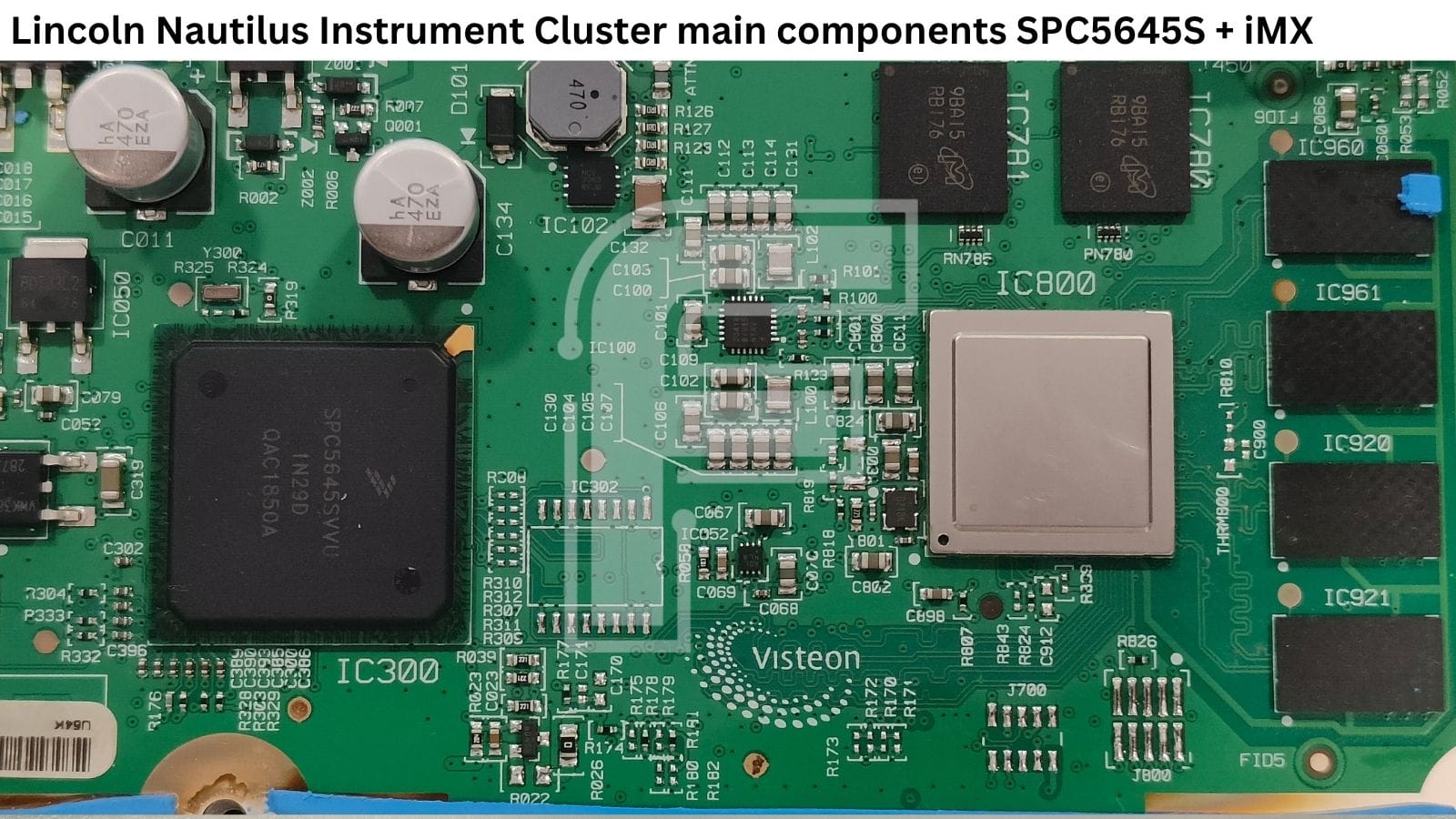

Lincon nautilus speedometer mcu spc5645S and iMX

Over time, thermal stress leads to microfractures in solder joints under BGA chips, resulting in unstable or complete failure.

Typical symptoms:

No power / dead cluster
Intermittent operation (random shutdowns or startup failures)
Backlight active but no image (boot failure)

LS123M5LZ01 LCD Display – Failure Impact

The cluster uses an LS123M5LZ01 LCD panel, which forms the entire front interface of the dashboard.

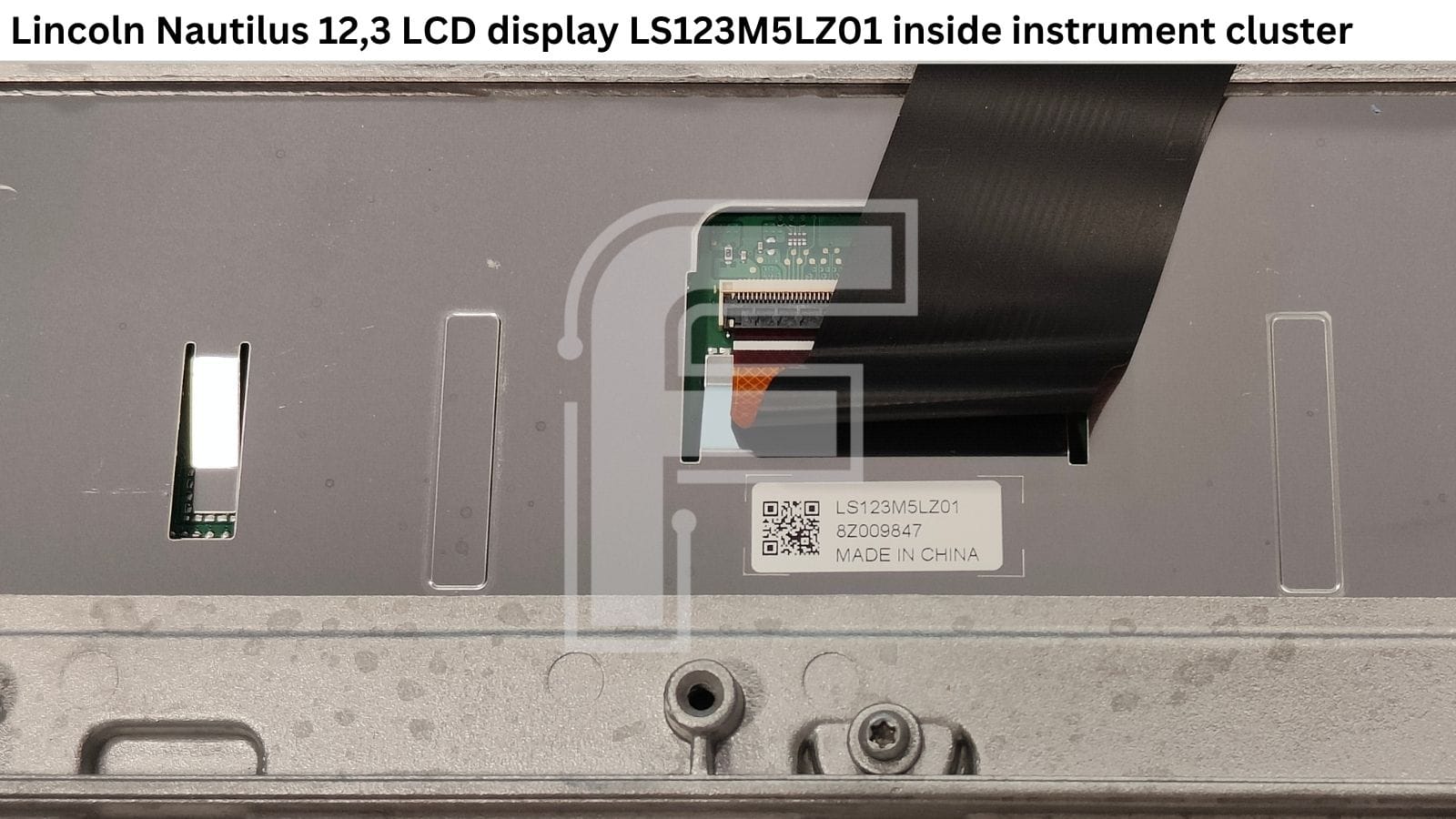

Lincon nautilus virtual speedometer LCD 12.3 LS123M5LZ01

Because this is a fully digital system, it operates on an “all-or-nothing” basis. Any failure in the display, power supply, or graphics processing results in a total loss of driver information.

When the display fails, the driver loses access to:

Speed and RPM
Fuel level and range
Warning indicators
Odometer and mileage data

This makes the cluster a critical safety component, not just a convenience feature.

💡

Lincoln Nautilus Instrument Cluster
MCU: SPC5645S BGA
Graphics processor: i.MX BGA
Eeprom: 24C32
LCD Display: LS123M5LZ01

Repair vs Replacement Strategy

Repairing this cluster requires advanced equipment due to the presence of BGA components and multilayer PCB construction. Professional labs typically perform:

BGA reballing or chip replacement (SPC5645S / i.MX)
Power rail diagnostics
Display replacement (LS123M5LZ01)

If repair is not cost-effective, a common alternative is installing a used donor cluster. However, proper data handling is essential.

24C32 EEPROM Data Cloning

The 24C32 EEPROM, located on the rear side of the PCB, stores important configuration and vehicle-specific data.

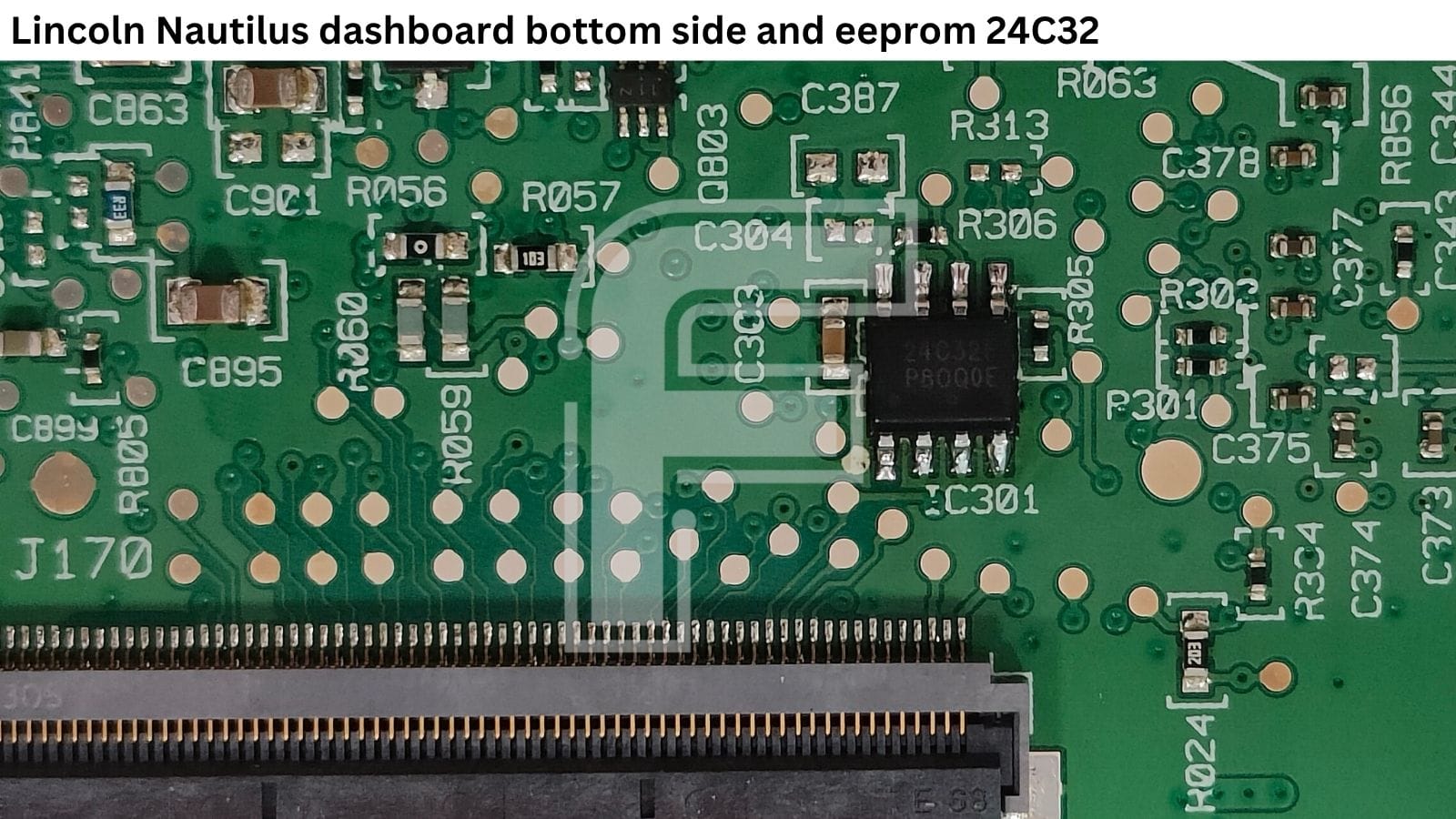

Lincon nautilus instrument cluster 24c32 eeprom

Important:

Full EEPROM cloning cannot be performed via OBD2
Diagnostic tools do not provide complete memory access
A dedicated EEPROM programmer is required for full data transfer

This step is mandatory when adapting a donor cluster to ensure proper functionality.

Bench Testing with FORZA 614 (CAN Activation)

Powering the cluster on a workbench requires more than just +12V and ground. Without a valid CAN-bus wake-up signal, the module will remain in sleep mode and the display will stay off.

FORZA 614 includes a built-in CAN signal generator, allowing immediate activation of the cluster on the bench without additional tools.

With FORZA 614, you can:

Wake up the cluster via CAN
Verify boot sequence and display operation
Communicate with the module and read identification data
Diagnose CAN communication issues
Reset odometer value

Pinout and Workshop Setup

The FORZA 614 PC software provides built-in pinout diagrams, allowing quick identification of:

Power supply (+12V)
Ground (GND)
CAN High (CAN-H)
CAN Low (CAN-L)

This significantly reduces setup time and eliminates guesswork during bench testing.

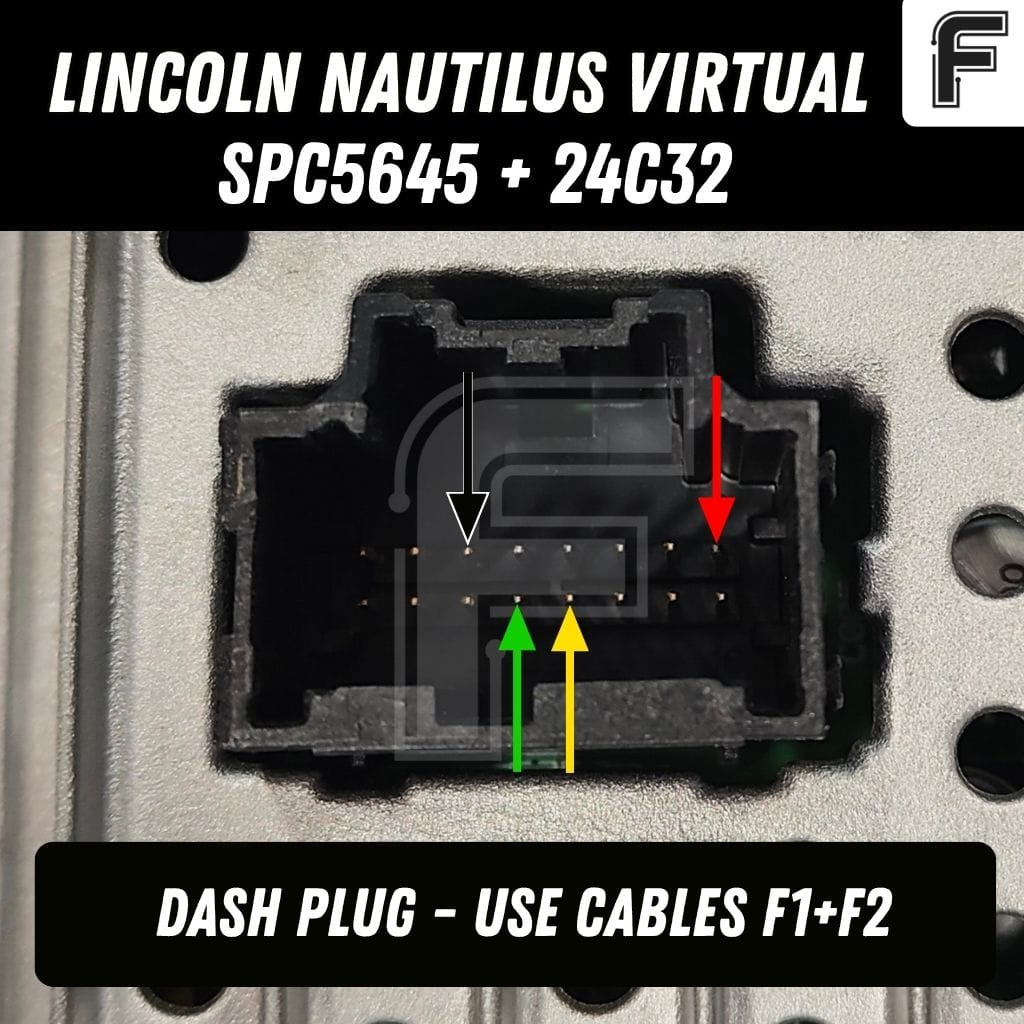

Lincon nautilus dashboard 24c32 pinout connection

Odometer Reset and Programming Functions

FORZA 614 supports additional service functions for this cluster, including:

Odometer reset and calibration
Module initialization
Diagnostic communication via OBD2 or bench connection F1+F2 cables

These features are especially useful when installing replacement clusters.

Tested Instrument Clusters:
KA1T-10849-AK and LA1T-10849-AC

FORZA 614 Subscription Model

FORZA 614 operates on a subscription-based model. There is no need to purchase individual licenses or pay per function.

With an active subscription, you gain full access to all supported software modules, including coverage for Lincoln, Ford, Nissan, Infiniti, and many others. The subscription also includes continuous updates, new features, and access to complete diagnostic and pinout databases.
