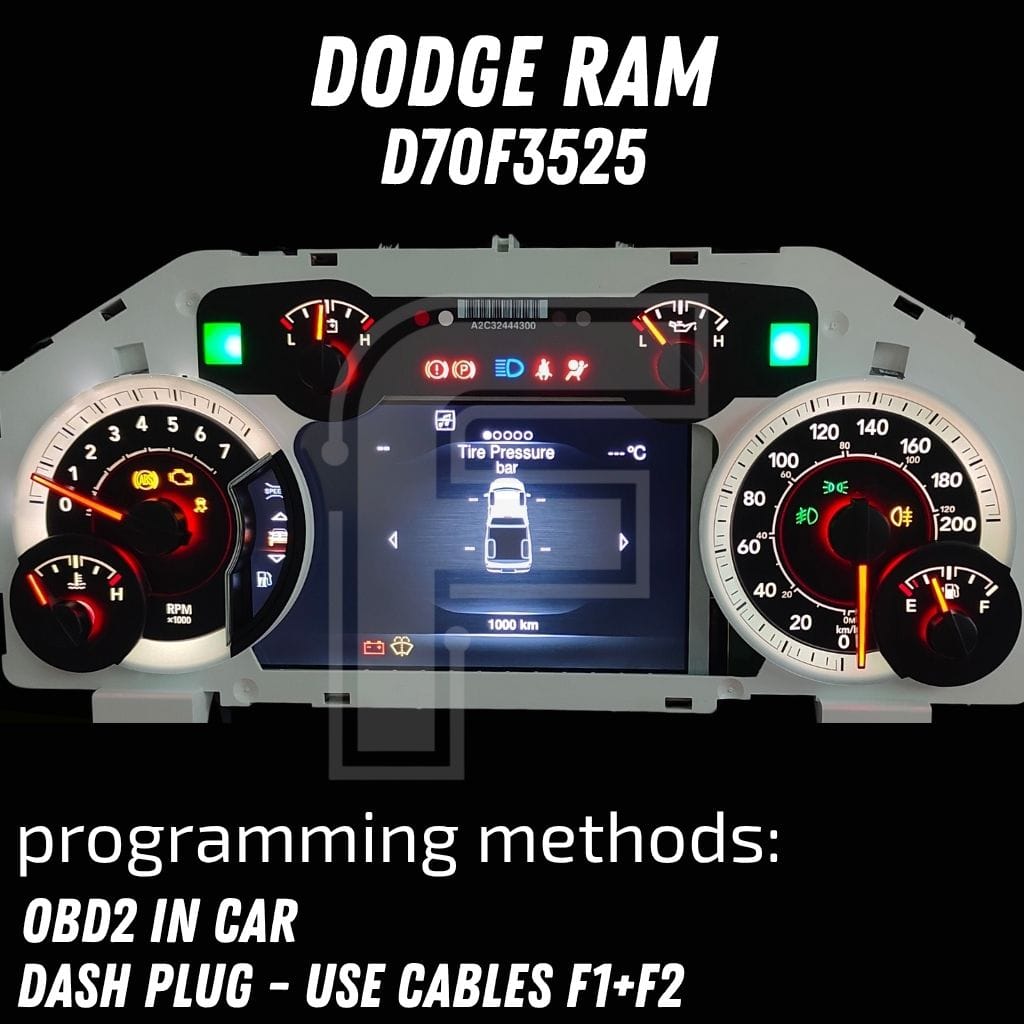

FORZA 614 and new program for DODGE RAM D70F3525 + Power UP Function

The global demand for regional market conversions, module swaps and software restorations on heavy-duty American trucks continues to accelerate. This technical brief provides an advanced repair solution and covers the precise semiconductor layout, prominent hardware vulnerabilities, and practical bench diagnostic testing methodologies for the premium dodge ram cluster assembly. Whether you are dealing with a standard ram truck or a specialized high-trim model, this guide will streamline your instrument cluster repair workflow using the FORZA 614 platform.

What is inside Dodge Ram cluster?
Core Microcontrollers and Memory

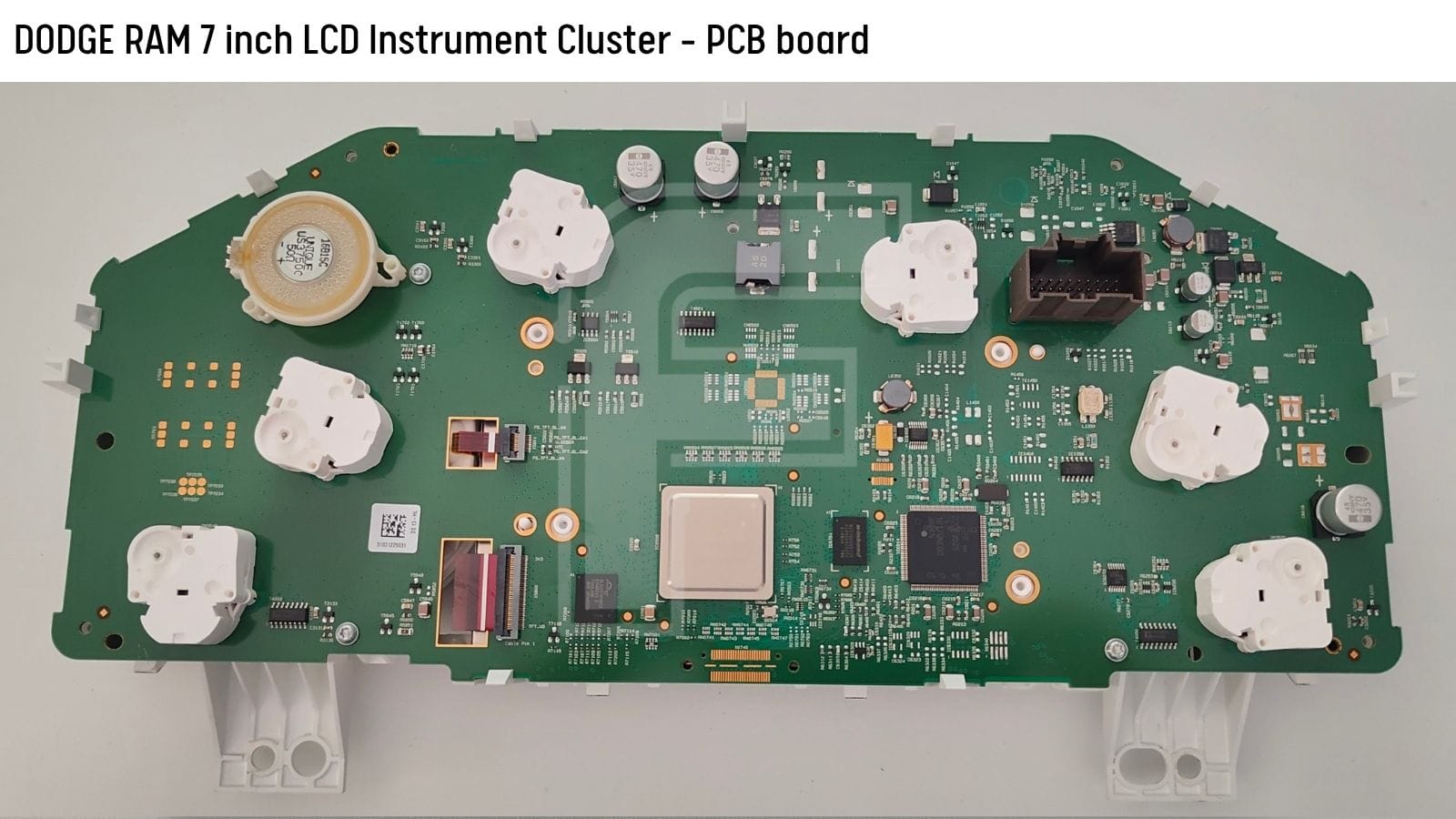

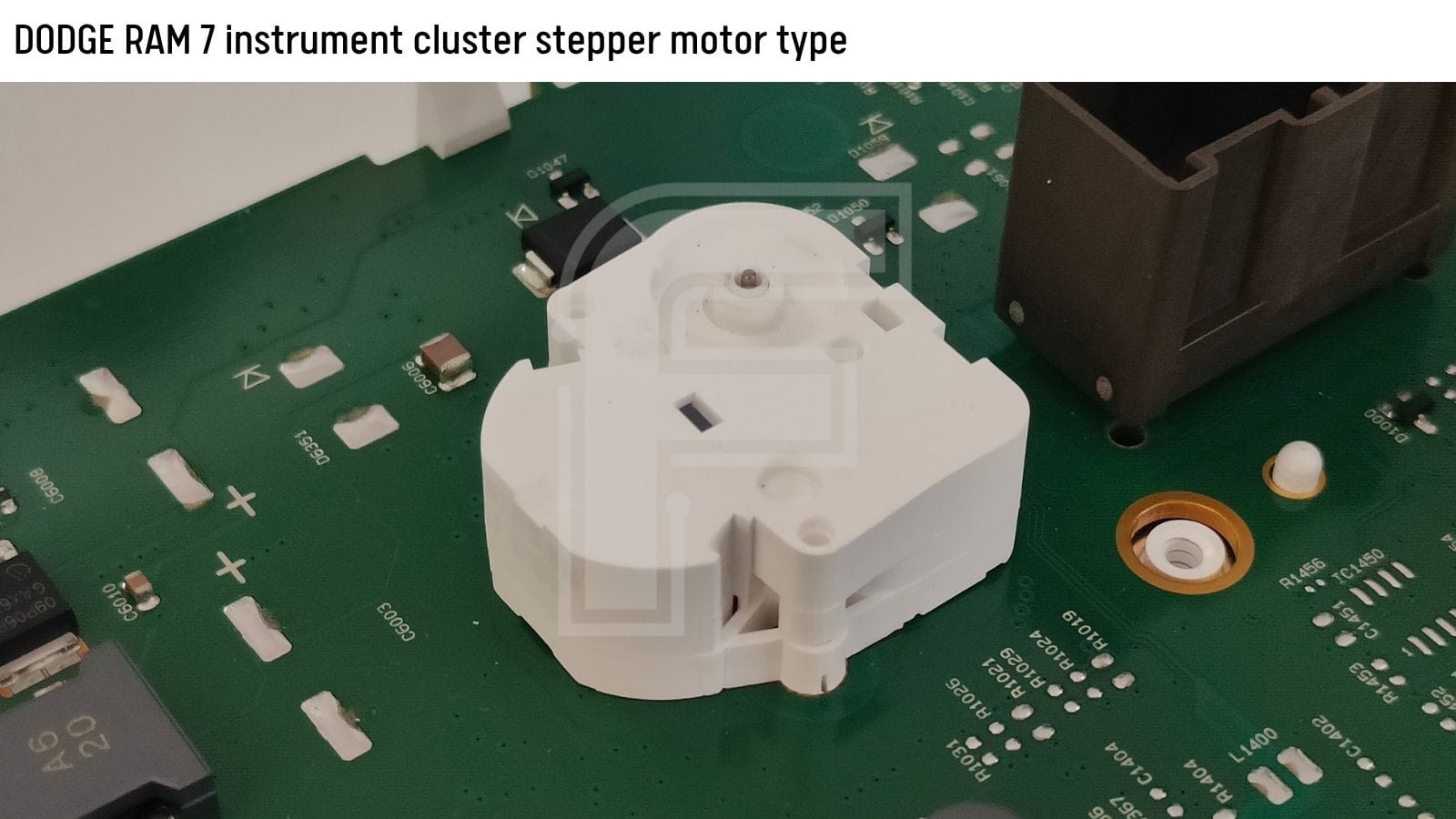

When inspecting the inner side of the main green PCB, the dodge ram 1500 2500 3500 instrument panel reveals a high-tier processing array capable of rendering complex graphical assets while managing real-time vehicle network nodes.

What hardware is used in Dodge Ram Cluster?

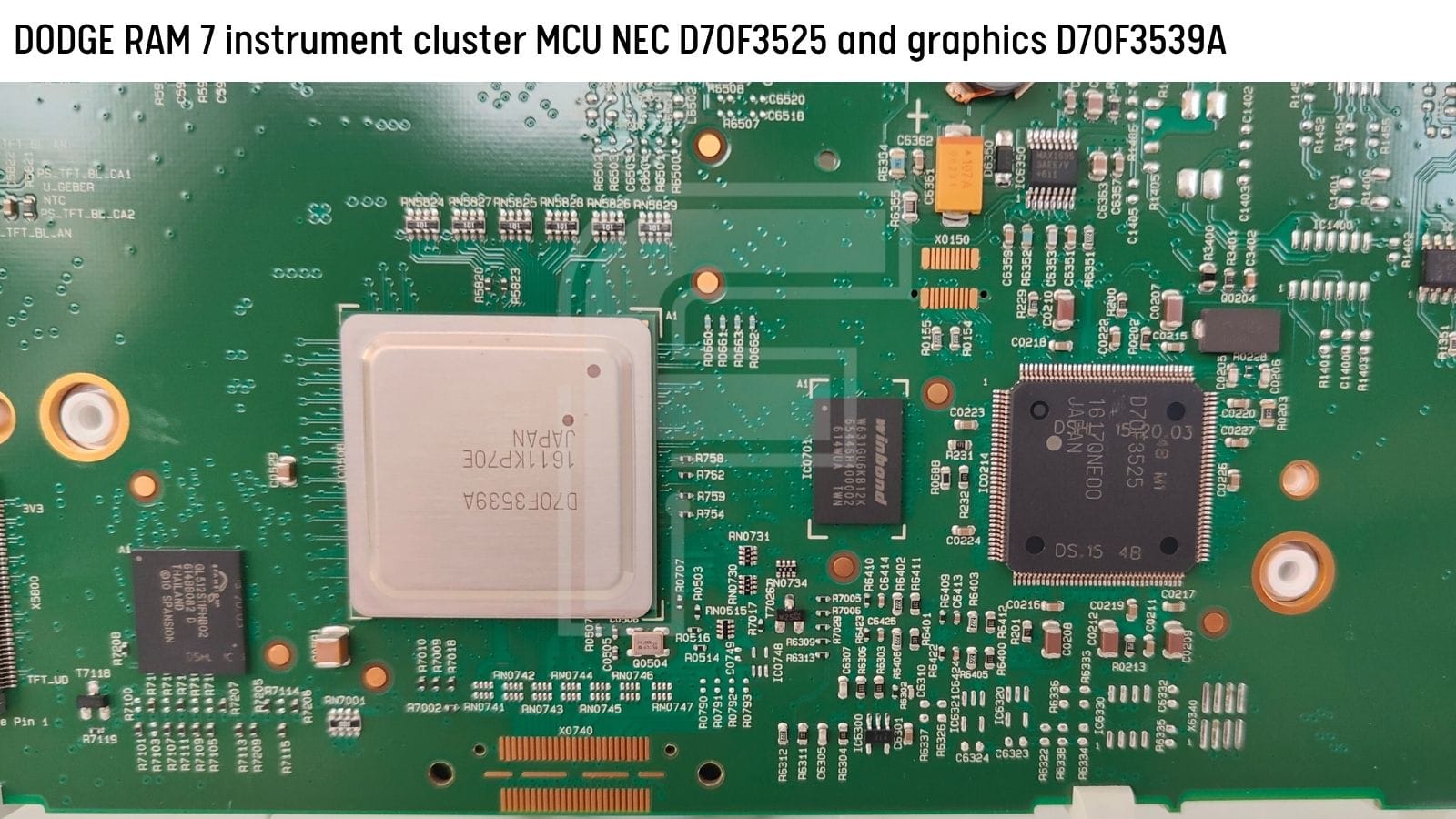

• The Primary Microcontroller (MCU): The cluster logic is driven by the robust NEC D70F3525 processor (stamped with code 16170NE00).
• The Graphics Controller: To handle rendering on the central lcd display screen, the board features a dedicated Renesas D70F3539A coprocessor (stamped with batch code 1611KP70E).
• High-Capacity Flash Storage: Graphic UI profiles and core software system files are split across a high-speed Spansion S25FL128S flash memory and a Winbond W631GU6KB12K SDRAM chip.

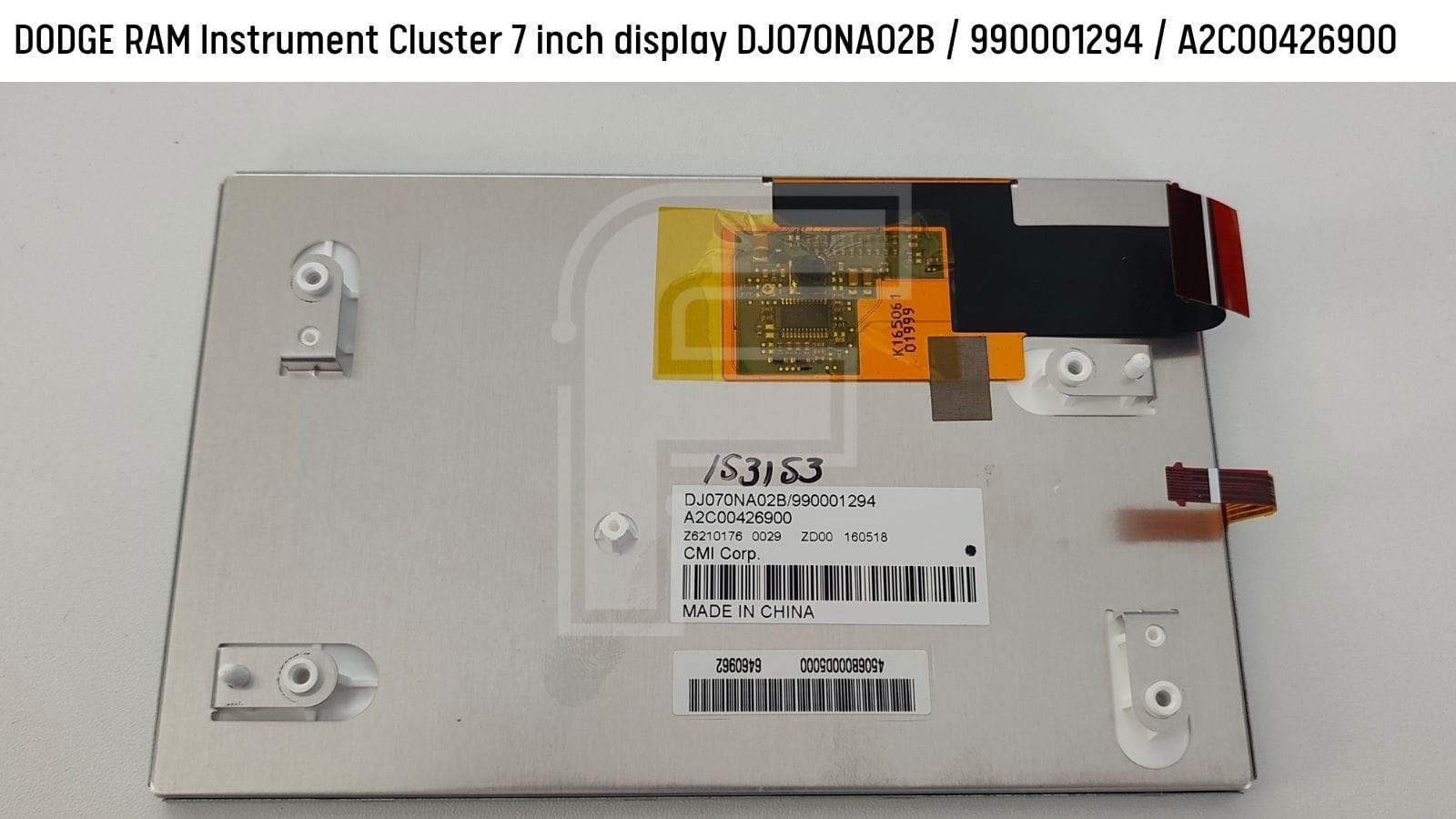

• The Premium TFT Display Panel: The central 7-inch graphical array is a CMI Corp. manufactured module carrying the factory part number entries: DJ070NA-02B / 990001294 and A2C00426900.

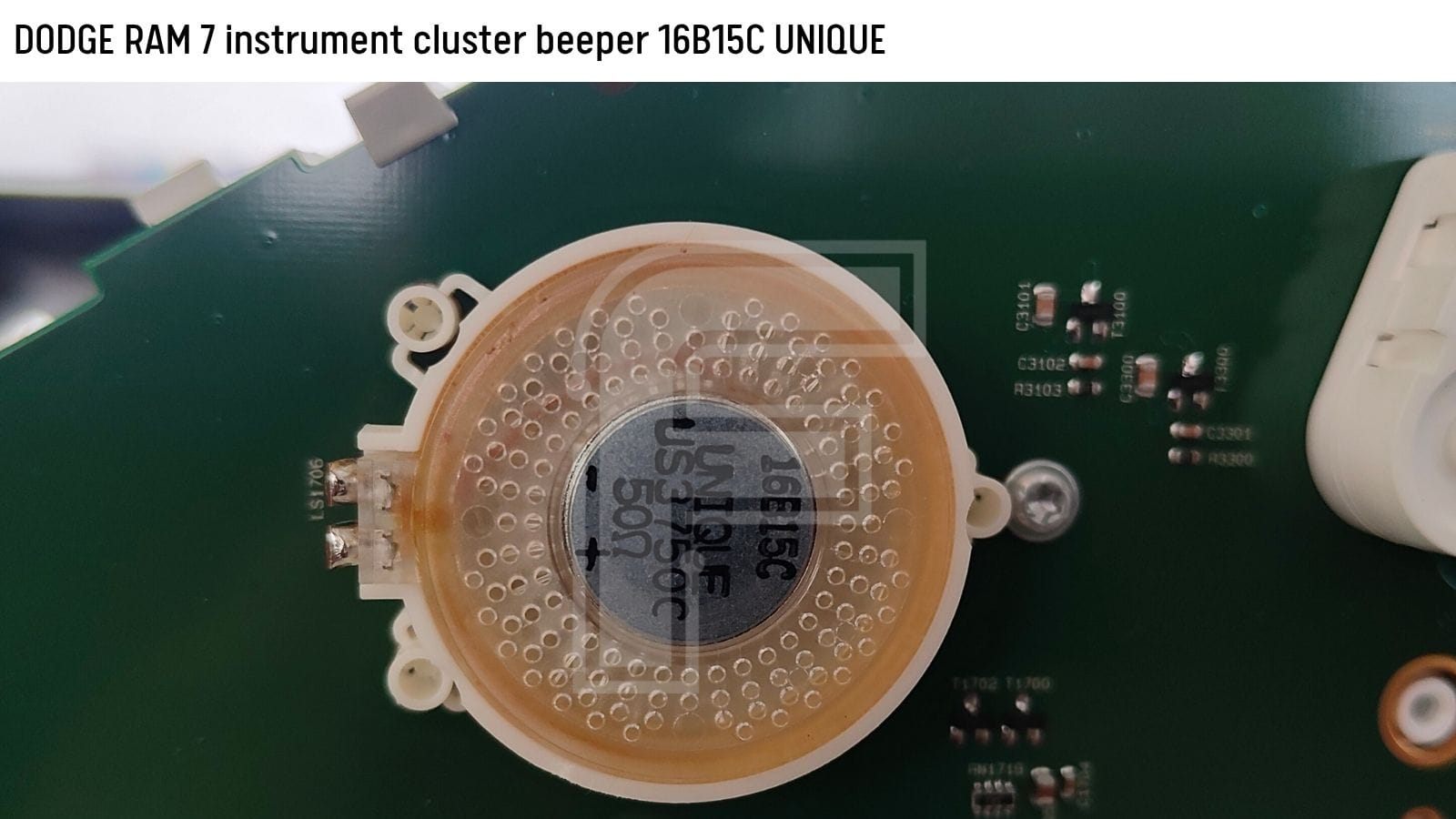

• The Audio System: Audible warning alerts and indicator ticks are generated by a high-impedance, acoustic UNIQUE US3750C 50Ω speaker module (Part stamp: 16B15C).

Most common faults in Dodge Ram odometers

Technicians offering a professional repair service for a dodge ram 1500, dodge ram 2500, or 3500 model will frequently encounter display-related anomalies. Most common hardware and software faults isolate around the central TFT screen network:

• The Display "Flashing" Phenomenon: The lcd screen intermittently flashes or flares up brightly before dropping back to a slightly dimmed state, indicating early power rail or driver fluctuations.
• Loss of LCD Backlighting: The display panel goes completely dark, but shining an external flashlight reveals that the digital graphics and menus are rendering correctly. This pinpoints a localized failure within the internal backlighting driver circuit.
• The Complete Black Screen State: The TFT panel fails to initialize entirely. This scenario can indicate a physically dead gauge cluster matrix—which can be resolved by sourcing a replacement screen panel. However, if the panel is healthy, a blank screen indicates catastrophic corruption within the onboard Flash memory or the failure of one of the main Renesas MCUs, which presents a much higher diagnostic challenge.

FORZA 614 Programming & Calibration Limits

When interfacing with the internal memory of a ram instrument cluster via the FORZA 614 hardware, it is critical to understand the software boundaries:

• What it CAN do: FORZA 614 features specialized, highly stable protocols to safely program and calibrate the mileage data values as well as the engine hours (motohours) stored inside the main NEC microcontroller. This is essential for legal compliance when swapping out a destroyed dashboard for a used donor module.
• What it CANNOT do: Unlike other modules in our database, a raw read or write clone of the entire internal D-Flash memory partition of the NEC processor is not supported over the bus. Programming operations are strictly localized to the mileage and engine hours.

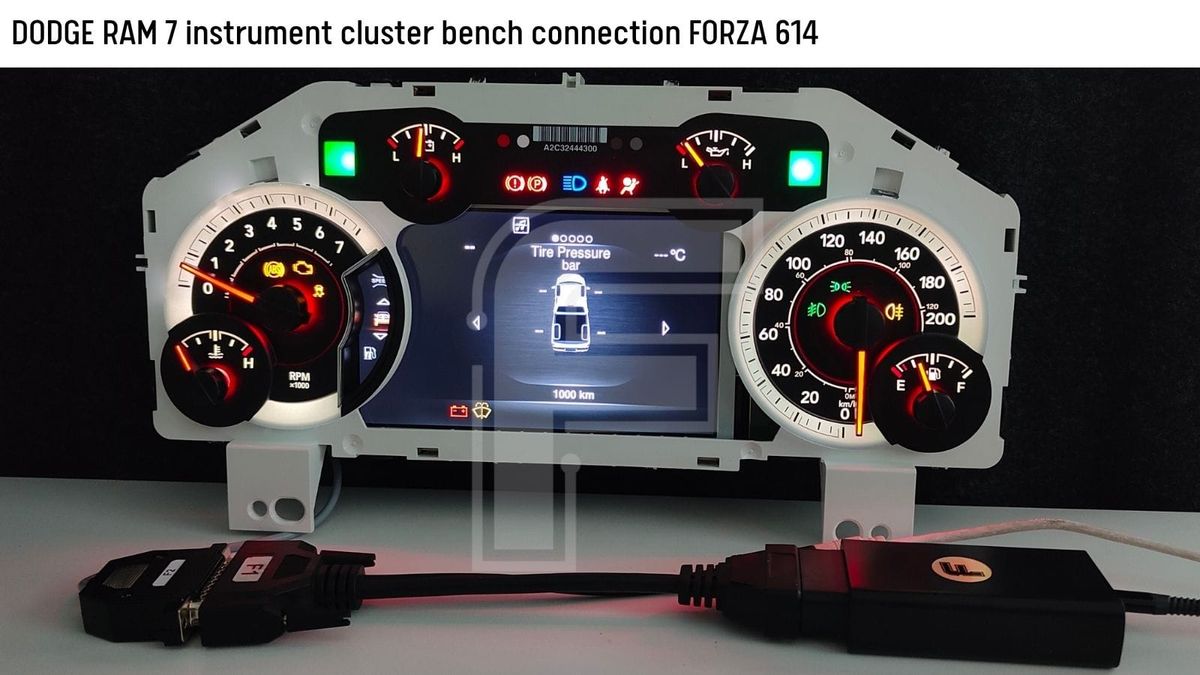

Advanced Bench Testing: The FORZA 614 Activation Trick

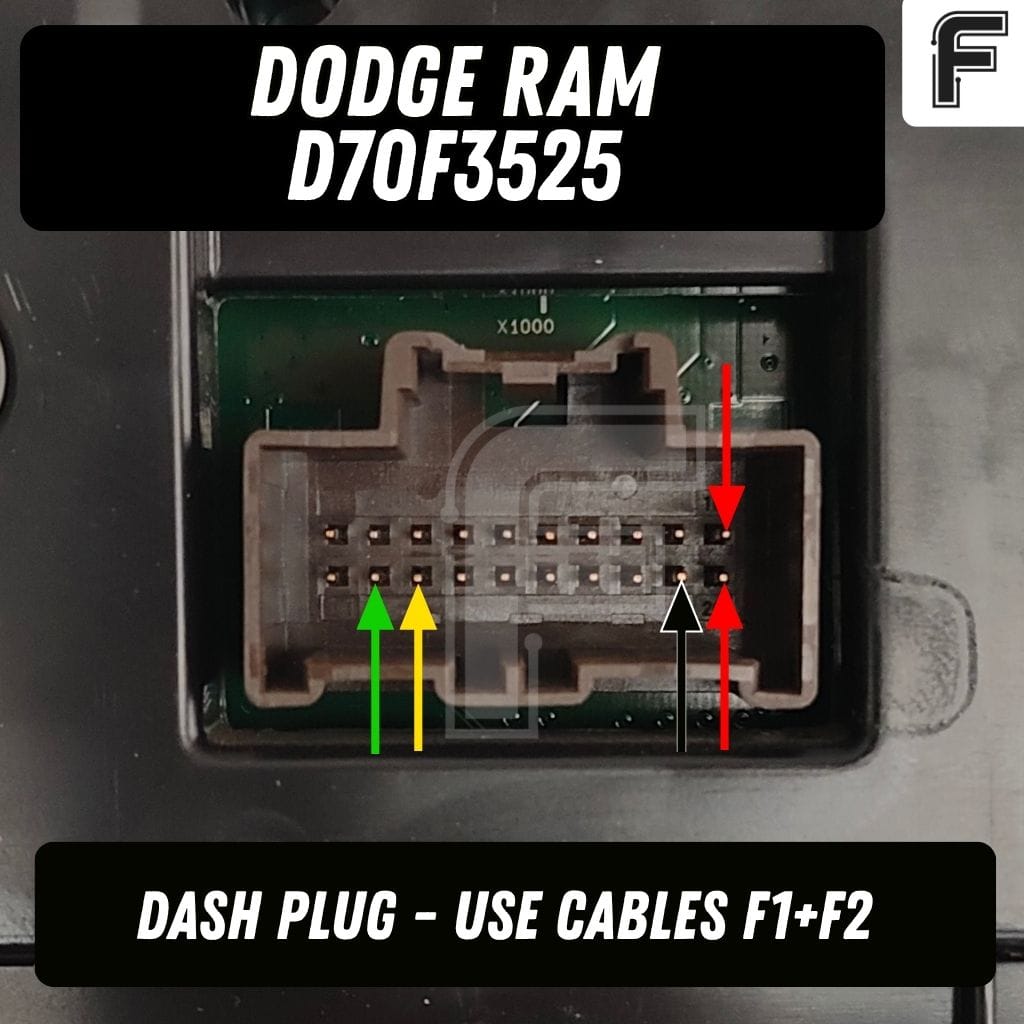

Standard bench power-up procedures on a 1500 2500 3500 instrument cluster are notoriously difficult. If you simply apply static power to the main 18-pin brown socket connector, the board will not wake up; it requires a specific, active CAN-bus wake-up signal to initialize.

The Ultimate Workshop Advantage:

FORZA 614 bypasses this constraint entirely. When you initiate an odometer reading or calibration command via the Windows PC application, the programmer automatically injects the necessary wake-up sequences, illuminating the cluster display and continuously sustaining the CAN-bus data link. This functionality turns FORZA 614 into a powerful standalone workshop test bench platform. You can fully execute repairs, test faulty components, and evaluate your work off-board without ever needing to plug the cluster back into the truck to check the results.

Pro Repair Secrets: Thermal Stress & Stress-Testing

• The 24-Hour Stress Test: Because FORZA 614 maintains the data link on your bench, you can leave the cluster running continuously for several hours or overnight to perform rigorous heat and stress tests on newly replaced display components.
• The Thermal Expansion Trick: Premium Dodge clusters frequently suffer from micro-cracks in solder joints or marginal semiconductor memory blocks. Top-tier repair shops solve these hidden faults by systematically heating and cooling components with freeze spray and a hot air station while monitoring the display.
• The RAM Memory Diagnostic: If cooling the onboard Winbond RAM chip causes an unbootable cluster to suddenly spring to life, but it fails again at normal room or elevated temperatures, you have pinpointed a defective memory array or broken BGA solder balls.

The Ultimate Solution for Dial Conversions and Gauge Calibration

This continuous bench activation protocol is a massive game-changer for workshops specializing in physical ram instrument cluster display repair, dash conversions, and gauge customizations. When transforming imported vehicles from the US or UK markets, you often need to physically swap out the instrument faces to match local metric requirements.

Because FORZA 614 handles the CAN-bus handshake and powers up the backlighting on your bench, you can perfectly recalibrate the physical needles against the digital TFT display outputs in real time. This ensures that after you install new dials and align the mechanical gauges, the needle sweeps are flawless, the internal illumination has no dead spots, and the cluster is fully calibrated before it leaves your hands.

Scale Globally with a High-Profit Mail-In Repair Service

By eliminating the need for a physical truck to test the instrument panel, FORZA 614 completely unlocks the highly lucrative world of a mail-in repair service. You no longer need local vehicles taking up physical garage space in your bay.

Now, you can accept damaged, blinking, or corrupted dodge ram 1500 2500 3500 clusters shipped directly to your workshop from car enthusiasts, mechanics, and dealerships from every corner of the country. You safely execute the hardware diagnostics, replace faulty components, test the unit overnight via the FORZA bench connection, and provide a rapid turnaround time by shipping a 100% verified, plug-and-play module back to the client. Backing your work with a solid shop warranty will help turn this niche into a cornerstone of your business.

Maximize Your Workshop Revenue:
Join the FORZA 614

Stop turning away high-paying heavy-duty truck jobs or struggling with unverified forum pinouts on an old 2009-2012 or modern 2018 ram platform.

The entire Dodge RAM module including high-resolution connector pinouts is completely unlocked under our flat subscription model for just €99/month.
