Luxury vehicles like the Maserati Ghibli are masterpieces of Italian design, but their complex system and electronic components are not immune to failure. For a professional repair shop, servicing a Maserati instrument cluster requires more than just a basic diagnostic tool. These unit setups, built on the NEC D70F3532 MCU and 95160 EEPROM, often face specific hardware issues that can be costly for the customer. Whether it's a failing display or corrupted data, FORZA 614 provides the accurate and safe software workflow needed to fix advanced dashboard problems.
FORZA 614 programming Maserati Ghibili Odometer by dash connector
Common Failures for Maserati Ghibli Speedometers
In the world of high-end automotive electronics, the Maserati Ghibli often presents a predictable set of problems. Instead of choosing a bank-breaking purchase of a new part number at the dealer, many owners opt for a specialist routine repair. Common issues include:
- Failing displays: Flickering or total loss of visual information on the tft central screen.
- Dead or inaccurate gauges: Faulty stepper motors or data errors affecting the speedometer.
- Corrupted data: Random errors or "dead" clusters caused by for example battery spikes.
- Replacement synchronization: Challenges when you need to replace or swap instrument cluster units without proper coding.
Data Cloning and Mileage Odometer Programming with FORZA 614
When you perform a repair in luxury segments, compatibility and data integrity are everything.
FORZA 614 acts as a high-end interface that allows you to:
- Data Cloning: Seamlessly transfer information from a damaged module to a donor unit.
- EEPROM Handling (95160): Full access to the external memory for backup and restoration.
- Reset Odometer Function: Essential when you install a used replacement and need to match the mileage to the vehicle's true history.
- Safe Workflow: The software ensures you always have a hex dump before any procedure, acting as your insurance policy.

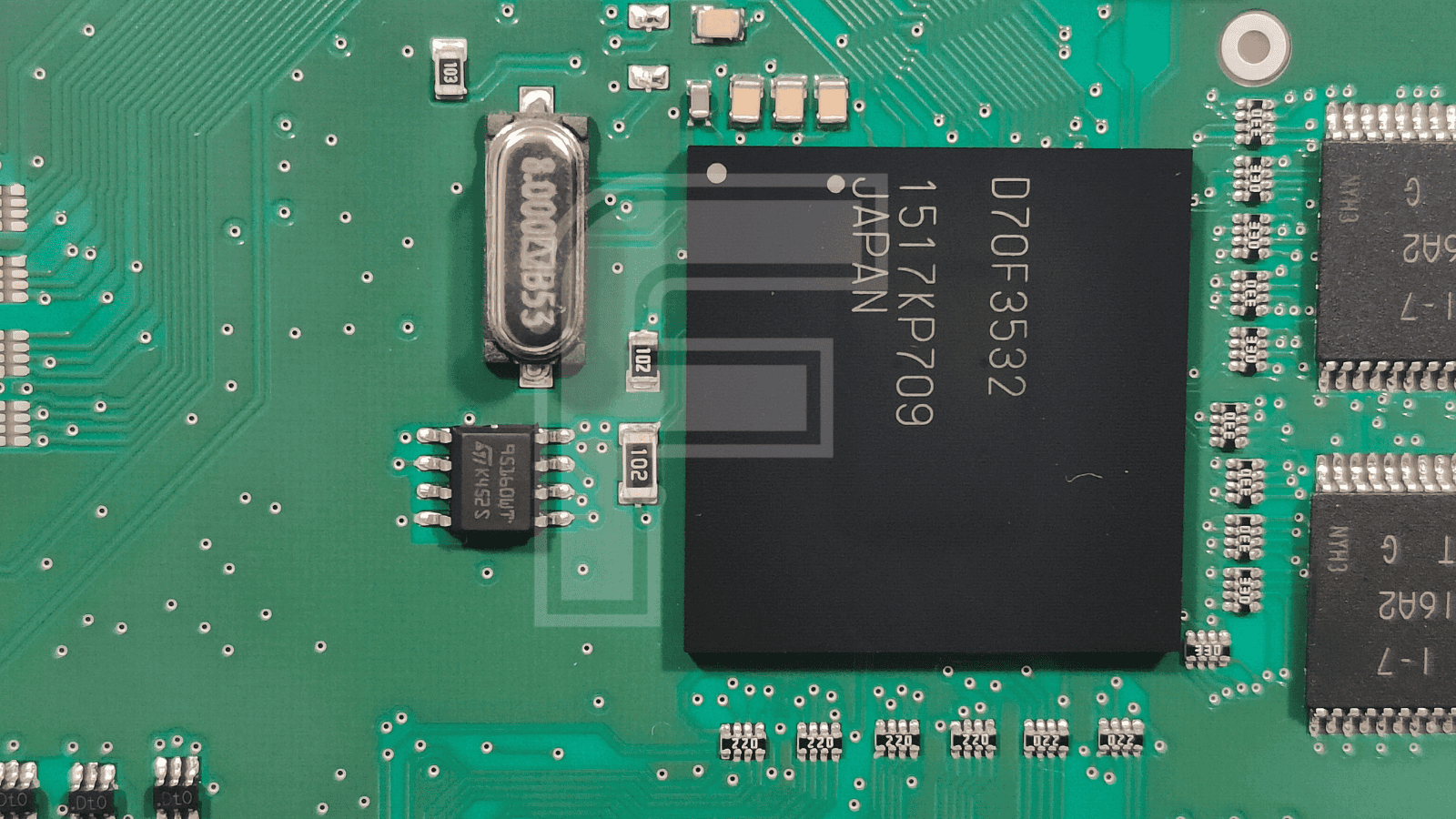

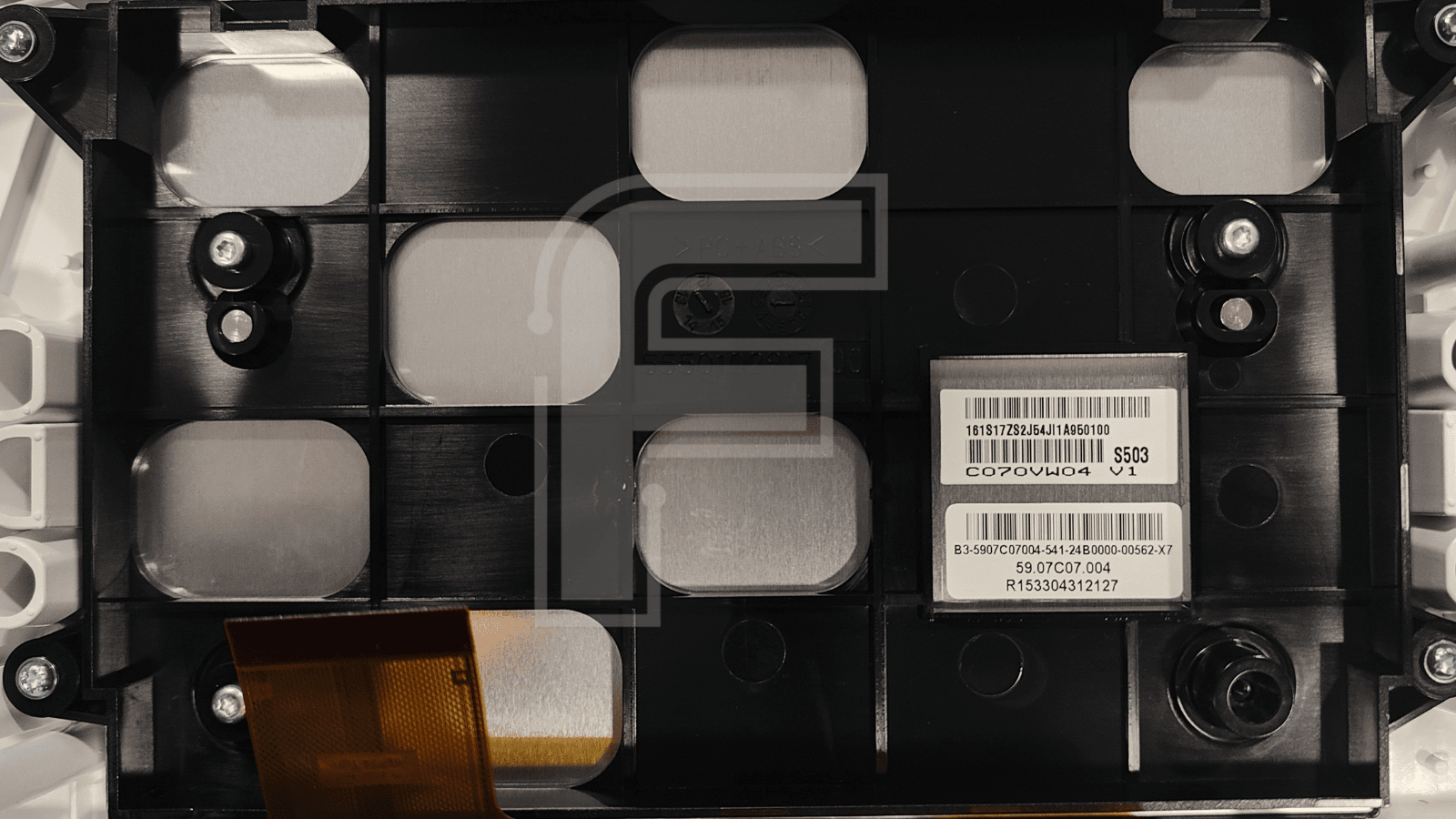

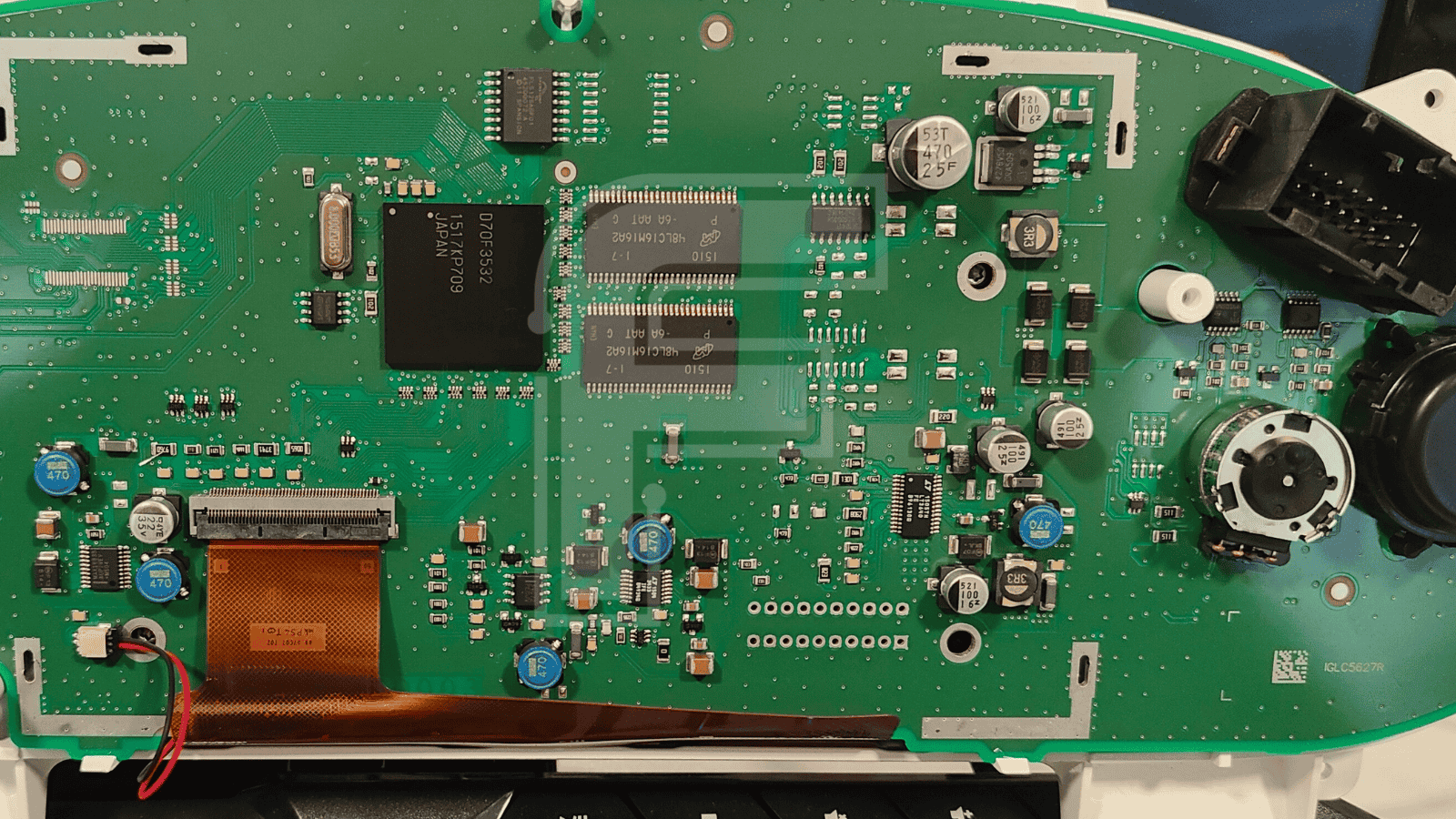

Maserati Ghibili internal hardware photos
OBD2 and Bench Programming with FORZA 614 Diagnostic Tool
Flexibility is key for any company specializing in auto electronics. FORZA 614 supports multiple ways to interface with the Maserati Ghibli:
- In-Car via OBD2: Fast and efficient. Note that for Maserati vehicles from 2018+, an SGW bypass is required to unlock programming capabilities and security access.
- On the Bench: The ultimate solution for remotely post-in services. By using verified pinouts available directly in the FORZA 614 app, you can connect the gauge cluster (Power, GND, CAN-H, CAN-L) without having the vehicle on-site.
Why FORZA 614 is Reliable Choice for Your Professional Automotive Shop
Choosing to reprogramme or repair an original instrument cluster is a specialist task that saves the customer thousands. Our company focused on creating a user-friendly device that minimizes failure risk:
- Cost-Efficiency: No need to invest in expensive single-use licenses.
- Subscription Model: Access all our existing software + incoming updates with one flat-rate subscription.
- Excellent Support: Built-in schematics and excellent photos ensure you never have to work from scratch + you get human support by Whatsapp.
If you want to ensure your shop stays ahead in the speedometer repair market, FORZA 614 is the diagnostic tool you need to fix more and invest less.
