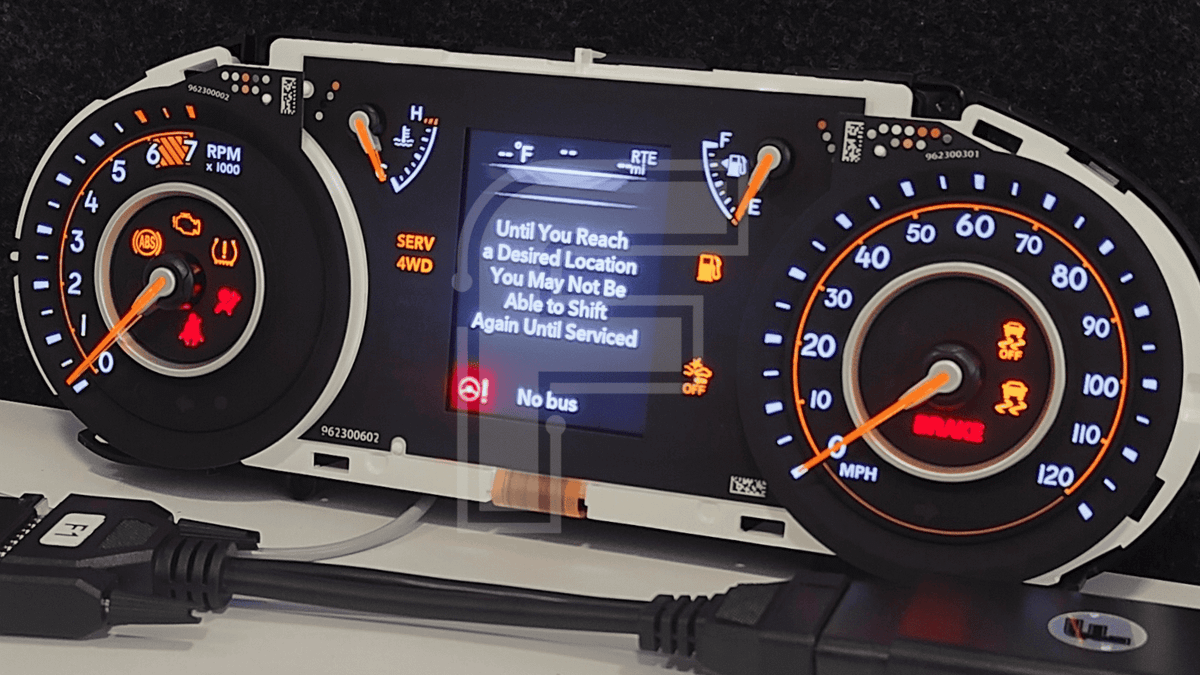

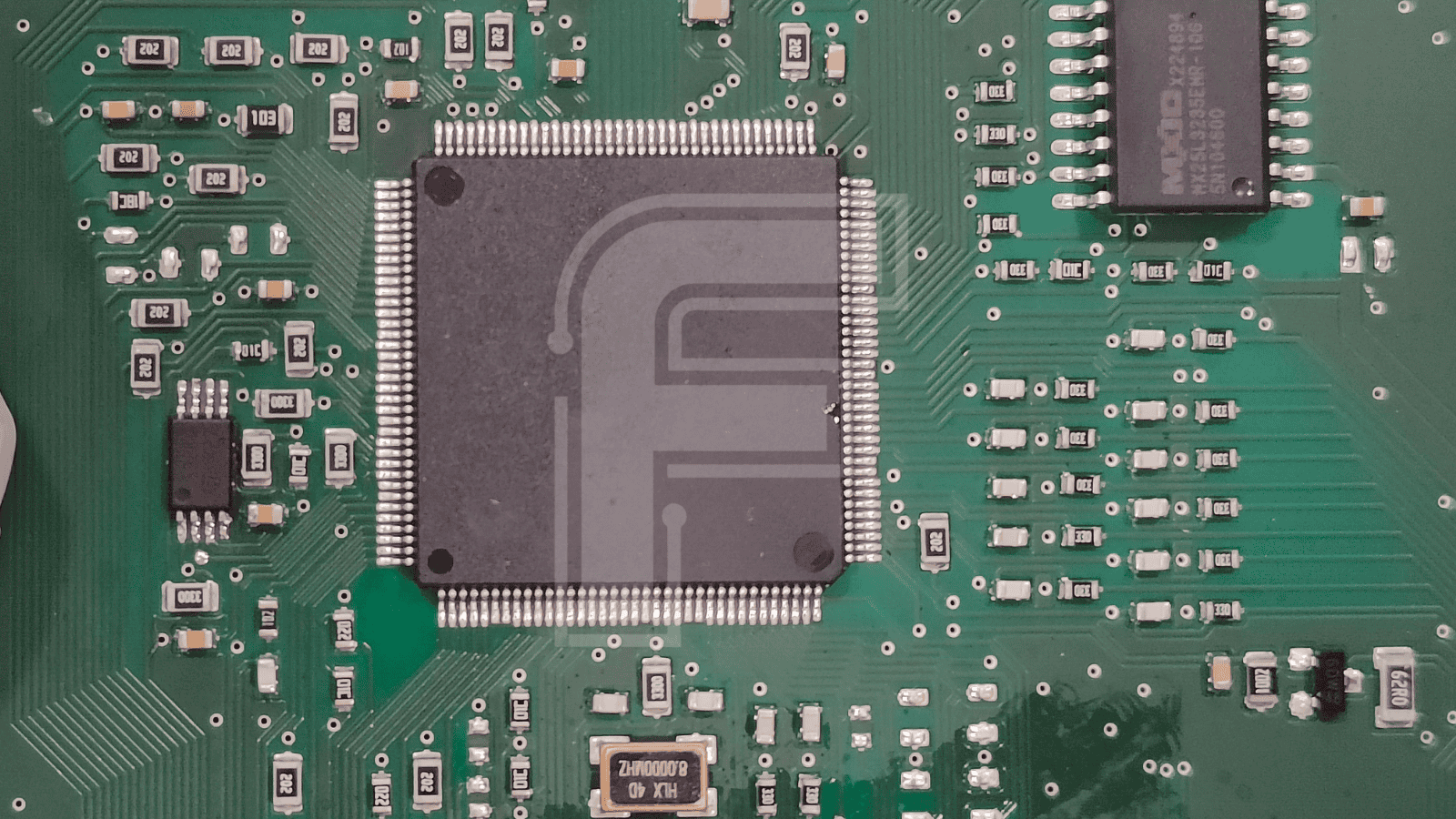

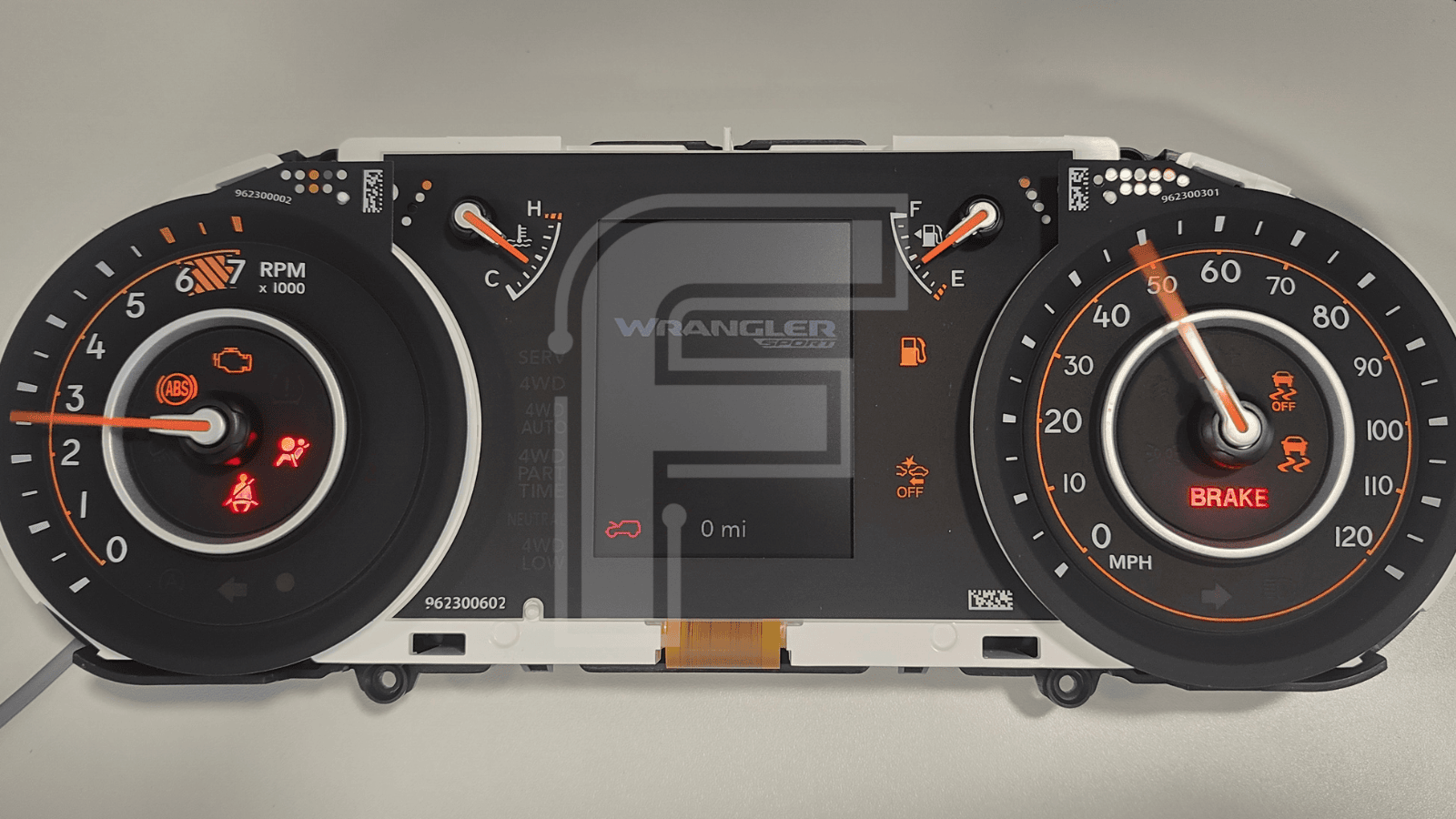

Programming the instrument cluster in the Jeep Wrangler (2023+) requires a precise approach to its specific hardware architecture. These units are based on the R7F701422 (RH850) processor and an external EEPROM 95320 TSSOP. Whether you are performing a cluster swap or an advanced repair, having the proper tool for fast and reliable work is essential for any professional repair shop.
Jeep Wrangler Instrument Cluster Programming via OBD2 and SGW Bypass
To perform programming in the car via the OBD2 port, you must account for the vehicle's security architecture. Modern Jeep Wrangler models are equipped with a Security Gateway (SGW) module that blocks unauthorized commands. To gain instrument cluster programming capability, you will need to use an SGW bypass adapter.
Alternatively, some high-end diagnostic tools allow you to digitally unlock the gateway for a specific time window. Without addressing the SGW, communication with the instrument cluster for writing data or performing an odometer reset via obd2 will be restricted.
Professional Bench Programming for Jeep Wrangler Speedometer Services

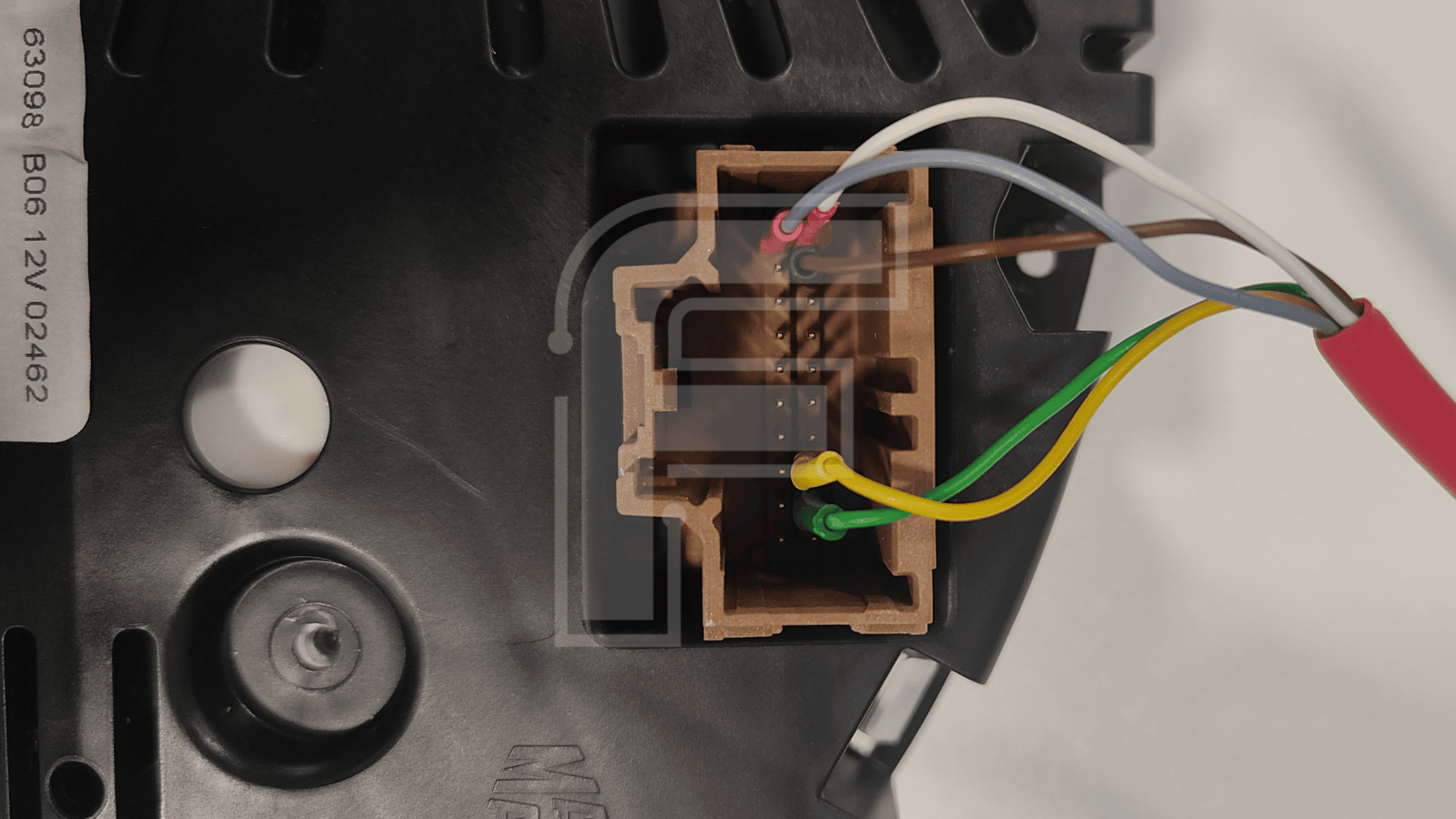

If you prefer to work outside the vehicle, there is always the option to remove the cluster and perform programming on the bench. With FORZA 614, this process is streamlined because all necessary pinout connections and schematics are built directly into the PC application.
You only need to connect a few essential wires: 2x Positive (12V), Ground (GND), CAN-H, and CAN-L. This is a superior option for speedometer shops offering remote services (postal repair method). You don't need the entire vehicle on-site; simply connect the dashboard to your setup and begin the repair or mileage correction process immediately.
Mileage Odometer Correction for Jeep Wrangler Cluster Swaps
EEPROM data operations and mileage correction functions are fully integrated into the FORZA 614 software, giving you total control over the R7F701422 and 95320 memory.
- Cluster Swaps: This functionality is vital when replacing a faulty unit with a used one or installing a brand-new instrument cluster from the dealer. You must match the mileage to the vehicle’s original history.
- Upgrades: When upgrading to a newer or higher-spec digital dash, mileage odometer correction ensures the display reflects the true distance traveled by the car.
- Conversions: Essential for shops performing gauge plate changes or unit conversions (KM to Miles) for imported vehicles.
Data Backup and Secure Jeep Wrangler Instrument Cluster Repair
- Pinout Schematics: Using verified pinouts is essential for powering the dashboard on the bench. It allows for stable communication and prevents accidental damage to the vehicle's complex computer system.
- Backup & Restore: Never initiate a mileage adjustment without first performing a full hex dump. Having a backup of the original eeprom data is your insurance policy against data corruption, which can lead to "blank screen" errors or compass calibration issues.
The Future of Jeep Wrangler Programming with FORZA 614
We are constantly expanding our library by adding new software modules and vehicle models to FORZA 614. Our mission is to create the most user-friendly device on the market for instrument cluster programming and electronics repair.
By choosing FORZA 614, you are investing in a tool that grows with your business, providing high-end solutions for the latest platforms like the Jeep Wrangler RH850 without the need for risky soldering or complex teardowns.
