Iveco Daily Data and Odometer Programming in diagnostic way

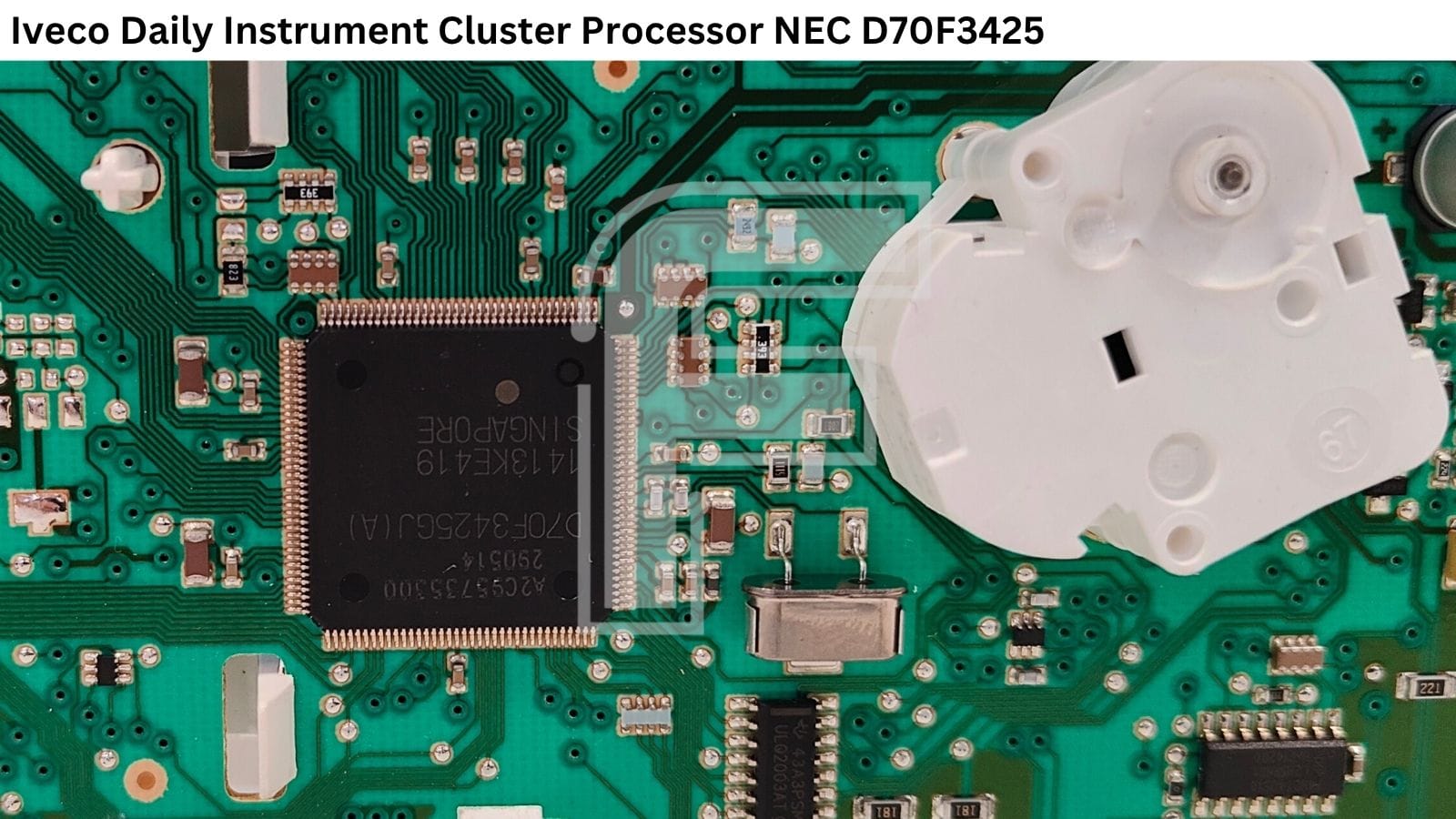

The Iveco Daily instrument cluster, featuring the NEC D70F3524 MCU and an external 24C16 EEPROM, is a frequent guest in electronics workshops. Whether you are dealing with hardware failures or the need for data cloning, FORZA 614 provides a stable, professional environment to handle these units via OBD2 or on the bench.

Common Faults in Iveco Daily Speedometers

Before you start programming, it is crucial to diagnose common hardware issues that affect these models:

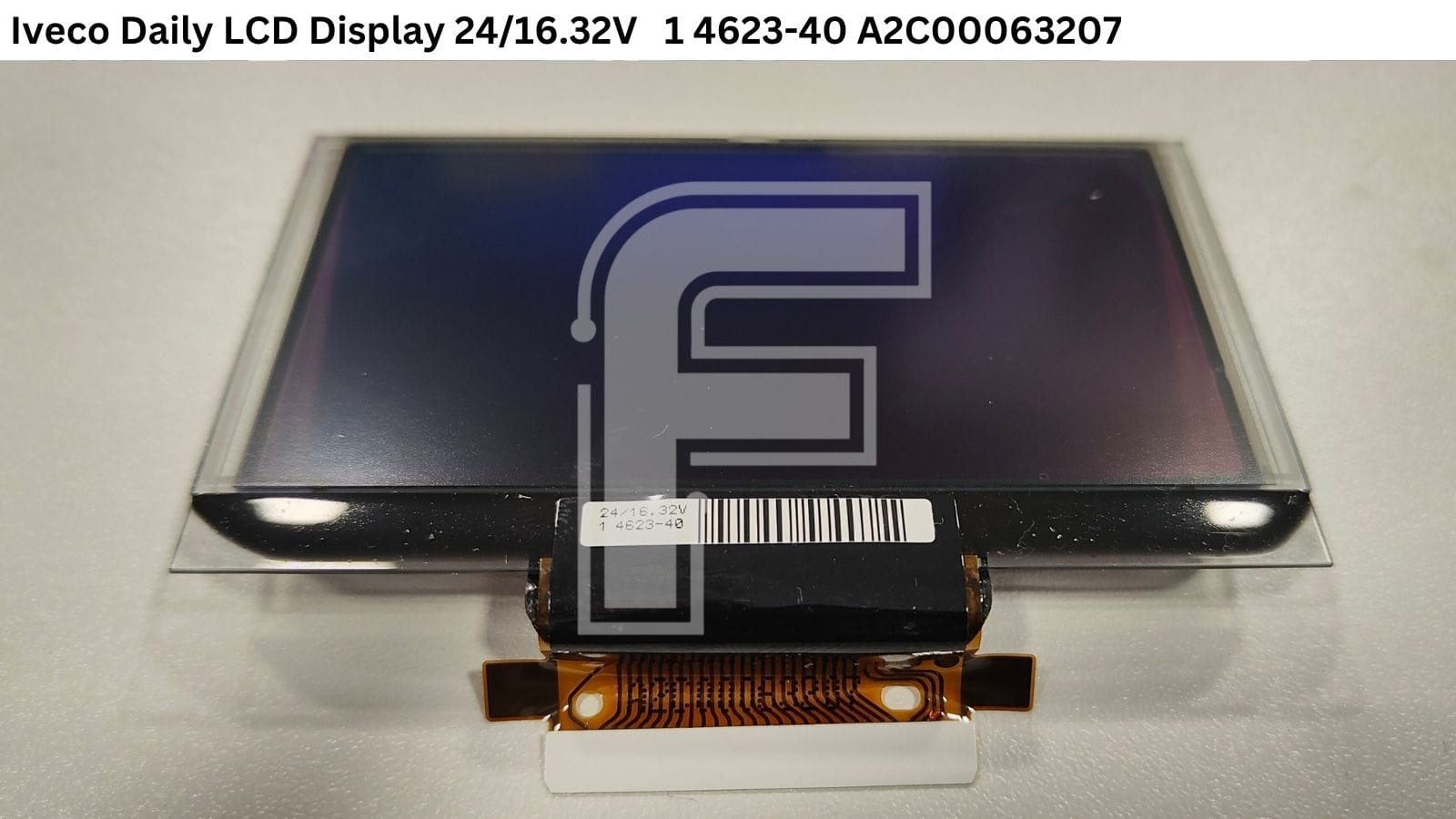

• Display Issues: Burnt-out pixels, low contrast or complete display failure.
• Intermittent Operation: Usually caused by "cold solder joints" on the main board.
• "Christmas Tree" Effect: Flickering warning lights and random error messages, often linked to soldering issues around the NEC processor.

Bench Setup (No CAN-Bus Required)

One of the biggest advantages of working with this cluster is its simplicity.

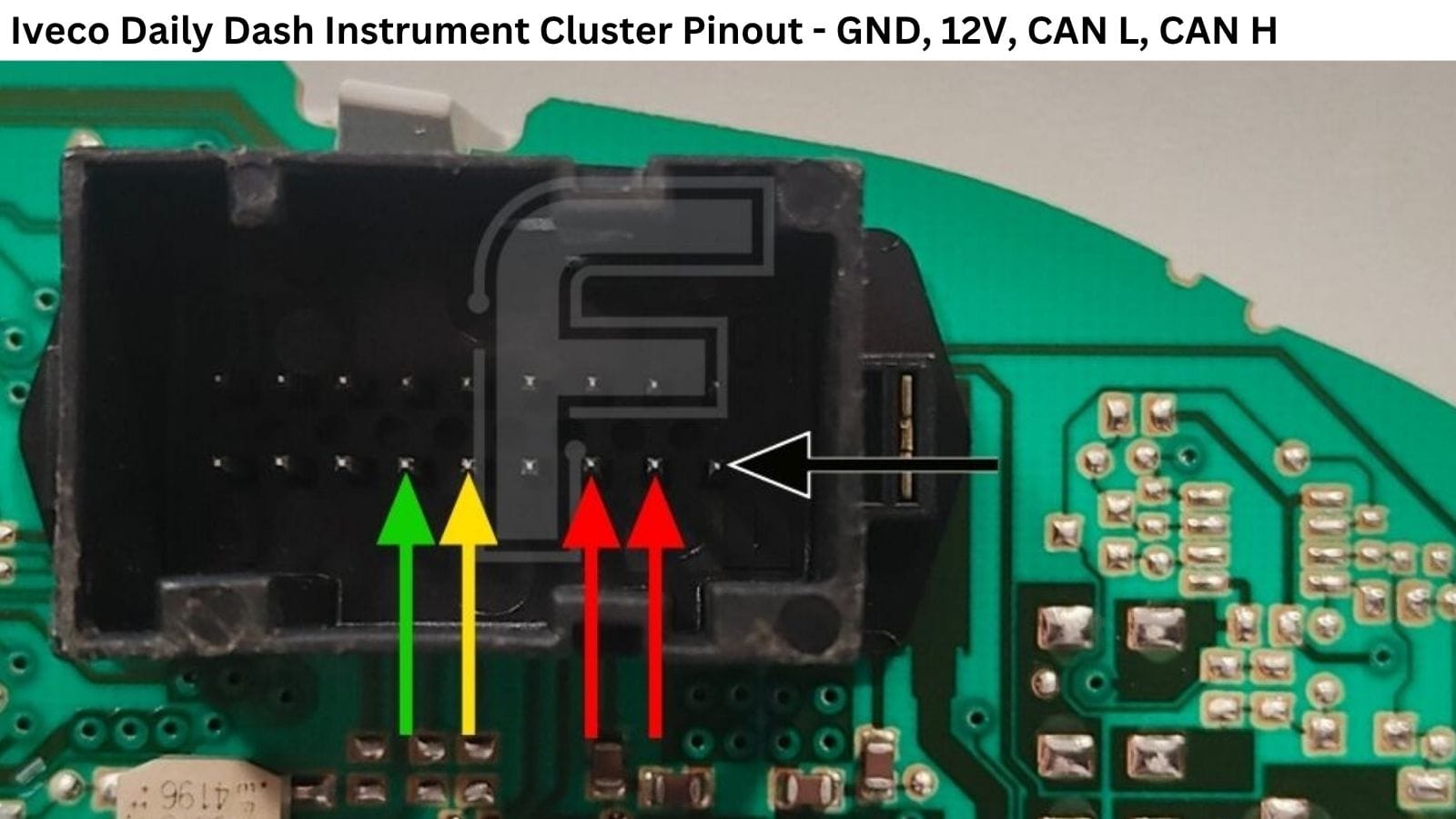

To power it up on your workbench, you do not need any CAN-bus emulators. Using the FORZA 614 F1 + F2 cable set, you only need to connect:

• GND
• Two +12V pins

This is enough to wake up the cluster, allowing you to verify the display. To get diagnostic communication you must connect also yellow and green wires from F2 cable which are CAN L and CAN H. Take a look below for connection schematic.

Iveco Daily Dashboard hardware

Data Management: 24C16 EEPROM

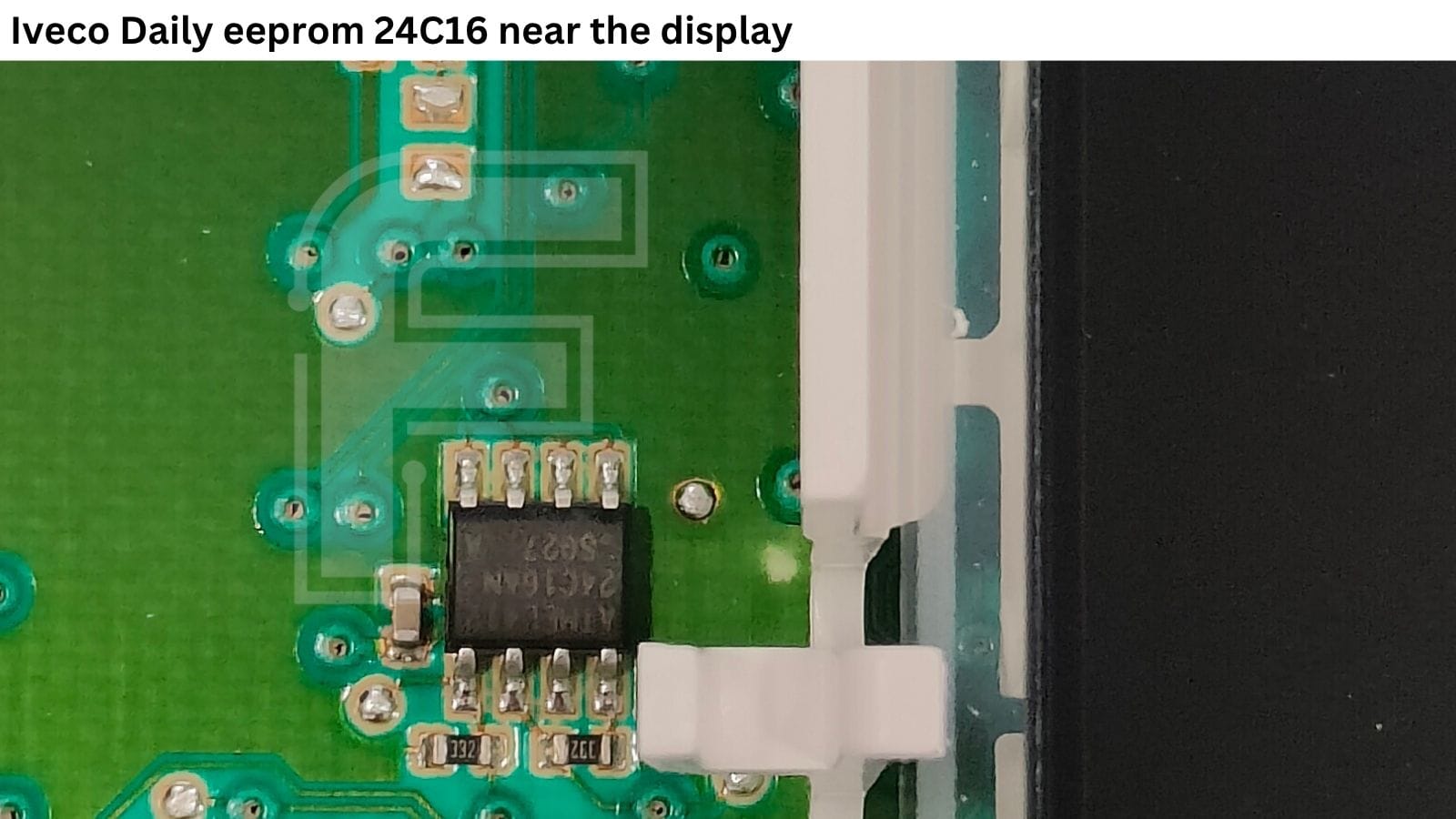

While the 24C16 EEPROM is located next to the display and can be read with a standard programmer, FORZA 614 offers a much cleaner method. Our software allows you to Read, Write and Copy the EEPROM data directly via the dash connector or the OBD2 port.

• Cloning: Effortlessly transfer data from a damaged cluster to a used replacement.
• Odometer Adjustment: Our reset function allows you to synchronize the mileage (up or down). This is essential when installing a used unit to match the vehicle’s original records.

The Most Profitable Subscription Model

Stop paying for individual licenses or expensive "per-read" tokens. FORZA 614 operates on a modern, transparent subscription model.

• All-Access: One monthly fee gives you access to the Iveco Daily program and every other software in our library.
• High ROI: In most cases, a single cluster repair covers the cost of 1 to 3 months of your subscription.

It is a simple business calculation: increase your capabilities, eliminate hidden costs and work with a tool that grows with your workshop.
