Read and write 24C32 eeprom data by dash connector and mileage reset function

For professional repair shops, the new model Hyundai Creta equipped with the R7F701403 (RH850) MCU and 24C32 EEPROM presents a unique challenge. In the past, matching an instrument cluster after a replacement or conversion was a high-risk operation. Not anymore. The latest FORZA 614 software provides a complete solution for mileage programming and full data management, ensuring your company delivers accurate results with zero risk of failure.

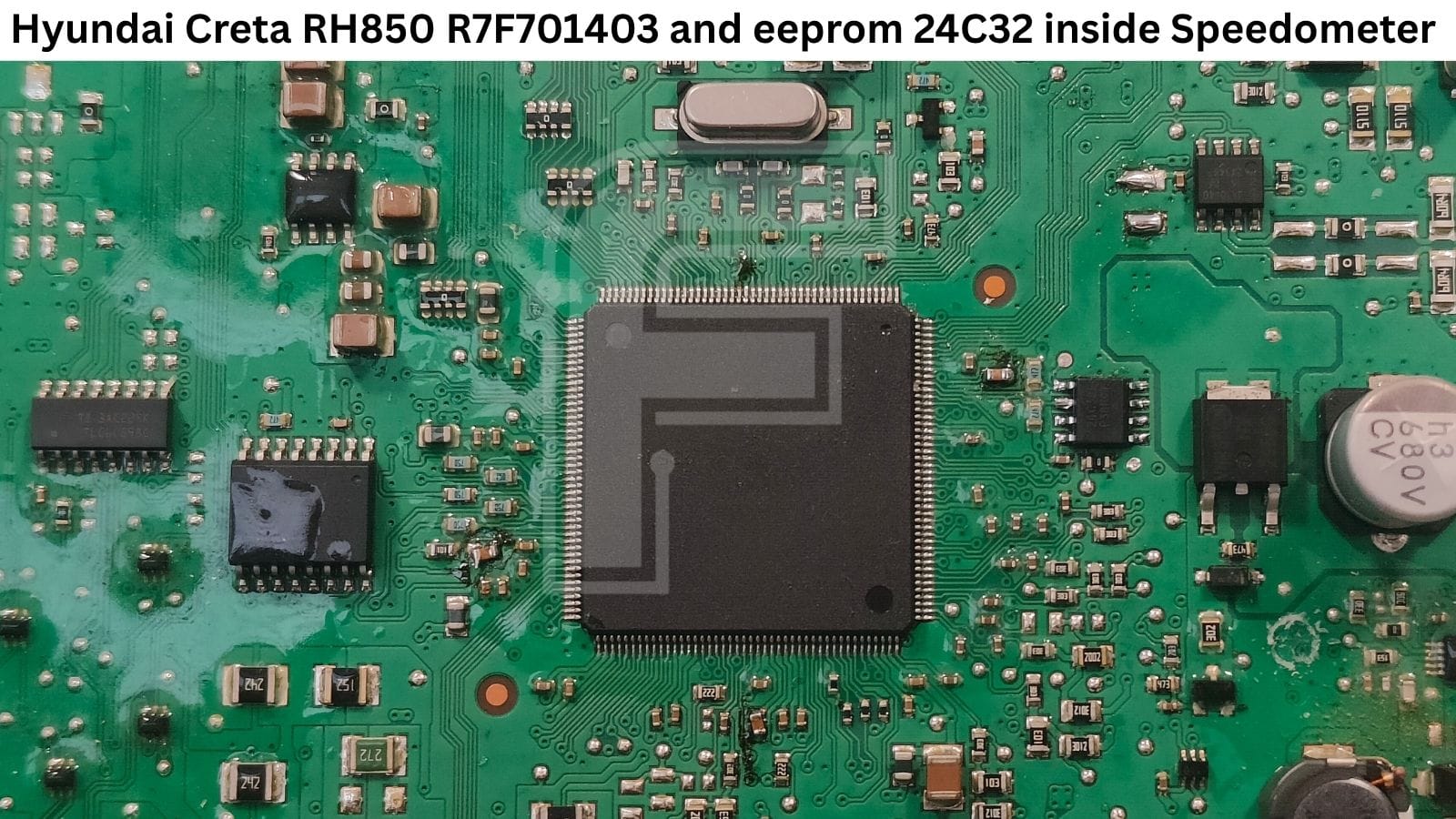

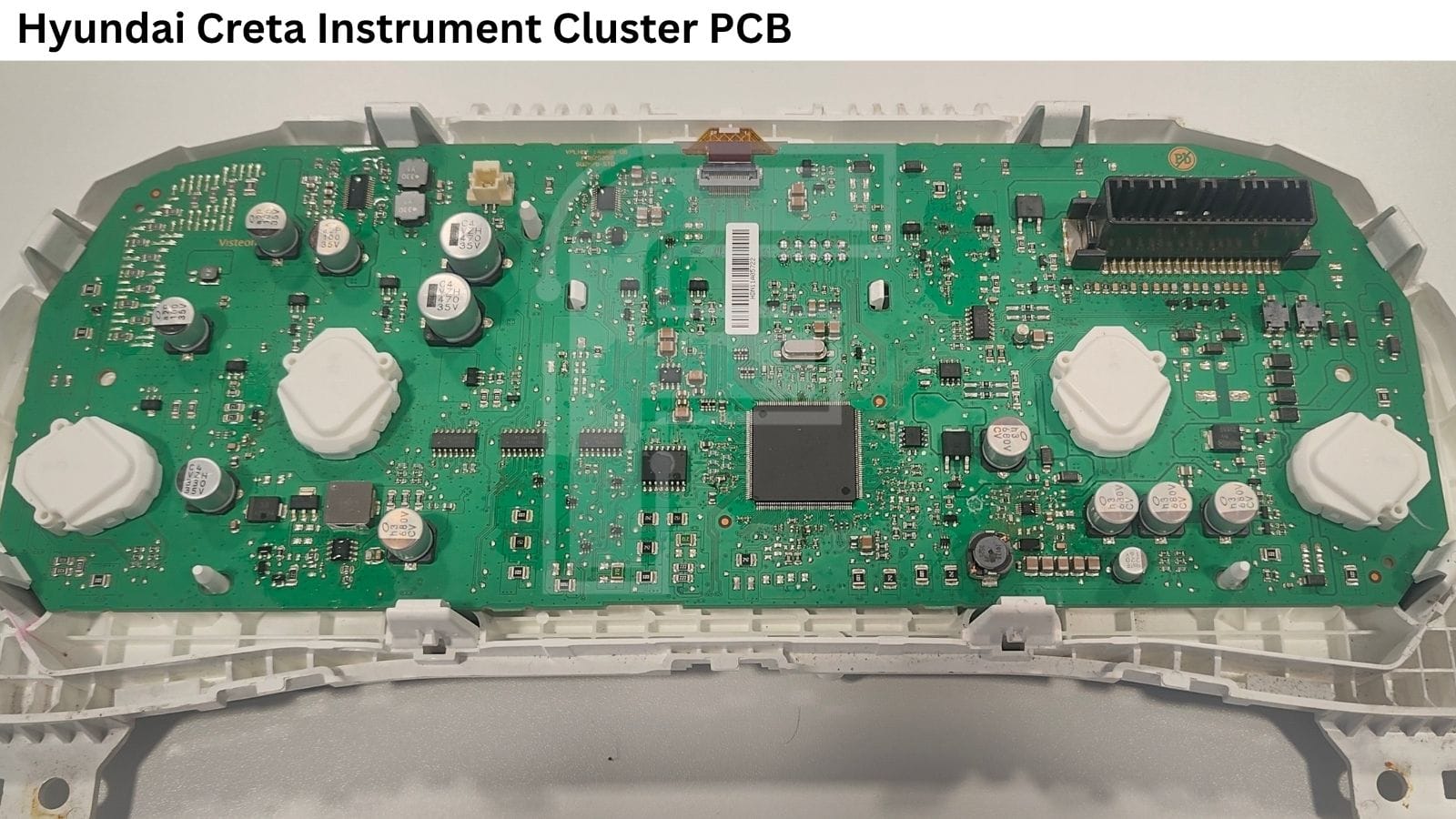

Hyundai Creta 24C32 R7F701403 Hardware

Total Control: Reading and Writing full 24C32 EEPROM Content

In a specialist auto electronics environment, "half-measures" aren't enough. You need to access the entire memory to ensure a professional repair. FORZA 614 allows you to:

• Perform Full Data Programming: Read and write the entire 24C32 eeprom content.
• Odometer Reset Function: Essential for cluster calibration during unit replacement or when performing a conversion (e.g., changing units/region).
• Fix Corrupted Data: Restore faulty clusters by writing a verified hex dump directly to the memory chips.

Work Smarter: Bench Setup with No Soldering Required

Stop wasting time on opening dash and eeprom removing.
FORZA 614 is a user-friendly device that prioritizes hardware safety.

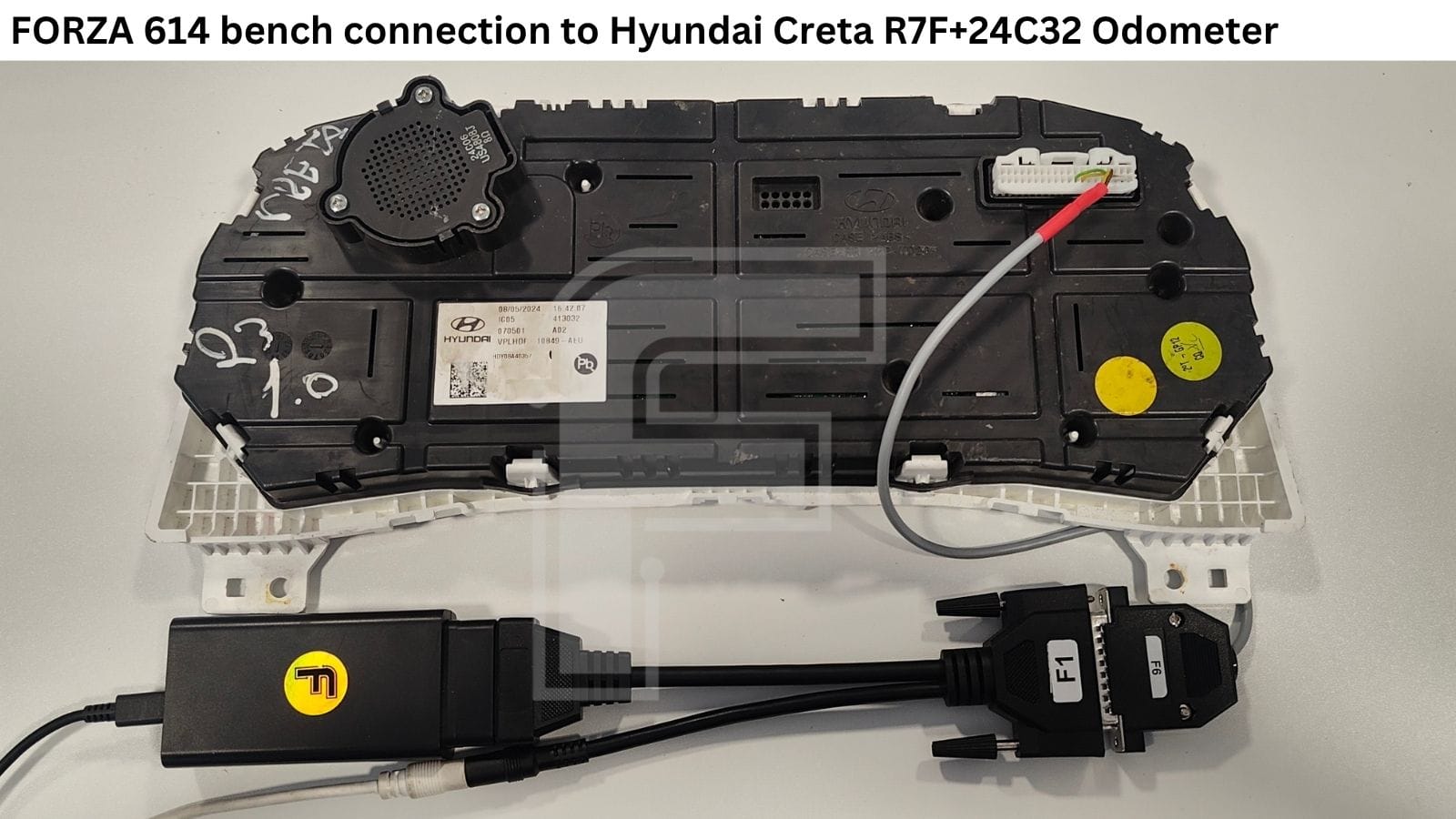

• Plug & Play Connection: Using our dedicated F1+F6 cables, you connect directly to the dash plug connector.
• No Soldering, No Stress: You don’t need to open the speedometer casing or touch the PCB. This eliminates the risk of a permanent hardware issue.

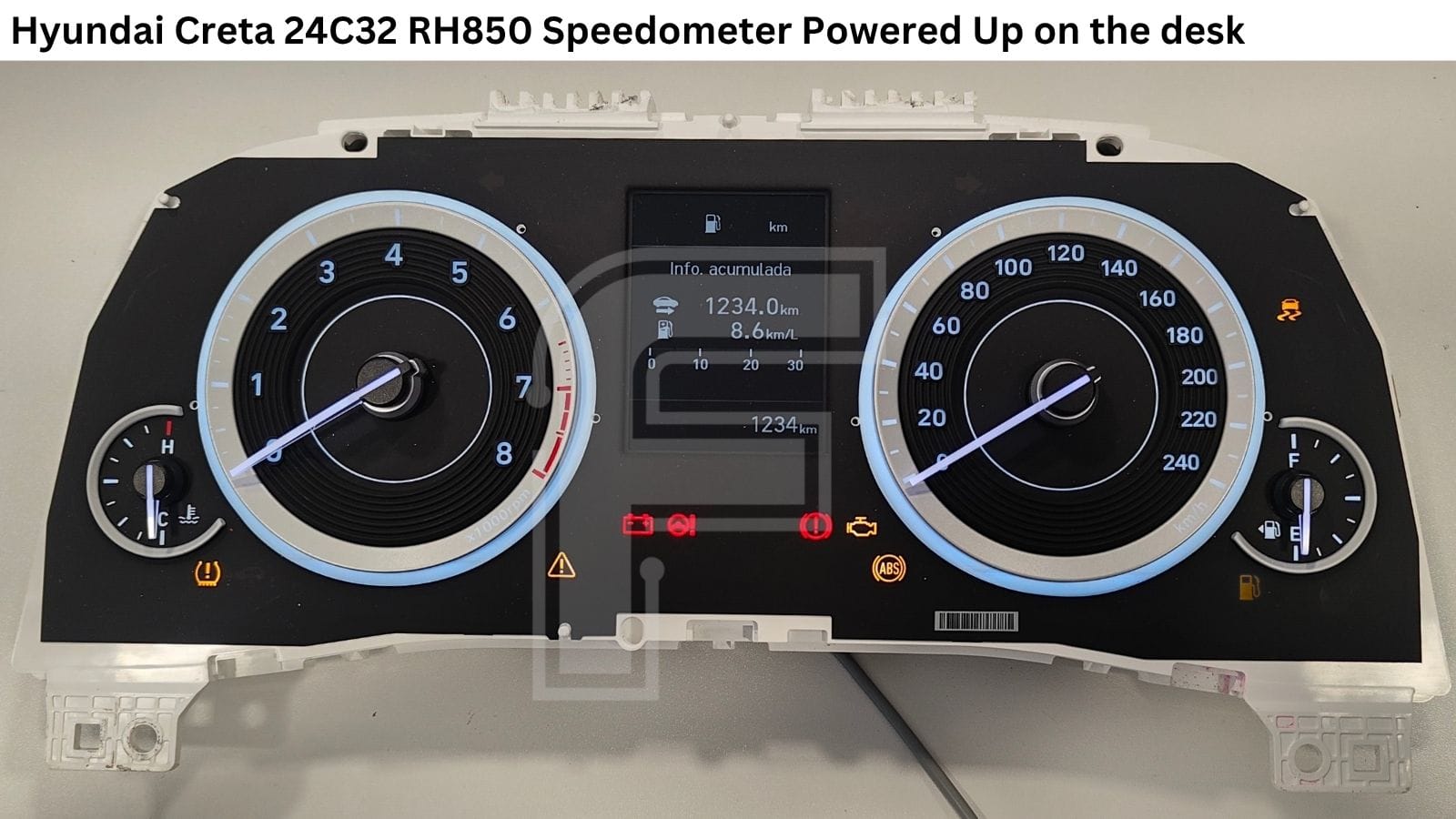

• Independent Power Up: The Creta cluster wakes up on the bench with just +12V and GND. No CANBUS signal is required to activate the digital electronics, making it the perfect setup for remotely post-in services.
  With cables F1+F6 you can power up this meter before and after job in seconds.

Scale Your Shop with FORZA 614

The instrument cluster repair market is a high-profit niche, but most shops barely scratch the surface. You’ve probably seen plenty of guys offering basic fixes, yet they lack the software to handle complex instrument cluster programming or deep data recovery. To lead this market, you need to be the specialist who can handle various types of speedometers.

FORZA 614 isn’t just a tool - it’s a system that grows with your company. We release new updates and fresh vehicle programs every few days, so you’re always ready when the next big job walks through your door.

If you value a clean workflow where you don’t have to risk a "dead" cluster by soldering or hacking, this is your next move. Work faster, protect your reputation, and stay ahead of the curve.
