Toyota Granvia S6J3001 Odometer Cluster Bench and OBD2 Programming with FORZA 614

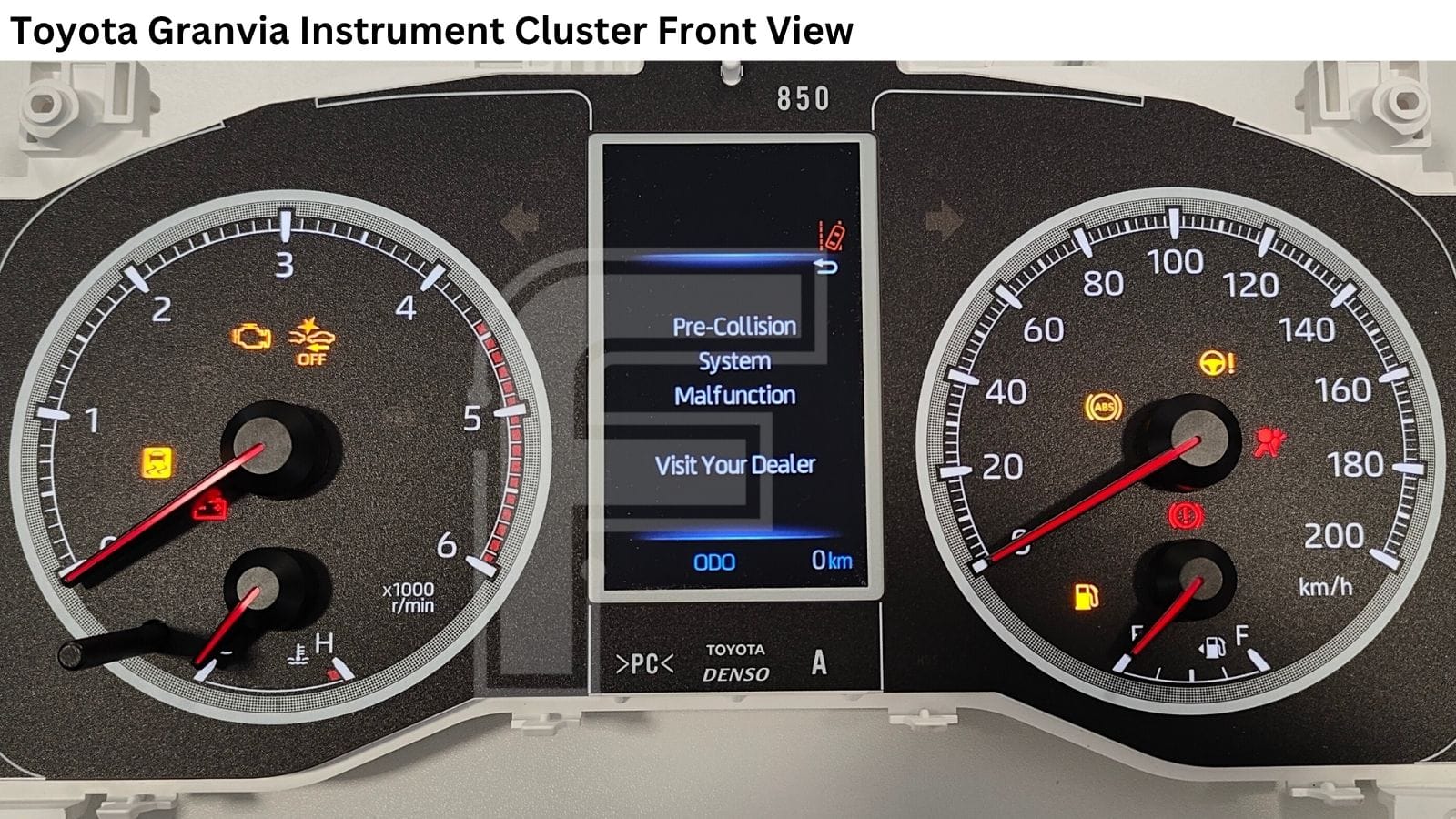

The Toyota Granvia instrument cluster, powered by the S6J3001 processor, is a piece of hardware that requires a reliable approach. Whether you are dealing with a secured or unsecured MCU, you need a tool that guarantees a stable connection and data integrity. FORZA 614 offers a repeatable and safe process for handling these units, making cluster adaptation and repair easier than ever.

Secured or Unsecured MCU?
No Problem

In the world of Toyota S6J3001 processors, you will often encounter both secured and unsecured versions. For many tools, this is a major obstacle. With FORZA 614, it’s a non-issue. Our software is designed to program data in both versions seamlessly. You don't have to guess or risk "bricking" the unit - the program handles it, ensuring a smooth read and write process every time.

Professional Workflow:
Bench Setup with F1+F3 Cables

While the Toyota Granvia can sometimes be programmed via OBD2 (if the Gateway module does not block communication), we strongly recommend the Bench Method for maximum safety and stability.

• The F1 + F3 Solution: FORZA 614 includes a dedicated F3 cable specifically for this cluster. By using the F1+F3 cable set, you can connect directly to the dash plug on your workbench.
• Why Bench Programming? Working on the bench eliminates interference from other vehicle modules and ensures a 100% stable power supply, which is critical when writing data to the S6J3001 MCU.

Hardware

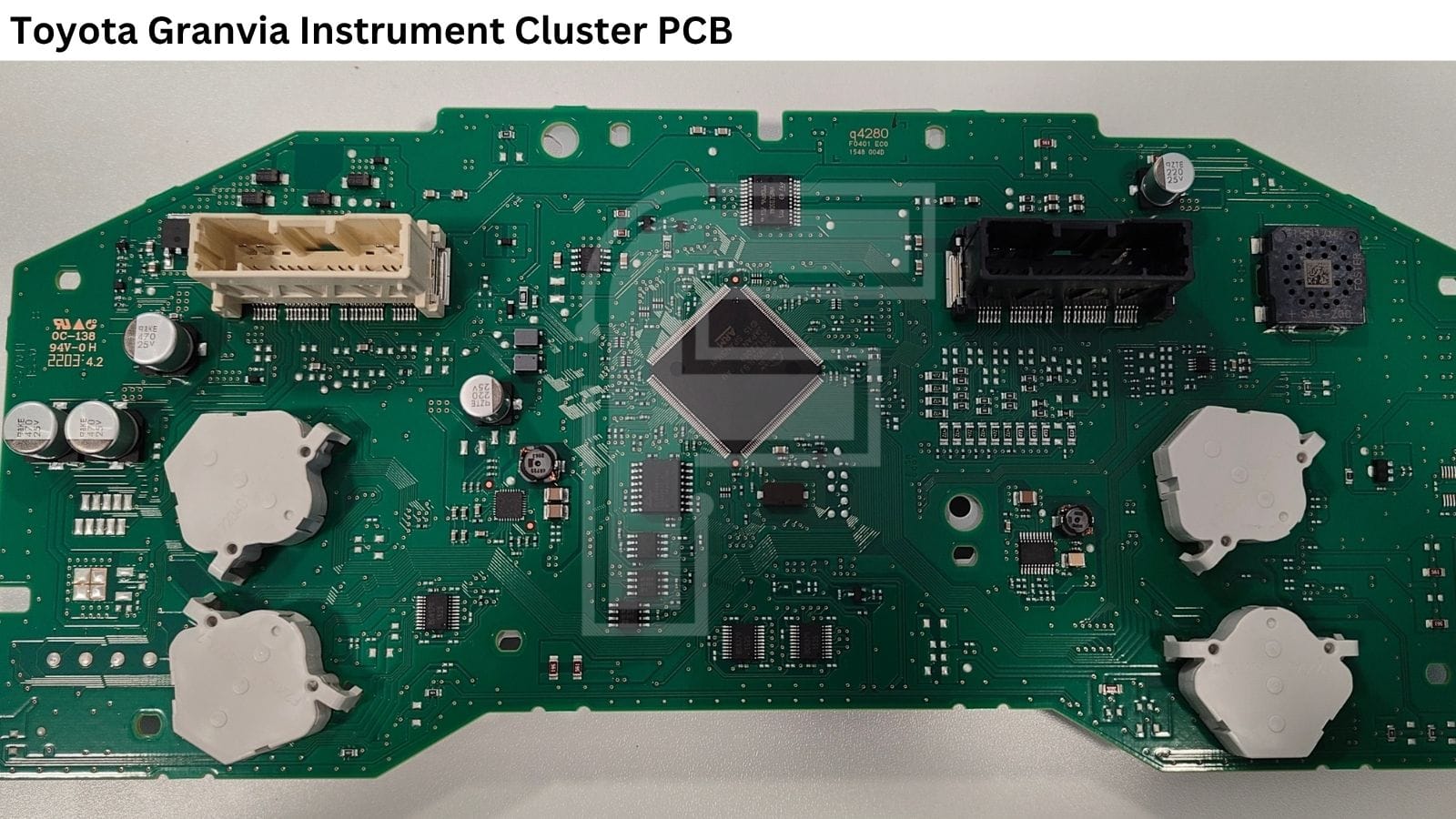

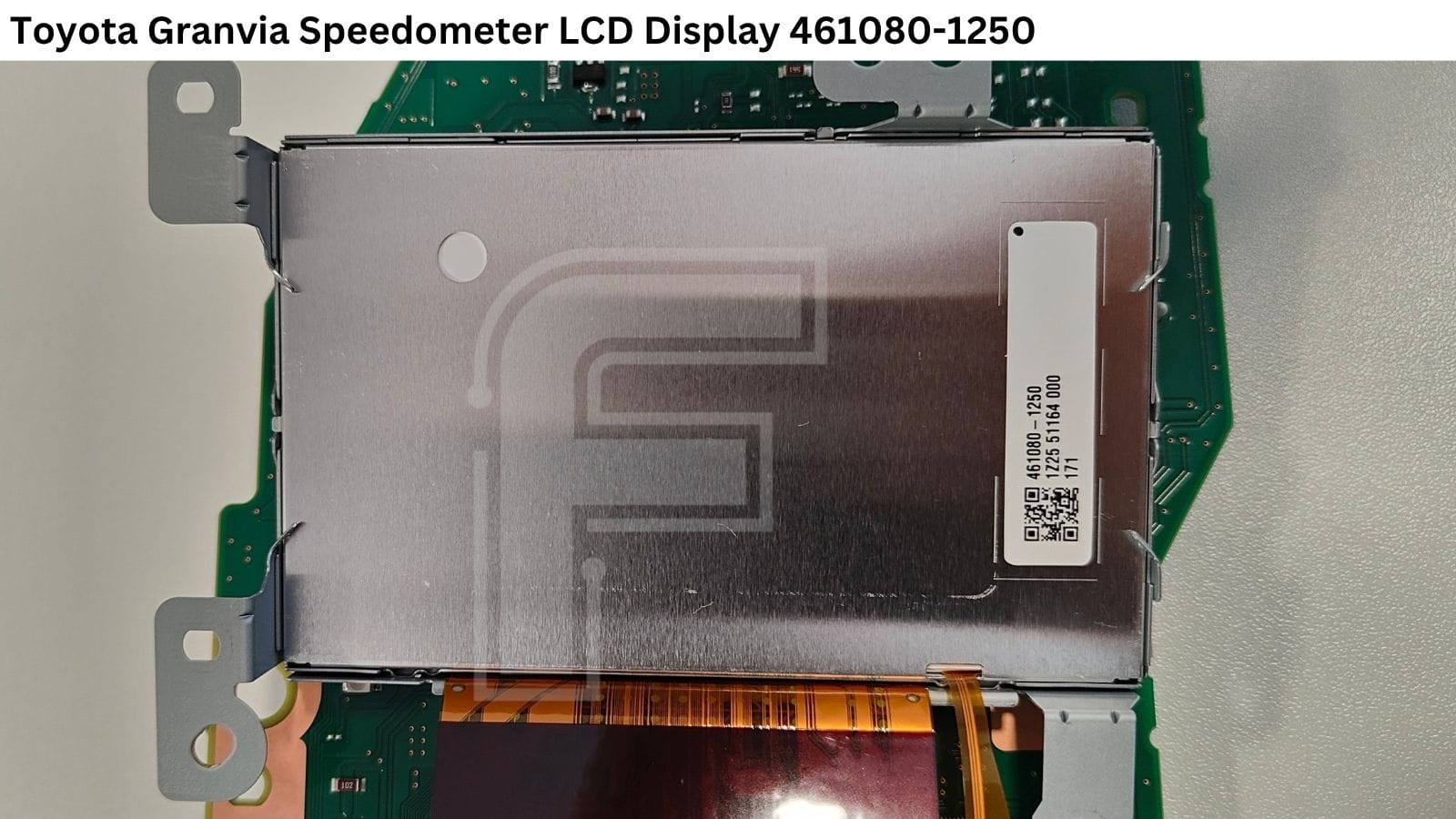

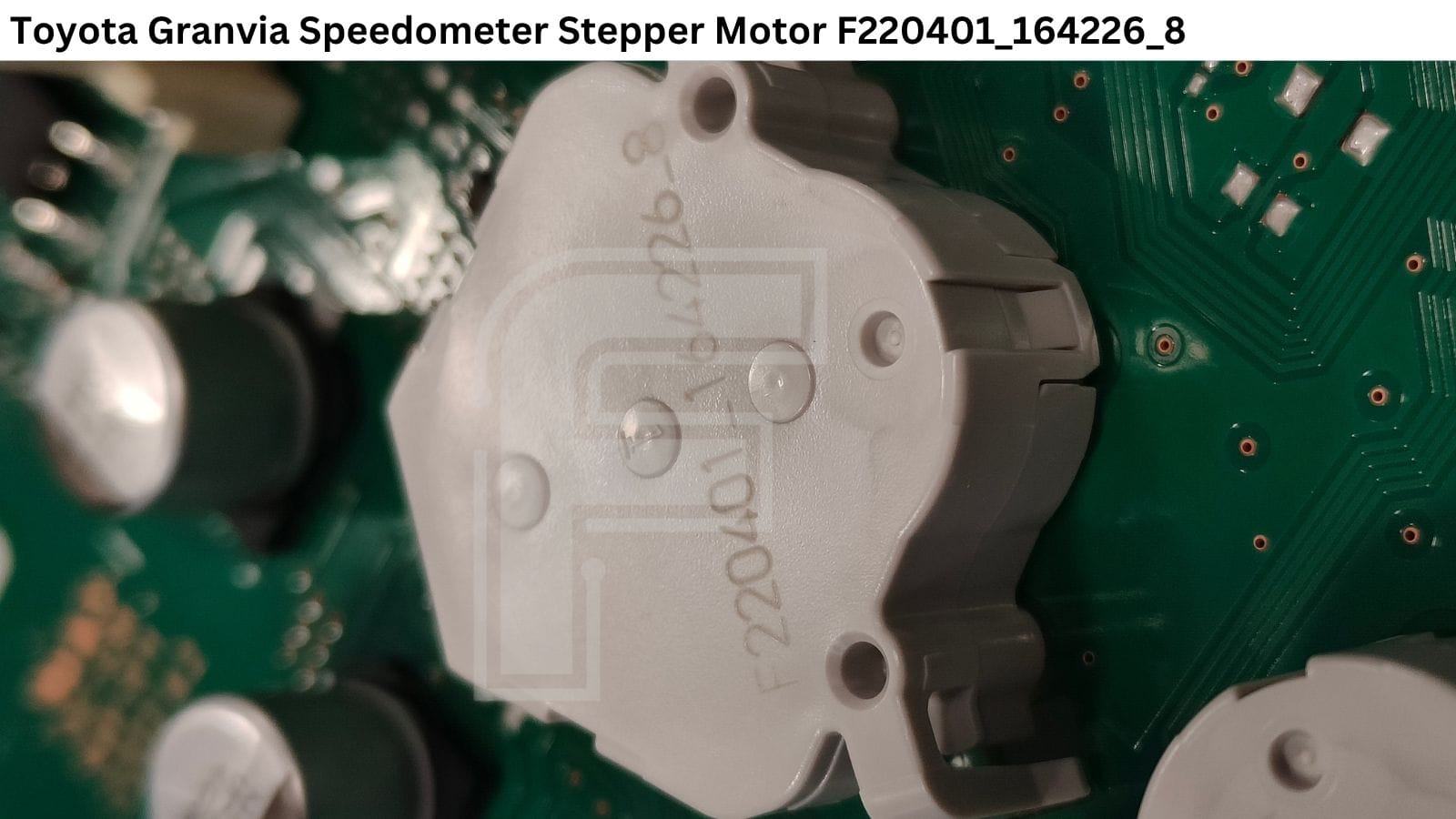

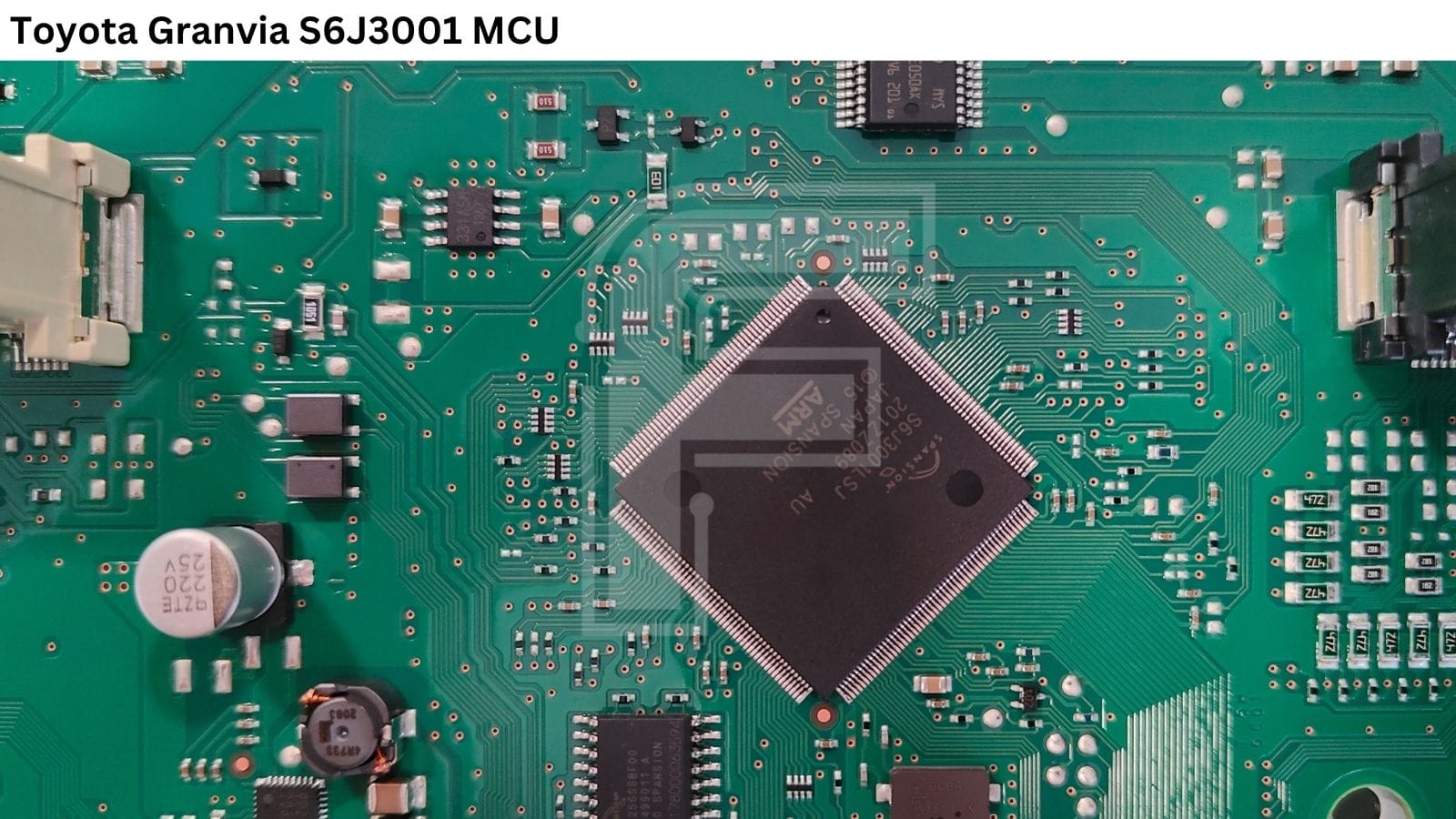

How it looks inside?

Essential Functions:
Adaptation and Data Cloning

In a professional repair shop, simply changing a value isn't enough. You need tools that support the full repair cycle:

• Full Data Cloning: In case of hardware failure, FORZA 614 allows you to copy the entire data file from the original cluster and move it to a replacement unit. This "plug and play" approach saves you a lot of time in comapre to soldering and direct programming.
• Mileage Adjustment: Practically indispensable when adapting a used cluster to a new vehicle to ensure the odometer reflects the true value.

Switch to FORZA 614
