When it comes to Suzuki SX4 instrument cluster service, precision is paramount. This cluster is based on the D70F3421 MCU and 24C16 eeprom. Whether you are dealing with a faulty display or a complete hardware issue, having the right OBD2 tool and technical data is essential for a professional repair shop.

Typical Problems with Suzuki SX4 Instrument Cluster and Data Integrity

The Suzuki SX4 is known for several common speedometer failures that specialists encounter daily. Understanding these issues is the first step toward a successful repair:

  • Problems with the display: Pixels fading or total backlight failure.
  • Flickering dashboard: Often caused by cold joints on the PCB or failing power regulators.
  • Lost or damaged eeprom data: Corruption within the 24C16 memory can lead to incorrect readings or "dead" gauges.
  • Data Programming: Essential when you need to swap instrument cluster units or transfer data from an old unit to a donor.

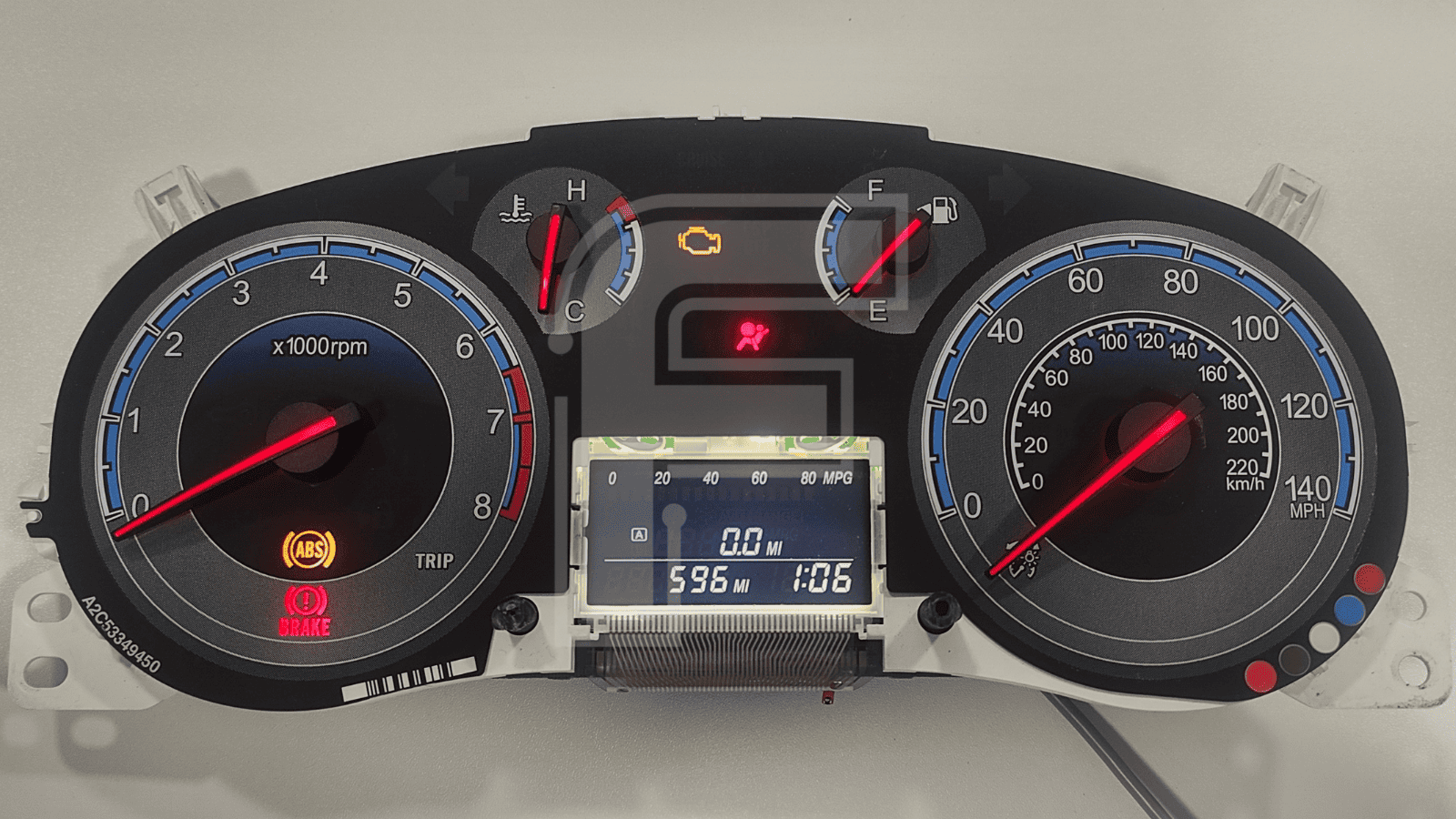

Front view of Suzuki SX4 instrument cluster

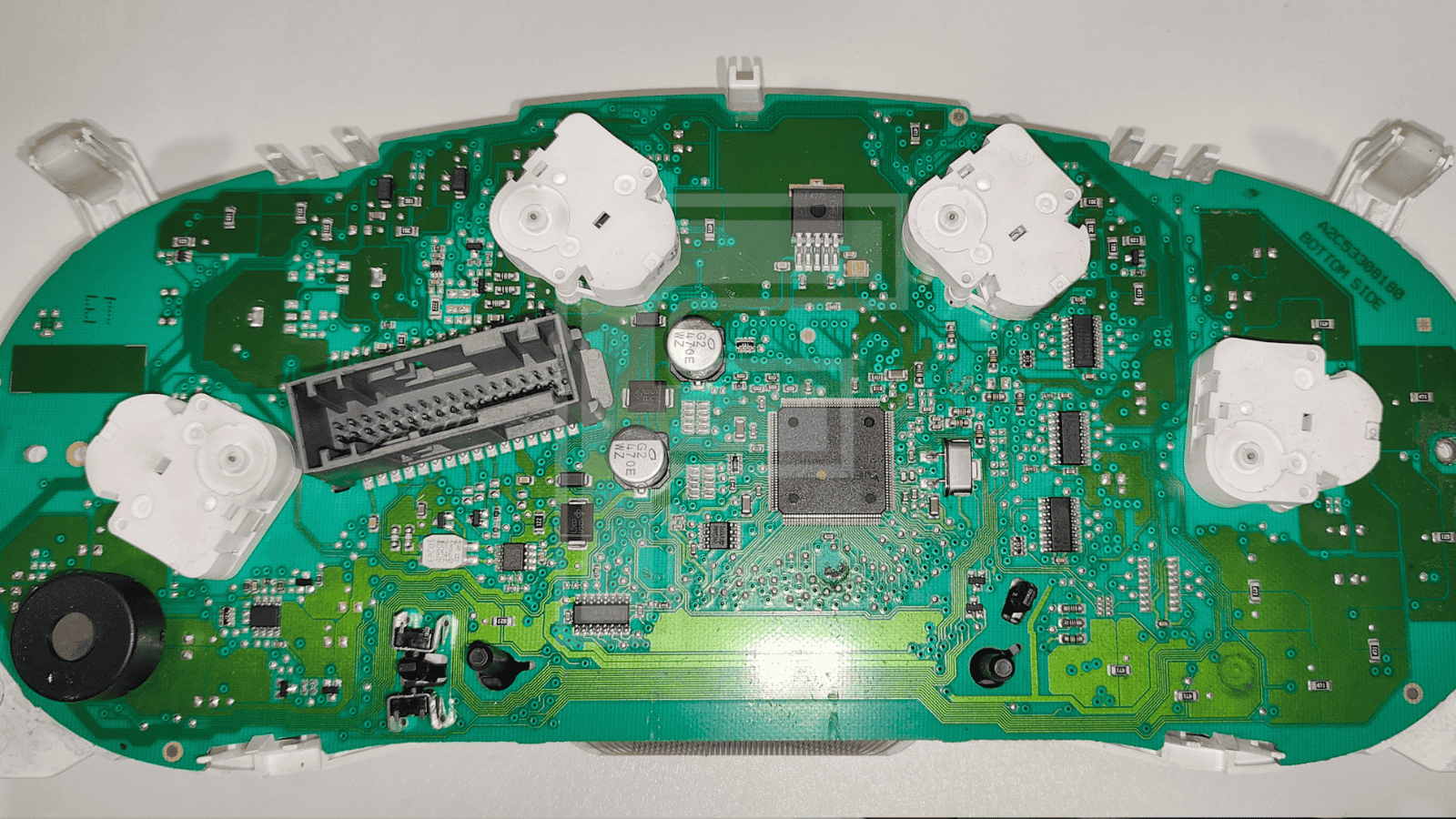

Interior view of PCB Suzuki SX4 cluster panel

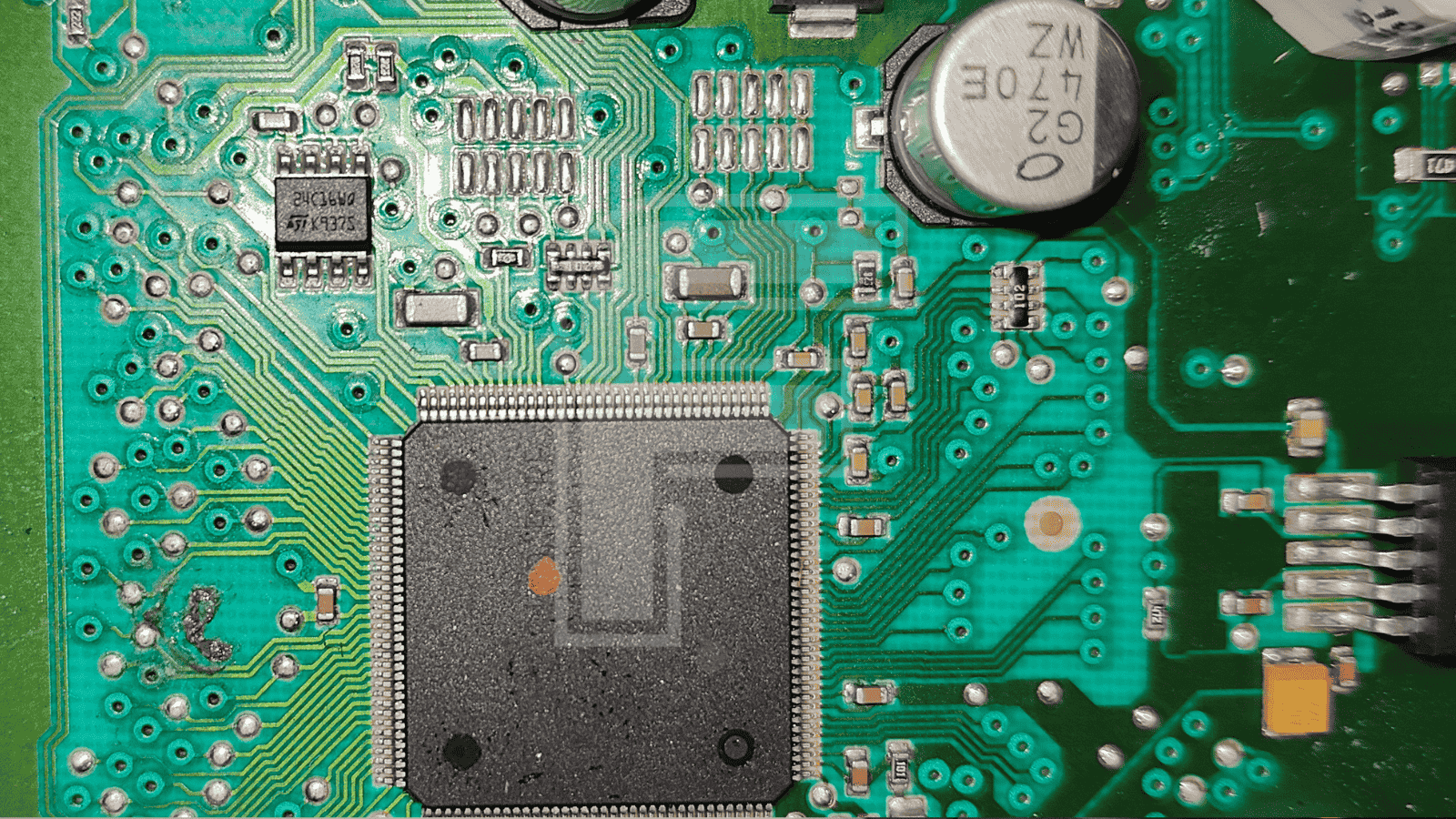

24C16 eeprom and NEC D70F3421 mcu

NEC+24C16 and D70F3421 Programming for Suzuki Models

The NEC+24C16 programming process is a core skill for any speedometer technician. In the Suzuki SX4, the D70F3421 processor works in tandem with an external 24C16 eeprom to store critical vehicle configuration and mileage.

With FORZA 614, you can handle this programming in a clean, professional way:

  • OBD2 in the vehicle: Fast access via the diagnostic port for updates and calibration.
  • Dash Plug on the bench: The superior choice for remotely post-in service where you only have the cluster, not the car.
  • No Soldering: Save time and work faster.

Understanding Odometer Correction and Data Transfer with FORZA 614

The importance of odometer calibration goes beyond just numbers. It is about ensuring the instrument cluster is properly synchronized with the vehicle's history after a repair or replacement.

  • Common Issues with Odometer Readings: Data corruption or incorrect cluster swaps can lead to discrepancies. FORZA 614 allows for a professional odometer reset function to match the original vehicle mileage.
  • Cloning and Swap: Use FORZA 614 as a dedicated solution for data transfer between clusters. Our PC-based workflow ensures that eeprom data is backed up and restored with 100% integrity.
  • Technical Support: All pinouts, connection details, and real cluster photos are available inside the application.

Why Specialists Choose FORZA 614 for Suzuki Speedometer Programming

Modern automotive electronics require tools that are faster, safer and more reliable.
FORZA 614 is designed for theeffective repair shop environment:

  1. Stable Workflow: No issues with touchscreens - our PC application is stable and repeatable.
  2. Simple Subscription: One flat rate for all programs available in FORZA 614. No tokens, no per-job fees.
  3. Continuous Updates: We are constantly adding new vehicles to our library, making FORZA 614 the most user-friendly device for dashboard repair.

Legal Compliance: Always ensure that any mileage correction or odometer reset is performed for legitimate repair or replacement purposes, with full transparency for the vehicle owner.
