How to program the newest MAZDA CX-5 odometer data and calibration

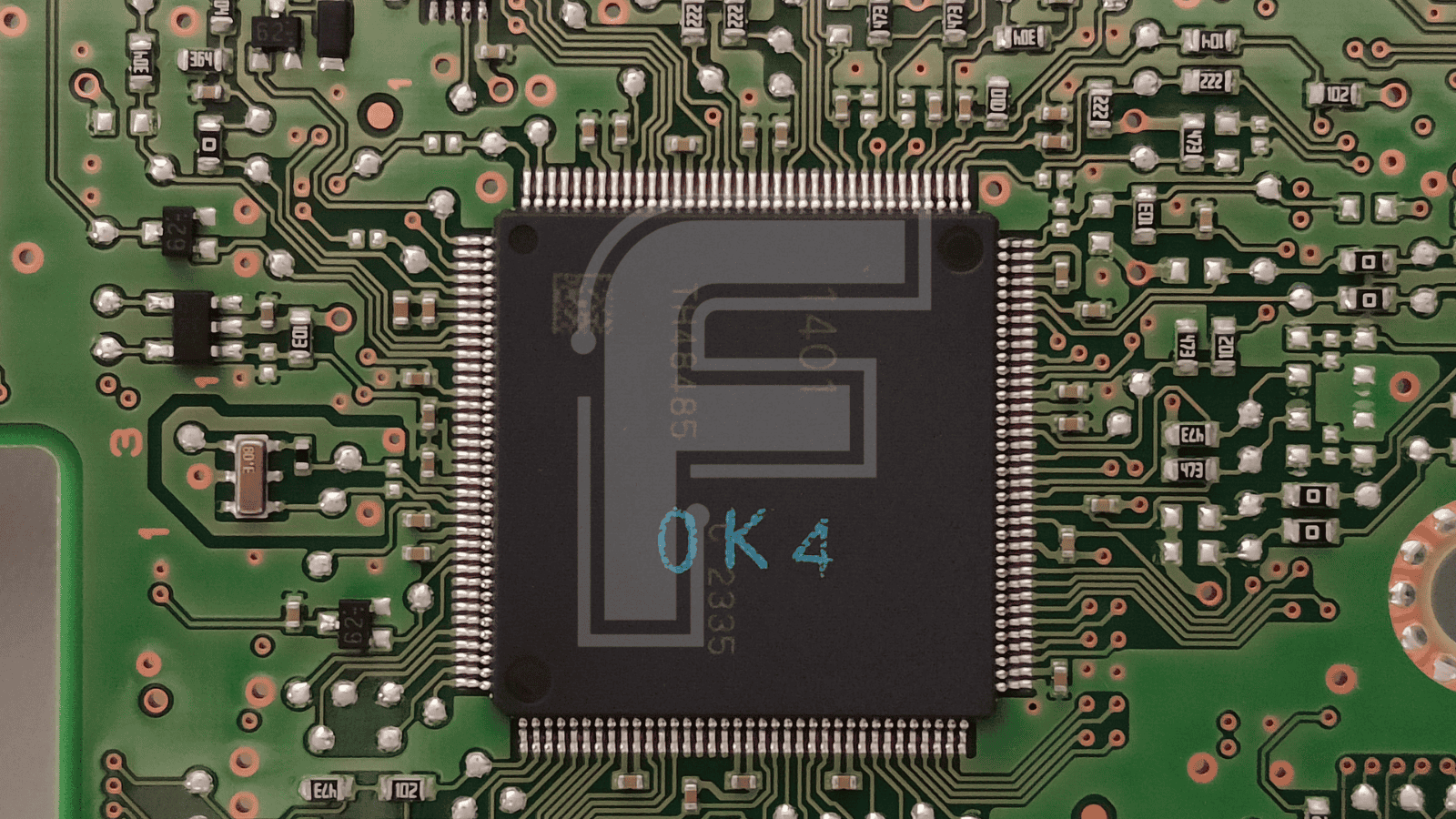

The Mazda CX-5 (2025) instrument cluster is a blend of high-resolution digital displays and traditional analog gauges. For a professional repair shop, this combination brings a specific set of challenges. Equipped with the MCU RH850 (R7F701401) and an EEPROM 93C76 MSOP, these units require high-precision tools for any mileage programming or data recovery. With FORZA 614, you can handle these complex dashboards safely, quickly, and without the risks associated with older repair methods.

Why Mazda CX-5 Dashboards are Risky for Technicians

Repairing a Mazda cluster isn't just about data - it's about hardware.

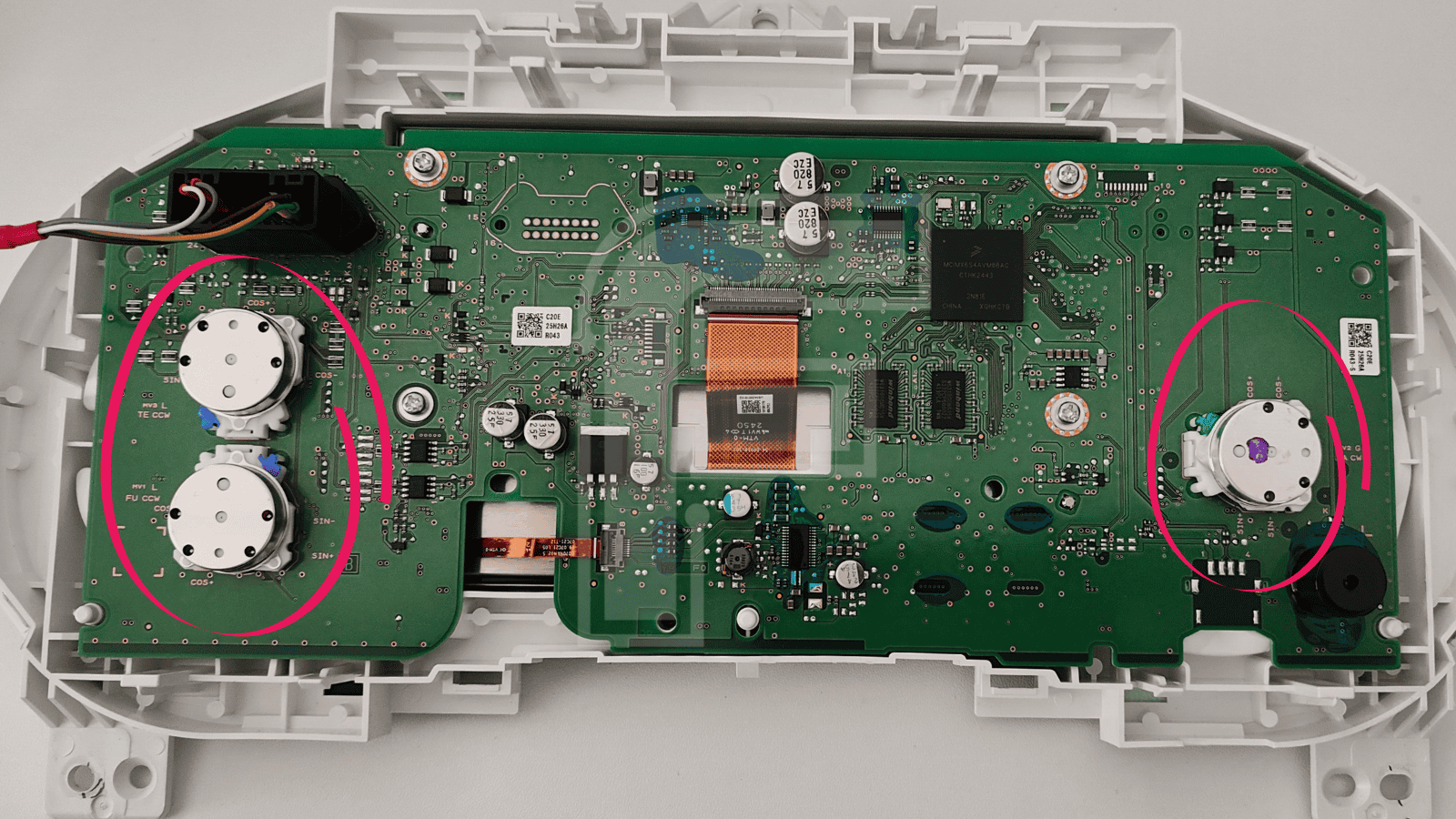

One of the biggest "pain points" for any specialist is the fragility of the stepper motors.

• Fragile Hardware: The needles for fuel and temperature are notoriously delicate. Pulling them off to access the PCB often leads to permanent motor damage.

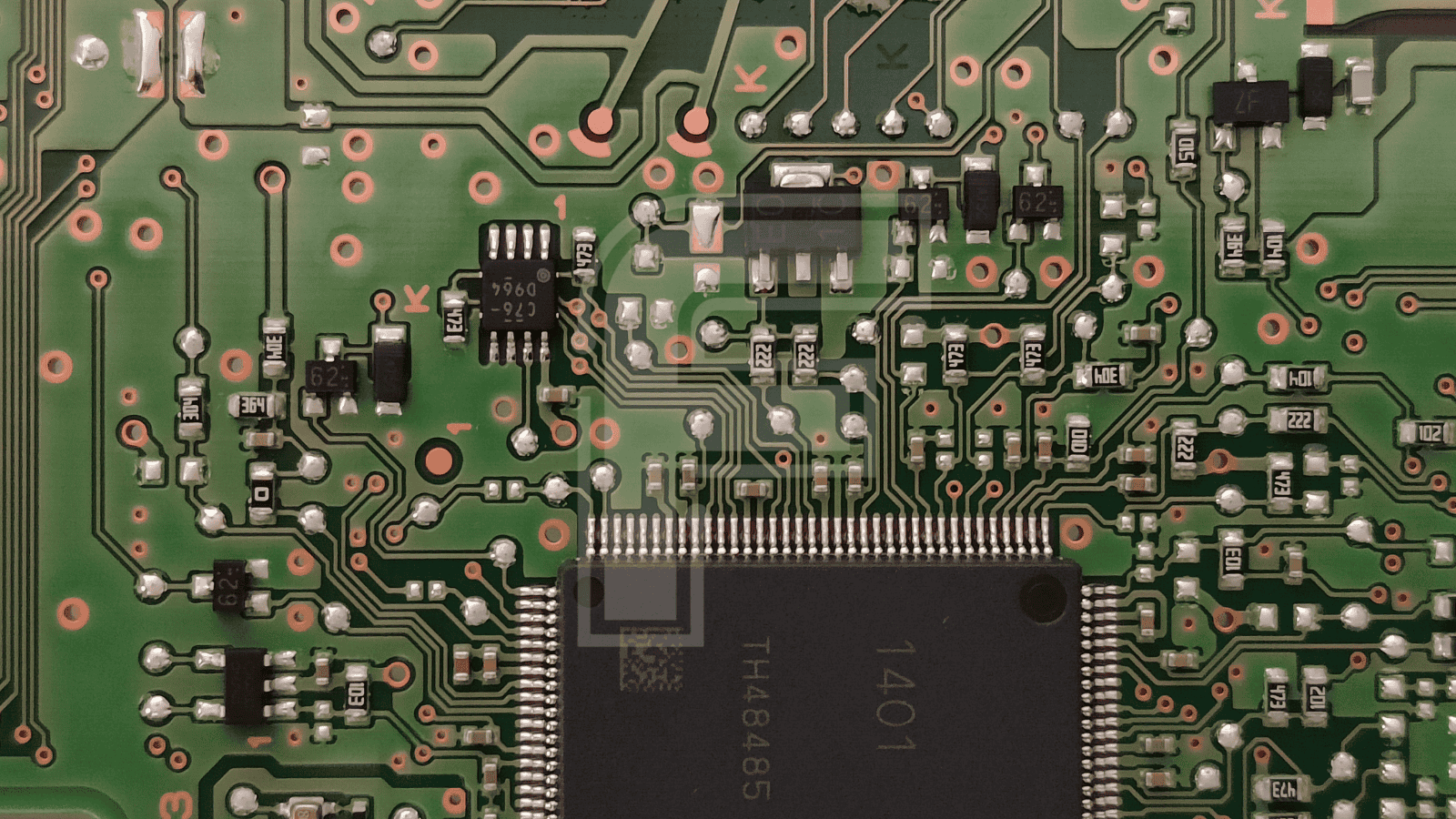

• Data Integrity: The 93C76 MSOP stores critical configuration and odometer reading data. Corrupting this file during a manual read can "brick" the entire system.

FORZA 614 solves this by offering a diagnostic way workflow. You don't need to struggle with needles or eeprom removing.

MAZDA CX-5 Cluster assy - how it's made?

Accurate Mileage Odometer Reset and EEPROM Programming

Whether you are performing a cluster replacement or fixing corrupted data, FORZA 614 gives you full control over the EEPROM 93C76:

• Full eeprom Read/Write: Access the entire memory to ensure 100% data backup.
• Odometer Reset Function: Essential when installing a used unit to match the vehicle’s true mileage.

Work Faster:
OBD2 and Bench Setup with F1+F6 Cables

Time is the most valuable asset in your company. FORZA 614 is designed to get you from "connection" to "job done" in minutes:

1. In the Car: Fast mileage correction and diagnostics via the OBD2 port

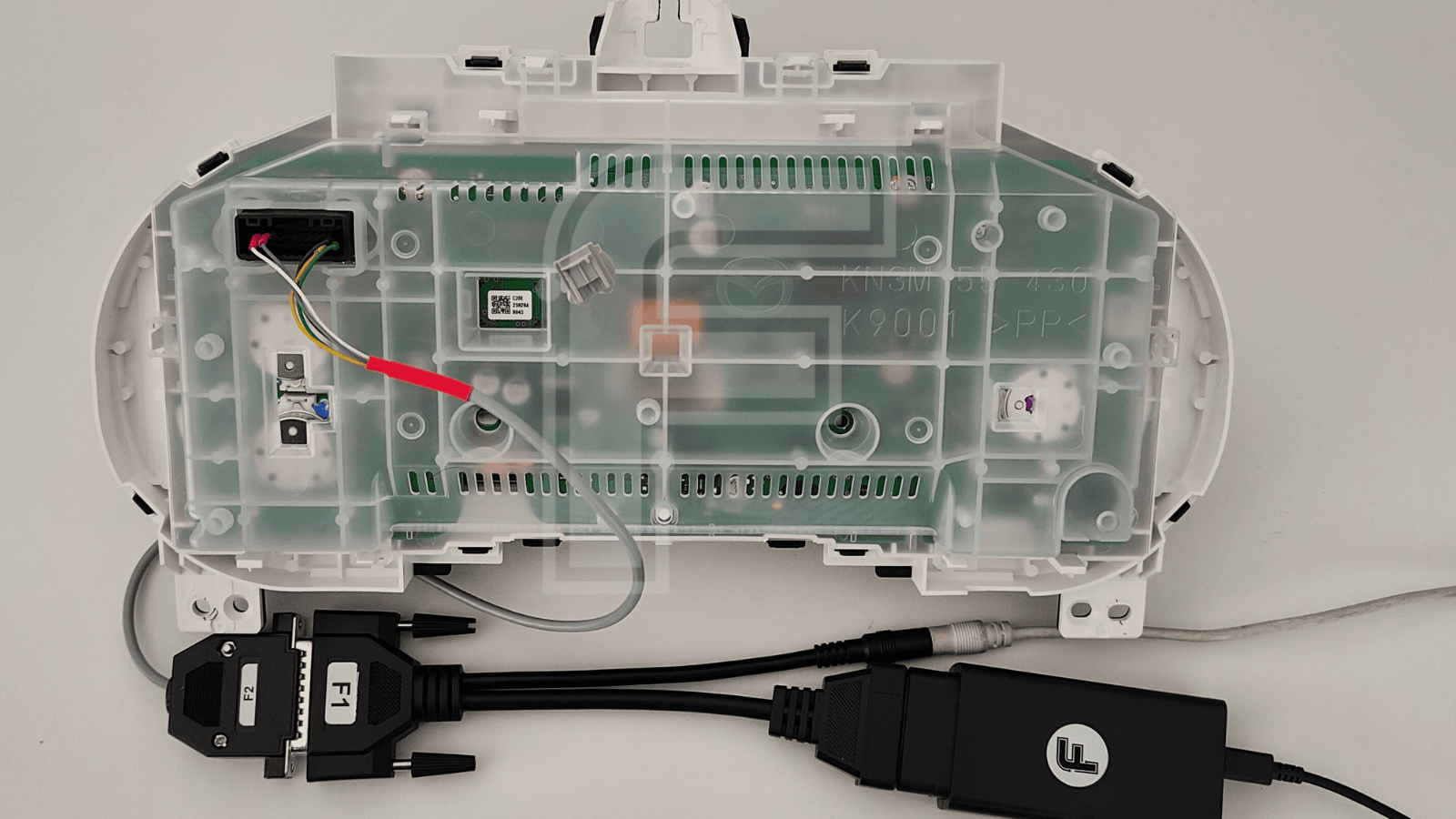

2. On the Bench: Perfect for remotely post-in services. Use the F1+F2 cable system to connect directly to the dash plug
3. Zero Guesswork: No more hunting for pinouts on forums. All connection diagrams and high-quality photos are built into the FORZA 614 PC software

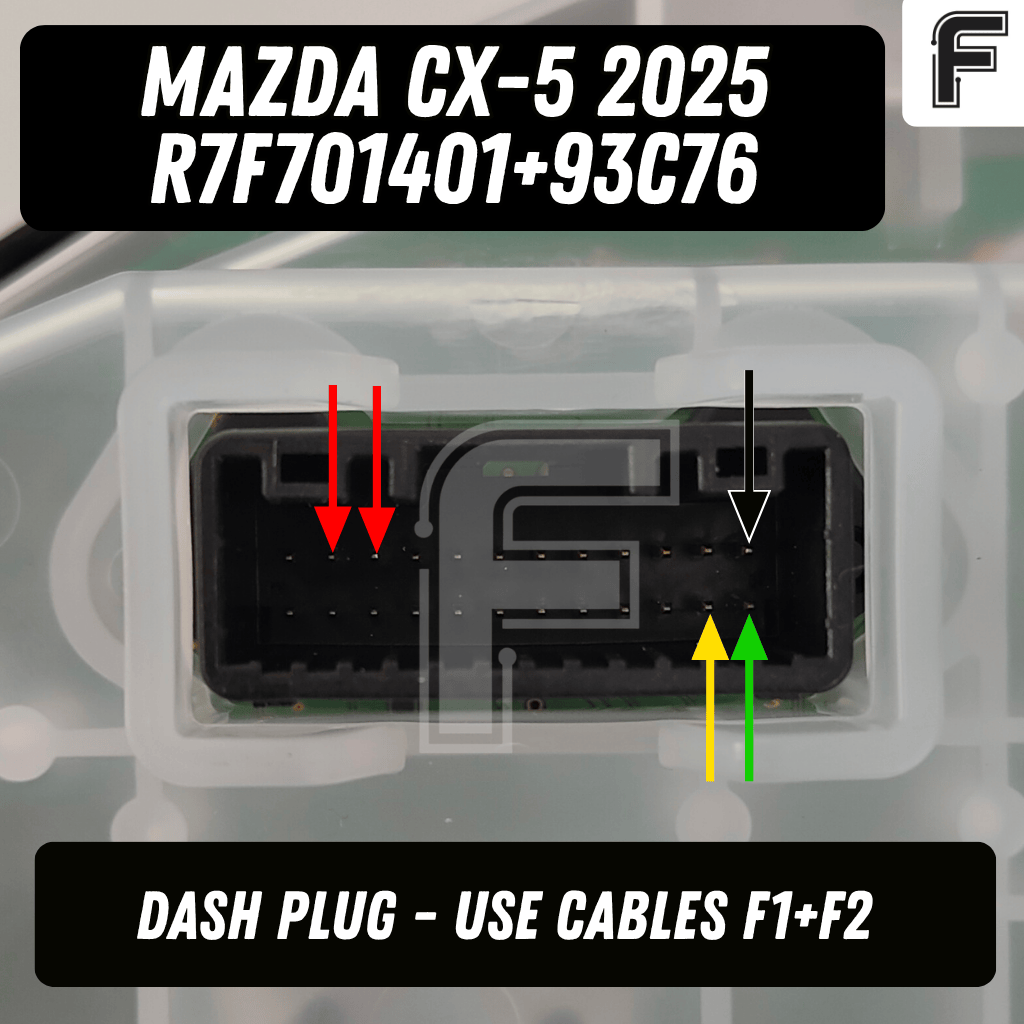

Mazda CX-5 Dashboard Pinout connection

Join the Revolution in Speedometer Repair

The automotive electronics market is shifting. Traditional tools are becoming obsolete as new RH850 processors take over. FORZA 614 is a living system - we release new updates and fresh programs every few days to ensure your repair shop stays ahead of the competition.

Stop risking Mazda clusters with outdated methods. If you value accuracy, safety and a clean way of work, it’s time to upgrade your workbench.

Switch to FORZA 614
